Model # NTN5125BKC1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTN5125BKC1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

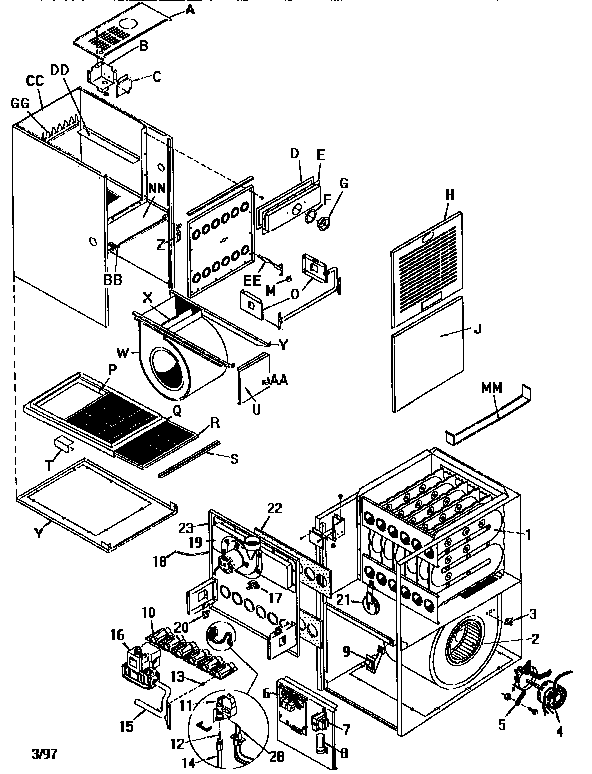

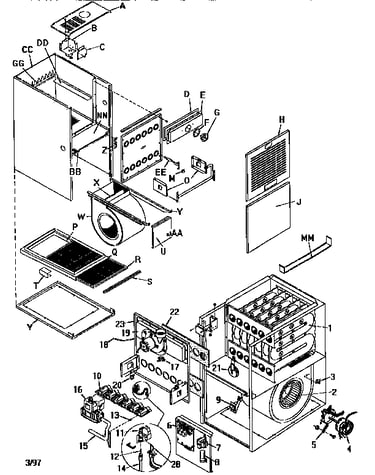

Unit parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
6% OFF Phone Price : $176.19
In Stock
Trans 40 Va 1008782
#7

Unit parts diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Limit Switch 1000735
#3

Unit parts diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Furnace Pilot Burner Bracket 1010901
#M

Unit parts diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
Baffle 707010031
#DD

Unit parts diagram

Baffle

Part #707010031

$49.47
In Stock
Tubing 64930
#14

Unit parts diagram

Tubing

Part #64930

$77.80
In Stock
Panel Cutoff 721020008
#X

Unit parts diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Conv Kit 1009510

#NI

All parts diagram

Conv kit

Part #1009510

$113.20
In Stock
Rail Galv Bl 57059
#BB

Unit parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Conv Kit 1160992

#NI

All parts diagram

Conv kit

Part #1160992

$103.50
In Stock
