Bosch
Microwave/Hood Combo

Model # HMV3022U/02 Official Bosch microwave

Here are the diagrams and repair parts for Official Bosch HMV3022U-02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

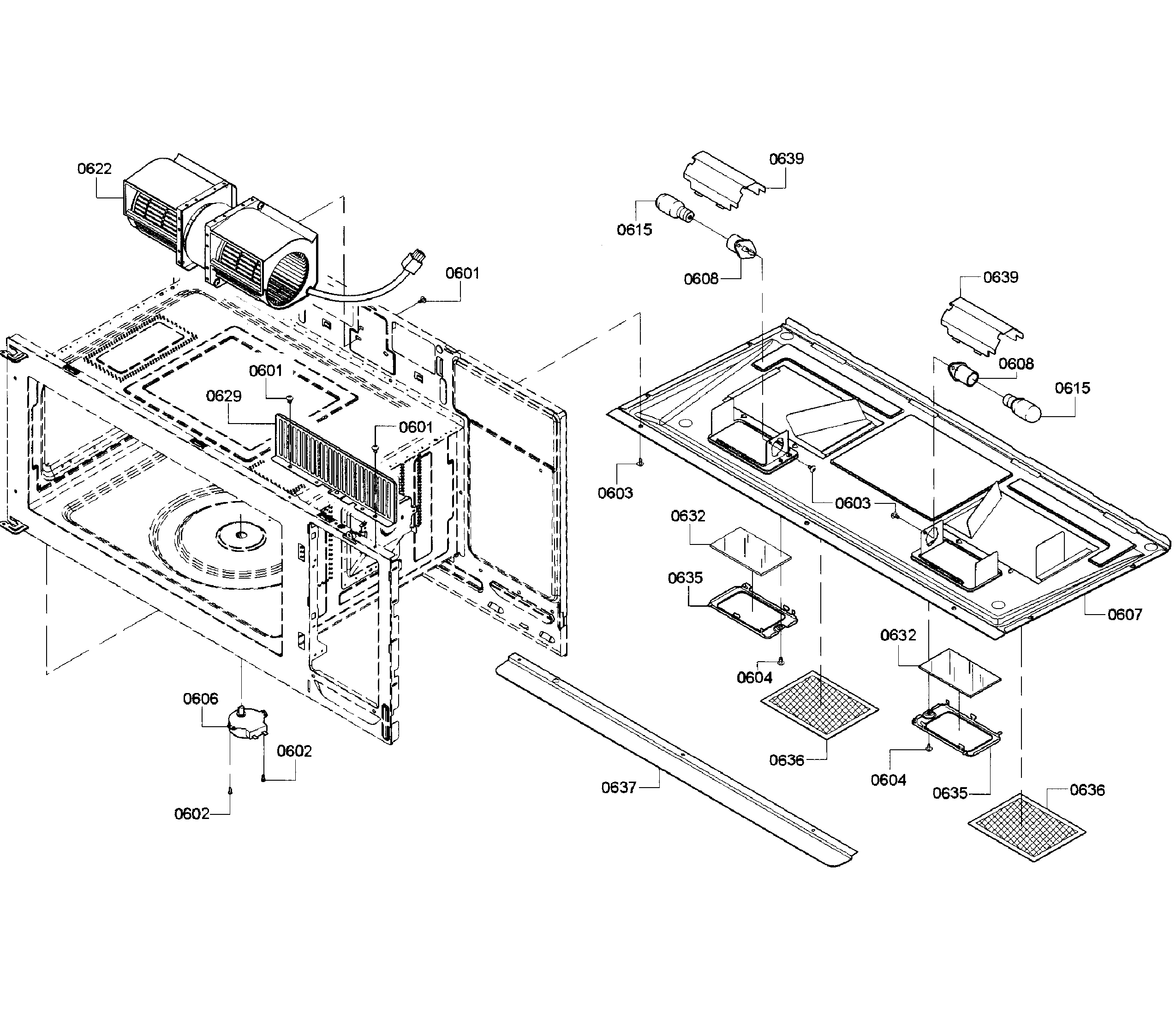

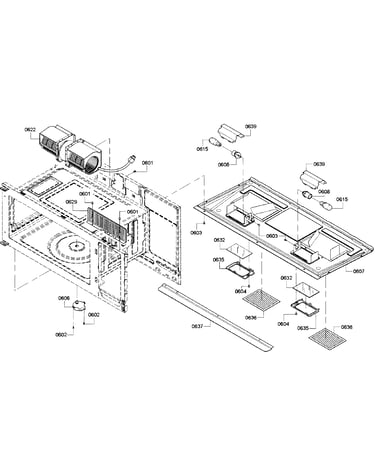

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Microwave Vent Damper (replaces 676149) 00676149
#310

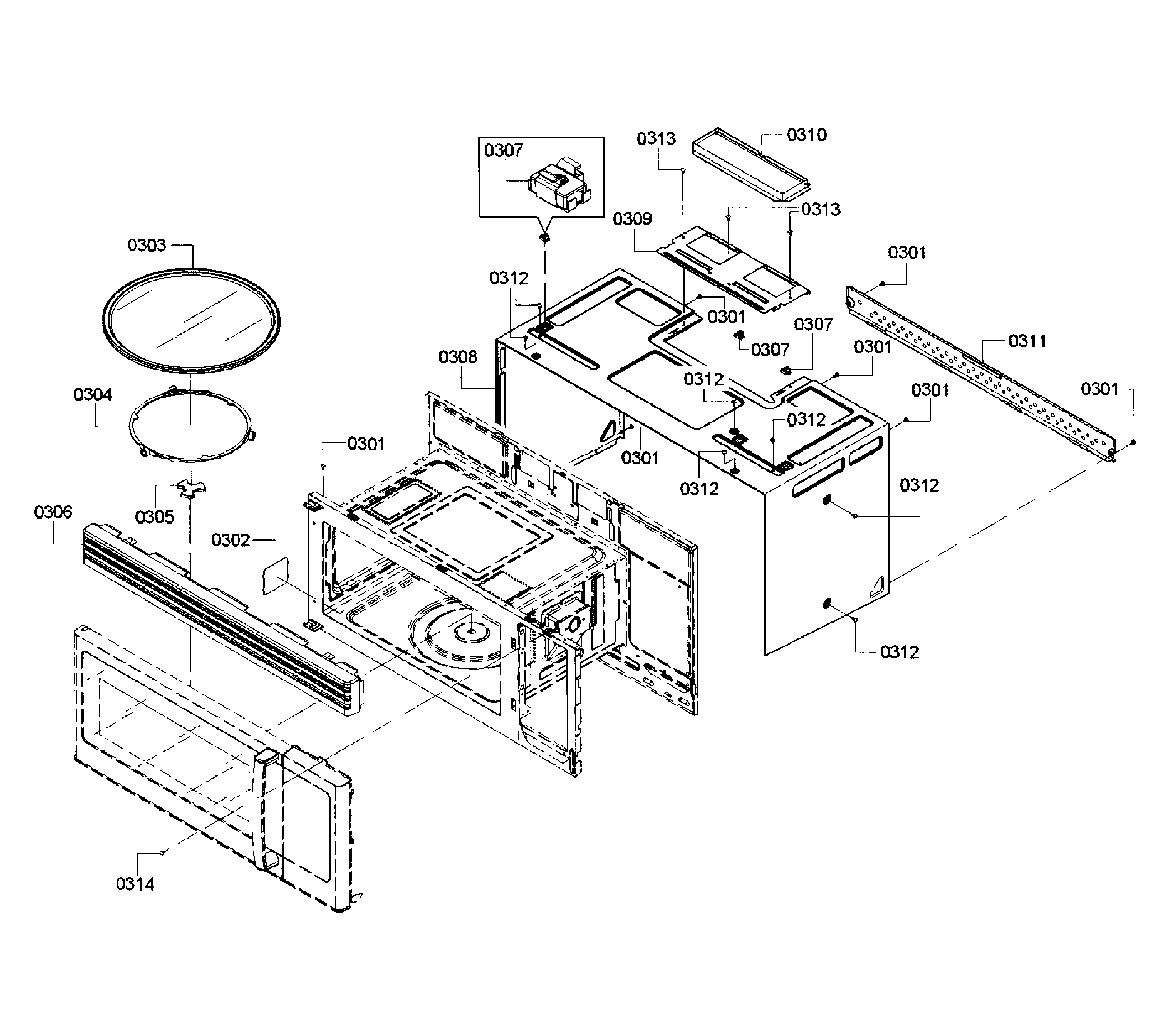

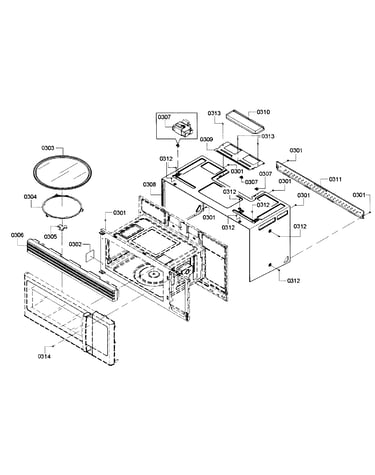

Cavity diagram

Microwave vent damper (replaces 676149)

Part #00676149

This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Microwave Door Interlock Switch (replaces 617229) 00617229
#505

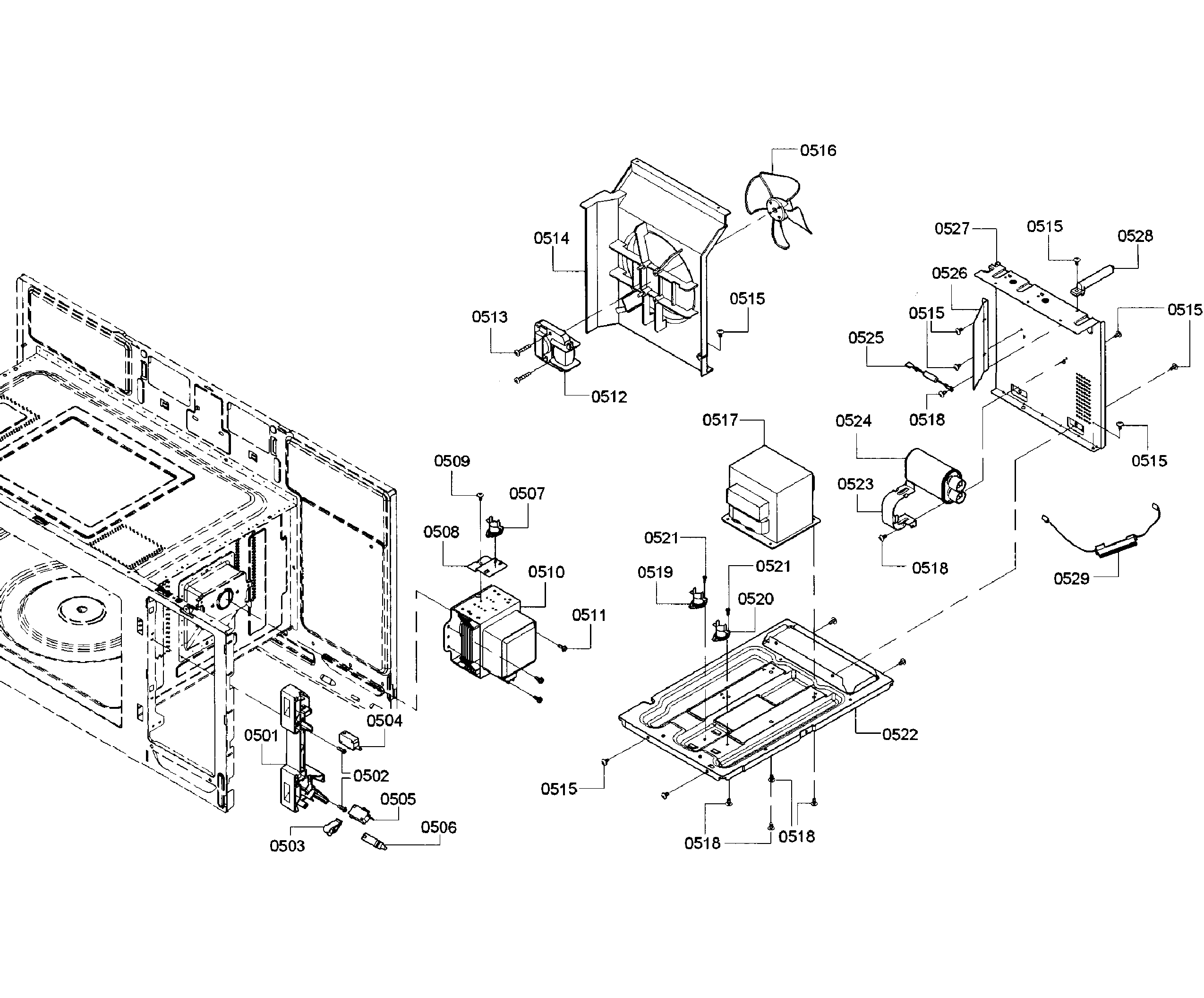

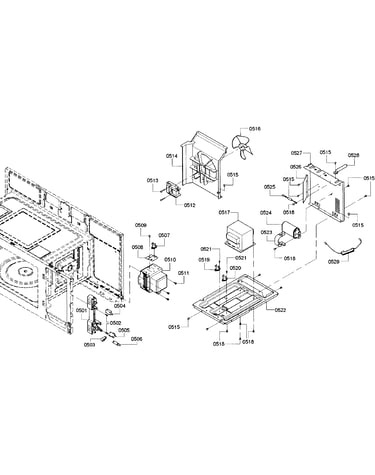

Convection diagram

Microwave door interlock switch (replaces 617229)

Part #00617229

This item is not returnable
$9.89 |
9% OFF Phone Price : $10.89
In Stock
Microwave Fuse (replaces 00617219, 631389) 00631389
#411

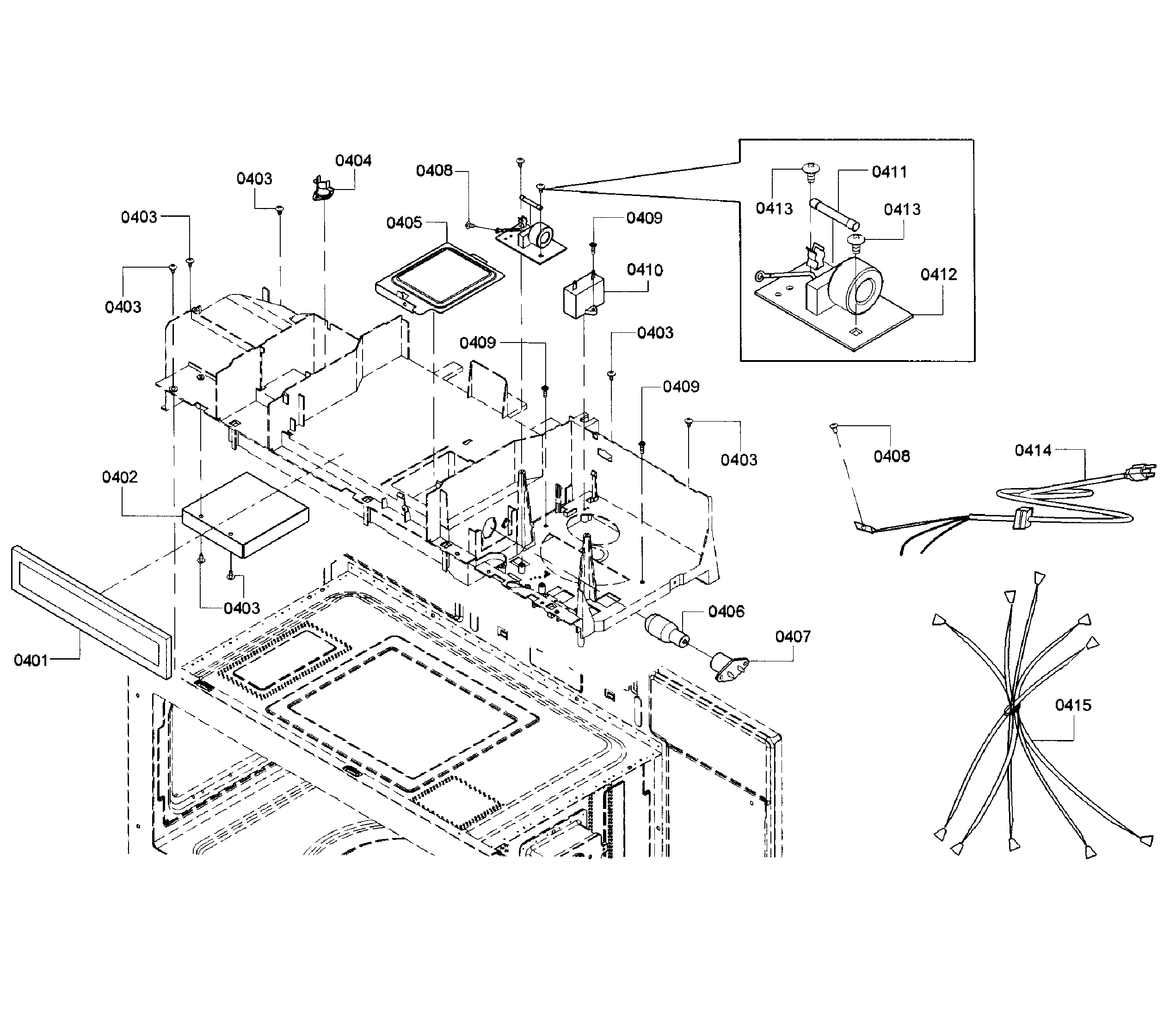

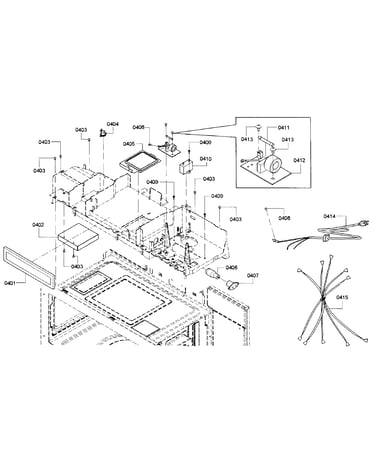

Electrical parts diagram

Microwave fuse (replaces 00617219, 631389)

Part #00631389

This item is not returnable
$3.74
In Stock
Microwave Door Latch 12009439
#501

Convection diagram

Microwave door latch

Part #12009439

Replaced by #00648909

?
Manufacturer substitution
This part replaces 12009439. Substitute parts can look different from the original.
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Lever Switch 00621573
#503

Convection diagram

Lever switch

Part #00621573

This item is not returnable
$4.49
In Stock
Microwave Door Interlock Switch 00617230
#506

Convection diagram

Microwave door interlock switch

Part #00617230

$19.59 |
9% OFF Phone Price : $21.59
In Stock
Microwave Door Latch Hook 00621569
#204

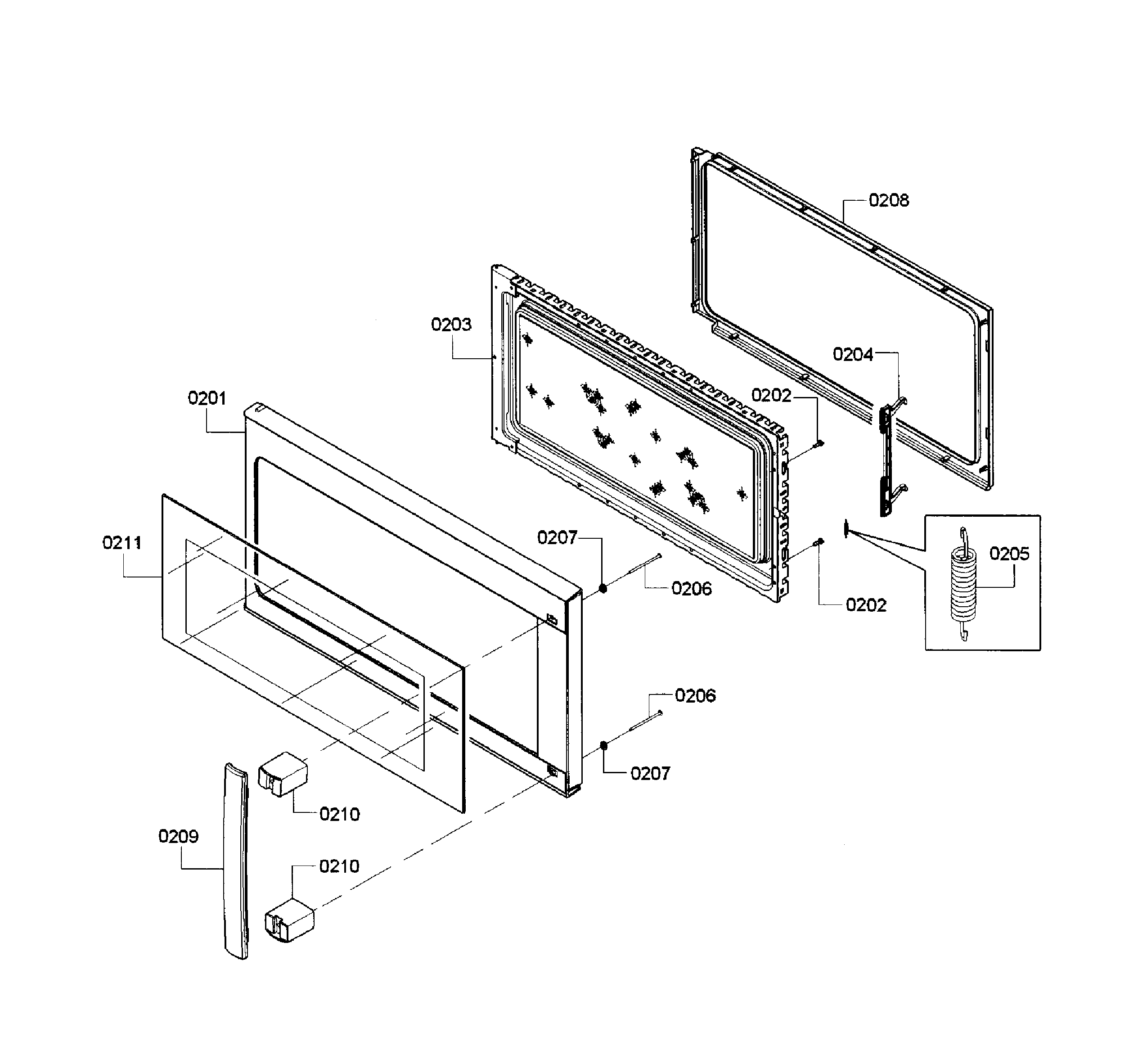

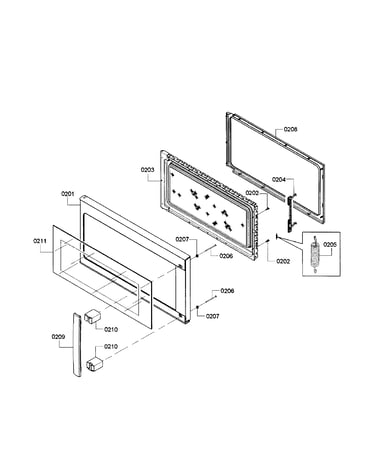

Door diagram

Microwave door latch hook

Part #00621569

$26.82
In Stock
Microwave Fuse 00620531
#529

Convection diagram

Microwave fuse

Part #00620531

$8.40
In Stock
Microwave Electronic Control Board 00755525
#107

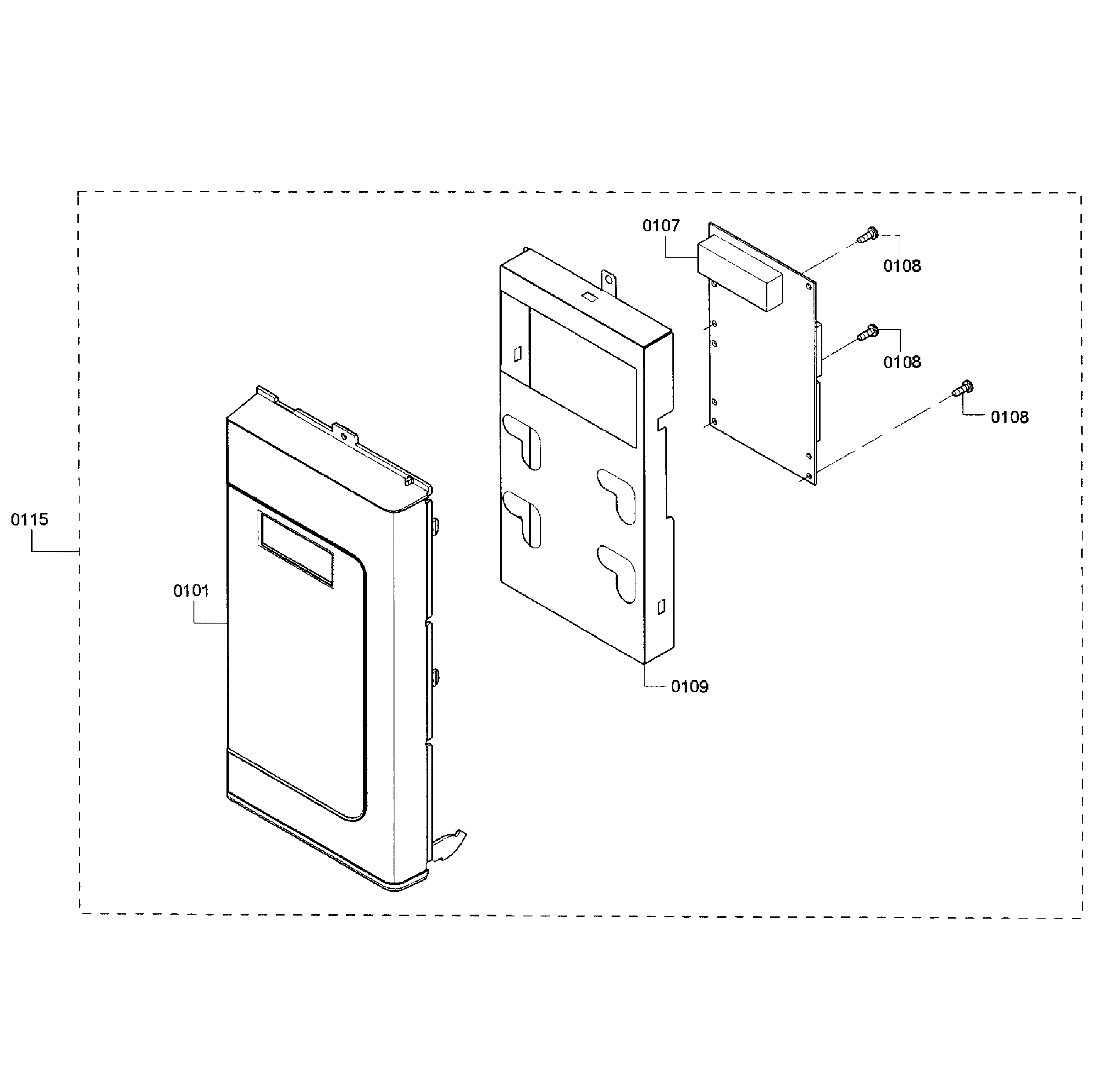

Control panel diagram

Microwave electronic control board

Part #00755525

$185.49 |
5% OFF Phone Price : $195.49
In Stock
Microwave/hood Frame 00683854
#208

Door diagram

Microwave/hood frame

Part #00683854

$26.97
In Stock
