Sharp AF-R80DX air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-R80DX air conditioner, as well as links to manuals and error code tables, if available.

Sharp AF-R80DX air conditioner

By Schematic

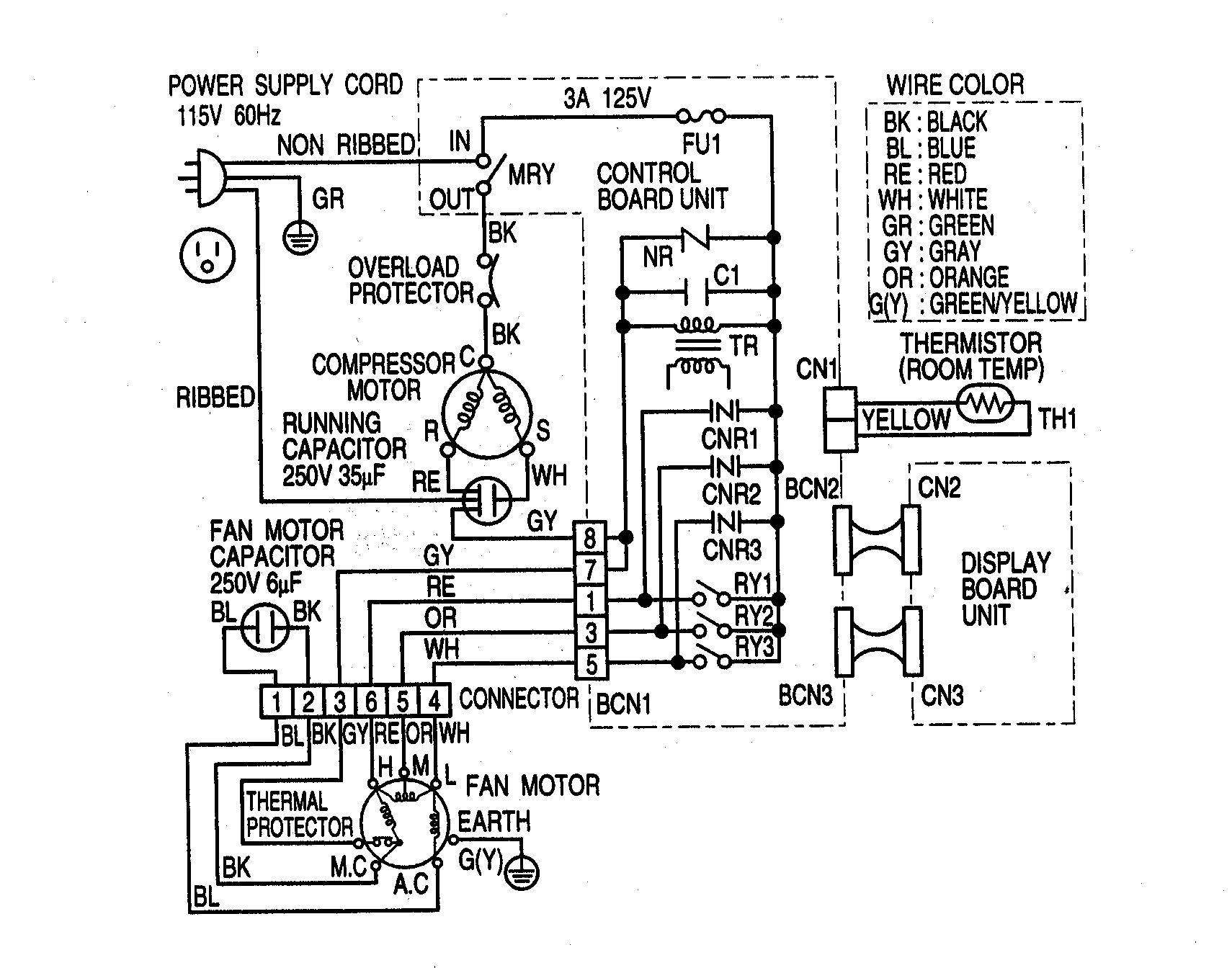

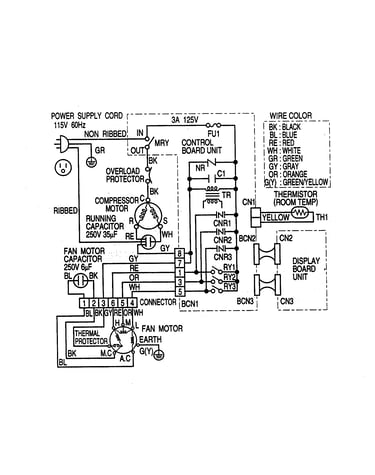

SELECT DIAGRAM

Browse Parts for AF-R80DX Air Conditioner

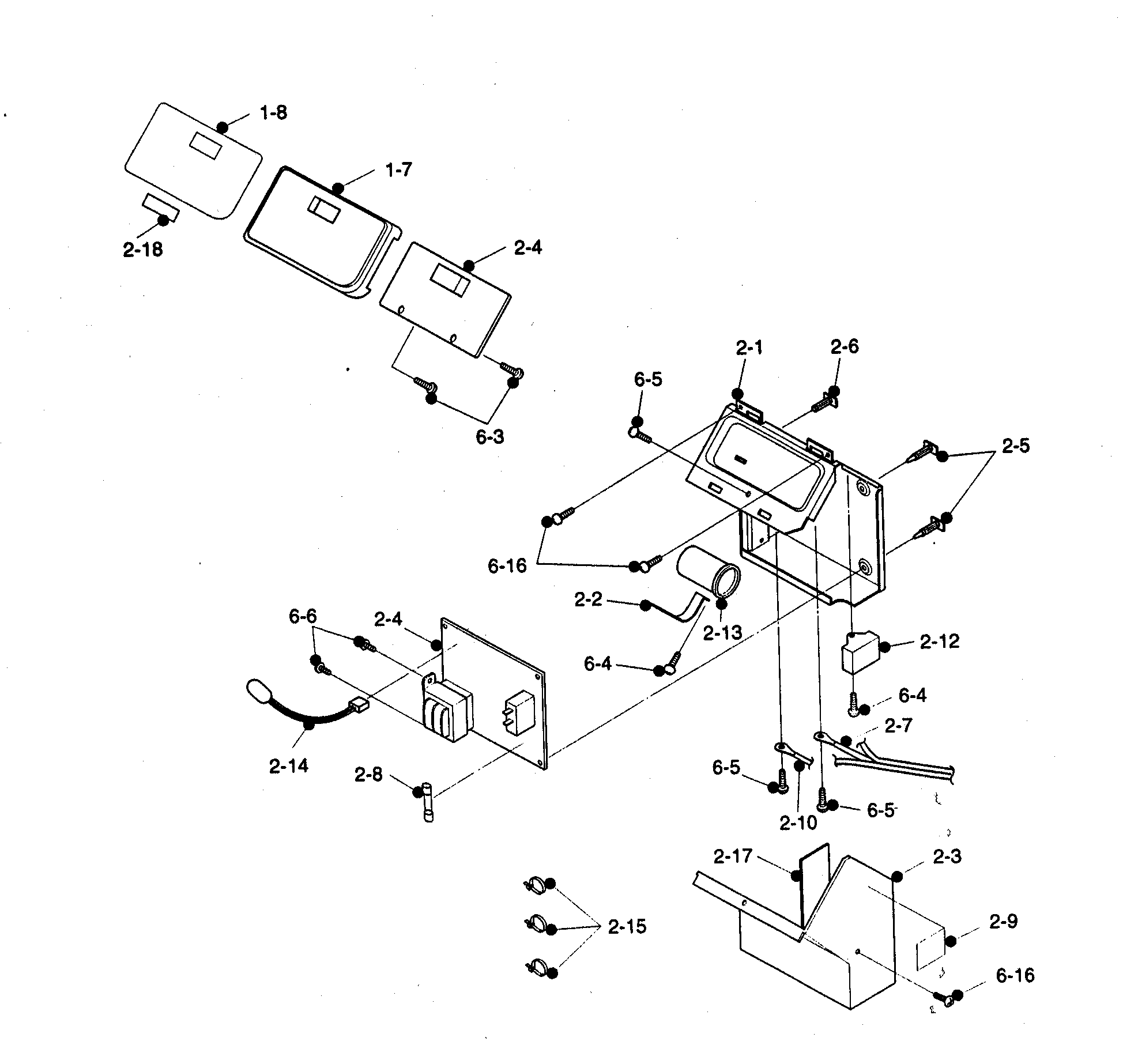

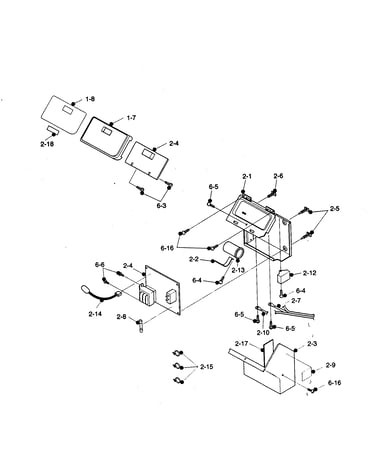

Control box diagram
Control Panel
Part #HPNLCA805JBFE
The manufacturer no longer makes this part, and there's no substitute part

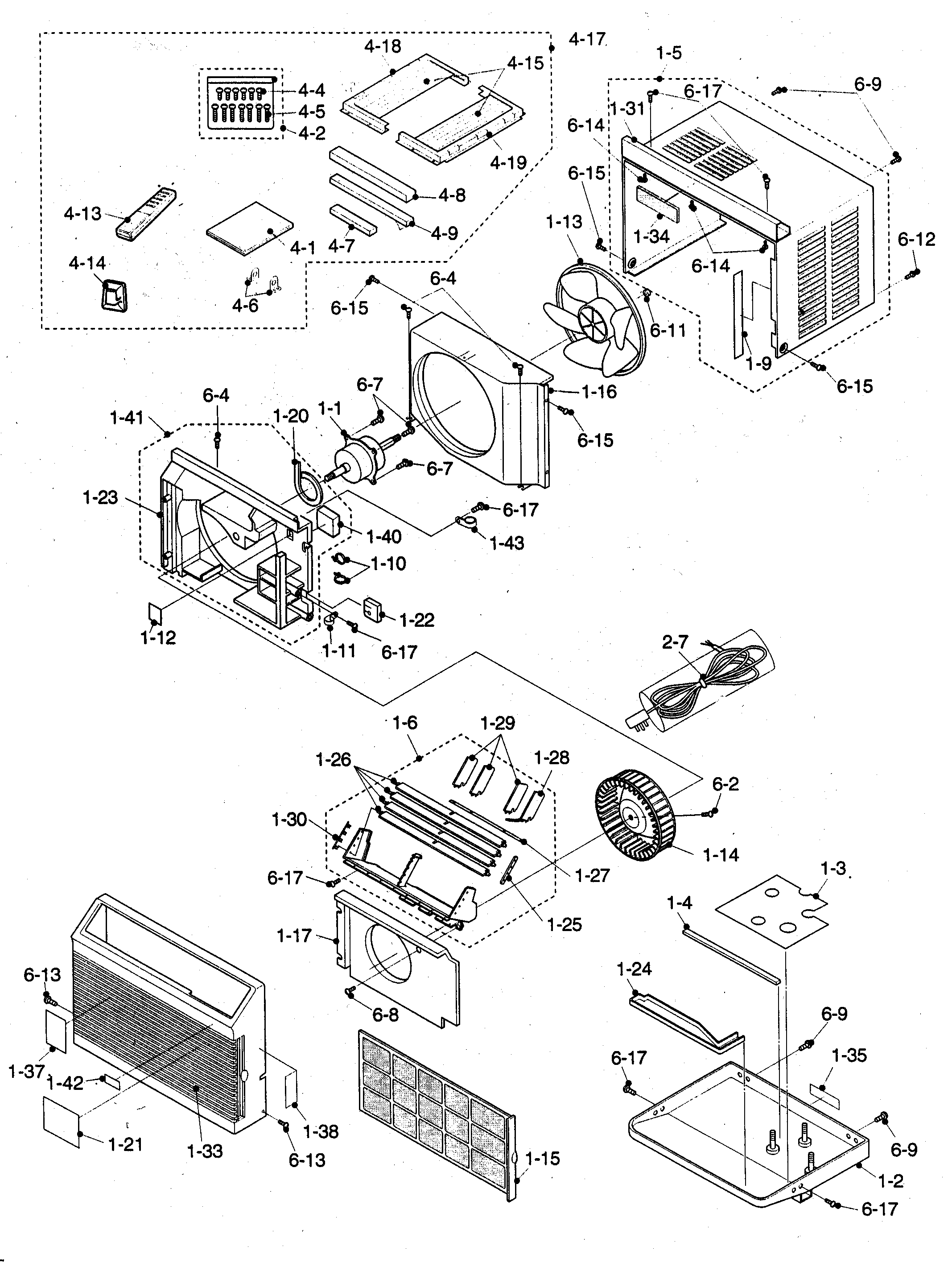

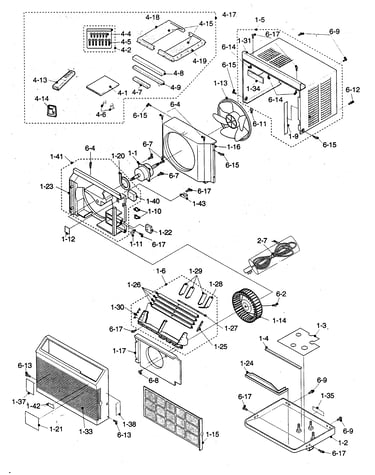

Cabinet parts diagram
Insulator
Part #PSEL-B845JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Comp Cushion
Part #PFPFPB745JBE0
The manufacturer no longer makes this part, and there's no substitute part

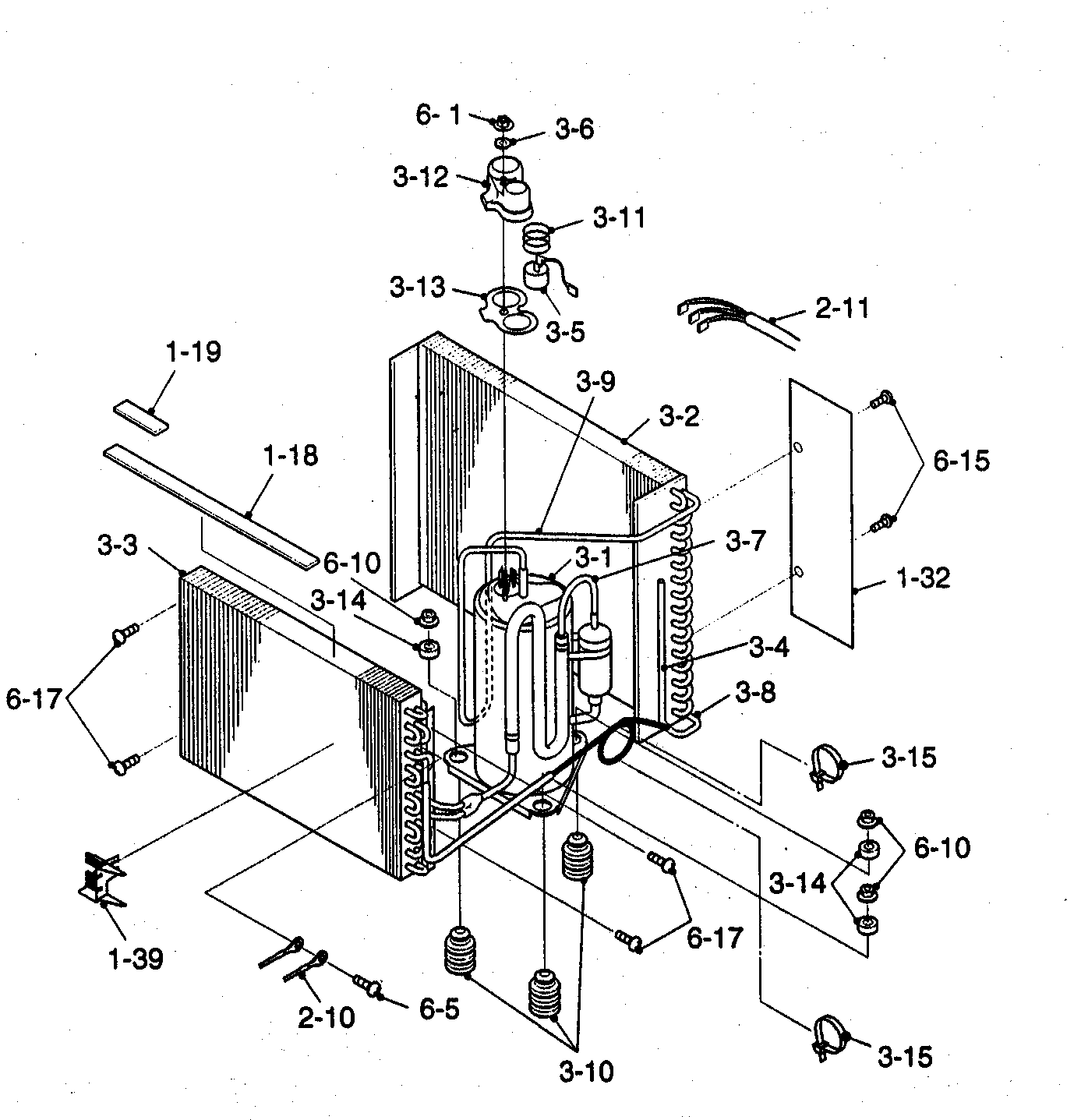

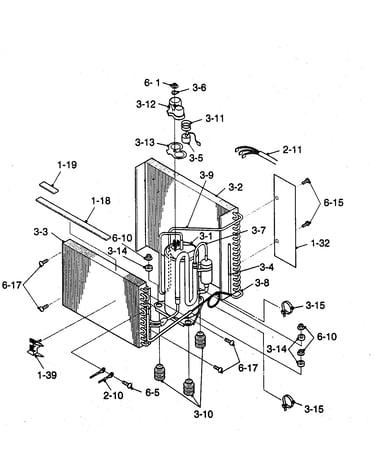

Cycle parts diagram
Sharp Capillary Tube Assembly
Part #DCPY-A292JBKZ
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Seal
Part #PSEL-A994JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Discharge Tube
Part #PPIPCG145JB1Z
The manufacturer no longer makes this part, and there's no substitute part
Control box diagram
Angle Assembly
Part #DPLT-A056JBWZ
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Front Panel
Part #GWAKPA151JBFC
The manufacturer no longer makes this part, and there's no substitute part
Seal
Part #PSEL-B161JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Bulkhead Assembly
Part #DSKR-A124JBKZ
The manufacturer no longer makes this part, and there's no substitute part
