Kenmore
Countertop Microwave

Model # 7218952290 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218952290 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Switch 502446
#4002

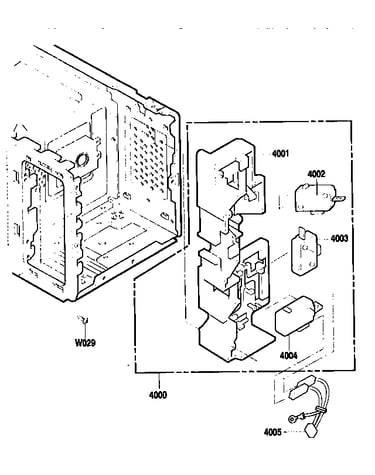

Latch board diagram

Switch

Part #502446

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 502446. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Lamp 505975
#5013

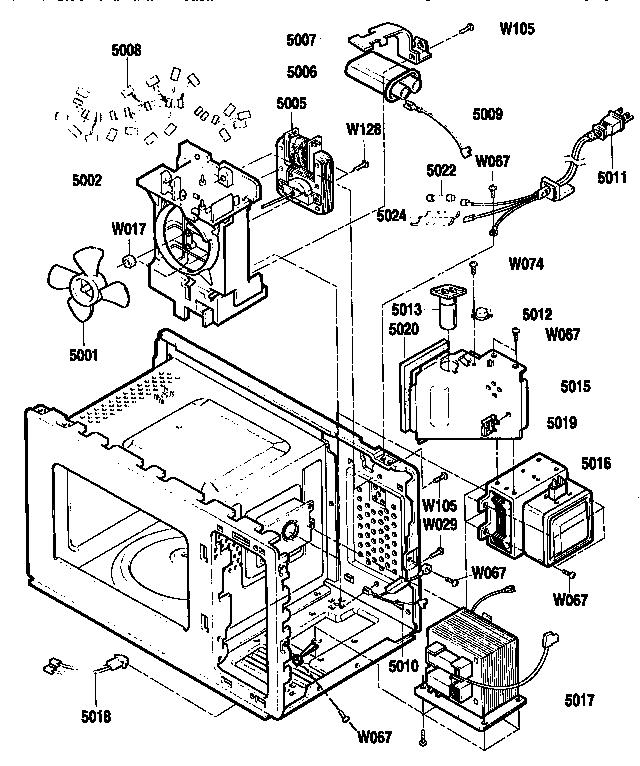

Oven interior diagram

Lamp

Part #505975

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 505975. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Shaft 503315
#3009

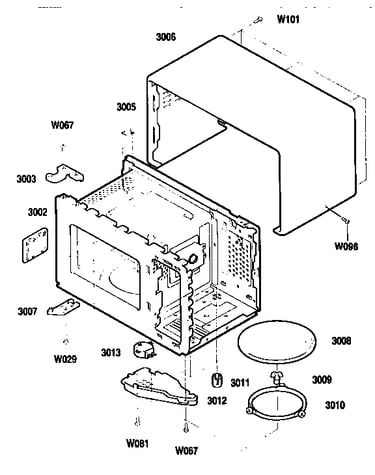

Oven cavity diagram

Shaft

Part #503315

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 503315. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Pan Head T 502612
#W081

Oven cavity diagram

Pan head t

Part #502612

Replaced by #1TPL0402418

?
Manufacturer substitution
This part replaces 502612. Substitute parts can look different from the original.
This item is not returnable
$18.83
In Stock
Microwave High-voltage Capacitor 505181
#5006

Oven interior diagram

Microwave high-voltage capacitor

Part #505181

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500029
#R19

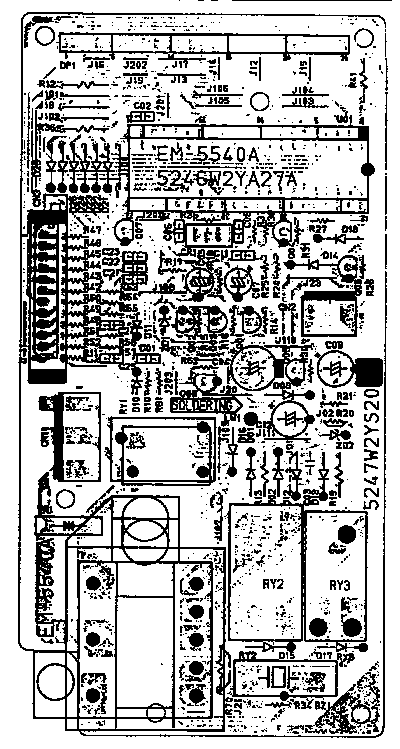

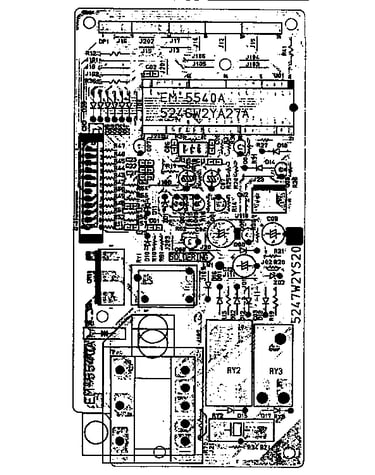

Power and control circuit board diagram

Resistor

Part #500029

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 505959
#3005

Oven cavity diagram

Thermostat

Part #505959

Replaced by #6930WRT001A

?
Manufacturer substitution
This part replaces 505959. Substitute parts can look different from the original.
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Resistor 504920
#R31

Power and control circuit board diagram

Resistor

Part #504920

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 500081
#5022

Oven interior diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part

Screw 500063
#W074

Oven interior diagram

Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part
