Model #706654190 Craftsman 10-drawer tool chest

Here are the diagrams and repair parts for Craftsman 706654190 10-drawer tool chest, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 9 of 9 parts

|

Tool Chest Drawer Slide

#4

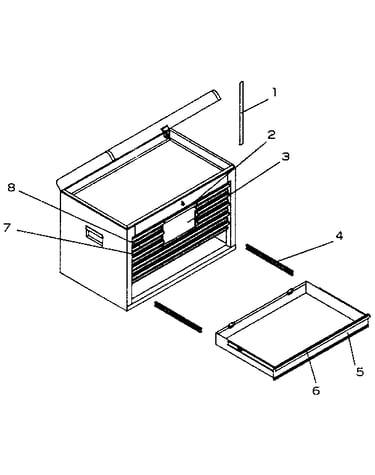

Unit parts Diagram

Tool chest drawer slide

Part #T14153A3

The manufacturer no longer makes this part, and there's no substitute part

Drawer Pull

#6

Unit parts Diagram

Drawer pull

Part #T13840A13

The manufacturer no longer makes this part, and there's no substitute part

Weldment

#5

Unit parts Diagram

Weldment

Part #A8649RED

The manufacturer no longer makes this part, and there's no substitute part

Weldment

#7

Unit parts Diagram

Weldment

Part #A8653RED

The manufacturer no longer makes this part, and there's no substitute part

Instruction Sheet

#NI

All parts Diagram

Instruction sheet

Part #F420

The manufacturer no longer makes this part, and there's no substitute part

Pull Drwr

#8

Unit parts Diagram

Pull drwr

Part #T13840A3

The manufacturer no longer makes this part, and there's no substitute part

Drawer Pull

#2

Unit parts Diagram

Drawer pull

Part #T13840A8

The manufacturer no longer makes this part, and there's no substitute part

Weldment

#3

Unit parts Diagram

Weldment

Part #A8648RED

The manufacturer no longer makes this part, and there's no substitute part

Lock Bar

#1

Unit parts Diagram

Lock bar

Part #T13876A1

The manufacturer no longer makes this part, and there's no substitute part

Showing 9 of 9 parts
