Model # C4275 Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover C4275 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
B-1200 Kit 1-061002- (non-illus) 59133163
#21E

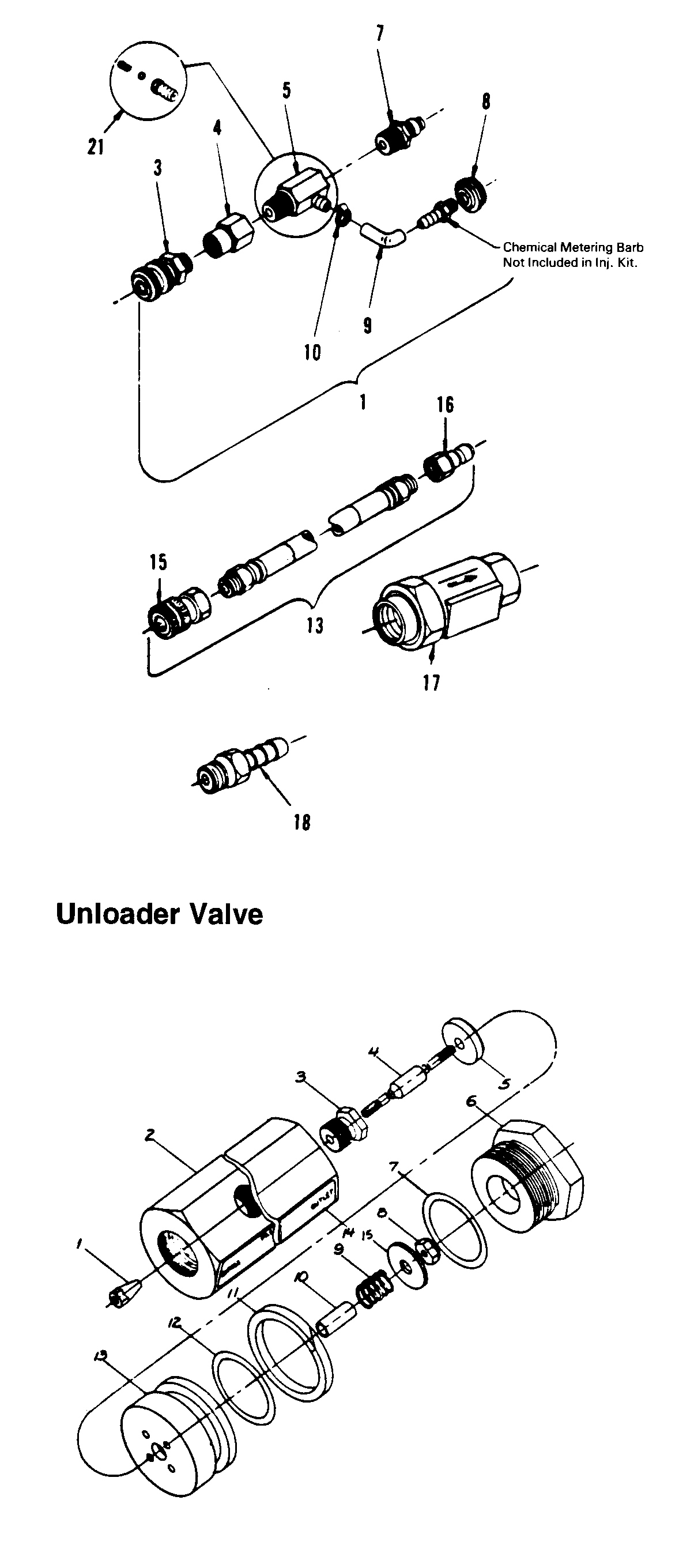

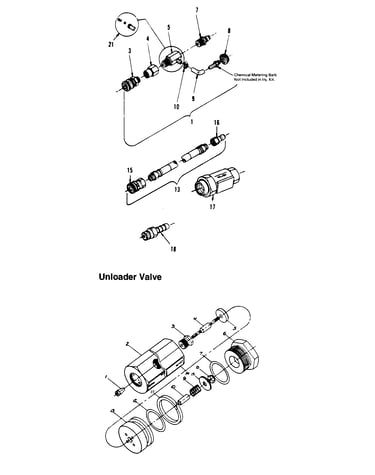

Unloadervalve diagram

B-1200 kit 1-061002- (non-illus)

Part #59133163

The manufacturer no longer makes this part, and there's no substitute part

Hose Comp-black 60-h Black, 60'- C4275, C4277 59133023
#13D

Unloadervalve diagram

Hose comp-black 60-h black, 60'- c4275, c4277

Part #59133023

The manufacturer no longer makes this part, and there's no substitute part

Sealant-loctite 242- 59133109
#21

Unloadervalve diagram

Sealant-loctite 242-

Part #59133109

The manufacturer no longer makes this part, and there's no substitute part

Injector Kit-063000- 59133193
#21A

Unloadervalve diagram

Injector kit-063000-

Part #59133193

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp-037002-hy Hose Clamp Sae #6 59133090
#3

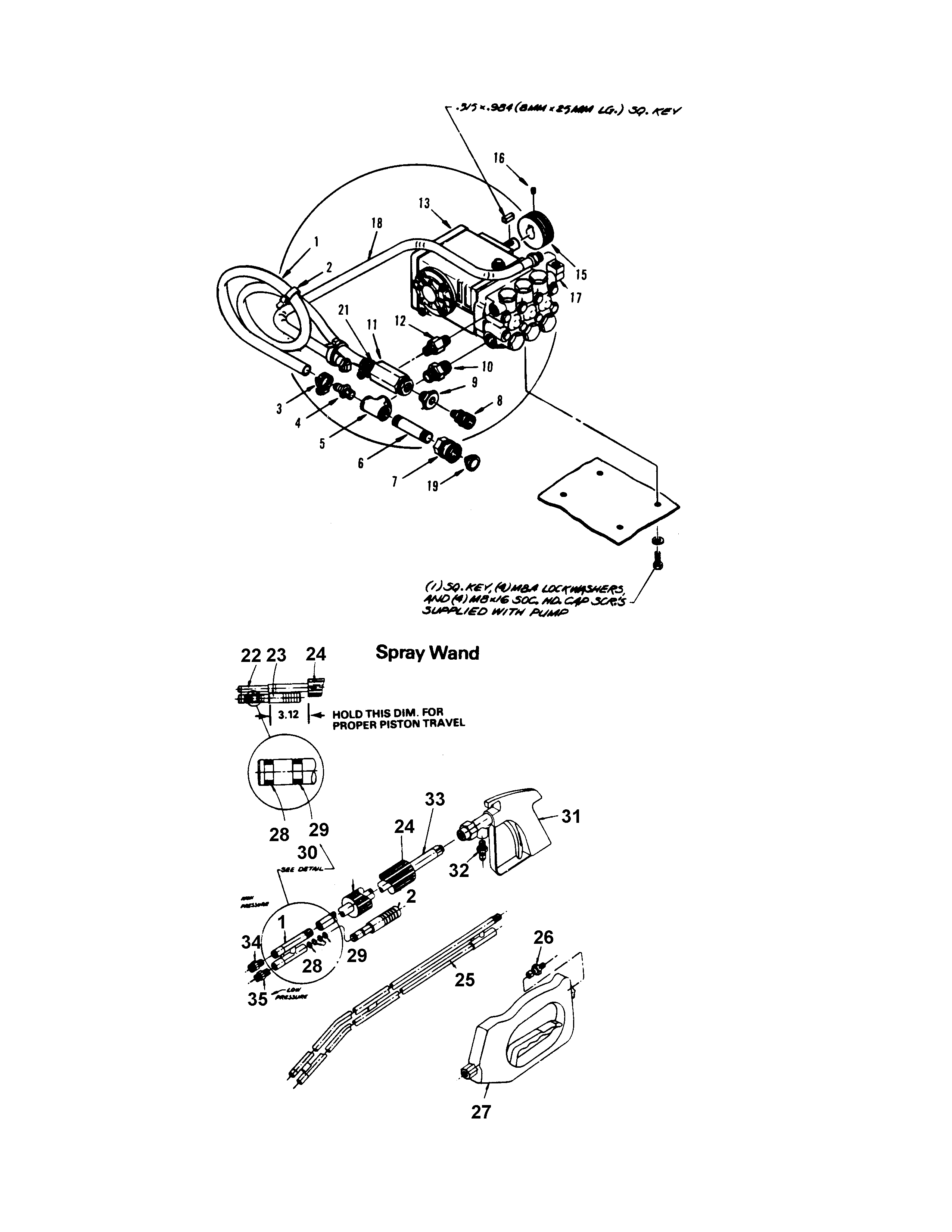

Spraygun diagram

Hose clamp-037002-hy hose clamp sae #6

Part #59133090

The manufacturer no longer makes this part, and there's no substitute part

Decal-outlet-001513- Decal, Outlet 59133081
#63

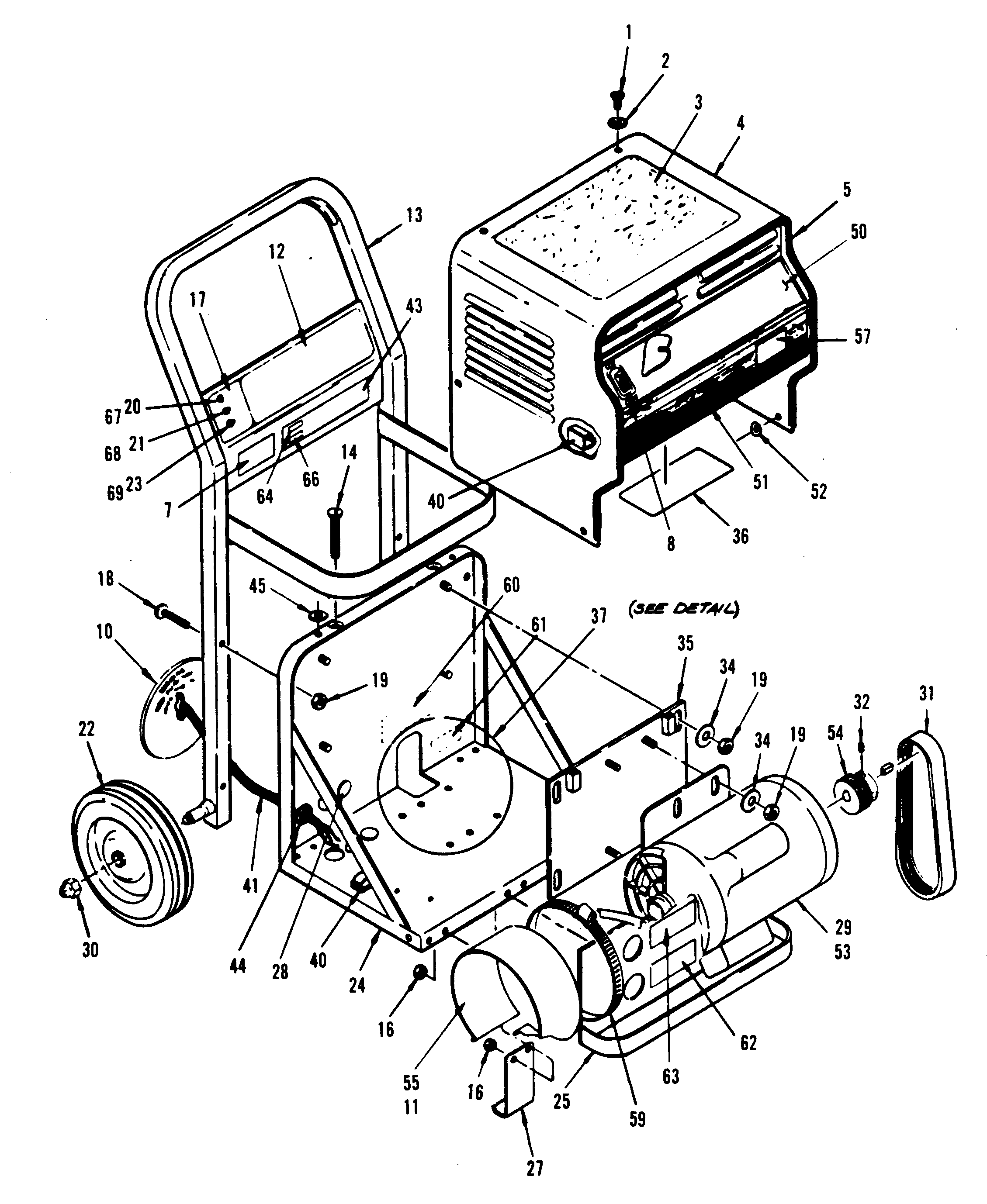

Motor assembly, mainassembly diagram

Decal-outlet-001513- decal, outlet

Part #59133081

The manufacturer no longer makes this part, and there's no substitute part

Motor-028006-hyt Motor, 3/4 H. P. - C4275 59133072
#53

Motor assembly, mainassembly diagram

Motor-028006-hyt motor, 3/4 h. p. - c4275

Part #59133072

The manufacturer no longer makes this part, and there's no substitute part

Coupler-005010-hyt 59133095
Coupler-005010-hyt

Part #59133095

The manufacturer no longer makes this part, and there's no substitute part

High Pressure Nozzle 1508, C4279 59133018
#34B

Spraygun diagram

High pressure nozzle 1508, c4279

Part #59133018

The manufacturer no longer makes this part, and there's no substitute part

Kit 27-060016 - 1 Se Kit-27 (packing Kit) (incl. It Ems 12,13,14,15,16) (non-illus) 59133152
#52F

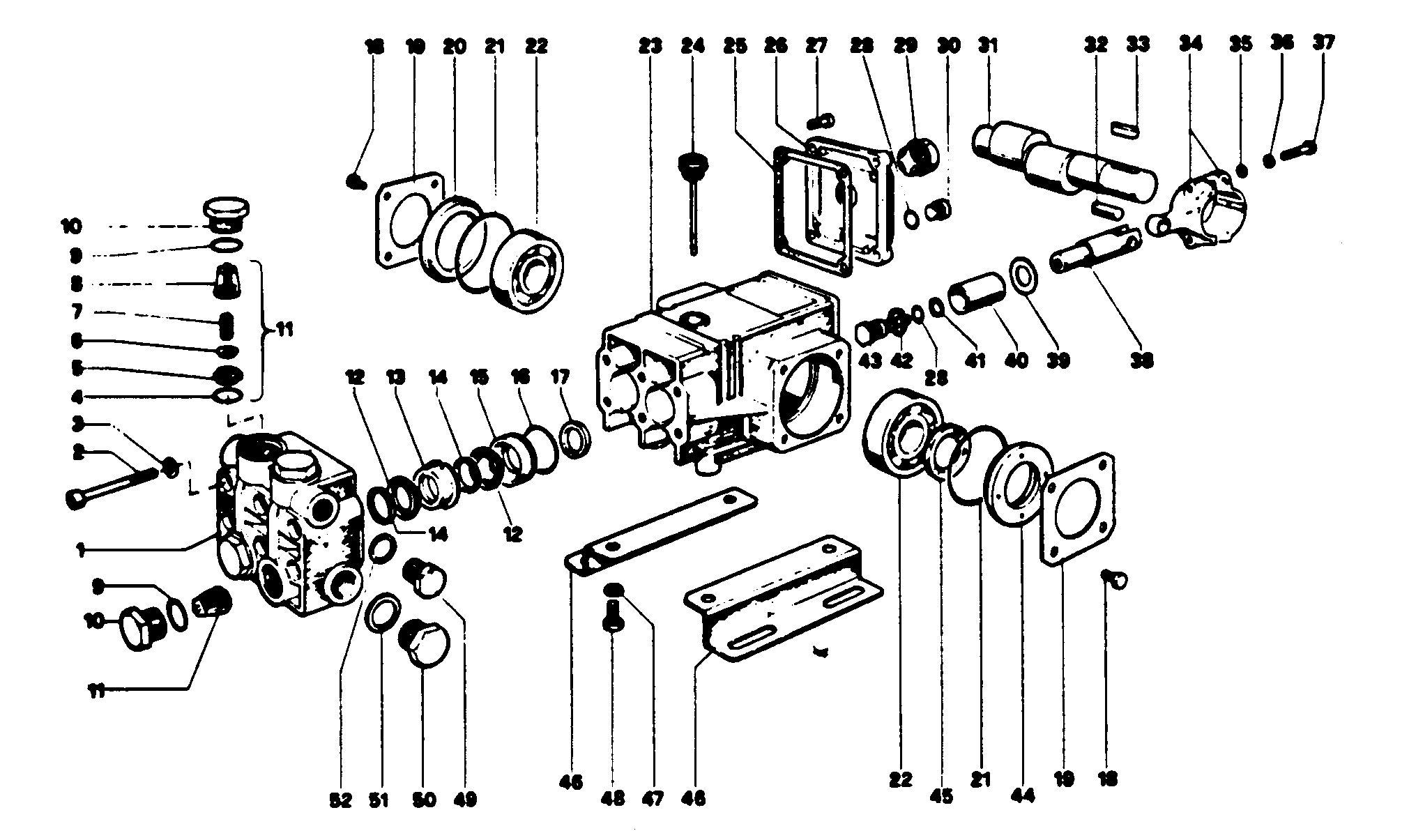

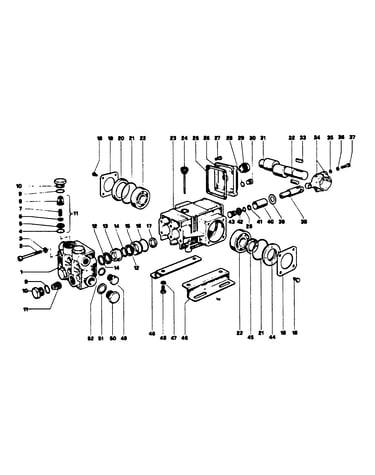

Pump diagram

Kit 27-060016 - 1 se kit-27 (packing kit) (incl. it ems 12,13,14,15,16) (non-illus)

Part #59133152

The manufacturer no longer makes this part, and there's no substitute part
