Model # 113213842 Official Craftsman 13" floor model drill press

Here are the diagrams and repair parts for Official Craftsman 113213842 13" floor model drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Screw 805517
#4

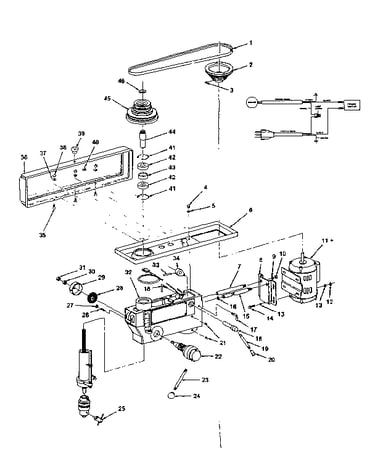

Motor and pulley assembly with guard diagram

Screw

Part #805517

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Fence Knob 71339
#24

Motor and pulley assembly with guard diagram

Drill press fence knob

Part #71339

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#14

Motor and pulley assembly with guard diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer STD551031
#13

Motor and pulley assembly with guard diagram

Plain washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 71338
#25

Motor and pulley assembly with guard diagram

Chuck key

Part #71338

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 120238
#10

Motor and pulley assembly with guard diagram

Hex nut

Part #120238

The manufacturer no longer makes this part, and there's no substitute part

Rack 71402
#5

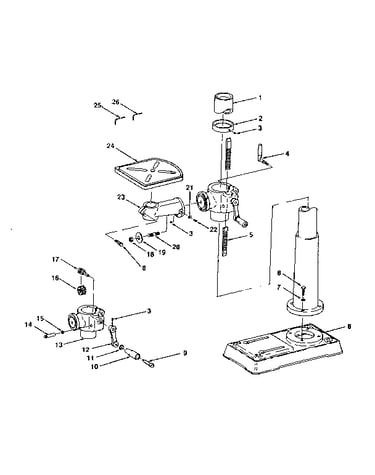

Base assembly diagram

Rack

Part #71402

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#5

Motor and pulley assembly with guard diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Gasket 71331
#12

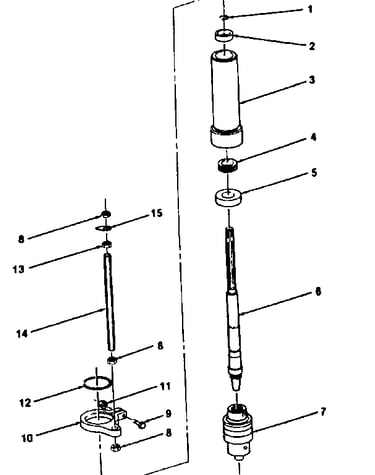

Spindle assembly diagram

Gasket

Part #71331

The manufacturer no longer makes this part, and there's no substitute part

Screw 60520
#26

Motor and pulley assembly with guard diagram

Screw

Part #60520

The manufacturer no longer makes this part, and there's no substitute part
