Model # 217585240 Official Craftsman 3.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585240 3.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

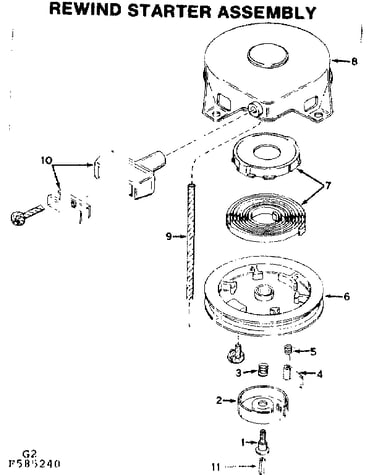

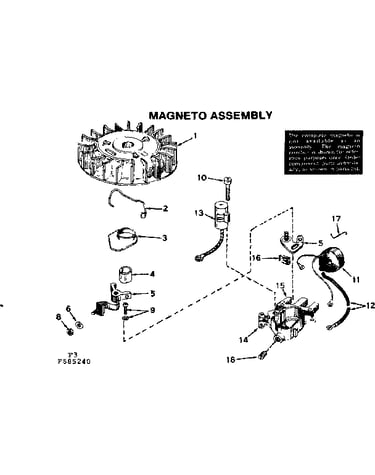

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Gasket 631028
#25

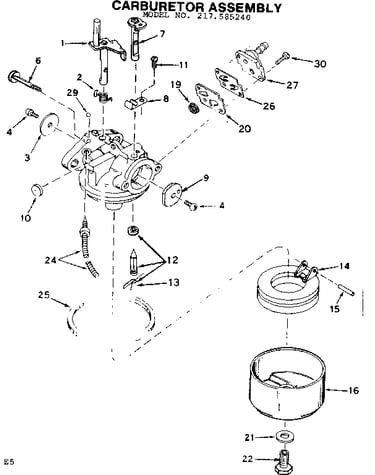

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#26

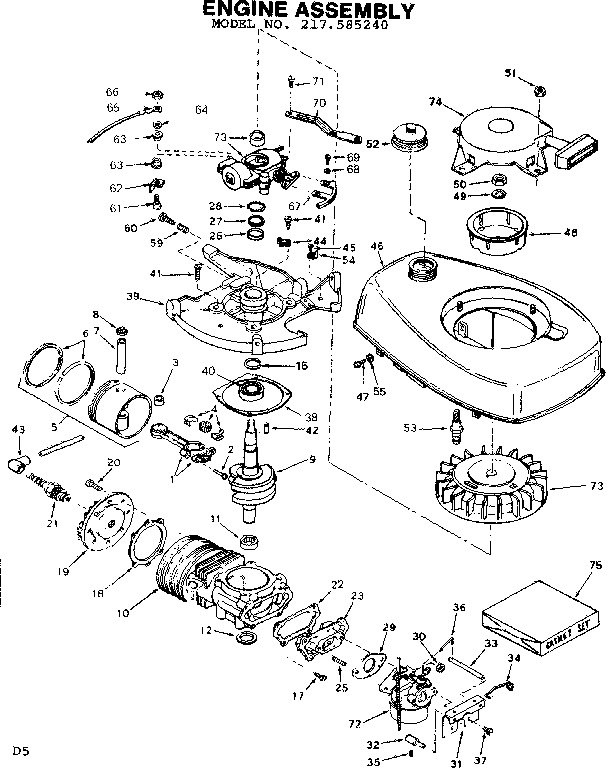

Engine assembly diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Engine Crankshaft Seal Retainer 510106A
#27

Engine assembly diagram

Boat motor engine crankshaft seal retainer

Part #510106A

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109A
#28

Engine assembly diagram

Spring

Part #510109A

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Nut 2213
#4

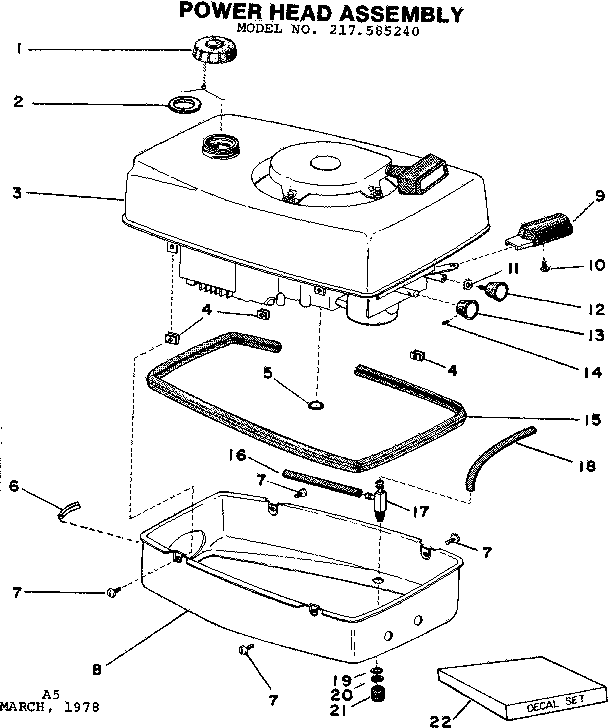

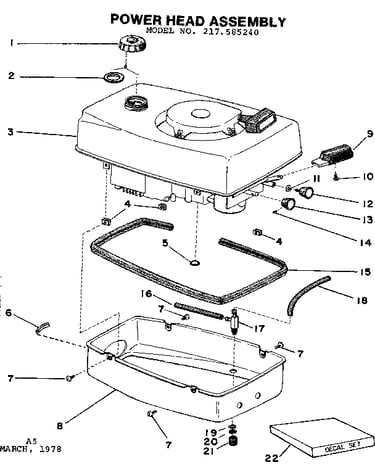

Power head assembly diagram

Boat motor nut

Part #2213

The manufacturer no longer makes this part, and there's no substitute part

Screw 579
#19

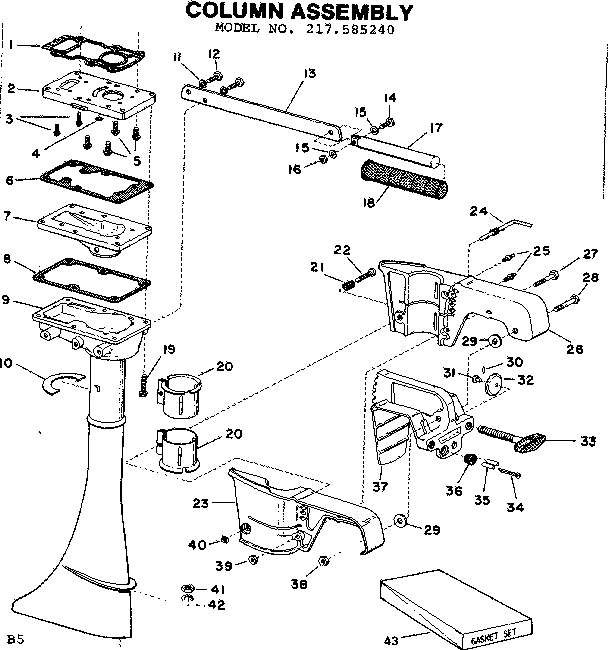

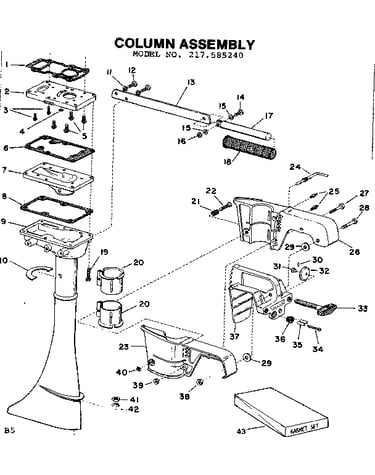

Column assembly diagram

Screw

Part #579

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Gear Housing Gasket 26364
#29

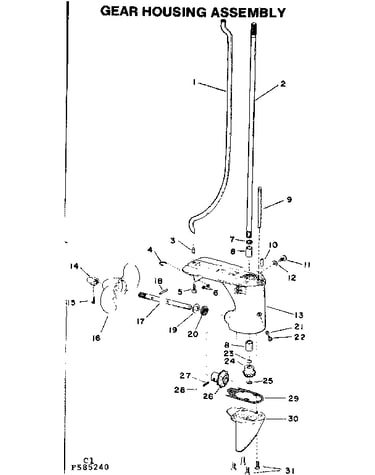

Gear housing assembly diagram

Boat motor gear housing gasket

Part #26364

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Propeller Nut 26011
#14

Gear housing assembly diagram

Boat motor propeller nut

Part #26011

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Gear Housing Gasket 26944
#6

Column assembly diagram

Boat motor gear housing gasket

Part #26944

The manufacturer no longer makes this part, and there's no substitute part
