Model #31510290 Craftsman 1/2" electric drill

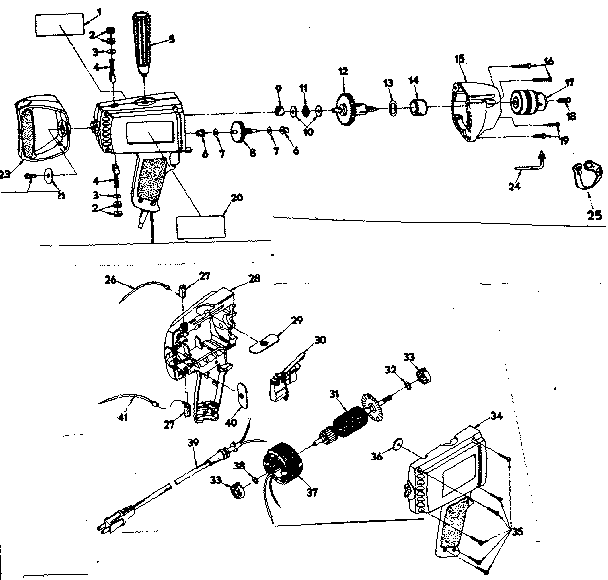

Here are the diagrams and repair parts for Craftsman 31510290 1/2" electric drill, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 41 parts

    Screw

    #18

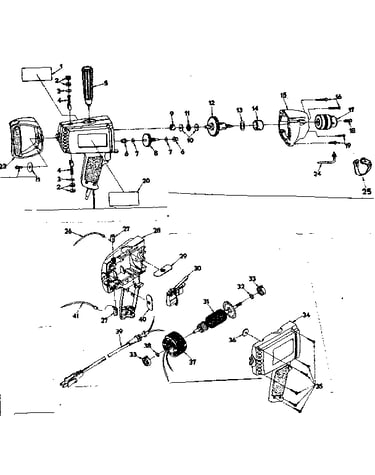

    Unit parts Diagram

    Screw

    Part #613150003
    ?
    Manufacturer substitution
    This part replaces 613150-003. Substitute parts can look different from the original.
    This part replaces 613150-003
    $11.02

    In Stock

    Flat Washer, 8-pack

    #10

    Unit parts Diagram

    Flat washer, 8-pack

    Part #STD551031
    ?
    Manufacturer substitution
    This part replaces 624088-002. Substitute parts can look different from the original.
    This part replaces 624088-002
    This item is not returnable
    $3.22

    In Stock

    Chuck Key

    #17

    Unit parts Diagram

    Chuck key

    Part #617517-001

    The manufacturer no longer makes this part, and there's no substitute part

    Stator Pad

    #36

    Unit parts Diagram

    Stator pad

    Part #623552-001

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #3

    Unit parts Diagram

    Washer

    Part #706382-813

    The manufacturer no longer makes this part, and there's no substitute part

    Pinion W/ger

    #8

    Unit parts Diagram

    Pinion w/ger

    Part #613031-001

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #7

    Unit parts Diagram

    Washer

    Part #931744-814

    The manufacturer no longer makes this part, and there's no substitute part

    Sleev Bearng

    #14

    Unit parts Diagram

    Sleev bearng

    Part #606704-001

    The manufacturer no longer makes this part, and there's no substitute part

    Handle Kit

    #5

    Unit parts Diagram

    Handle kit

    Part #989244-000

    The manufacturer no longer makes this part, and there's no substitute part

    1/2 IN. CUTTER (ITEM NO. 9-25413) (STANDARD HARDWARE ITEM-MAY BE PURCHASED LOCALLY)

    #30

    Unit parts Diagram

    1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part
