Model # F493AS Official Black & Decker iron

Here are the diagrams and repair parts for Official Black & Decker F493AS iron, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Shaft Adapt 163411-00
#3

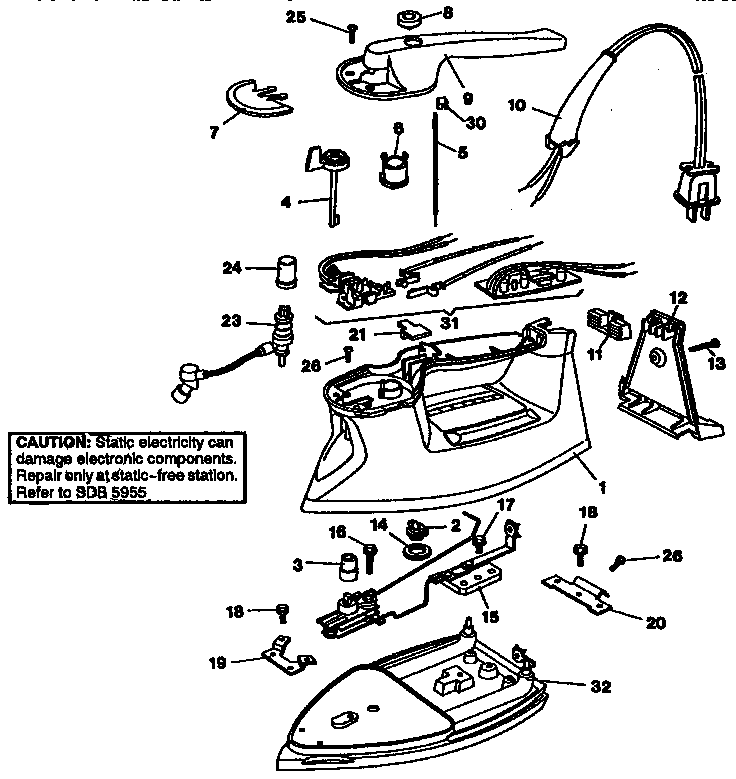

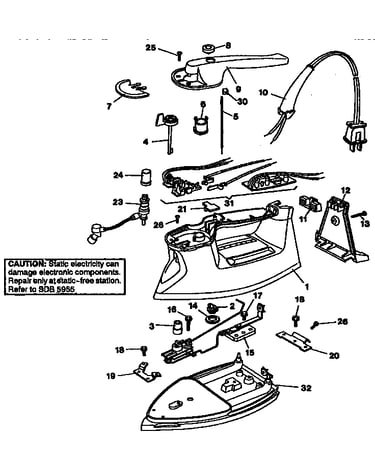

Replacement parts diagram

Shaft adapt

Part #163411-00

The manufacturer no longer makes this part, and there's no substitute part

Temp Knob 163417-00
#4

Replacement parts diagram

Temp knob

Part #163417-00

The manufacturer no longer makes this part, and there's no substitute part

Otl Screw 163045-00
#17

Replacement parts diagram

Otl screw

Part #163045-00

The manufacturer no longer makes this part, and there's no substitute part

Gasket 163093-00
#14

Replacement parts diagram

Gasket

Part #163093-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 166637-00
#16

Replacement parts diagram

Screw

Part #166637-00

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 170272-29
#10

Replacement parts diagram

Ac cord

Part #170272-29

The manufacturer no longer makes this part, and there's no substitute part

Adjustable Steam Knob 168627-04
#8

Replacement parts diagram

Adjustable steam knob

Part #168627-04

The manufacturer no longer makes this part, and there's no substitute part

Strain Relef 163420-00
#11

Replacement parts diagram

Strain relef

Part #163420-00

The manufacturer no longer makes this part, and there's no substitute part

Cover Screw 170186-00
#13

Replacement parts diagram

Cover screw

Part #170186-00

The manufacturer no longer makes this part, and there's no substitute part

Handle Cover Screw 165808-00
#25

Replacement parts diagram

Handle cover screw

Part #165808-00

The manufacturer no longer makes this part, and there's no substitute part
