Model #84055288 Craftsman honey extractor

Here are the diagrams and repair parts for Craftsman 84055288 honey extractor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

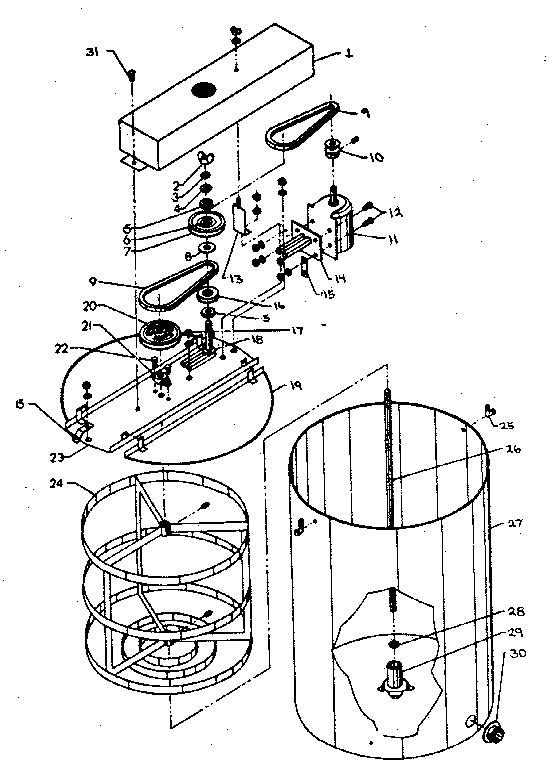

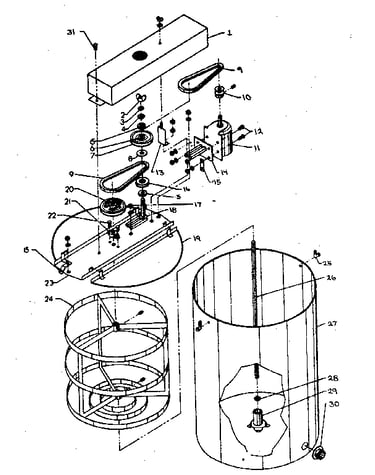

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 33 parts

5/8" PLAIN WASHER

#4

Replacement parts Diagram

5/8" plain washer

Part #03-411-04

The manufacturer no longer makes this part, and there's no substitute part

Bronze Bushn

#6

Replacement parts Diagram

Bronze bushn

Part #03-411-06

The manufacturer no longer makes this part, and there's no substitute part

"4" Pulley

#7

Replacement parts Diagram

"4" pulley

Part #03-411-07

The manufacturer no longer makes this part, and there's no substitute part

Motor Pull

#10

Replacement parts Diagram

Motor pull

Part #03-411-10

The manufacturer no longer makes this part, and there's no substitute part

Clutch Bolt

#17

Replacement parts Diagram

Clutch bolt

Part #03-411-17

The manufacturer no longer makes this part, and there's no substitute part

24" TIE-DOWN CHAIN

#32

Replacement parts Diagram

24" tie-down chain

Part #03-411-32

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut

#2

Replacement parts Diagram

Wing nut

Part #03-411-02

The manufacturer no longer makes this part, and there's no substitute part

5/8" LOCK WASHER

#3

Replacement parts Diagram

5/8" lock washer

Part #03-411-03

The manufacturer no longer makes this part, and there's no substitute part

Bearing

#5

Replacement parts Diagram

Bearing

Part #03-411-05

The manufacturer no longer makes this part, and there's no substitute part

27" Belt

#9

Replacement parts Diagram

27" belt

Part #03-411-09

The manufacturer no longer makes this part, and there's no substitute part
