Model # CH7524VKA3 Official ICP heat pump outdoor section

Here are the diagrams and repair parts for Official ICP CH7524VKA3 heat pump outdoor section, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Central Air Conditioner Condenser Fan Motor Mount 1051460
#3

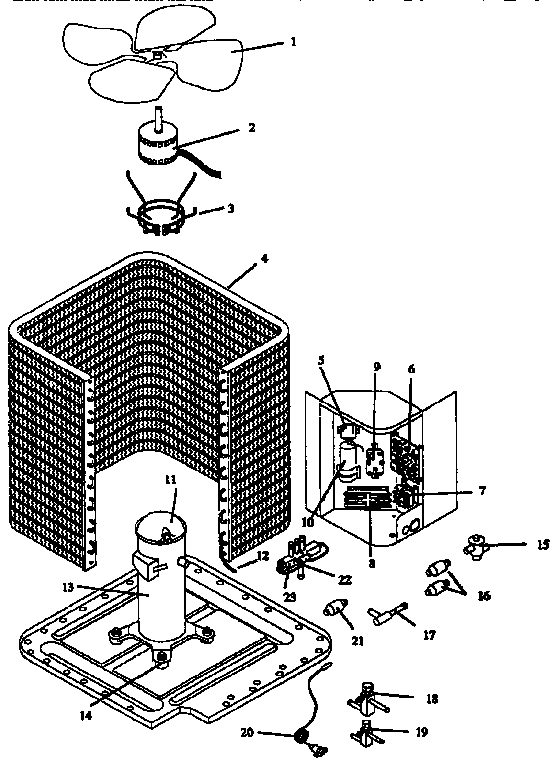

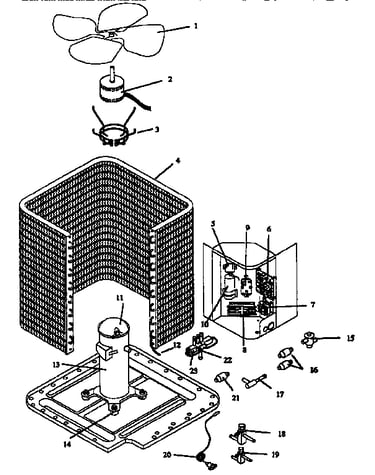

Heat pump outdoor sections - functional parts diagram

Central air conditioner condenser fan motor mount

Part #1051460

$310.20
In Stock
Check Valve 1052910
#17

Heat pump outdoor sections - functional parts diagram

Check valve

Part #1052910

$84.67
In Stock
Central Air Conditioner Condenser Fan Motor 1050892
#2

Heat pump outdoor sections - functional parts diagram

Central air conditioner condenser fan motor

Part #1050892

$415.12
In Stock
Press Switch 1053017
#20

Heat pump outdoor sections - functional parts diagram

Press switch

Part #1053017

$11.23
In Stock
Valve Servic 1063718
#18

Heat pump outdoor sections - functional parts diagram

Valve servic

Part #1063718

Replaced by #1080995

?
Manufacturer substitution
This part replaces 1063718. Substitute parts can look different from the original.
$176.28
In Stock
Spst Relay 1053004
#9

Heat pump outdoor sections - functional parts diagram

Spst relay

Part #1053004

The manufacturer no longer makes this part, and there's no substitute part

Muffler 1059730
#21

Heat pump outdoor sections - functional parts diagram

Muffler

Part #1059730

Replaced by #1174688

?
Manufacturer substitution
This part replaces 1059730. Substitute parts can look different from the original.
$47.30 |
10% OFF Phone Price : $52.30
In Stock
Contactor 1050699
#8

Heat pump outdoor sections - functional parts diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Sensor 1053015
#12

Heat pump outdoor sections - functional parts diagram

Sensor

Part #1053015

Replaced by #1172766

?
Manufacturer substitution
This part replaces 1053015. Substitute parts can look different from the original.
$28.80 |
15% OFF Phone Price : $33.80
In Stock
Valve 1052758
#23

Heat pump outdoor sections - functional parts diagram

Valve

Part #1052758

Replaced by #V3-410080-770

?
Manufacturer substitution
This part replaces 1052758. Substitute parts can look different from the original.
$203.70
In Stock
