Whirlpool GSC309PVQ00 wall oven/microwave combo Parts

Here are the diagrams and repair parts for Whirlpool GSC309PVQ00 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

Whirlpool GSC309PVQ00 wall oven/microwave combo
By Schematic
By Part

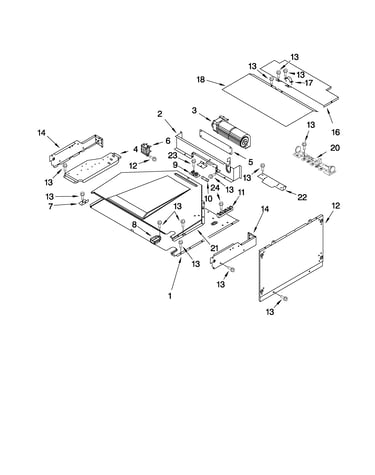

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GSC309PVQ00 Wall Oven/Microwave Combo

  • Washer Wire Harness Retainer for Whirlpool GSC309PVQ00 - Part 16515

    Optional parts (not included) diagram

    Clip

    Part #313438

    Replaced by #16515

    Info Icon
    Manufacturer substitution
    This part replaces 313438. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $22.61
    21% OFF Phone Price : $28.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Base for Whirlpool GSC309PVQ00 - Part 4375411

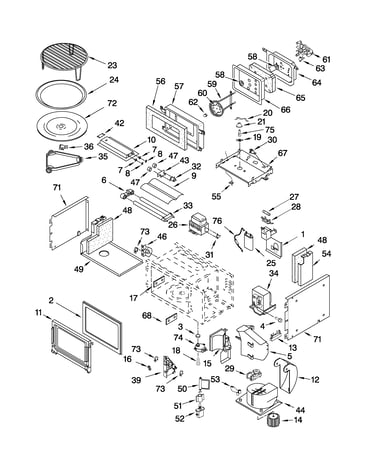

    Cabinet and stirrer parts diagram

    Base

    Part #4375411

    The manufacturer no longer makes this part, and there's no substitute part

  • Wall Oven Membrane Switch (black) for Whirlpool GSC309PVQ00 - Part W10172516

    Control panel parts diagram

    Wall Oven Membrane Switch (black)

    Part #W10172516

    The manufacturer no longer makes this part, and there's no substitute part

  • Support for Whirlpool GSC309PVQ00 - Part 4452552

    Microwave compartment parts diagram

    Support

    Part #4452552

    The manufacturer no longer makes this part, and there's no substitute part

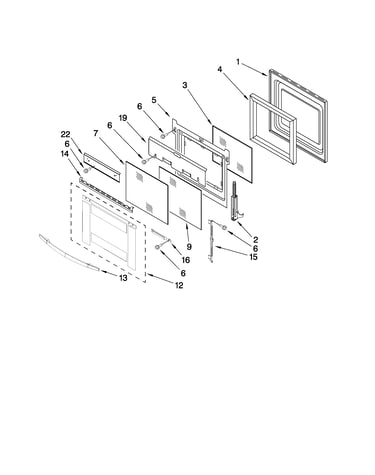

  • Oven Door Glass for Whirlpool GSC309PVQ00 - Part W10199428

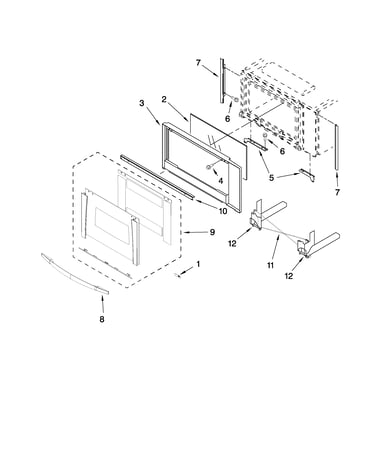

    Microwave door parts diagram

    Oven Door Glass

    Part #W10199428

    The manufacturer no longer makes this part, and there's no substitute part

  • Shield Insert for Whirlpool GSC309PVQ00 - Part 4375431

    Cabinet and stirrer parts diagram

    Shield Insert

    Part #4375431

    The manufacturer no longer makes this part, and there's no substitute part

  • Wall Oven Microwave Safety Thermostat for Whirlpool GSC309PVQ00 - Part 4375279

    Cabinet and stirrer parts diagram

    Wall Oven Microwave Safety Thermostat

    Part #4375279

    The manufacturer no longer makes this part, and there's no substitute part

  • Bleed-air for Whirlpool GSC309PVQ00 - Part 4375426

    Cabinet and stirrer parts diagram

    Bleed-air

    Part #4375426

    The manufacturer no longer makes this part, and there's no substitute part

  • Chassis for Whirlpool GSC309PVQ00 - Part 8303099

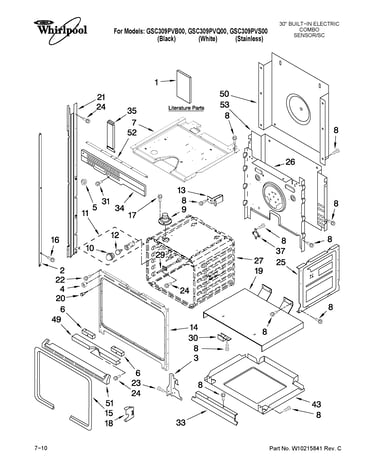

    Oven parts diagram

    Chassis

    Part #8303099

    The manufacturer no longer makes this part, and there's no substitute part

  • Oven Door Glass for Whirlpool GSC309PVQ00 - Part W10199429

    Microwave door parts diagram

    Oven Door Glass

    Part #W10199429

    The manufacturer no longer makes this part, and there's no substitute part

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Touch-up Paint, 6-oz (citrine White) 261900

Appliance Touch-up Paint, 6-oz (citrine White)

Part #261900
In Stock
$34.36
15% OFF Phone Price : $40.36Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$31.61
Minus Item
Qty
Plus Item
