Model # ARC13AACWL2 Official GE room a/c

Here are the diagrams and repair parts for Official GE ARC13AACWL2 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

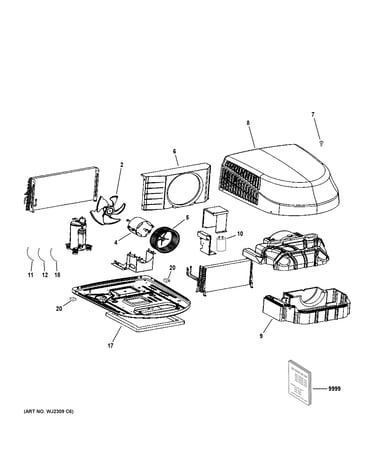

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Room Air Conditioner Fan Motor WJ94X25405
Room air conditioner fan motor

Part #WJ94X25405

$354.20
In Stock
Outdoor Fan Shroud WJ76X25398
Outdoor fan shroud

Part #WJ76X25398

$79.73 |
6% OFF Phone Price : $84.73
In Stock
Compressor Harness WJ35X25407
Compressor harness

Part #WJ35X25407

$29.99 |
14% OFF Phone Price : $34.99
In Stock
Room Air Conditioner Outdoor Fan Shroud Cover (white) WJ76X25399
Room air conditioner outdoor fan shroud cover (white)

Part #WJ76X25399

$360.99 |
$10.00 OFF Phone Price : $370.99
In Stock
Indoor Blower Cover WJ76X28334
Indoor blower cover

Part #WJ76X28334

$283.89
In Stock
Base-pan Foam WP43X28653
Base-pan foam

Part #WP43X28653

$7.51
In Stock
Roof Gasket WJ43X25403
Roof gasket

Part #WJ43X25403

$85.40
In Stock
Indoor Blower WJ73X25396
Indoor blower

Part #WJ73X25396

$55.07
In Stock
Indoor Coil Sensor WJ26X27378
Indoor coil sensor

Part #WJ26X27378

$8.71
In Stock
Main Harness WJ35X25408
Main harness

Part #WJ35X25408

$105.24
In Stock
