Model # 753 Official Porter Cable tiger reciprocating saw

Here are the diagrams and repair parts for Official Porter Cable 753 tiger reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Tube 883213
#150

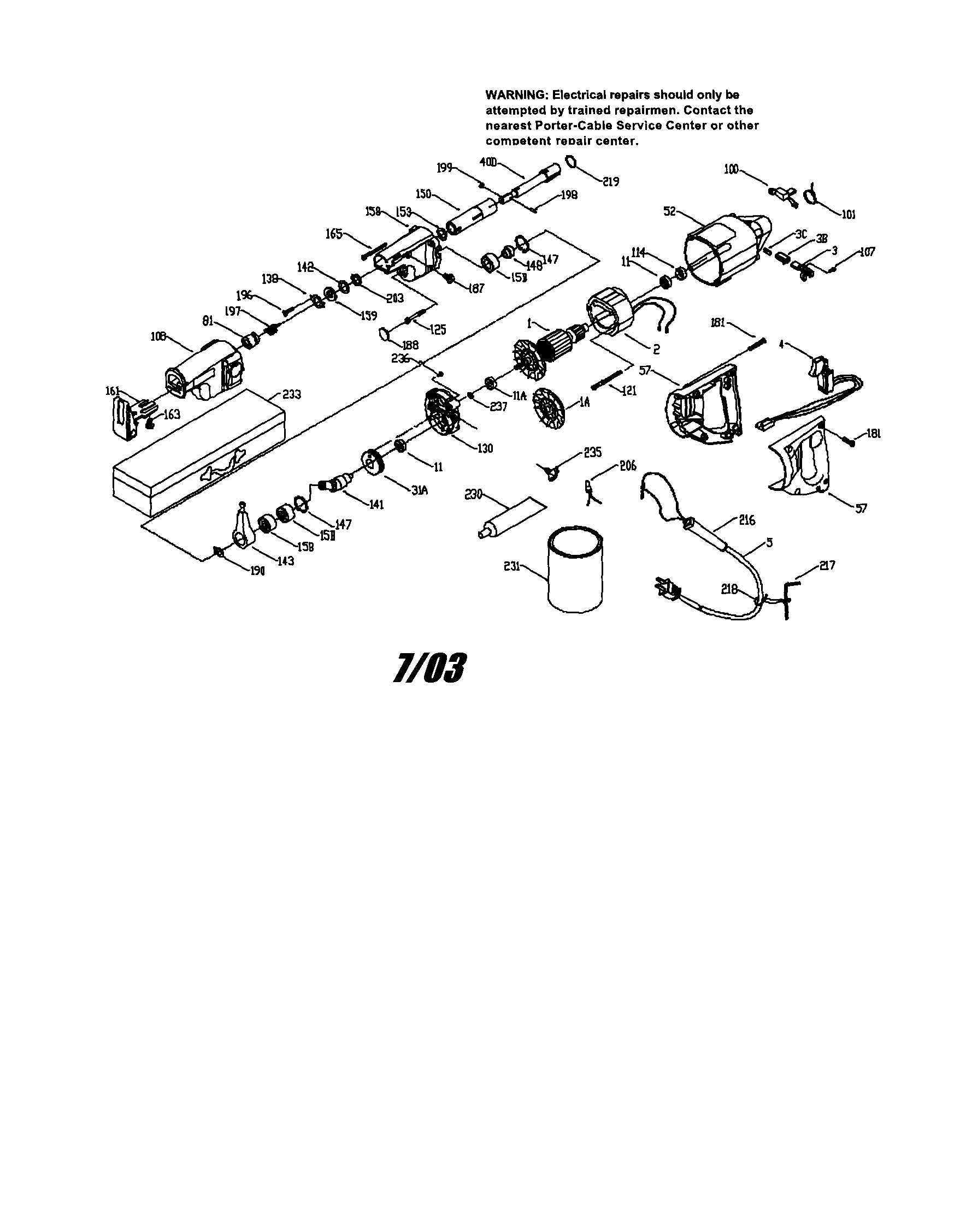

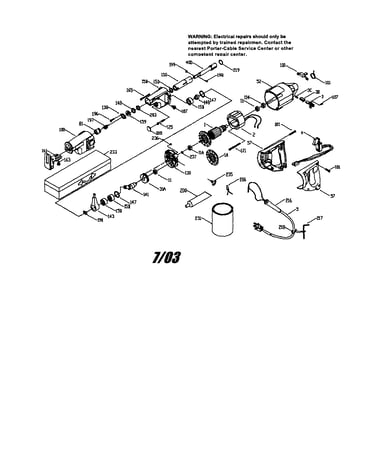

Tiger saw diagram

Tube

Part #883213

The manufacturer no longer makes this part, and there's no substitute part

Ring 802302
#147

Tiger saw diagram

Ring

Part #802302

The manufacturer no longer makes this part, and there's no substitute part

Field 898876
#2

Tiger saw diagram

Field

Part #898876

The manufacturer no longer makes this part, and there's no substitute part

Plate 879458
#138

Tiger saw diagram

Plate

Part #879458

The manufacturer no longer makes this part, and there's no substitute part

Gear 879401
#31A

Tiger saw diagram

Gear

Part #879401

The manufacturer no longer makes this part, and there's no substitute part

Retaining 853246
#190

Tiger saw diagram

Retaining

Part #853246

The manufacturer no longer makes this part, and there's no substitute part

Felt Seal 801852
#237

Tiger saw diagram

Felt seal

Part #801852

The manufacturer no longer makes this part, and there's no substitute part

Screw 879408
#187

Tiger saw diagram

Screw

Part #879408

The manufacturer no longer makes this part, and there's no substitute part

Spacer 879429
#148

Tiger saw diagram

Spacer

Part #879429

The manufacturer no longer makes this part, and there's no substitute part

Screw 882187
#236

Tiger saw diagram

Screw

Part #882187

The manufacturer no longer makes this part, and there's no substitute part
