Maytag
Countertop Microwave

Model # CME400 Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag CME400 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

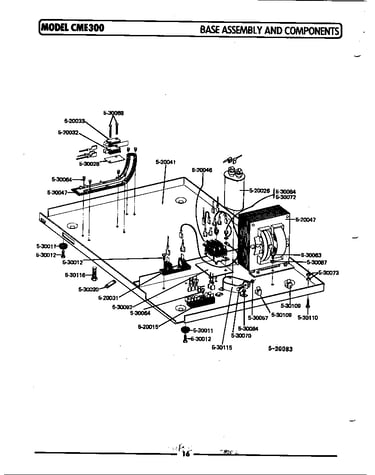

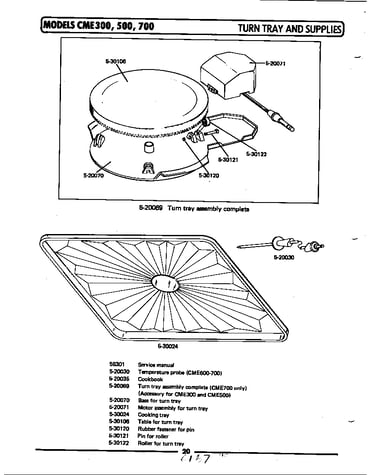

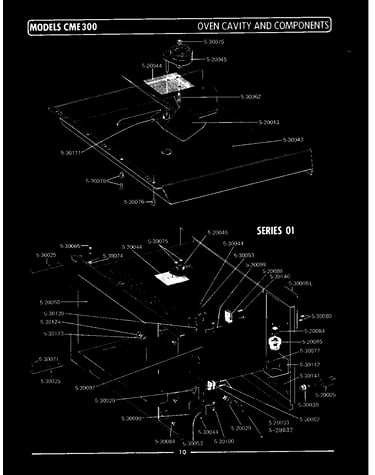

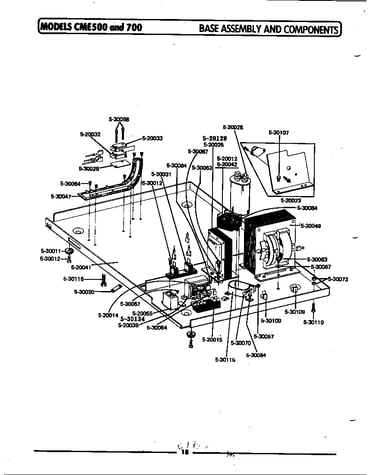

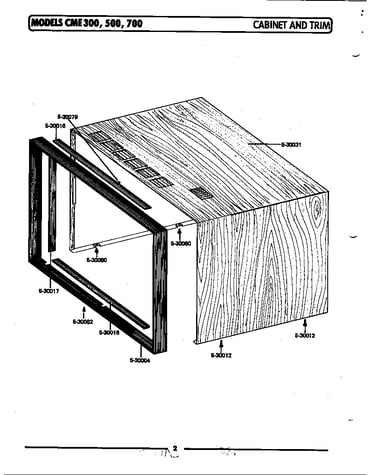

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
"screw, #8 X" 530080
"screw, #8 x"

Part #530080

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 530080. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Thermal Fuse 520109
#39

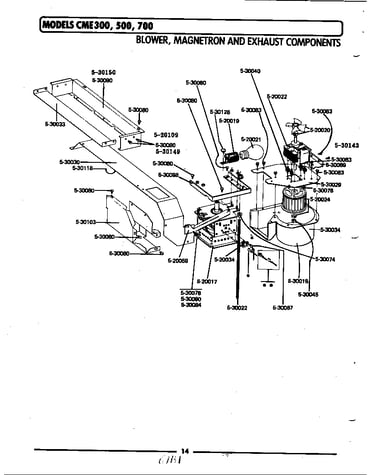

Blower, magnetron & exhaust components diagram

Thermal fuse

Part #520109

Replaced by #WPY0072211

?
Manufacturer substitution
This part replaces 520109. Substitute parts can look different from the original.
$34.76
In Stock
Screw 530083
Screw

Part #530083

Replaced by #M0216703

?
Manufacturer substitution
This part replaces 530083. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Interlock Switch 520086
Interlock switch

Part #520086

The manufacturer no longer makes this part, and there's no substitute part

Door Arm 520040
#2

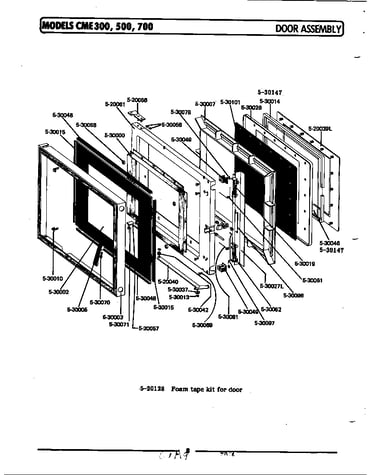

Door assembly diagram

Door arm

Part #520040

The manufacturer no longer makes this part, and there's no substitute part

Door Latch-u 530019
#15

Door assembly diagram

Door latch-u

Part #530019

The manufacturer no longer makes this part, and there's no substitute part

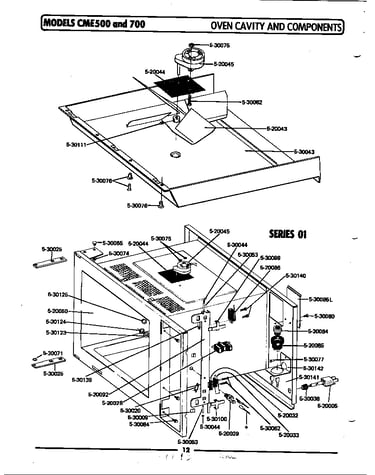

Stirrer Motor 520045
Stirrer motor

Part #520045

The manufacturer no longer makes this part, and there's no substitute part

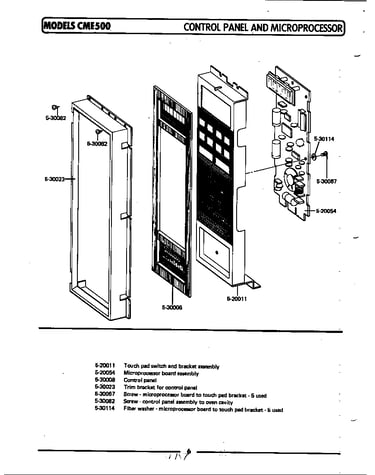

Touch Pad Switch 520004
#1

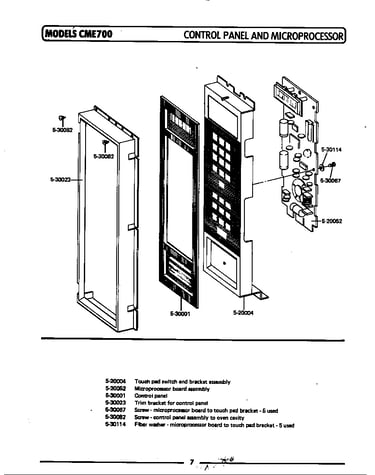

Control panel & microprocessor (cme700) (cme700) diagram

Touch pad switch

Part #520004

The manufacturer no longer makes this part, and there's no substitute part

Timer-30 Min 520009
#2

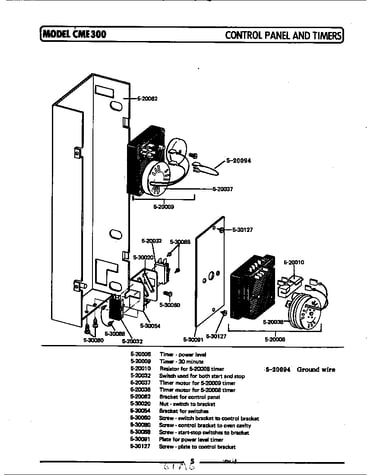

Control panel & timer (rear view) (cme300) diagram

Timer-30 min

Part #520009

The manufacturer no longer makes this part, and there's no substitute part

"screw, #6-19" 530126
#14

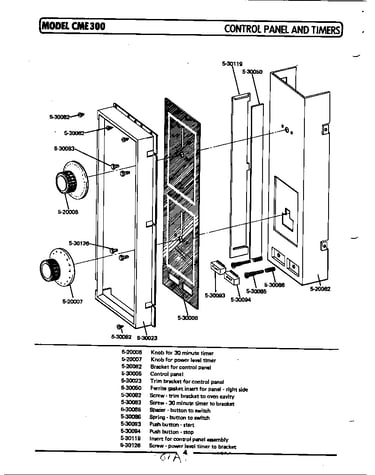

Control panel & timer (front view) (cme300) diagram

"screw, #6-19"

Part #530126

The manufacturer no longer makes this part, and there's no substitute part
