Craftsman 501MV20S-57527 engine

Craftsman 501MV20S-57527 engine Parts

Here are the diagrams and repair parts for Craftsman 501MV20S-57527 engine, as well as links to manuals and error code tables, if available.

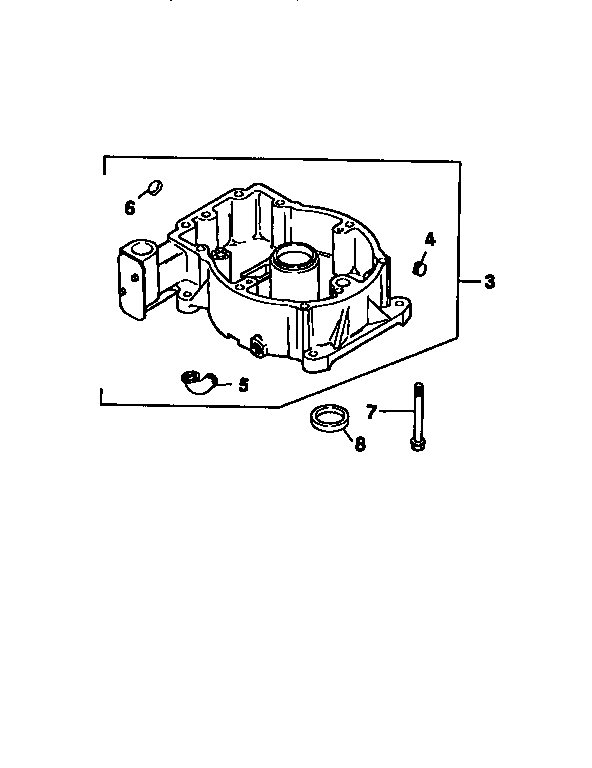

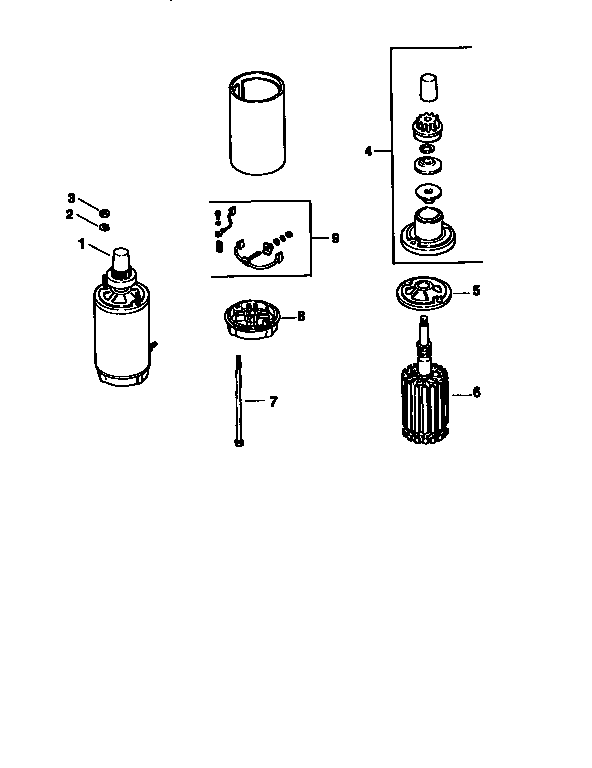

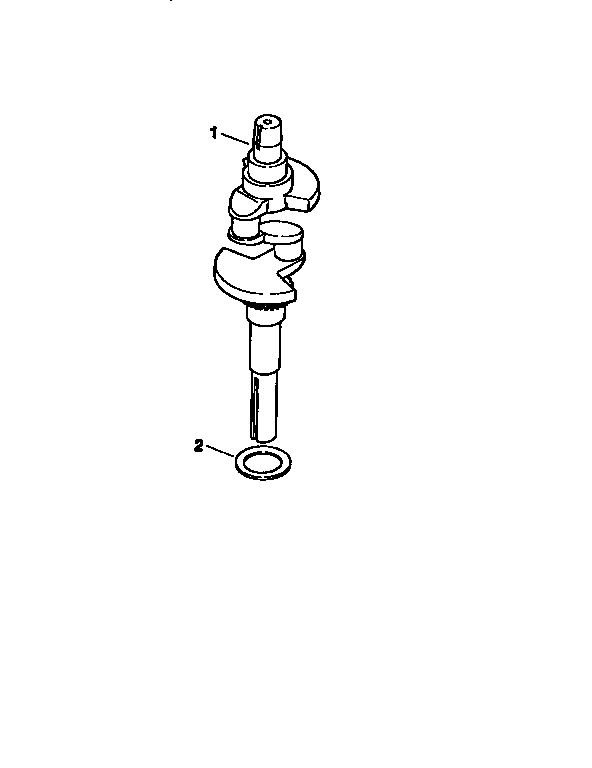

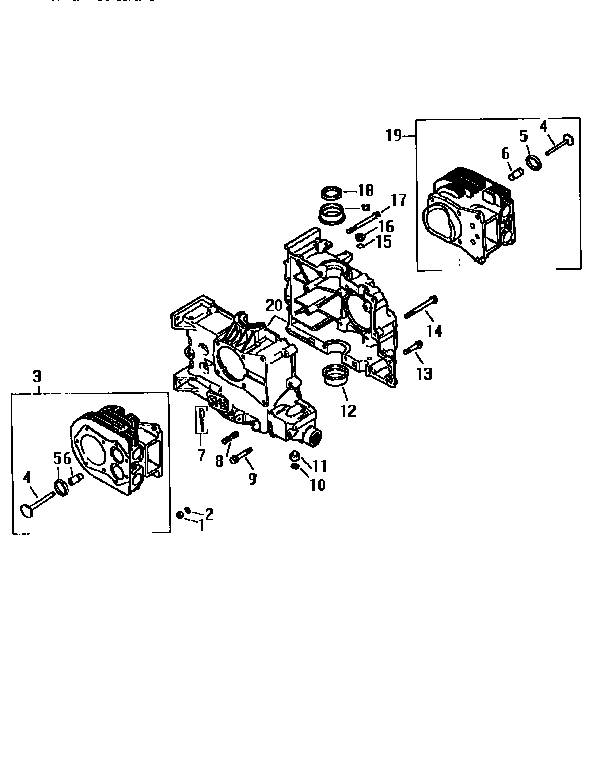

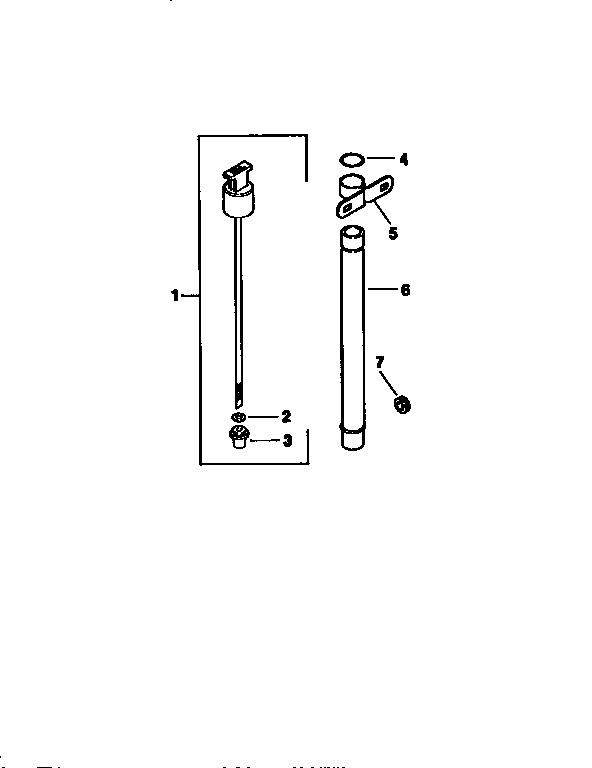

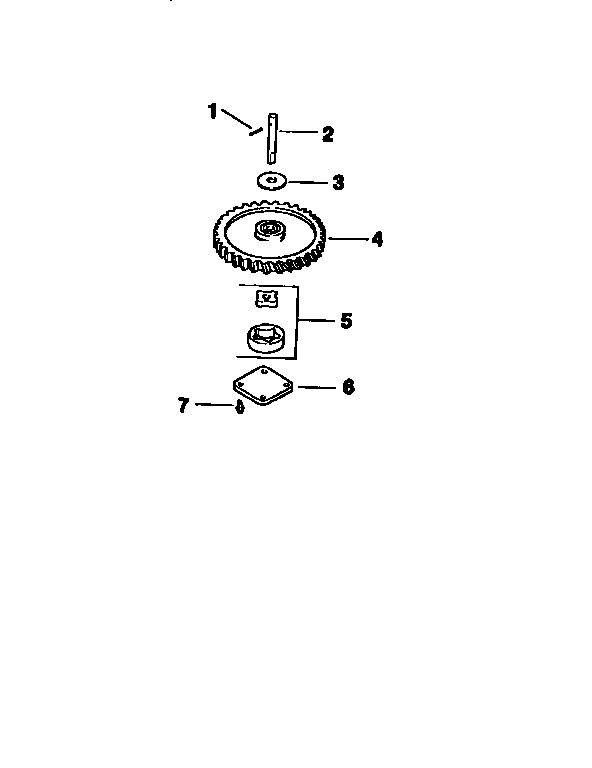

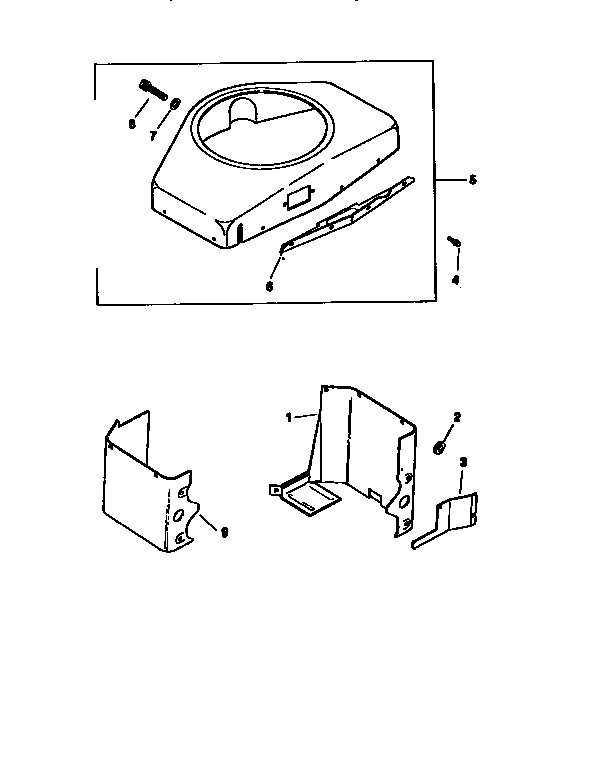

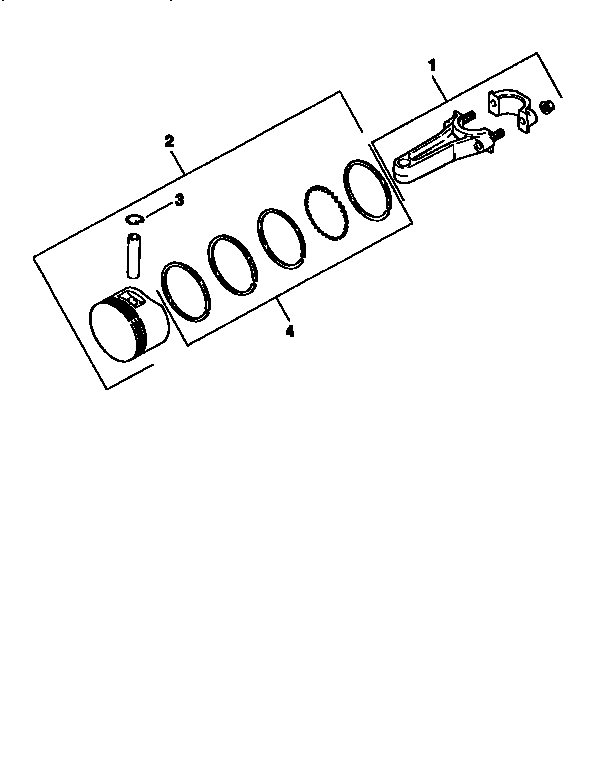

By Schematic

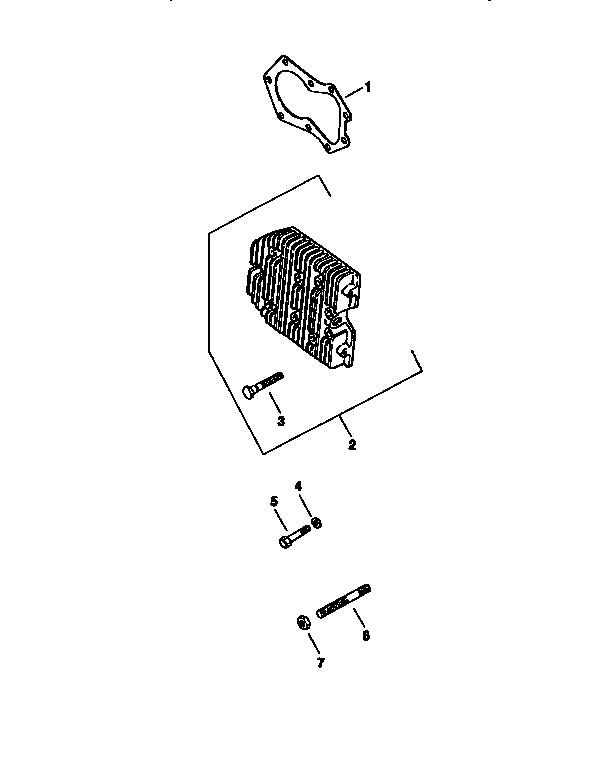

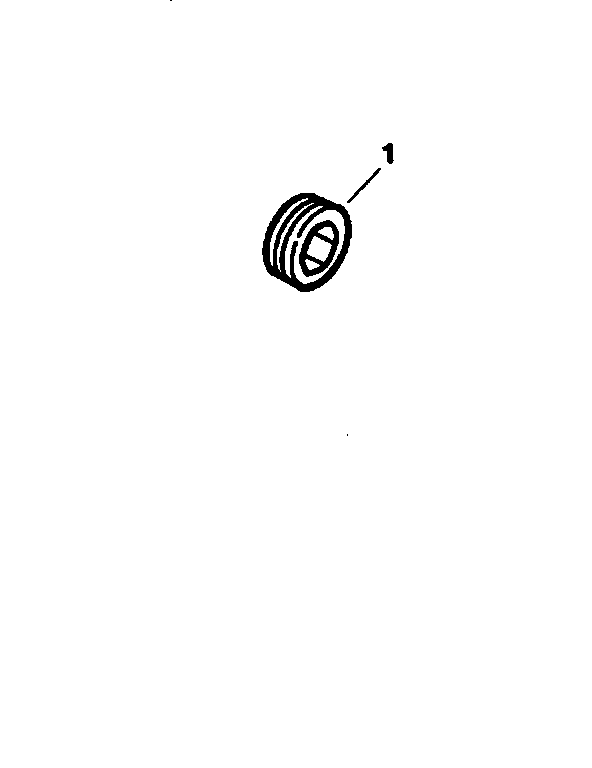

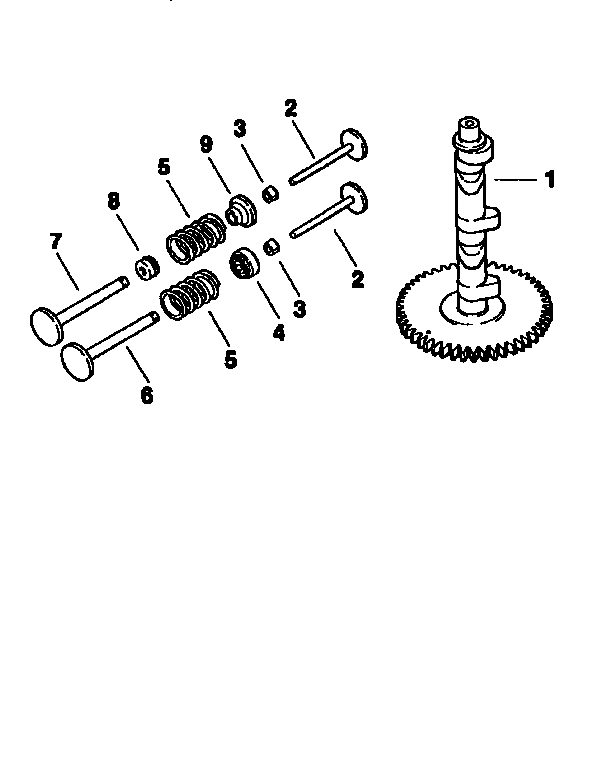

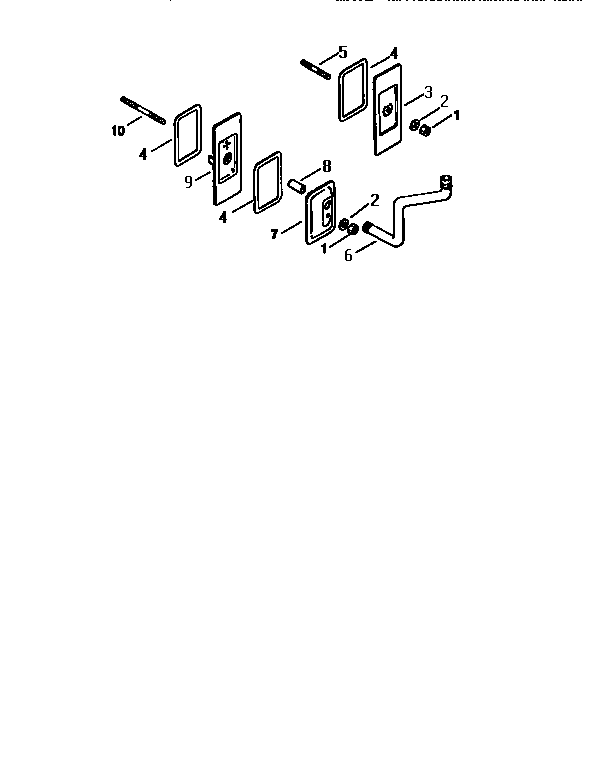

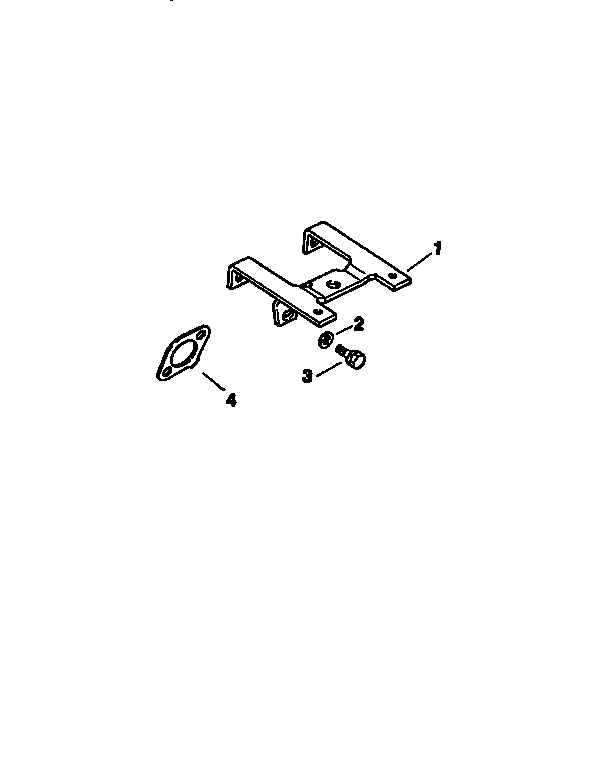

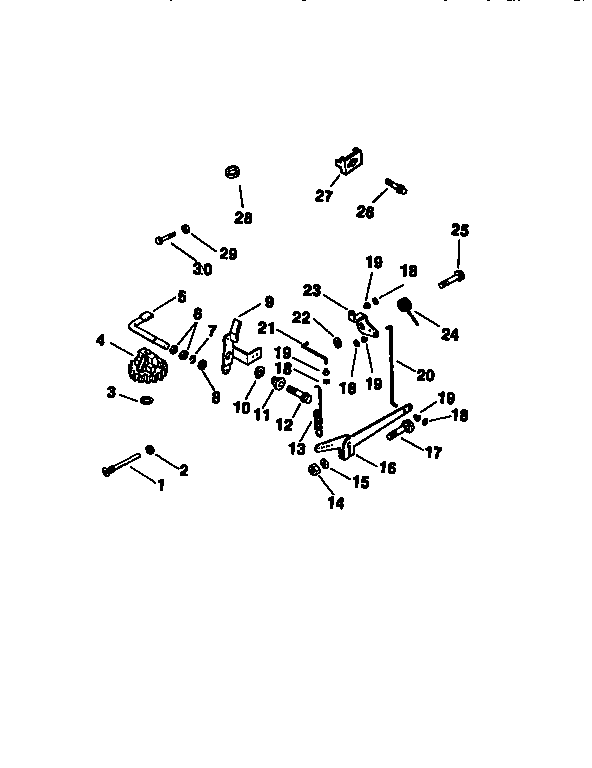

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 501MV20S-57527 Engine

  • Lawn & Garden Equipment Engine Air Filter for Craftsman 501MV20S-57527 - Part 45-083-02-S

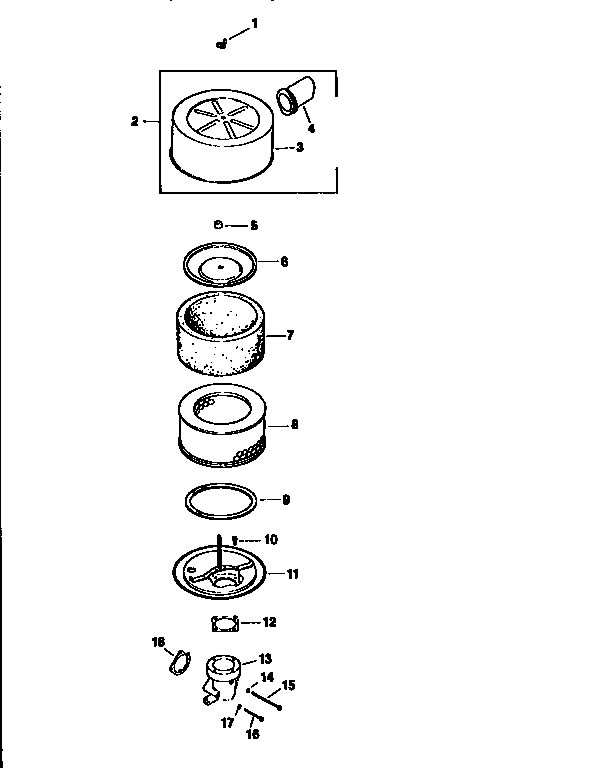

    Air intake div71/501 diagram

    Element

    Part #4508302

    Replaced by #45-083-02-S

    Info Icon
    Manufacturer substitution
    This part replaces 4508302. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $30.25
    17% OFF Phone Price : $36.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Pre-filter for Craftsman 501MV20S-57527 - Part 45-083-01-S

    Air intake div71/501 diagram

    Pre-cleaner

    Part #4508301

    Replaced by #45-083-01-S

    Info Icon
    Manufacturer substitution
    This part replaces 4508301. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.92
    9% OFF Phone Price : $10.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Spark Plug for Craftsman 501MV20S-57527 - Part 25

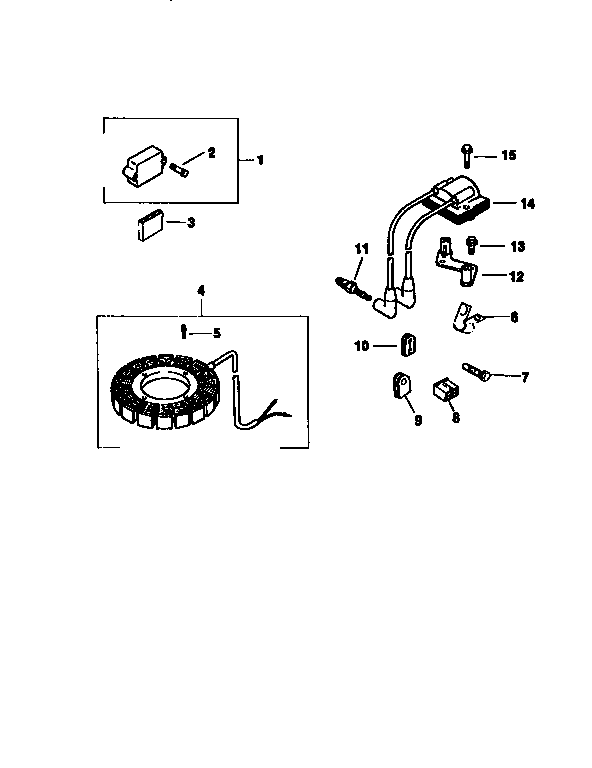

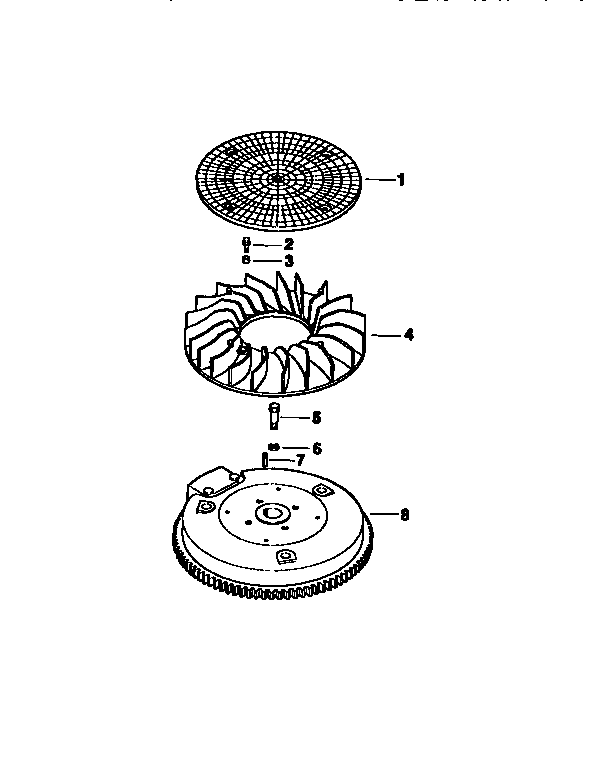

    Ignition div71/501 diagram

    Spark Plug

    Part #5213202

    Replaced by #25

    Info Icon
    Manufacturer substitution
    This part replaces 5213202. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.90
    14% OFF Phone Price : $6.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Stator for Craftsman 501MV20S-57527 - Part 237878-S

    Ignition div71/501 diagram

    Kit

    Part #237878

    Replaced by #237878-S

    Info Icon
    Manufacturer substitution
    This part replaces 237878. Substitute parts can look different from the original.
    In Stock
    $130.39
    8% OFF Phone Price : $142.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Fuel Line Clamp for Craftsman 501MV20S-57527 - Part 25-237-31-S

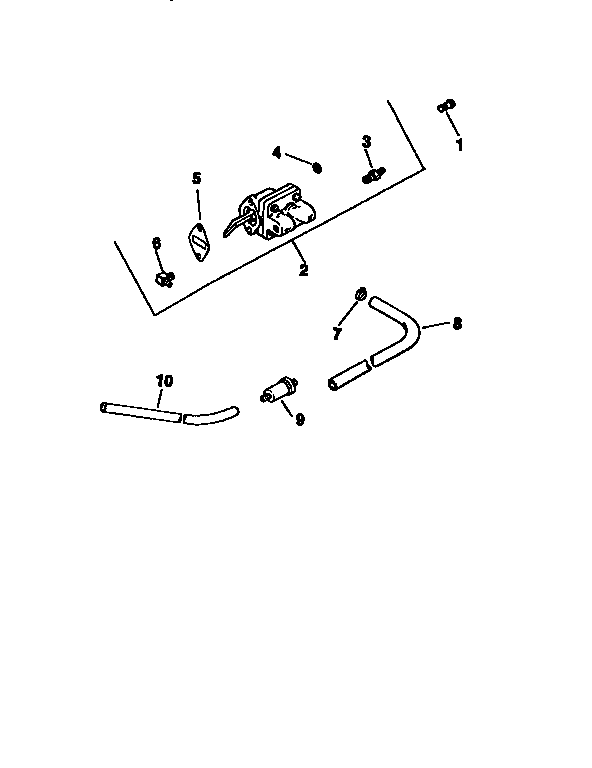

    Fuel pump div71/501 diagram

    Clamp

    Part #X-426-9

    Replaced by #25-237-31-S

    Info Icon
    Manufacturer substitution
    This part replaces X-426-9. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.93
    9% OFF Phone Price : $10.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Kohler Lawn & Garden Equipment Engine Carburetor Float Bowl Gasket for Craftsman 501MV20S-57527 - Part 25-041-04-S

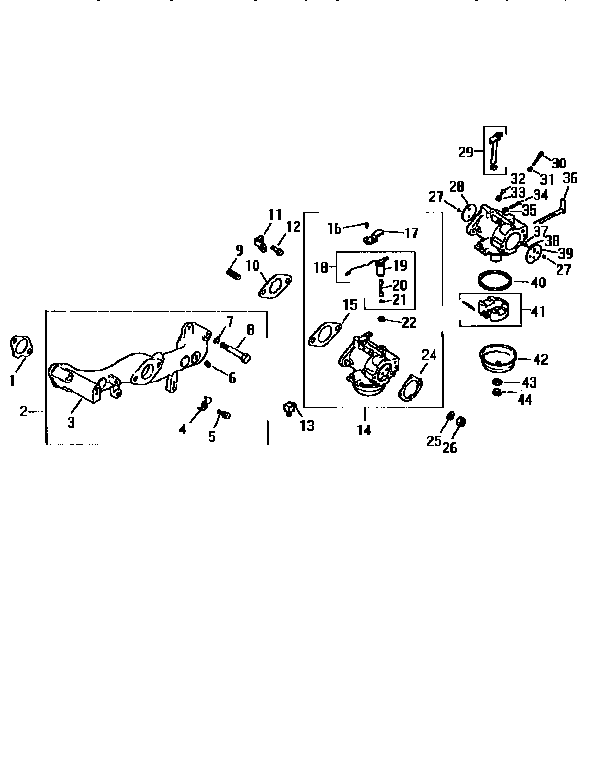

    Carburetor div71/501 diagram

    Gasket

    Part #2504104

    Replaced by #25-041-04-S

    Info Icon
    Manufacturer substitution
    This part replaces 2504104. Substitute parts can look different from the original.
    In Stock
    $13.38
    13% OFF Phone Price : $15.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Kohler Lawn & Garden Equipment Engine Oil Filter for Craftsman 501MV20S-57527 - Part 52-050-02-S1

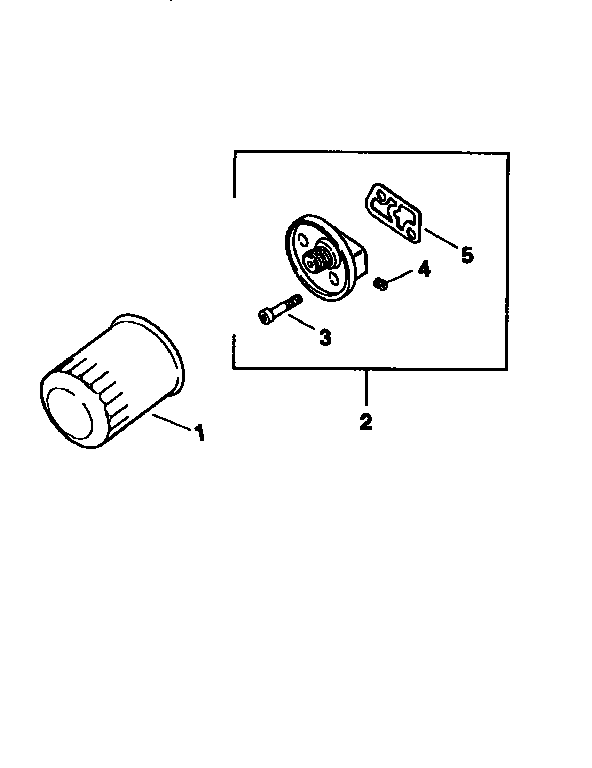

    Oil filter div71/501 diagram

    Oil Filter

    Part #5205002

    Replaced by #52-050-02-S1

    Info Icon
    Manufacturer substitution
    This part replaces 5205002. Substitute parts can look different from the original.
    Check Availability
    $17.67
    10% OFF Phone Price : $19.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Fuel Pump Kit for Craftsman 501MV20S-57527 - Part 52-559-03-S

    Fuel pump div71/501 diagram

    Pump

    Part #5255901

    Replaced by #52-559-03-S

    Info Icon
    Manufacturer substitution
    This part replaces 5255901. Substitute parts can look different from the original.
    In Stock
    $68.02
    8% OFF Phone Price : $74.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn & Garden Equipment Engine Washer for Craftsman 501MV20S-57527 - Part X-22-11-S

    Carburetor div71/501 diagram

    Starter Washer

    Part #X-22-11

    Replaced by #X-22-11-S

    Info Icon
    Manufacturer substitution
    This part replaces X-22-11. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.06
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Fuel Pump Gasket for Craftsman 501MV20S-57527 - Part 25-041-10-S

    Fuel pump div71/501 diagram

    Gasket

    Part #2504109

    Replaced by #25-041-10-S

    Info Icon
    Manufacturer substitution
    This part replaces 2504109. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $28.57
    Minus Item
    Qty
    Plus Item
