Model # PTH123A50MA/P1223549R Official Amana air conditioner

Here are the diagrams and repair parts for Official Amana PTH123A50MA-P1223549R air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

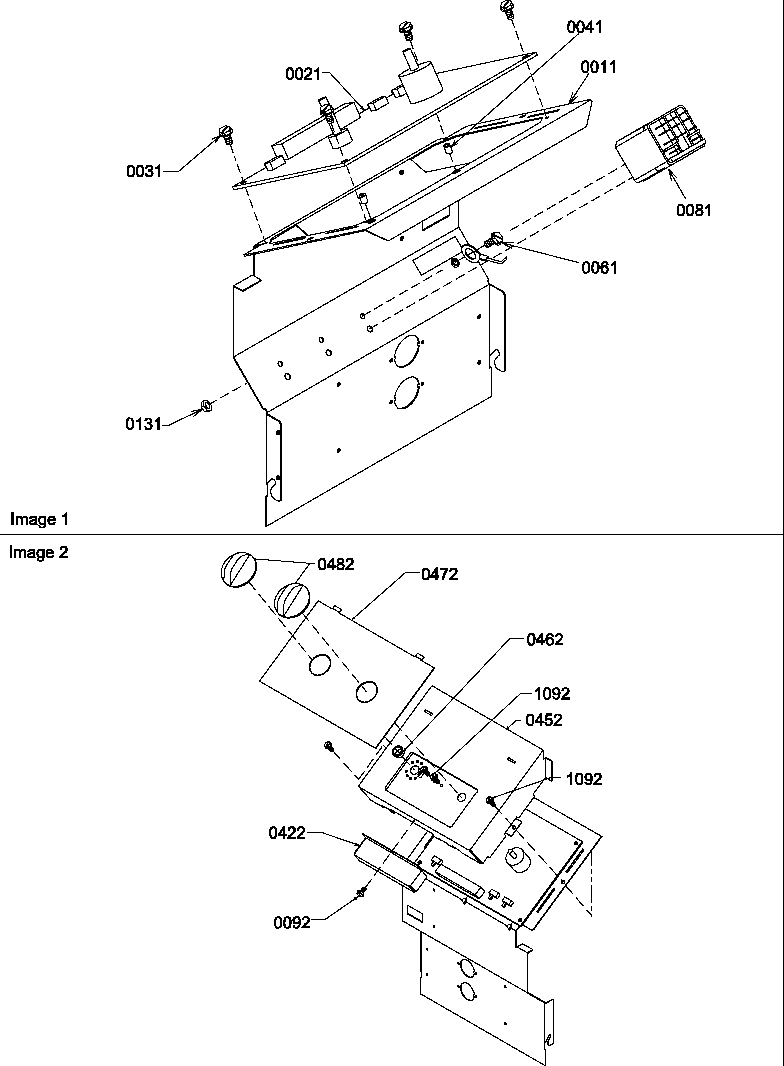

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Tap Screw M0224956
#271

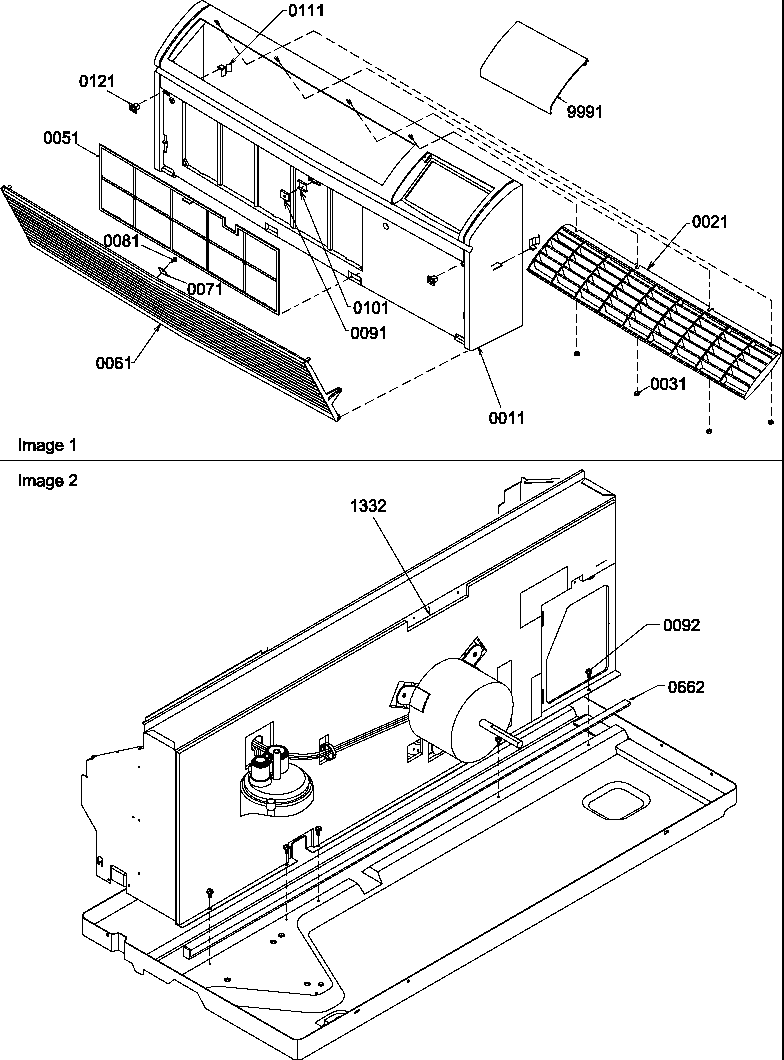

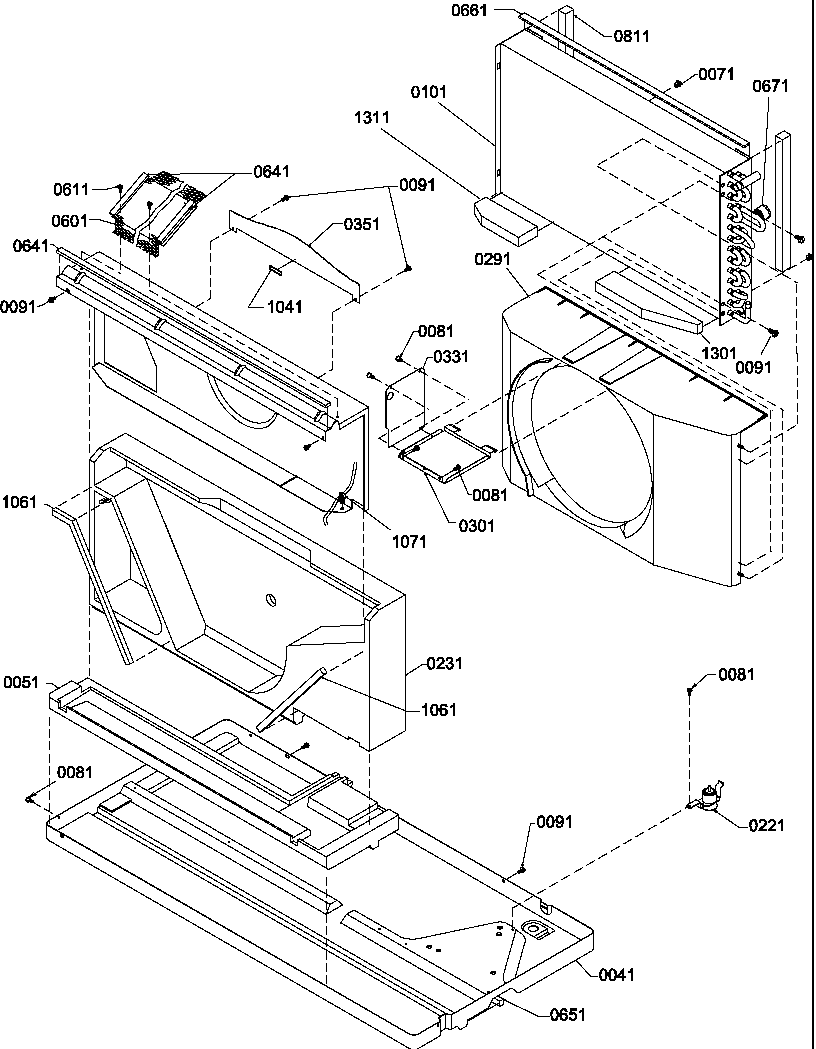

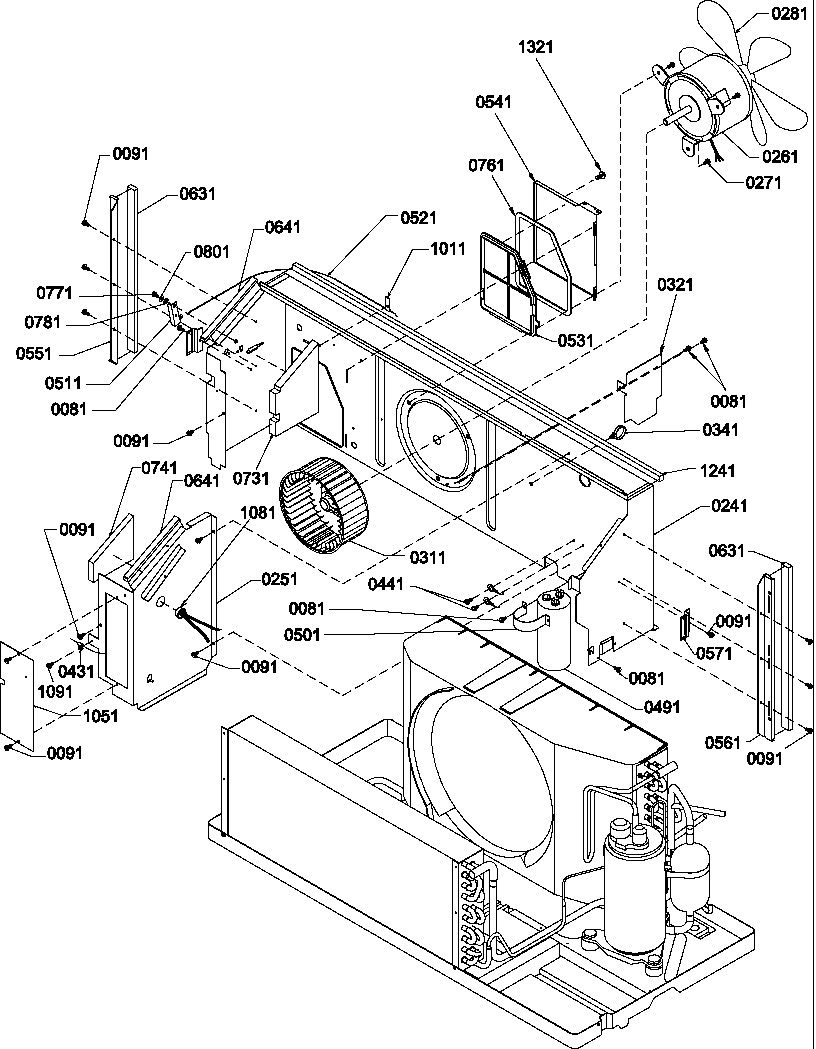

Chassis diagram

Tap screw

Part #M0224956

Replaced by #WP489427

?
Manufacturer substitution
This part replaces M0224956. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw M0204517
#611

Chassis diagram

Screw

Part #M0204517

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0204517. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Foam Gasket 10839808
#651

Chassis diagram

Foam gasket

Part #10839808

Replaced by #10839808

?
Manufacturer substitution
This part replaces 10839808. Substitute parts can look different from the original.
This item is not returnable
$4.62
In Stock
Terminal Nut A3436601
#163

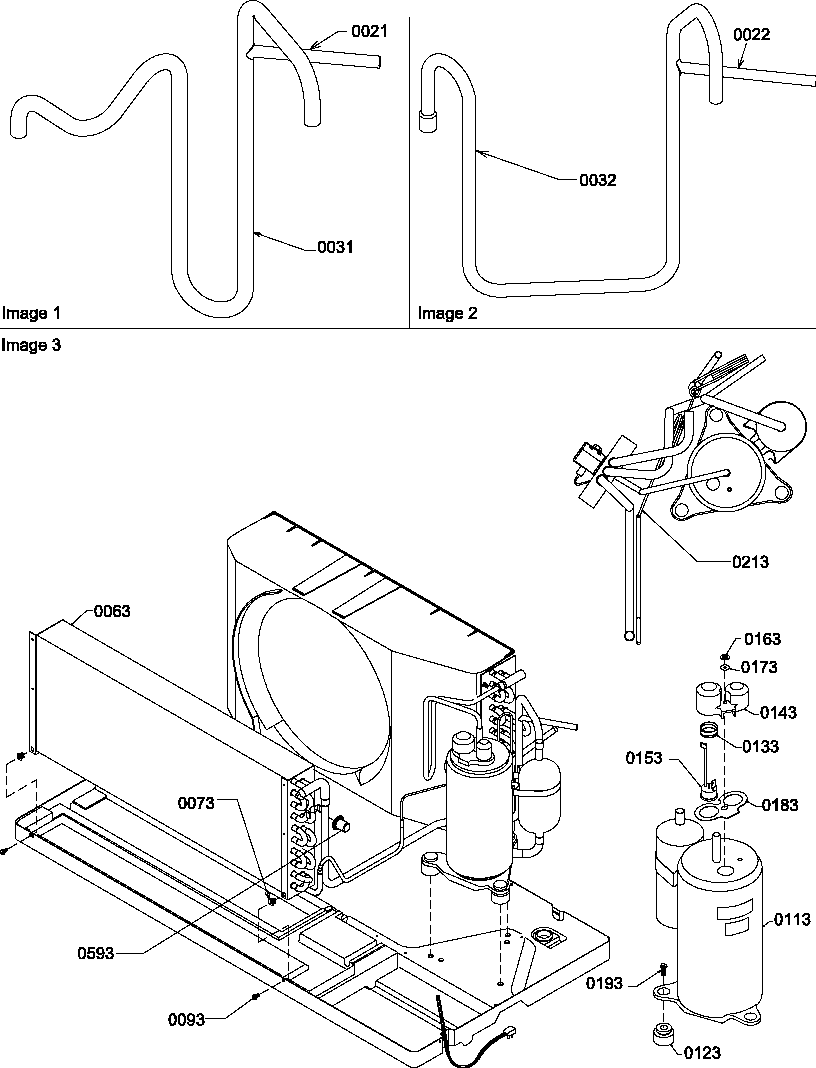

Compressor/tubing diagram

Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Screw M0211345
#0

Compressor/tubing diagram

Screw

Part #M0211345

Replaced by #W10841059

?
Manufacturer substitution
This part replaces M0211345. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Foam Gasket 10839814
#1241

Chassis diagram

Foam gasket

Part #10839814

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 10839814. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Strainer B1257808
#11

Sweat valve/capillary tubing diagram

Strainer

Part #B1257808

Replaced by #B1257808

?
Manufacturer substitution
This part replaces B1257808. Substitute parts can look different from the original.
$20.97
In Stock
Tstat-disc Type B1158410
#9911

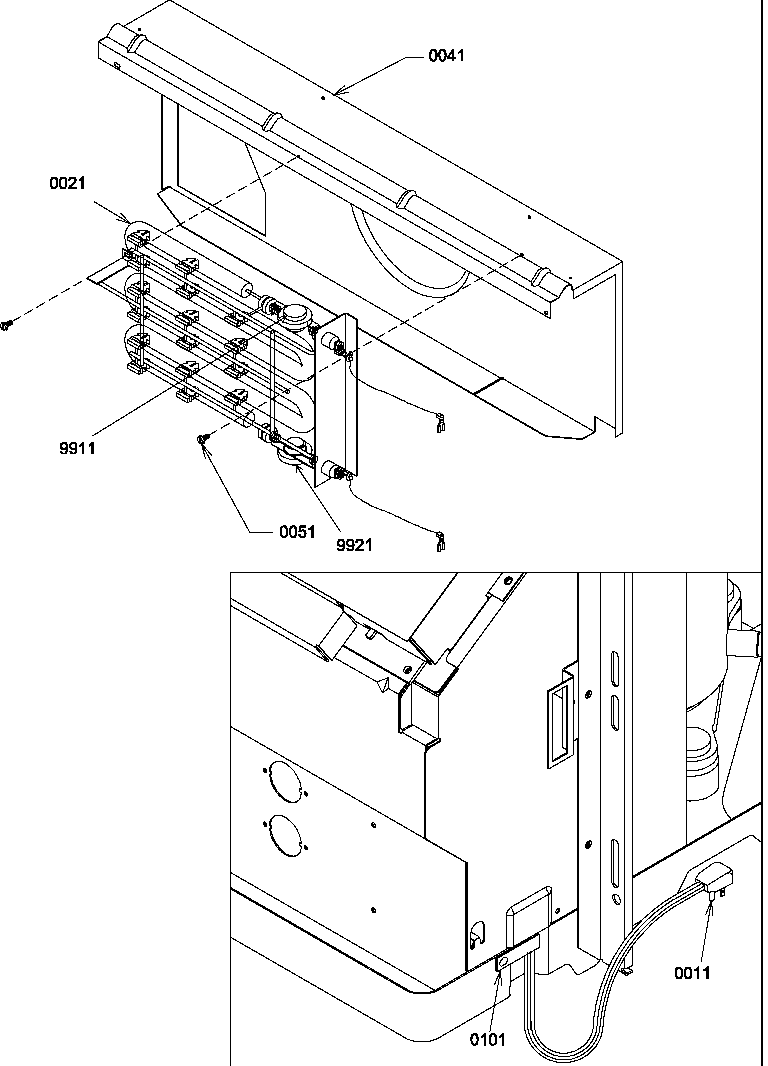

Heater diagram

Tstat-disc type

Part #B1158410

The manufacturer no longer makes this part, and there's no substitute part

Gasket 10839722
#1041

Chassis diagram

Gasket

Part #10839722

The manufacturer no longer makes this part, and there's no substitute part

Filter Vent 11046201
#531

Chassis diagram

Filter vent

Part #11046201

The manufacturer no longer makes this part, and there's no substitute part
