Model # 40N7 Official Bissell carpet cleaner

Here are the diagrams and repair parts for Official Bissell 40N7 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

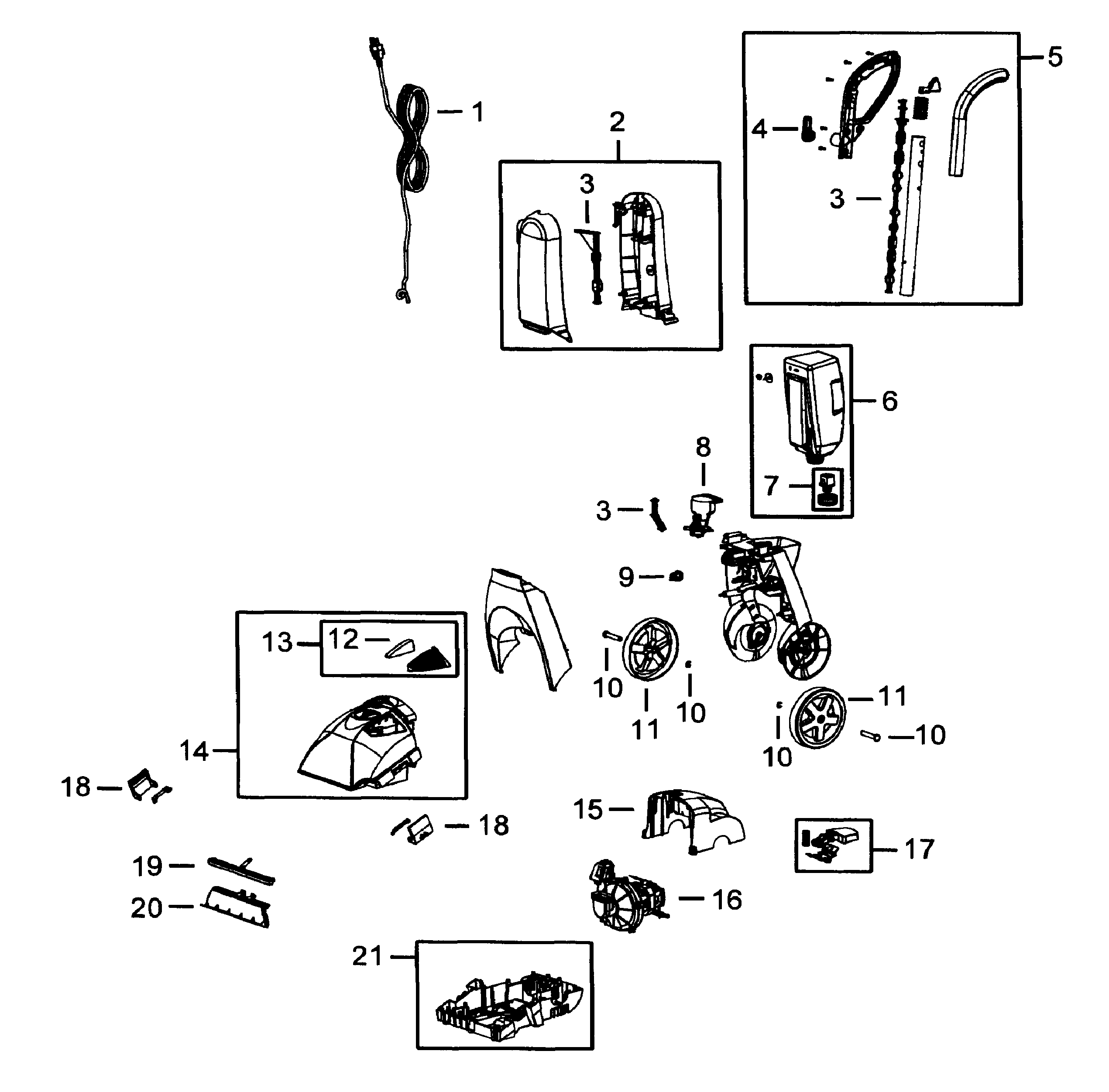

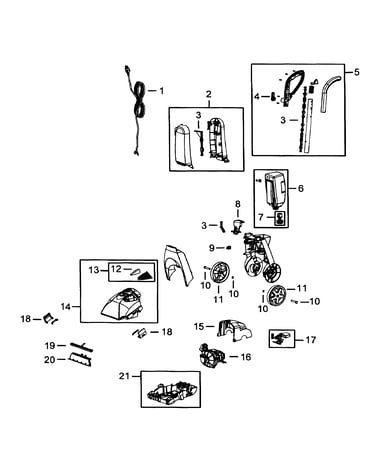

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Lever 2035697
#17

Vacuum diagram

Lever

Part #2035697

The manufacturer no longer makes this part, and there's no substitute part

Base 2035700
#21

Vacuum diagram

Base

Part #2035700

The manufacturer no longer makes this part, and there's no substitute part

Receiver 2035665
#8

Vacuum diagram

Receiver

Part #2035665

The manufacturer no longer makes this part, and there's no substitute part

Motor Vacuum Break 2035618
#16

Vacuum diagram

Motor vacuum break

Part #2035618

The manufacturer no longer makes this part, and there's no substitute part

Body 2035691
#2

Vacuum diagram

Body

Part #2035691

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 2035679
#20

Vacuum diagram

Nozzle

Part #2035679

The manufacturer no longer makes this part, and there's no substitute part

Cover 2035696
#15

Vacuum diagram

Cover

Part #2035696

The manufacturer no longer makes this part, and there's no substitute part

Tank 2035695
#14

Vacuum diagram

Tank

Part #2035695

The manufacturer no longer makes this part, and there's no substitute part

Wheel 2035565
#11

Vacuum diagram

Wheel

Part #2035565

The manufacturer no longer makes this part, and there's no substitute part

Tool 2035683
#NI

Vacuum diagram

Tool

Part #2035683

The manufacturer no longer makes this part, and there's no substitute part
