Model # 350C Official Amana central air conditioner

Here are the diagrams and repair parts for Official Amana 350C central air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 92 parts |

Spacer, Insulator Between Evap. And Frame A4037901

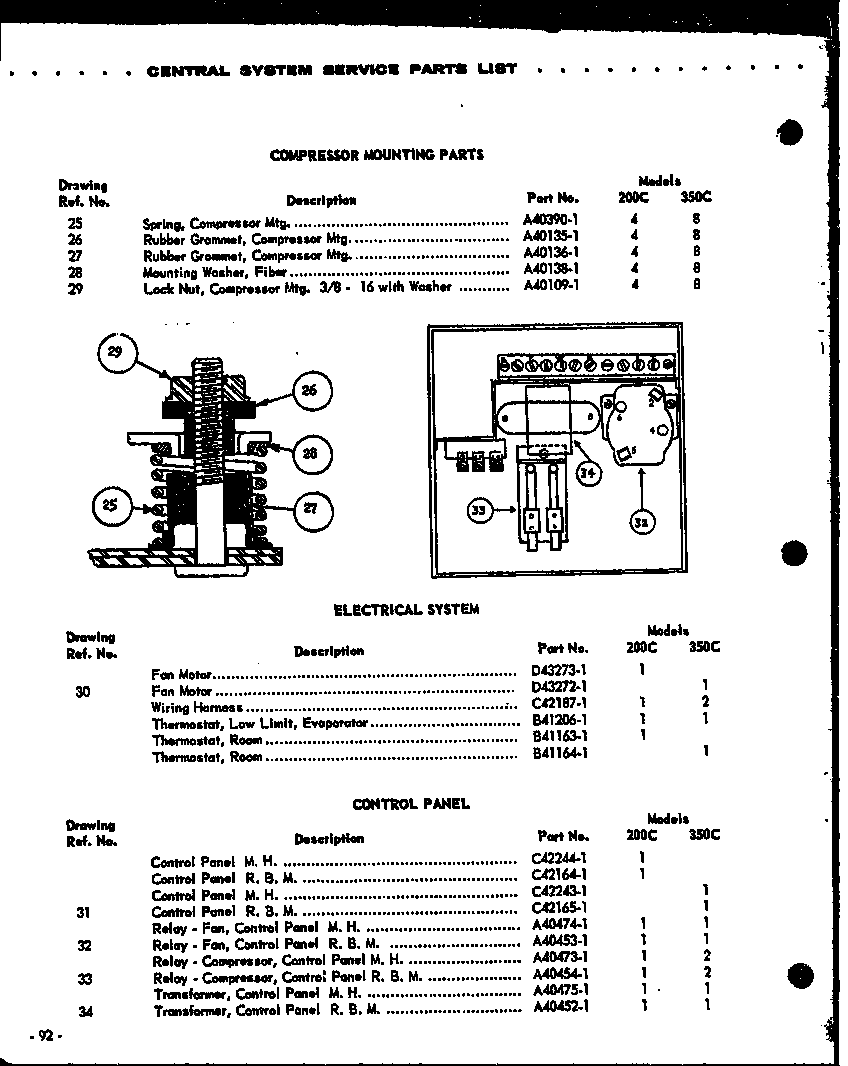

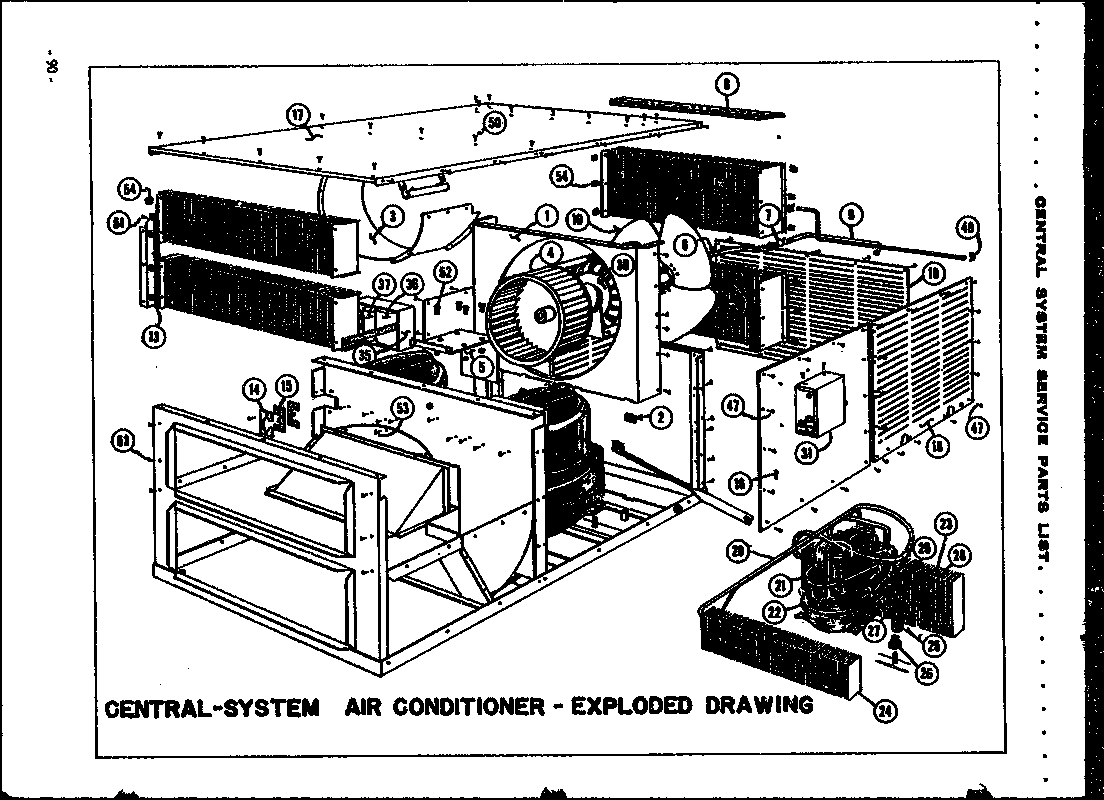

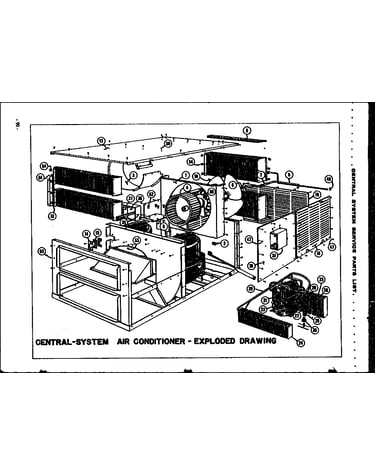

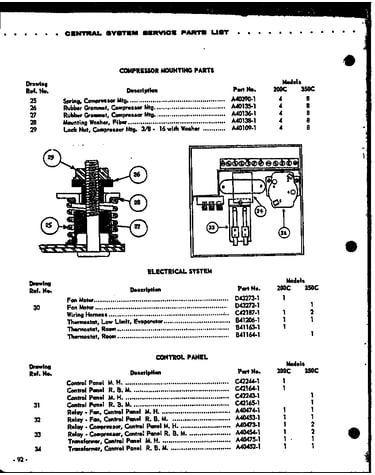

Unit parts diagram

Spacer, insulator between evap. and frame

Part #A4037901

The manufacturer no longer makes this part, and there's no substitute part

Washer, Compressor Terminal A4012501

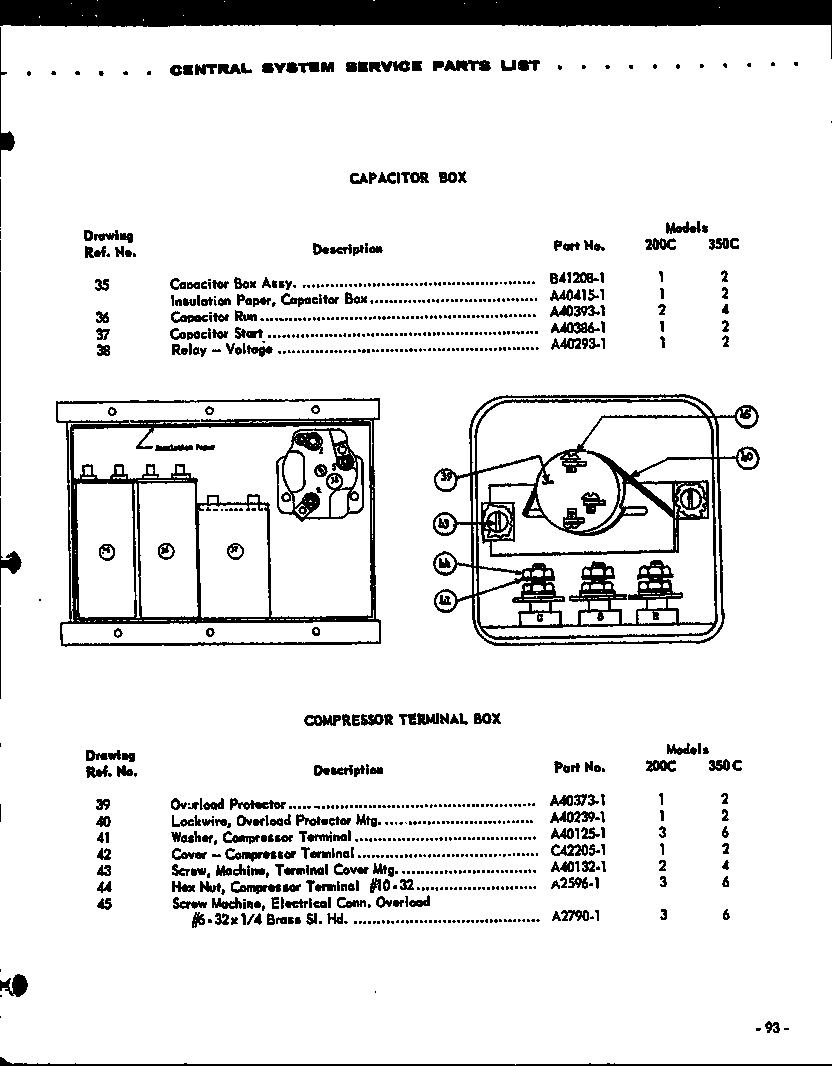

Capacitor box/compressor terminal box diagram

Washer, compressor terminal

Part #A4012501

The manufacturer no longer makes this part, and there's no substitute part

Screw, S.m. Tube Grommet & Clamp Mtg. #10b X 5/8 Hex Hd. A0258601

Unit parts diagram

Screw, s.m. tube grommet & clamp mtg. #10b x 5/8 hex hd.

Part #A0258601

The manufacturer no longer makes this part, and there's no substitute part

Side Sheet Front D4324501

Unit parts diagram

Side sheet front

Part #D4324501

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Start A4038601

Capacitor box/compressor terminal box diagram

Capacitor start

Part #A4038601

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp, Drain Tube Mfg. A0323701

Unit parts diagram

Hose clamp, drain tube mfg.

Part #A0323701

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut, Condensate Rod To Cond. Shroud Mtg., 3/16, Ro A0327201

Unit parts diagram

Speed nut, condensate rod to cond. shroud mtg., 3/16, ro

Part #A0327201

The manufacturer no longer makes this part, and there's no substitute part

Screw, S.m. Front Panel Mtg. #10b X 3/8 Hex Hd. A0329901

Capacitor box/compressor terminal box diagram

Screw, s.m. front panel mtg. #10b x 3/8 hex hd.

Part #A0329901

The manufacturer no longer makes this part, and there's no substitute part

Condenser Shroud C4215201

Unit parts diagram

Condenser shroud

Part #C4215201

The manufacturer no longer makes this part, and there's no substitute part

Screw, S.m. Evaporator Mtg. #10a X 3/4 Hex Hd. A0330001

Unit parts diagram

Screw, s.m. evaporator mtg. #10a x 3/4 hex hd.

Part #A0330001

The manufacturer no longer makes this part, and there's no substitute part
