Amana VRCF24U01C/P9885211C condensing unit - vrcf series Parts
Here are the diagrams and repair parts for Amana VRCF24U01C/P9885211C condensing unit - vrcf series, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for VRCF24U01C/P9885211C Condensing Unit - VRCF Series
#AR
All parts diagram
Hard Start Accessory Kit
Part #R0156630
The manufacturer no longer makes this part, and there's no substitute part

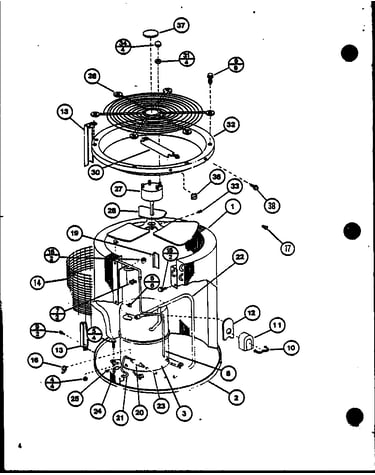

Preform coil assembly diagram
Acorn Nut
Part #M0280701
The manufacturer no longer makes this part, and there's no substitute part
Preform coil assembly diagram
Discharge Tube
Part #D6937101
The manufacturer no longer makes this part, and there's no substitute part
Preform coil assembly diagram
Bale Strap
Part #A4594001
The manufacturer no longer makes this part, and there's no substitute part
Preform coil assembly diagram
Compressor, 208/230 V., 60 Hz, 10, Tecumseh Ab5527h
Part #D6936403
The manufacturer no longer makes this part, and there's no substitute part

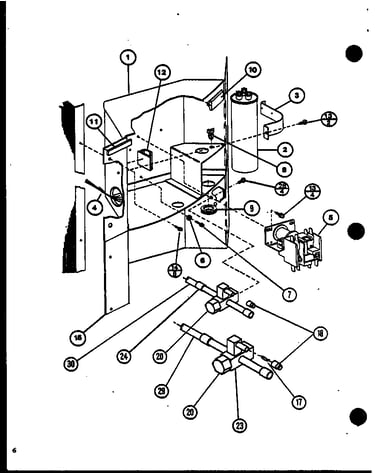

Control assembly diagram
Strap Capacitor
Part #C6300506
The manufacturer no longer makes this part, and there's no substitute part
Control assembly diagram
Electric Tie
Part #M0322201
The manufacturer no longer makes this part, and there's no substitute part
Preform coil assembly diagram
Discharge Tube (not Shown)
Part #D6936801
The manufacturer no longer makes this part, and there's no substitute part

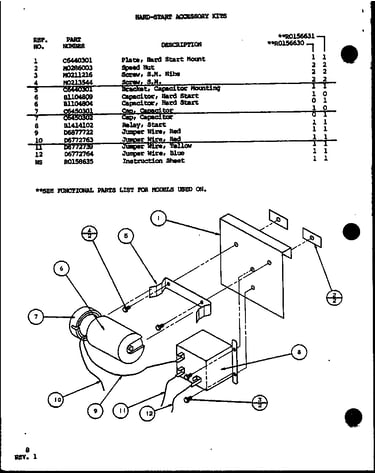

Hard-start accessory kits diagram
Nut A
Part #M0286003
The manufacturer no longer makes this part, and there's no substitute part
Control assembly diagram
Grommet
Part #A4603801
The manufacturer no longer makes this part, and there's no substitute part
