Model # N9MP1125J20A1 Official ICP 90+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP N9MP1125J20A1 90+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Furnace Temperature Limit Switch 1013102
#16

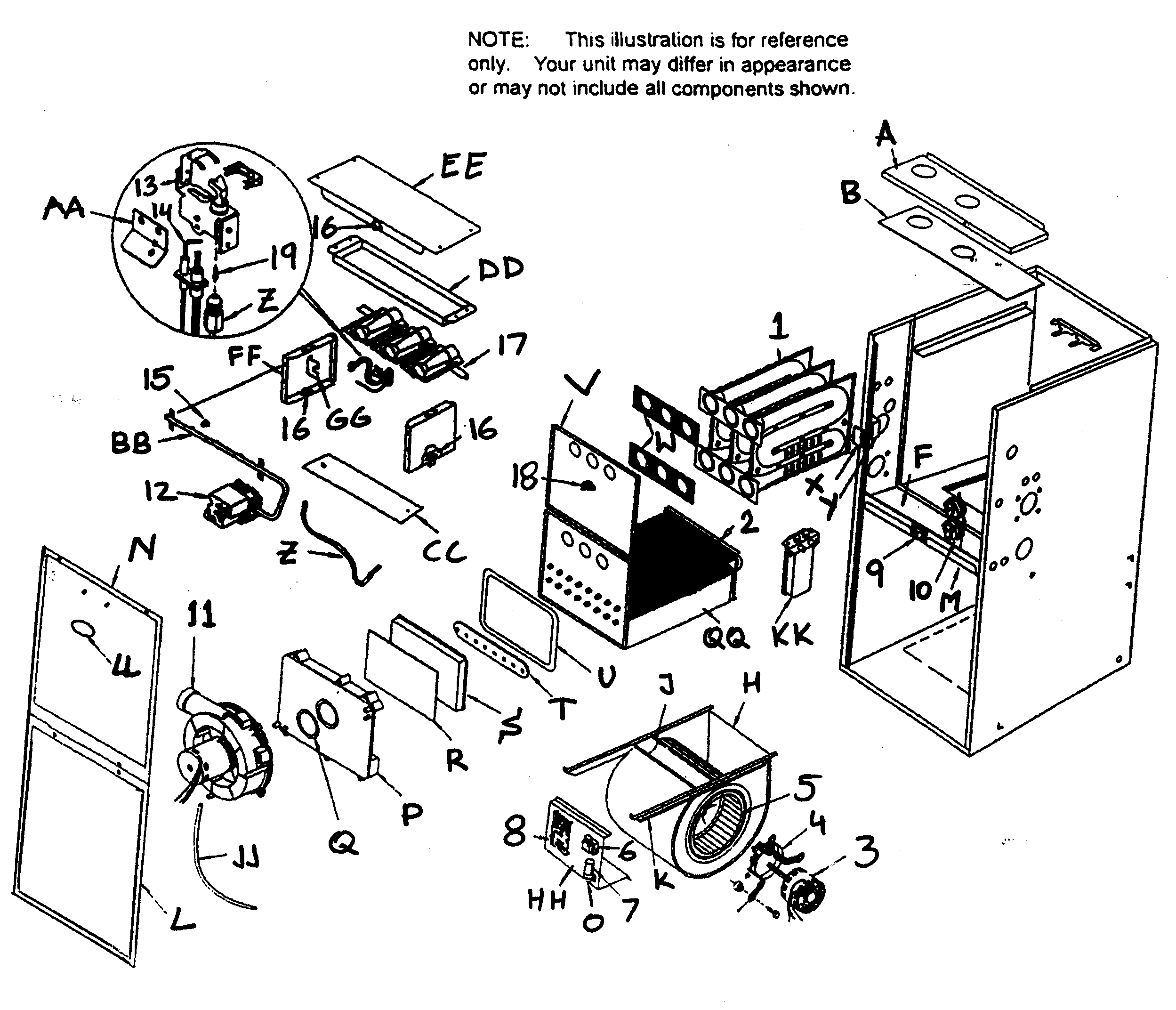

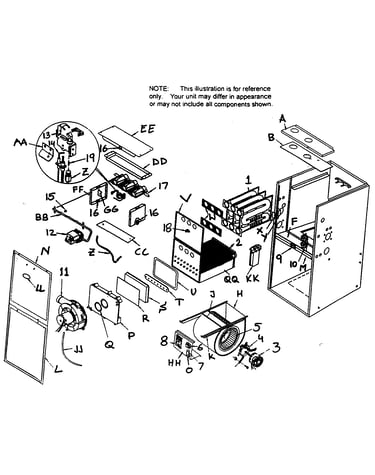

Furnace diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Gas Valve 1013350
#12

Furnace diagram

Gas valve

Part #1013350

Replaced by #SV9641M4510

?
Manufacturer substitution
This part replaces 1013350. Substitute parts can look different from the original.
$659.47 |
$10.00 OFF Phone Price : $669.47
In Stock
Control Board 1012358
#8

Furnace diagram

Control board

Part #1012358

Replaced by #ST9120U1011

?
Manufacturer substitution
This part replaces 1012358. Substitute parts can look different from the original.
$278.27 |
$10.00 OFF Phone Price : $288.27
In Stock
Gasket 1012595
#U

Furnace diagram

Gasket

Part #1012595

$22.91
In Stock
Conv Kit 1009509
#NI

Furnace diagram

Conv kit

Part #1009509

$170.80
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#5

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
6% OFF Phone Price : $170.43
In Stock
Furnace Blower Vent 1013414
#11

Furnace diagram

Furnace blower vent

Part #1013414

Replaced by #1172824

?
Manufacturer substitution
This part replaces 1013414. Substitute parts can look different from the original.
$351.75
In Stock
Tubing 1013077
#Z

Furnace diagram

Tubing

Part #1013077

Replaced by #64930

?
Manufacturer substitution
This part replaces 1013077. Substitute parts can look different from the original.
$77.80
In Stock
Bushg Str Rl 1945287
#NI

Furnace diagram

Bushg str rl

Part #1945287

The manufacturer no longer makes this part, and there's no substitute part

Furnace Pilot Burner Bracket 1010901
#AA

Furnace diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
