Model # GNJ075M12A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP GNJ075M12A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#8

Functional replacement diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
6% OFF Phone Price : $176.19
In Stock
Trans 40 Va 1008782
#7

Functional replacement diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Switch 611872
#4

Functional replacement diagram

Switch

Part #611872

$25.58
In Stock
Control Pres 1093433
#20

Functional replacement diagram

Control pres

Part #1093433

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1093433. Substitute parts can look different from the original.
$62.55 |
7% OFF Phone Price : $67.55
In Stock
Limit Switch 1000735
#3

Functional replacement diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Shield 1008630

#NI

All parts diagram

Shield

Part #1008630

$42.69
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Functional replacement diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock

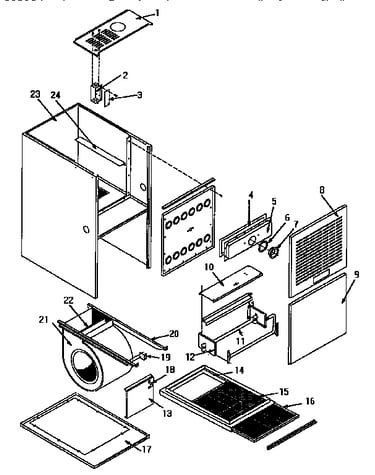

Baffle 707010031
#24

Non-functional replacement diagram

Baffle

Part #707010031

$49.47
In Stock
Tubing 64930
#9B

Functional replacement diagram

Tubing

Part #64930

$77.80
In Stock
Furnace Temperature Limit Switch 34333002
#14

Functional replacement diagram

Furnace temperature limit switch

Part #34333002

$48.15 |
9% OFF Phone Price : $53.15
In Stock
