Model #HDLCDVD195B Sansui lcd television with dvd

Here are the diagrams and repair parts for Sansui HDLCDVD195B lcd television with dvd, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 149 parts

Headphones

#NI

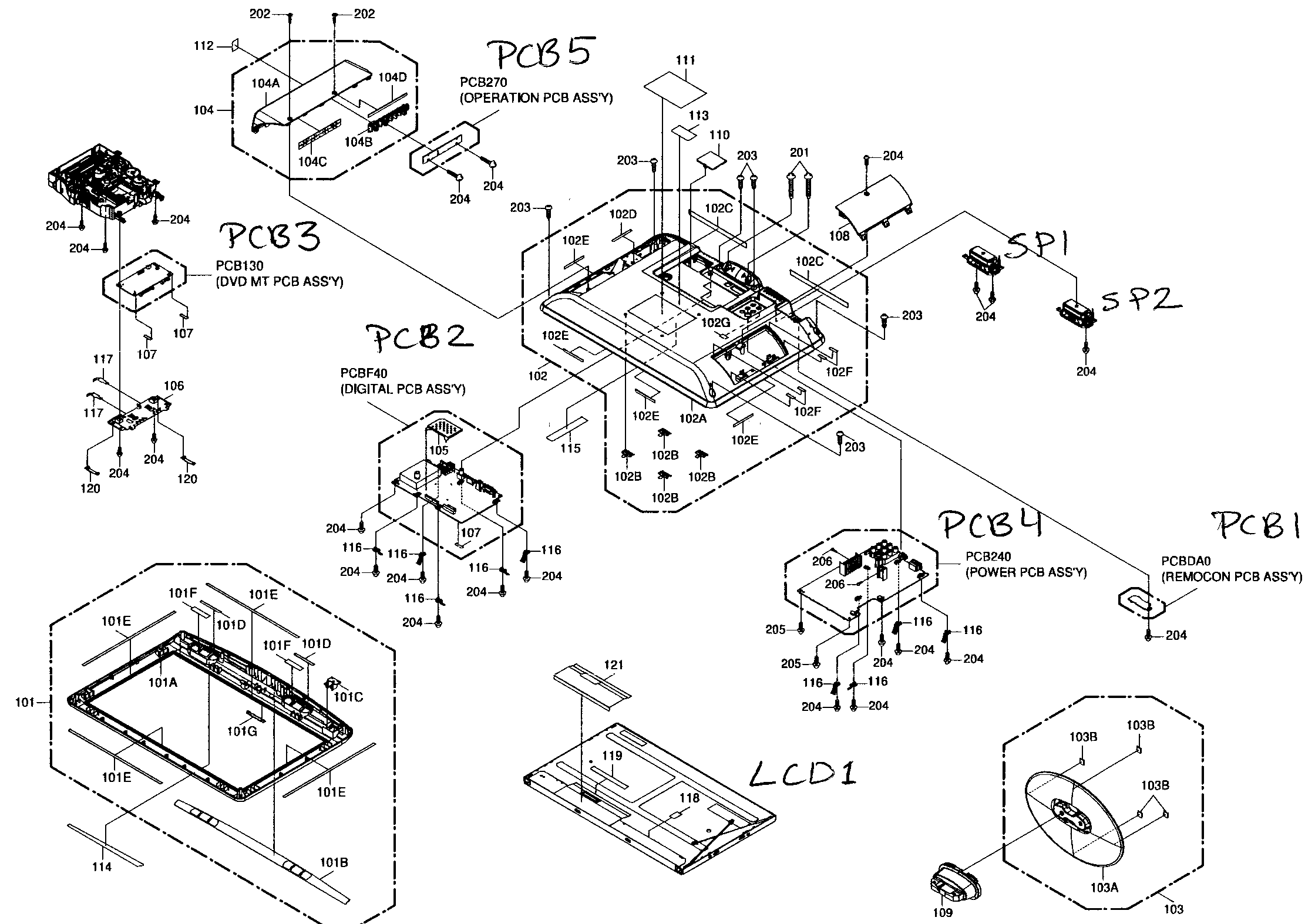

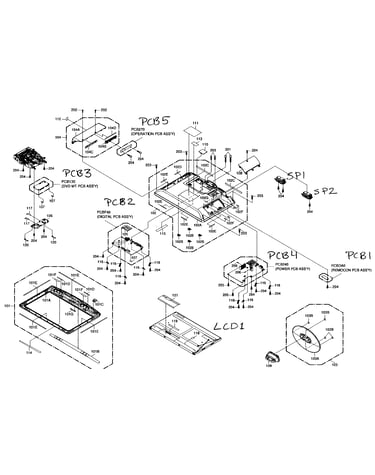

Cabinet parts Diagram

Headphones

Part #060R131024

The manufacturer no longer makes this part, and there's no substitute part

Cord Jumper

#CD2A

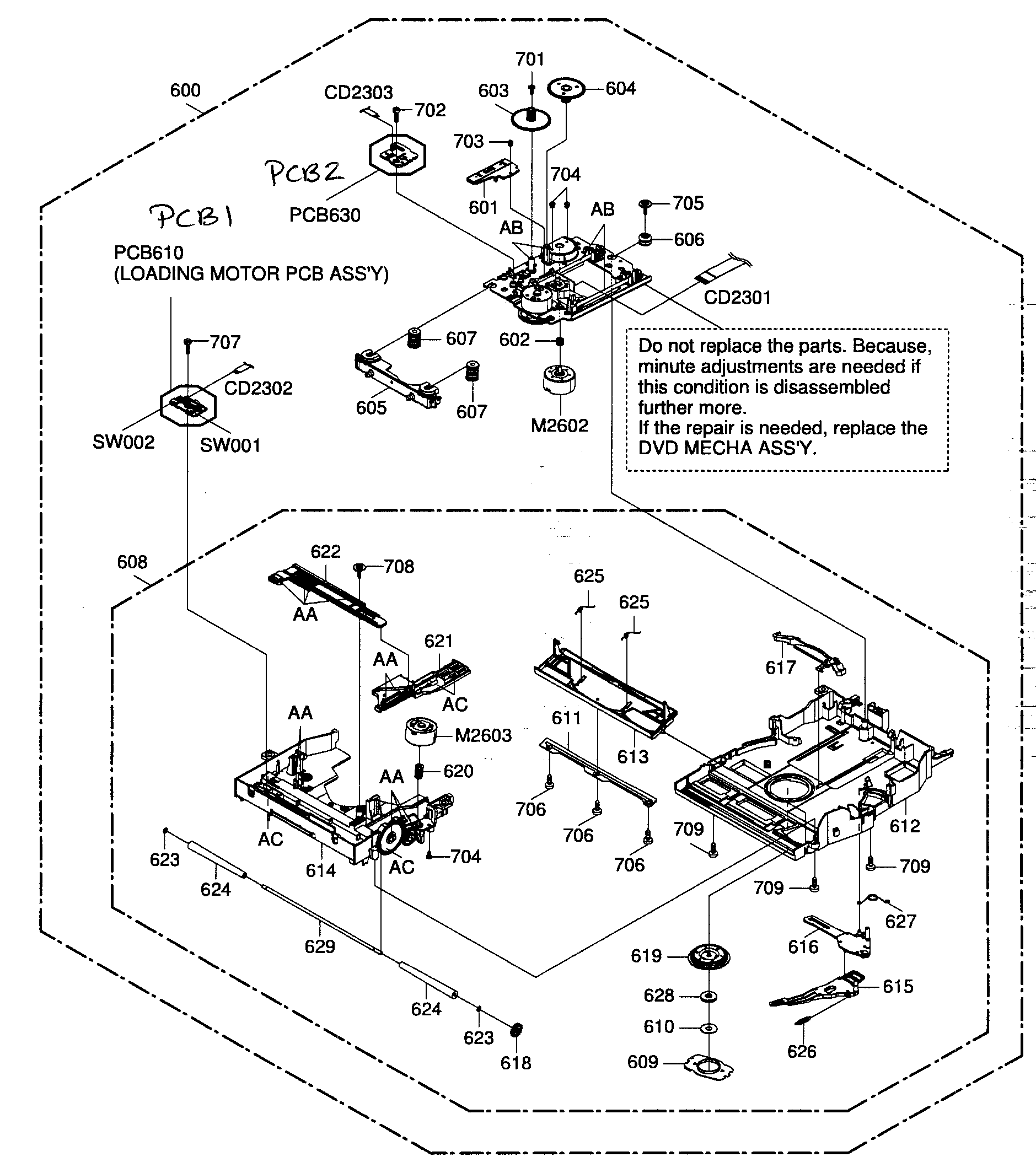

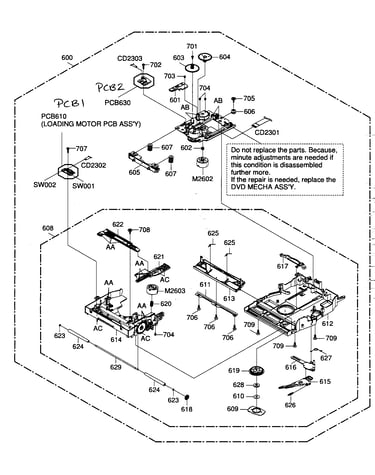

Dvd deck Diagram

Cord jumper

Part #12C14O1602

The manufacturer no longer makes this part, and there's no substitute part

Power PCB

#PCB4

Cabinet parts Diagram

Power pcb

Part #A52C17J240

The manufacturer no longer makes this part, and there's no substitute part

Resistor

#NI

Cabinet parts Diagram

Resistor

Part #RC31X1125J

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#NI

Cabinet parts Diagram

Capacitor

Part #CD39E0M13M

The manufacturer no longer makes this part, and there's no substitute part

Gear

#604

Dvd deck Diagram

Gear

Part #92P100117A

The manufacturer no longer makes this part, and there's no substitute part

R Fuse,res

#NI

Cabinet parts Diagram

R fuse,res

Part #R63884330J

The manufacturer no longer makes this part, and there's no substitute part

Holder

#NI

Cabinet parts Diagram

Holder

Part #06710T0009

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit

#NI

Cabinet parts Diagram

Integrated circuit

Part #I1KJ9A431A

The manufacturer no longer makes this part, and there's no substitute part

Jack,ac

#NI

Cabinet parts Diagram

Jack,ac

Part #064Q1A0010

The manufacturer no longer makes this part, and there's no substitute part
