Kenmore
Central Air Conditioner

Model #1069721970 Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 1069721970 air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 185 parts

Room Air Conditioner Outdoor Cover

#14D

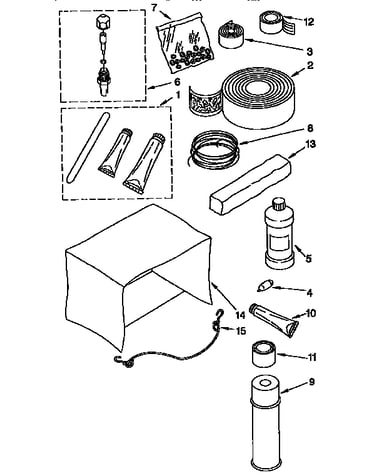

Optional parts Diagram

$48.13

In Stock

Bracket Support

#24

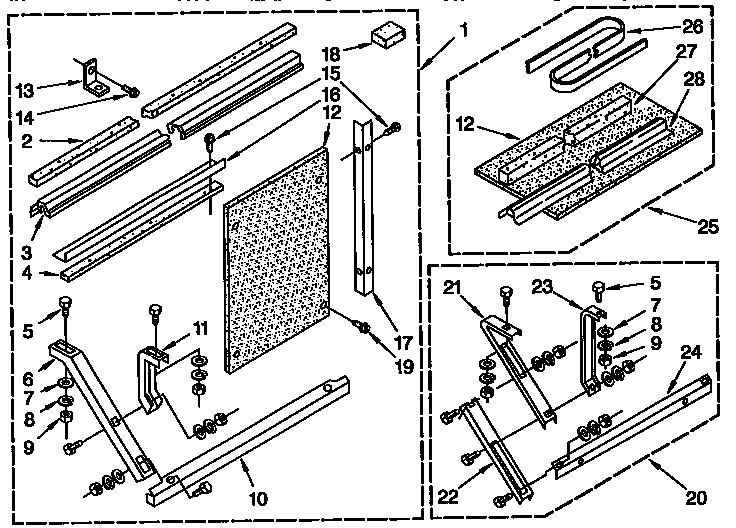

Installation parts Diagram

Bracket support

Part #644281
$42.20

In Stock

Nut

#29

Unit parts Diagram

Nut

Part #WP950027
?
Manufacturer substitution
This part replaces 950027. Substitute parts can look different from the original.
This part replaces 950027
This item is not returnable
$3.29

In Stock

Refrigerator Service Valve

#6B

Optional parts Diagram

Refrigerator service valve

Part #WP978025
?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
This part replaces 978025
$33.74 |
13% OFF MSRP:$39.00

In Stock

Refrigerator Permagum Sealer

#13

Optional parts Diagram

Refrigerator permagum sealer

Part #4318168
?
Manufacturer substitution
This part replaces 99344. Substitute parts can look different from the original.
This part replaces 99344
$30.97 |
6% OFF MSRP:$33.00

In Stock

Gasket

#25

Unit parts Diagram

Gasket

Part #WP950035
?
Manufacturer substitution
This part replaces 950035. Substitute parts can look different from the original.
This part replaces 950035
$32.40

In Stock

Capacitor Bracket

#14B

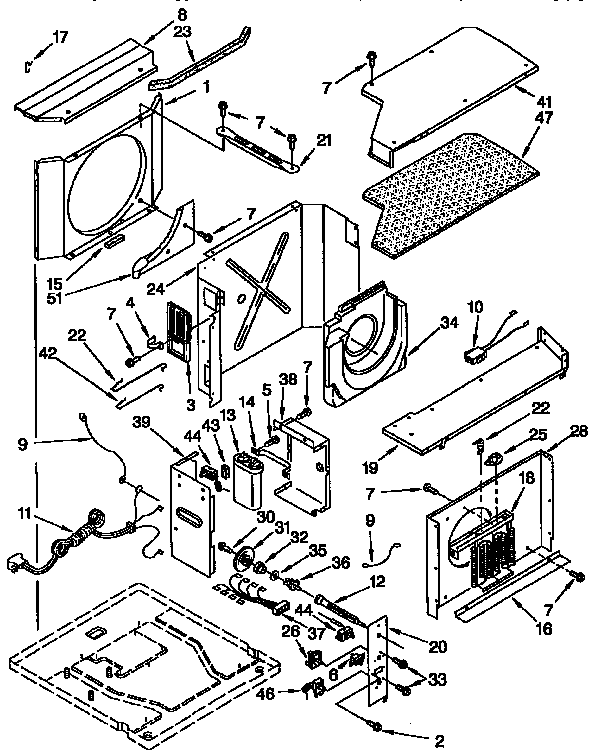

Airflow and control parts Diagram

Capacitor bracket

Part #WP1160674
?
Manufacturer substitution
This part replaces 1160674. Substitute parts can look different from the original.
This part replaces 1160674
$60.91

In Stock

Hex Lock Nut, 8-pack

#11

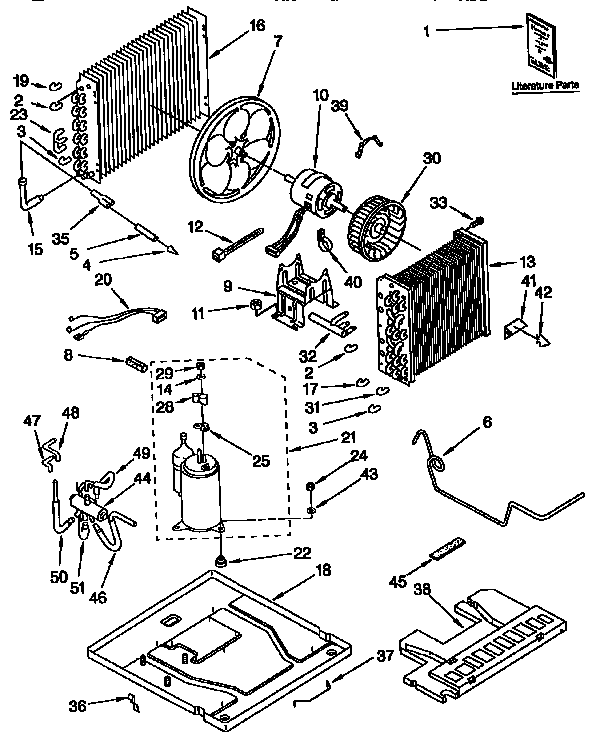

Unit parts Diagram

Hex lock nut, 8-pack

Part #STD541408
?
Manufacturer substitution
This part replaces 1160408. Substitute parts can look different from the original.
This part replaces 1160408
This item is not returnable
$6.25

Back Order

Appliance Screw

#7

Airflow and control parts Diagram

Appliance screw

Part #WP489069
?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This part replaces 488480
This item is not returnable
$2.48 |
25% OFF MSRP:$3.29

In Stock

Refrigerator Permagum Sealer

#12

Optional parts Diagram

Refrigerator permagum sealer

Part #212643
?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This part replaces 212643
$17.48 |
53% OFF MSRP:$37.00

In Stock
