Amana LEA100A004A/P1160404C package cooling unit - lea series Parts
Here are the diagrams and repair parts for Amana LEA100A004A/P1160404C package cooling unit - lea series, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for LEA100A004A/P1160404C Package Cooling Unit - LEA Series
#NI
All parts diagram
Fuse
Part #R1000251
The manufacturer no longer makes this part, and there's no substitute part

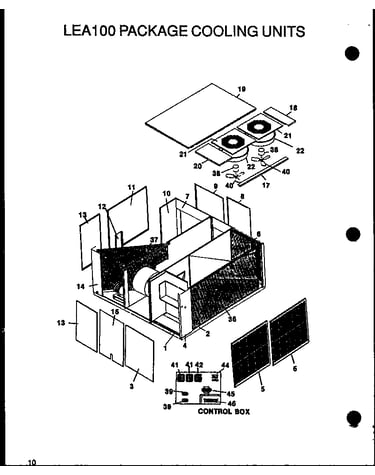

Lea100 package cooling units (lea100a003a/p1160403c) (lea100a004a/p1160404c) diagram

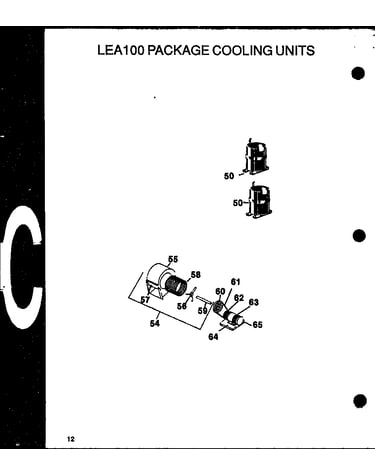

Motor, 2 Hp 208-230/460 V., 1 Spd
Part #R1000076
The manufacturer no longer makes this part, and there's no substitute part
Lea100 package cooling units (lea100a003a/p1160403c) (lea100a004a/p1160404c) diagram
Blower Assembly, Less Motor, Pulleys
Part #R1000027
The manufacturer no longer makes this part, and there's no substitute part

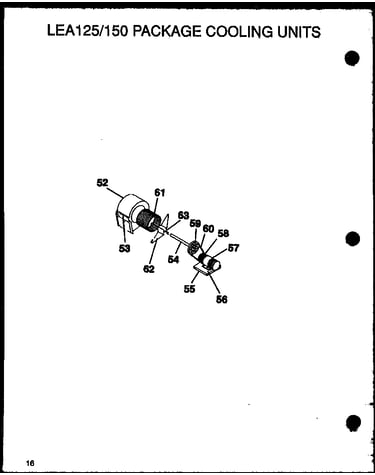

Lea125/150 package cooling units (lea125a003a/p1160405c) (lea125a004a/p1160406c) (lea150a003a/p1160407c) (lea150a004a/p1160408c) diagram
Panel, Louvered Access, Rear
Part #R1000601
The manufacturer no longer makes this part, and there's no substitute part
Corner Post, Rear
Part #R1000608
The manufacturer no longer makes this part, and there's no substitute part

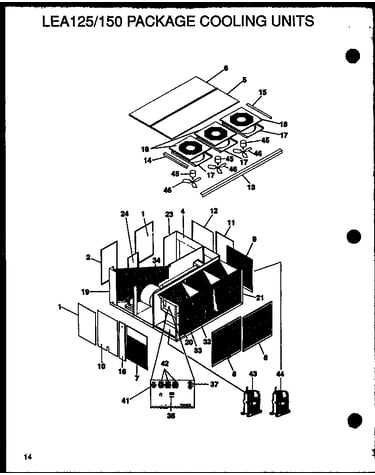

Lea125/150 package cooling units (lea125a003a/p1160405c) (lea125a004a/p1160406c) (lea150a003a/p1160407c) (lea150a004a/p1160408c) diagram
Compressor
Part #R1000190
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Low Pressure Control
Part #R1000672
The manufacturer no longer makes this part, and there's no substitute part

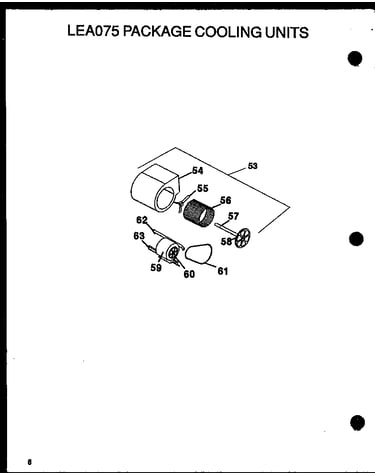

Lea075 package cooling units (lea075a003a/p1160401c) (lea075a004a/p1160402c) diagram
Motor Pulley
Part #R1000085
The manufacturer no longer makes this part, and there's no substitute part

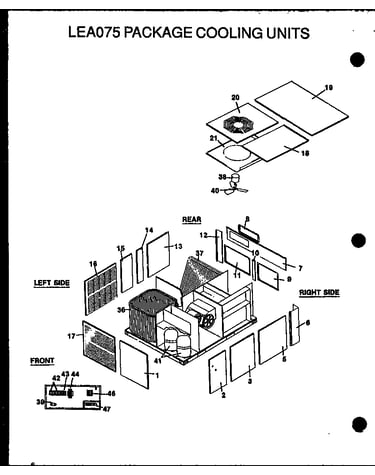

Lea075 package cooling units (lea075a003a/p1160401c) (lea075a004a/p1160402c) diagram
Top Panel-small
Part #R1000642
The manufacturer no longer makes this part, and there's no substitute part

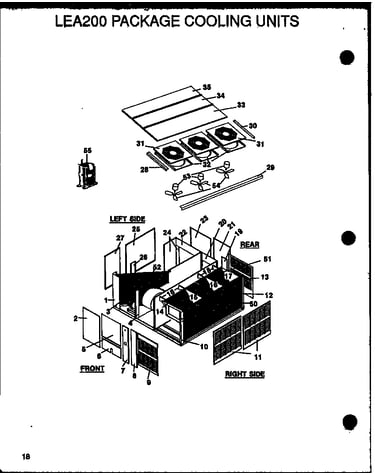

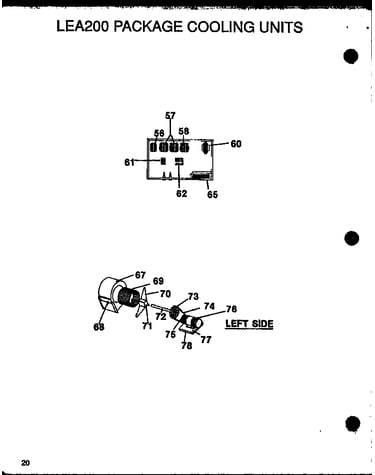

Lea200 package cooling units (lea200a003a/p1160409c) (lea200a004a/p1160410c) diagram
Venturi
Part #R1000656
The manufacturer no longer makes this part, and there's no substitute part
