Magic Chef CM15K-7BS-NB microwave

Magic Chef CM15K-7BS-NB microwave Parts

Here are the diagrams and repair parts for Magic Chef CM15K-7BS-NB microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

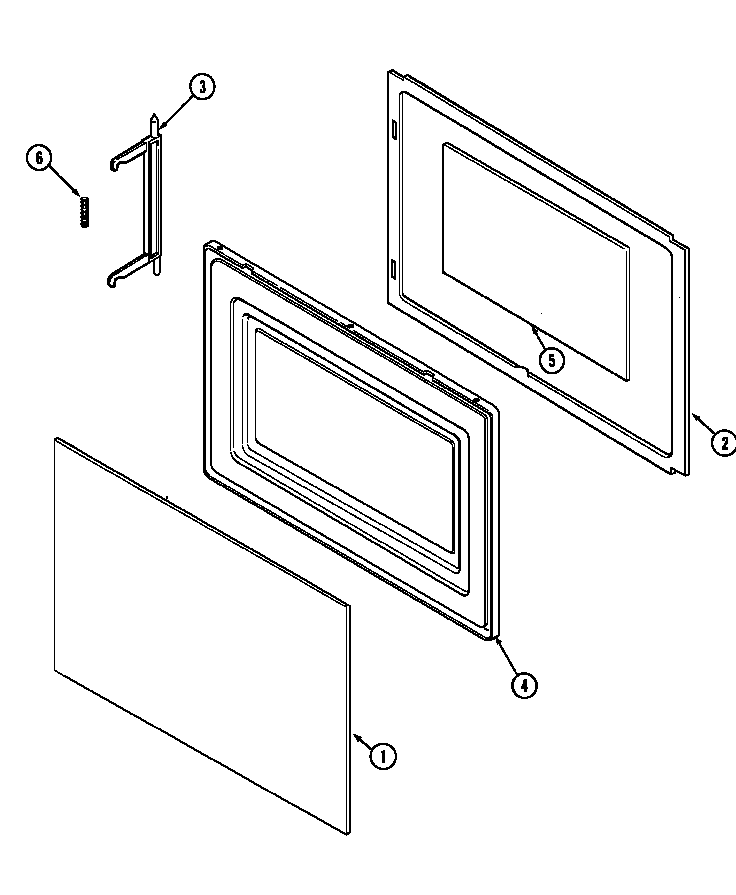

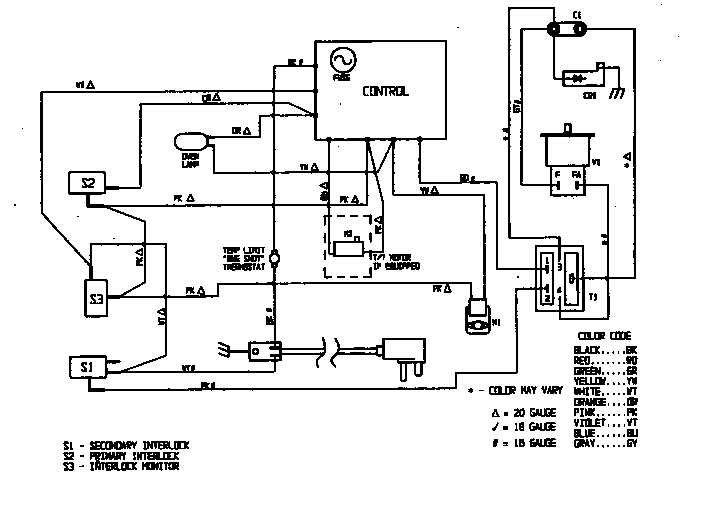

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CM15K-7BS-NB Microwaves

  • "screw, 8a X" for Magic Chef CM15K-7BS-NB - Part 03020083

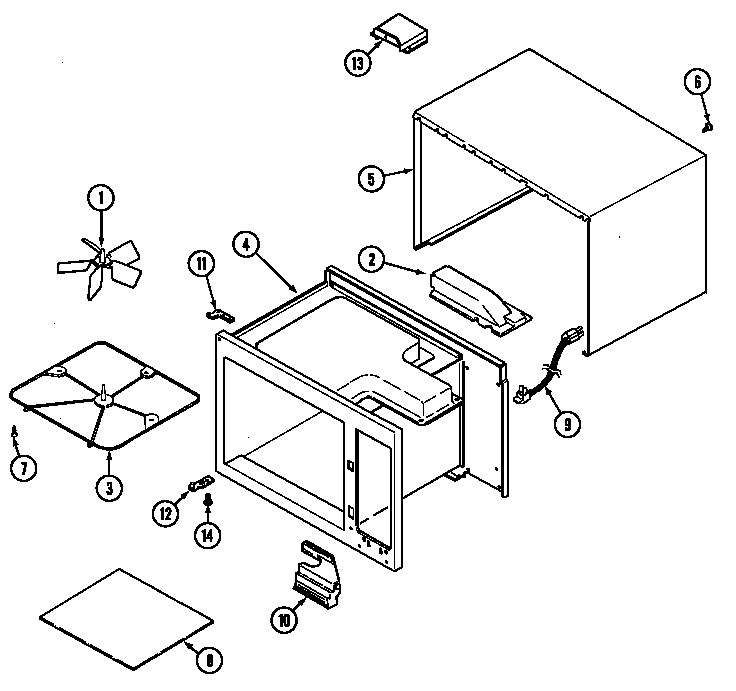

    Base diagram

    "screw, 8a X"

    Part #03020083

    The manufacturer no longer makes this part, and there's no substitute part

  • Receptacle for Magic Chef CM15K-7BS-NB - Part 51001095

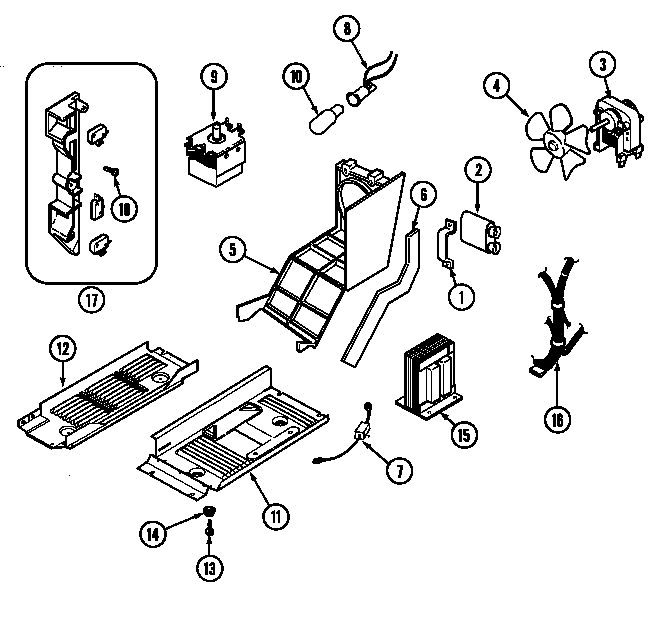

    Internal controls diagram

    Receptacle

    Part #51001095

    The manufacturer no longer makes this part, and there's no substitute part

  • Control Trim for Magic Chef CM15K-7BS-NB - Part 51001185

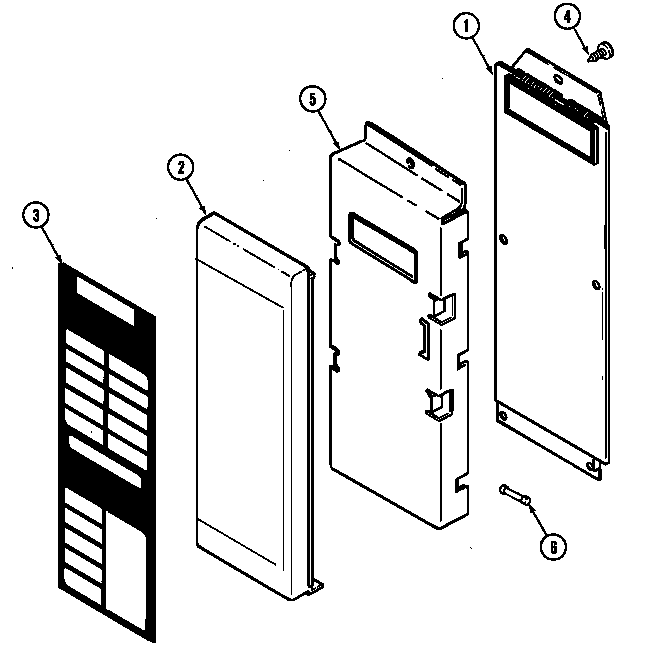

    Control panel diagram

    Control Trim

    Part #51001185

    The manufacturer no longer makes this part, and there's no substitute part

  • Control Bracket for Magic Chef CM15K-7BS-NB - Part 51001054

    Control panel diagram

    Control Bracket

    Part #51001054

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermal Fuse for Magic Chef CM15K-7BS-NB - Part 51001253

    Internal controls diagram

    Thermal Fuse

    Part #51001253

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Button for Magic Chef CM15K-7BS-NB - Part 51001156

    Base diagram

    Door Button

    Part #51001156

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Magic Chef CM15K-7BS-NB - Part 51001217

    Internal controls diagram

    Screw

    Part #51001217

    The manufacturer no longer makes this part, and there's no substitute part

  • Baffle Bulb for Magic Chef CM15K-7BS-NB - Part 51001030

    Internal controls diagram

    Baffle Bulb

    Part #51001030

    The manufacturer no longer makes this part, and there's no substitute part

  • Duct Stirrer for Magic Chef CM15K-7BS-NB - Part 51001027

    Base diagram

    Duct Stirrer

    Part #51001027

    The manufacturer no longer makes this part, and there's no substitute part

  • Control Board for Magic Chef CM15K-7BS-NB - Part 51001053

    Control Board

    Part #51001053

    The manufacturer no longer makes this part, and there's no substitute part
