Craftsman
Electric Line Trimmer

Model #257796041 Craftsman adjustable handle weed & grass trimmer

Here are the diagrams and repair parts for Craftsman 257796041 adjustable handle weed & grass trimmer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

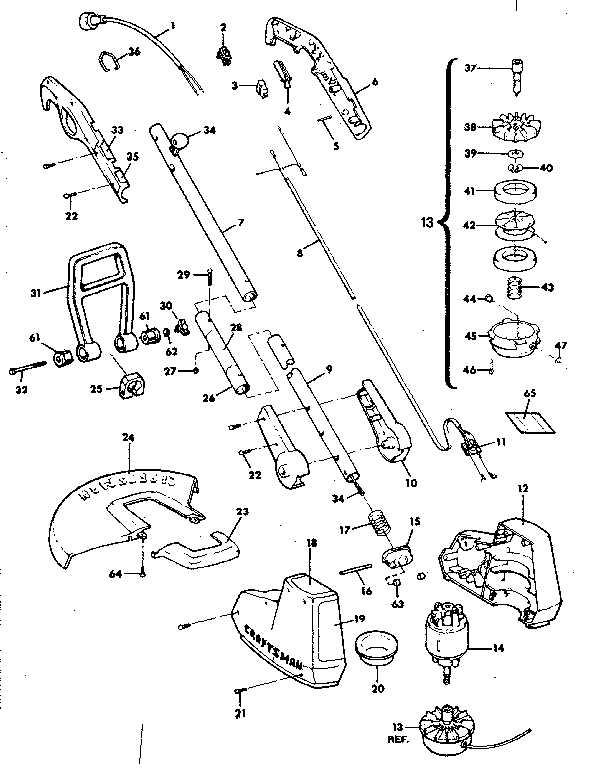

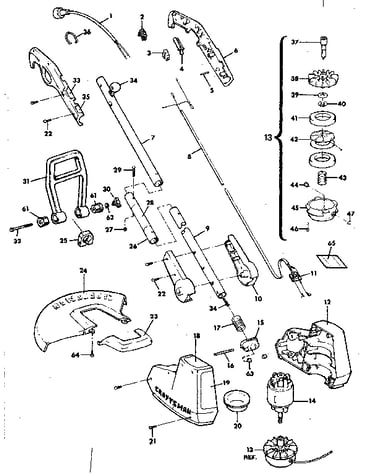

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 67 parts

    Retaining Ring

    #52

    All parts Diagram

    Retaining ring

    Part #747-2

    The manufacturer no longer makes this part, and there's no substitute part

    Pin

    #46

    All parts Diagram

    Pin

    Part #2703-1

    The manufacturer no longer makes this part, and there's no substitute part

    Lawn & Garden Equipment Nut

    #27

    All parts Diagram

    Lawn & garden equipment nut

    Part #534235901
    ?
    Manufacturer substitution
    This part replaces 2359-1. Substitute parts can look different from the original.
    This part replaces 2359-1
    This item is not returnable
    $2.49

    In Stock

    Spring

    #43

    All parts Diagram

    Spring

    Part #1574-1

    The manufacturer no longer makes this part, and there's no substitute part

    End Bell Assembly

    #49

    All parts Diagram

    End bell assembly

    Part #2071-1

    The manufacturer no longer makes this part, and there's no substitute part

    Field Assembly

    #51

    All parts Diagram

    Field assembly

    Part #2270-1

    The manufacturer no longer makes this part, and there's no substitute part

    Holder

    #60

    All parts Diagram

    Holder

    Part #2277

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #50

    All parts Diagram

    Washer

    Part #2288

    The manufacturer no longer makes this part, and there's no substitute part

    Power Cord

    #1

    All parts Diagram

    Power cord

    Part #2345-2

    The manufacturer no longer makes this part, and there's no substitute part

    Ring

    #54

    All parts Diagram

    Ring

    Part #2467

    The manufacturer no longer makes this part, and there's no substitute part
