Craftsman
Electric Line Trimmer

Model # 25779780 Official Craftsman electric line trimmer

Here are the diagrams and repair parts for Official Craftsman 25779780 electric line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Lock Nut 190254
#20

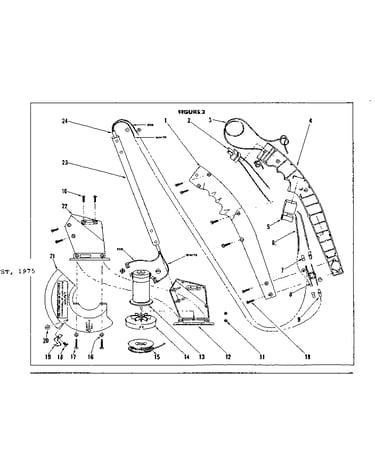

Replacement parts diagram

Lock nut

Part #190254

The manufacturer no longer makes this part, and there's no substitute part

Connector 561
#7

Replacement parts diagram

Connector

Part #561

The manufacturer no longer makes this part, and there's no substitute part

Washer 2616
#16

Replacement parts diagram

Washer

Part #2616

The manufacturer no longer makes this part, and there's no substitute part

Ac Plug 1932
#2

Replacement parts diagram

Ac plug

Part #1932

The manufacturer no longer makes this part, and there's no substitute part

Screw 1938
#10

Replacement parts diagram

Screw

Part #1938

The manufacturer no longer makes this part, and there's no substitute part

Trigger Switch 1930-1
#5

Replacement parts diagram

Trigger switch

Part #1930-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 131924
#17

Replacement parts diagram

Screw

Part #131924

The manufacturer no longer makes this part, and there's no substitute part

Line 2648-05
#15

Replacement parts diagram

Line

Part #2648-05

The manufacturer no longer makes this part, and there's no substitute part

Splice 2265
#9

Replacement parts diagram

Splice

Part #2265

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 1967-3
#6

Replacement parts diagram

Lead wire

Part #1967-3

The manufacturer no longer makes this part, and there's no substitute part
