Craftsman
Lawn Sweeper

Model # 180823980 Official Craftsman 31" trailer lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 180823980 31" trailer lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

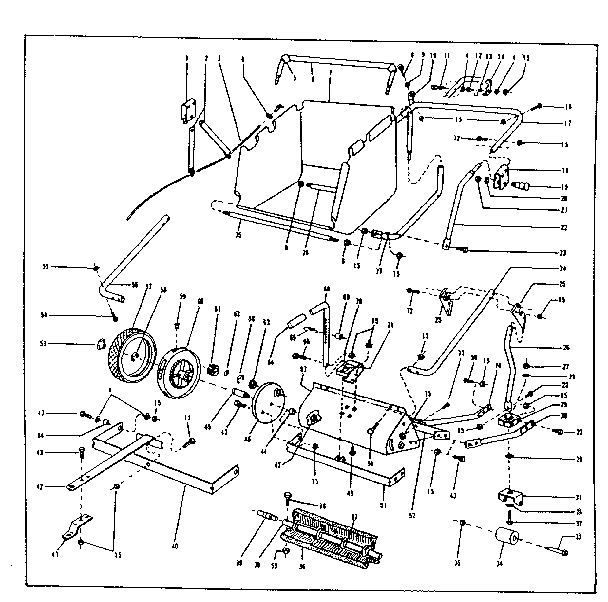

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Lock Nut X-1107
#15

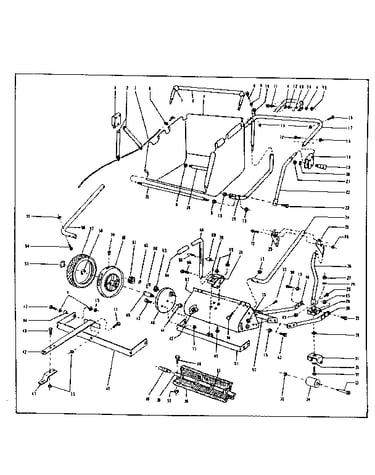

Replacement parts diagram

Lock nut

Part #X-1107

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw L-59
#43

Replacement parts diagram

Cap screw

Part #L-59

The manufacturer no longer makes this part, and there's no substitute part

Washer L-99
#4

Replacement parts diagram

Washer

Part #L-99

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut L-303
#55

Replacement parts diagram

Lock nut

Part #L-303

The manufacturer no longer makes this part, and there's no substitute part

Plate, Caster Assembly IA-1638
#29

Replacement parts diagram

Plate, caster assembly

Part #IA-1638

The manufacturer no longer makes this part, and there's no substitute part

Decal, Adjustment I-1850
#71

Replacement parts diagram

Decal, adjustment

Part #I-1850

The manufacturer no longer makes this part, and there's no substitute part

Bearing L-5497A
#63

Replacement parts diagram

Bearing

Part #L-5497A

The manufacturer no longer makes this part, and there's no substitute part

5/16-18 X /58 Carriage Bolt X-1042
#49

Replacement parts diagram

5/16-18 x /58 carriage bolt

Part #X-1042

The manufacturer no longer makes this part, and there's no substitute part

Bolt X-1358
#73

Replacement parts diagram

Bolt

Part #X-1358

The manufacturer no longer makes this part, and there's no substitute part

Tube, R.h. Pivot Support I-1603
#26A

Replacement parts diagram

Tube, r.h. pivot support

Part #I-1603

The manufacturer no longer makes this part, and there's no substitute part
