Model # WAC083K7A1 Official White-Westinghouse air conditioner

Here are the diagrams and repair parts for Official White-Westinghouse WAC083K7A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

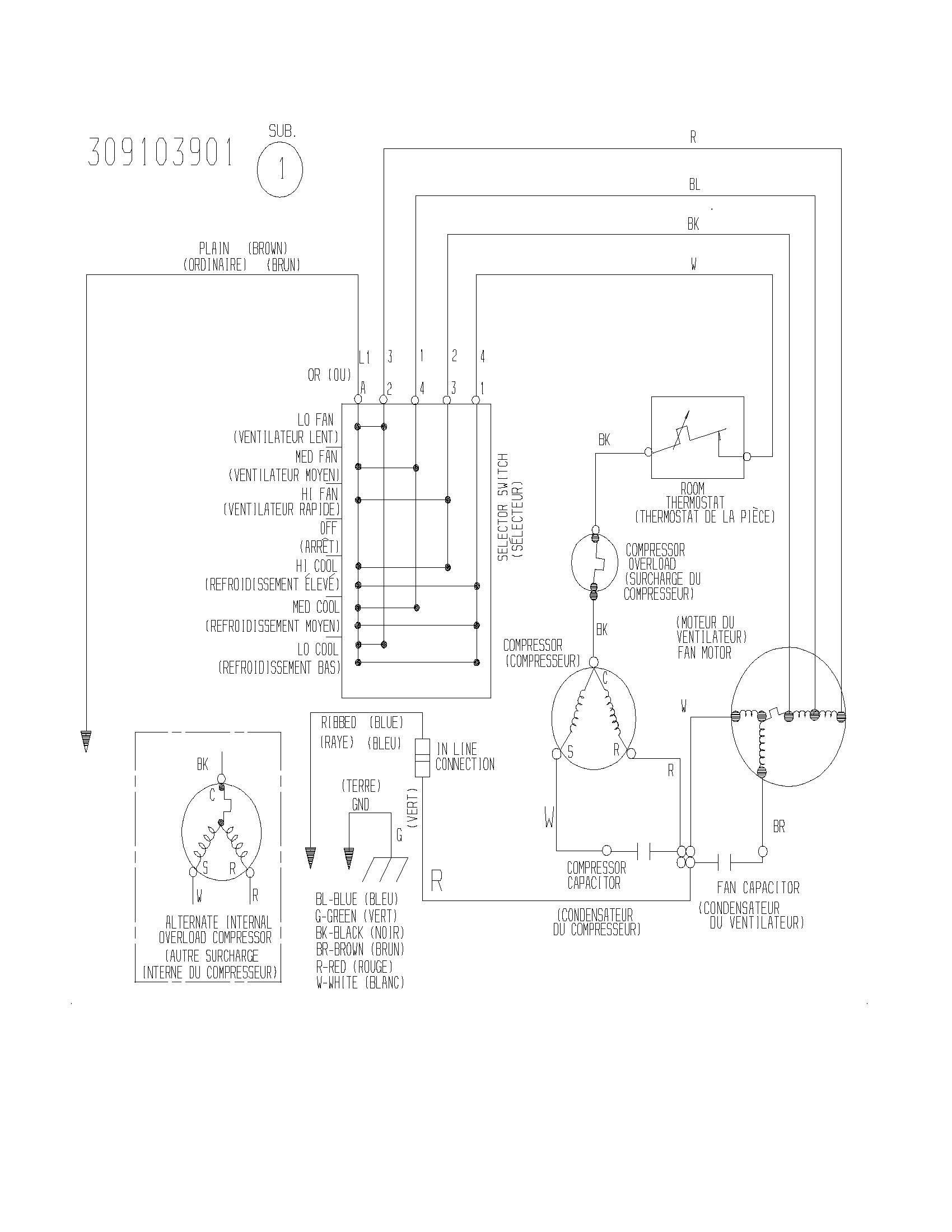

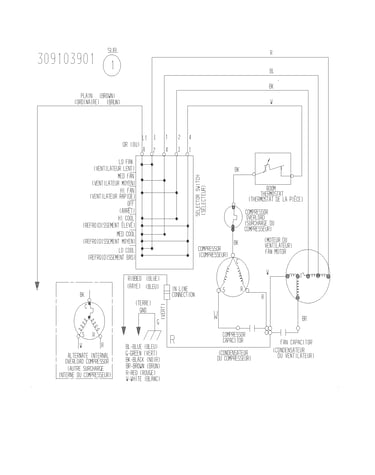

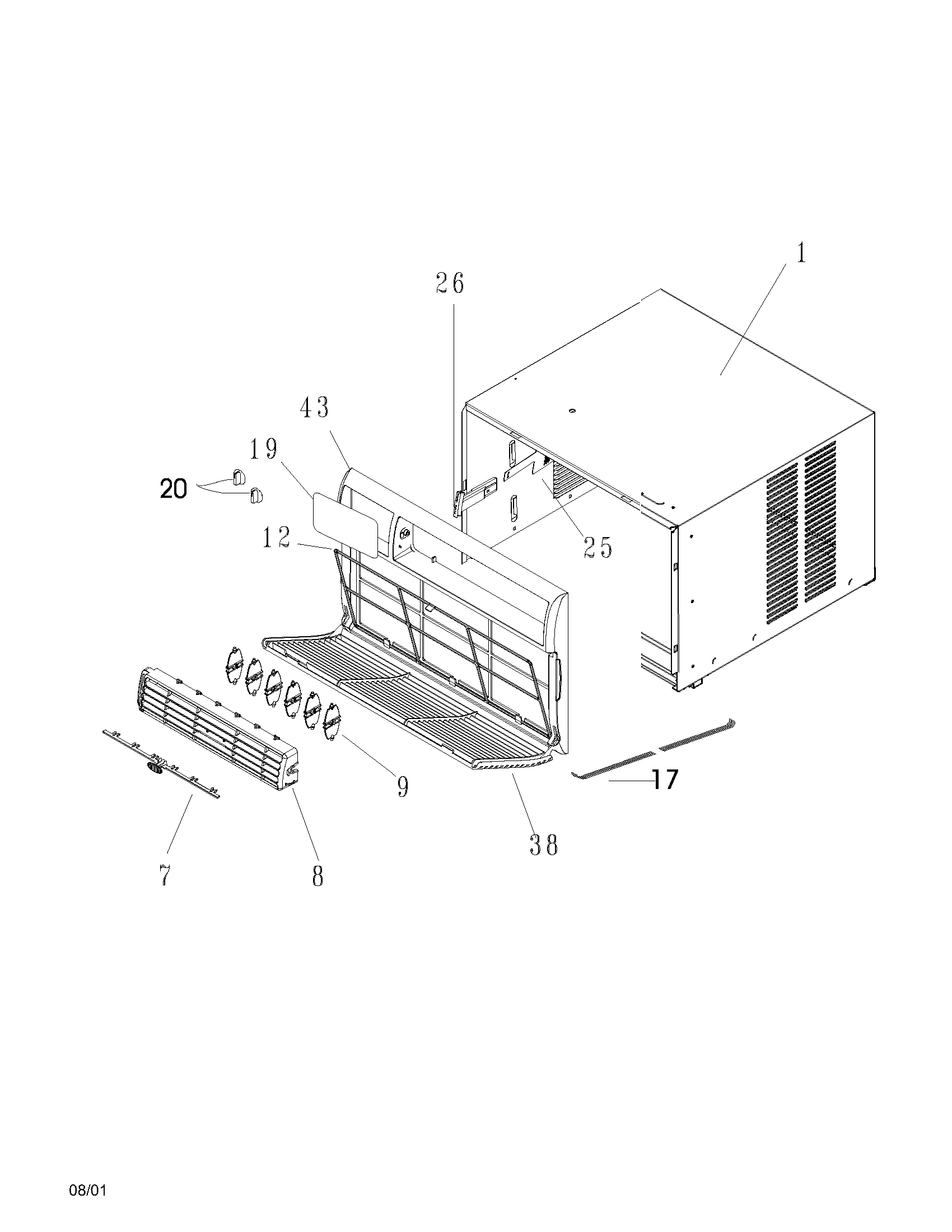

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Cover Capacitor 5303302855
#19

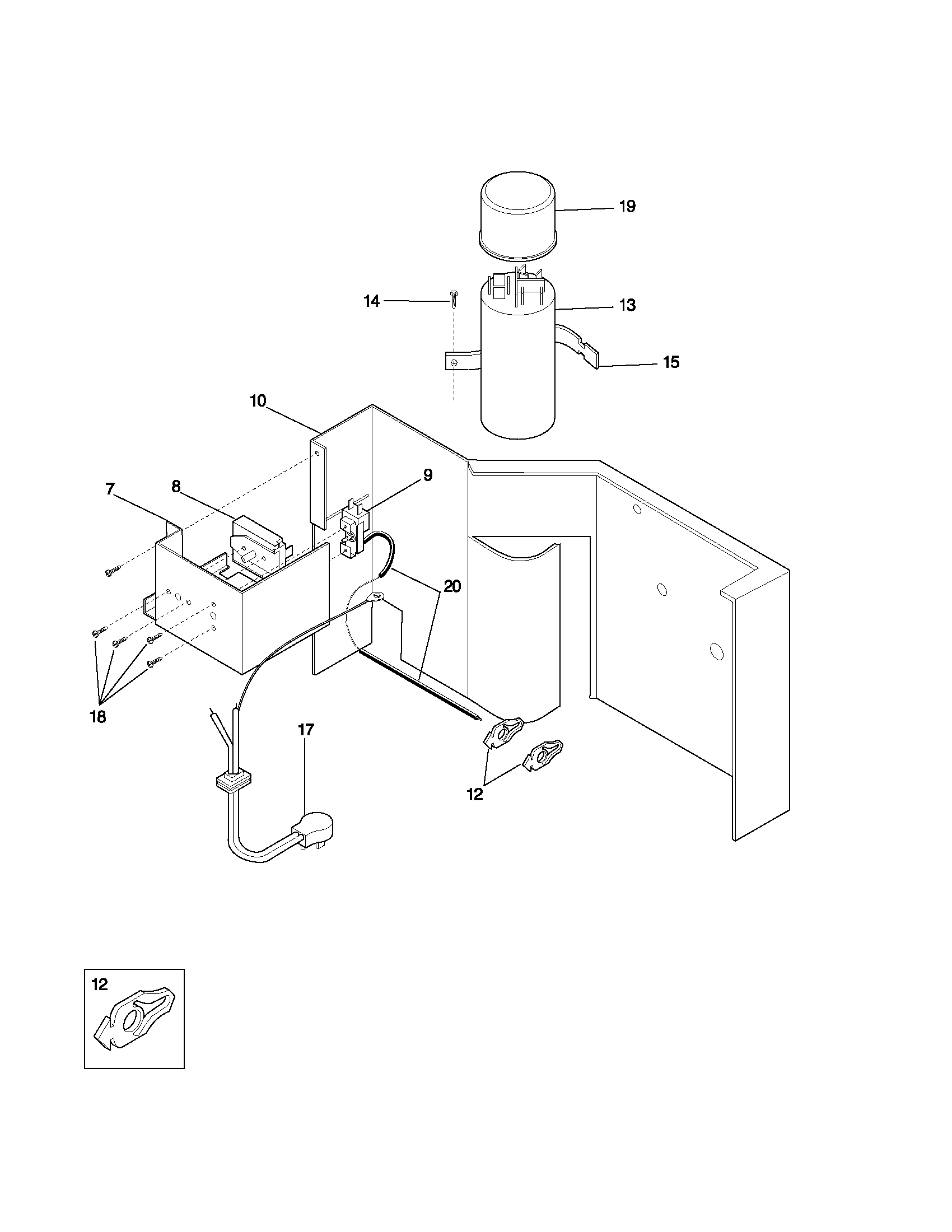

Controls diagram

Cover capacitor

Part #5303302855

In Stock
Complete Bulkhead 309602404
Complete bulkhead

Part #309602404

In Stock
Foam Strip 5304407729
#1

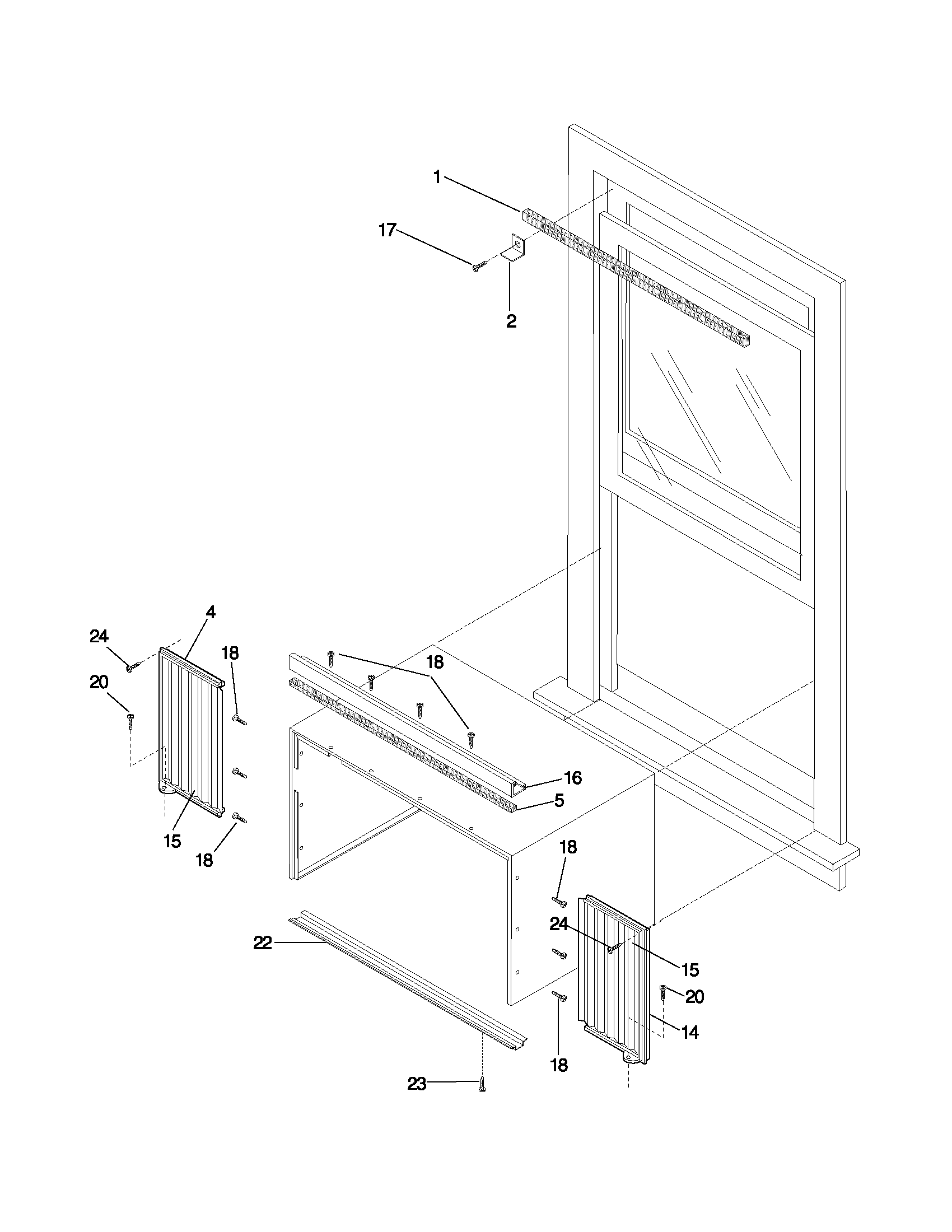

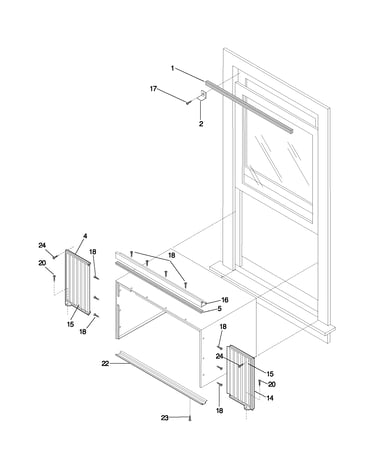

Window mounting diagram

Foam strip

Part #5304407729

In Stock
Screw 3202975
#2

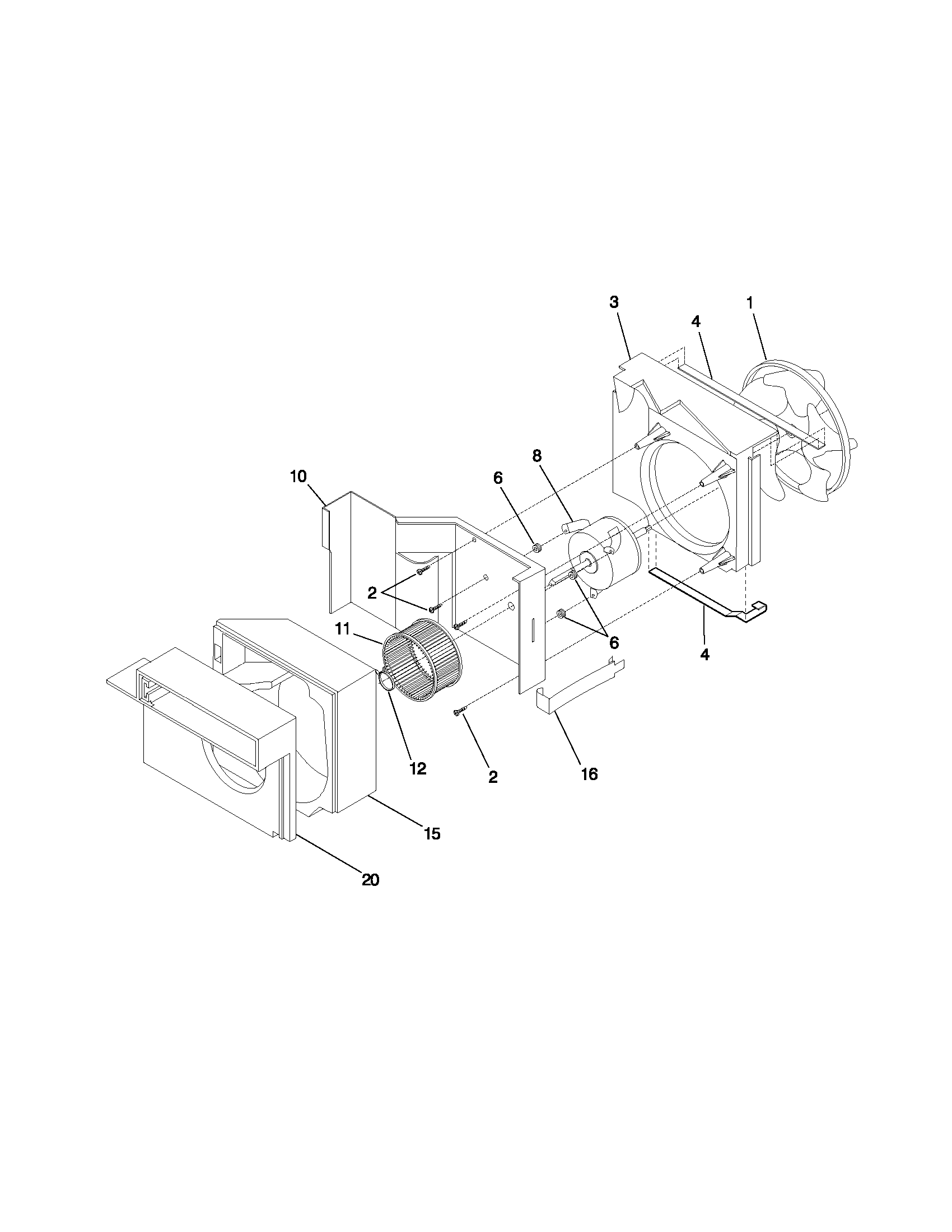

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 5303303691
#18

Window mounting diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
In Stock
Room Air Conditioner Screw 5303015427
#14

Controls diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Power Cord 309343101
#17

Controls diagram

Power cord

Part #309343101

The manufacturer no longer makes this part, and there's no substitute part

Washer-met 309112501
#19

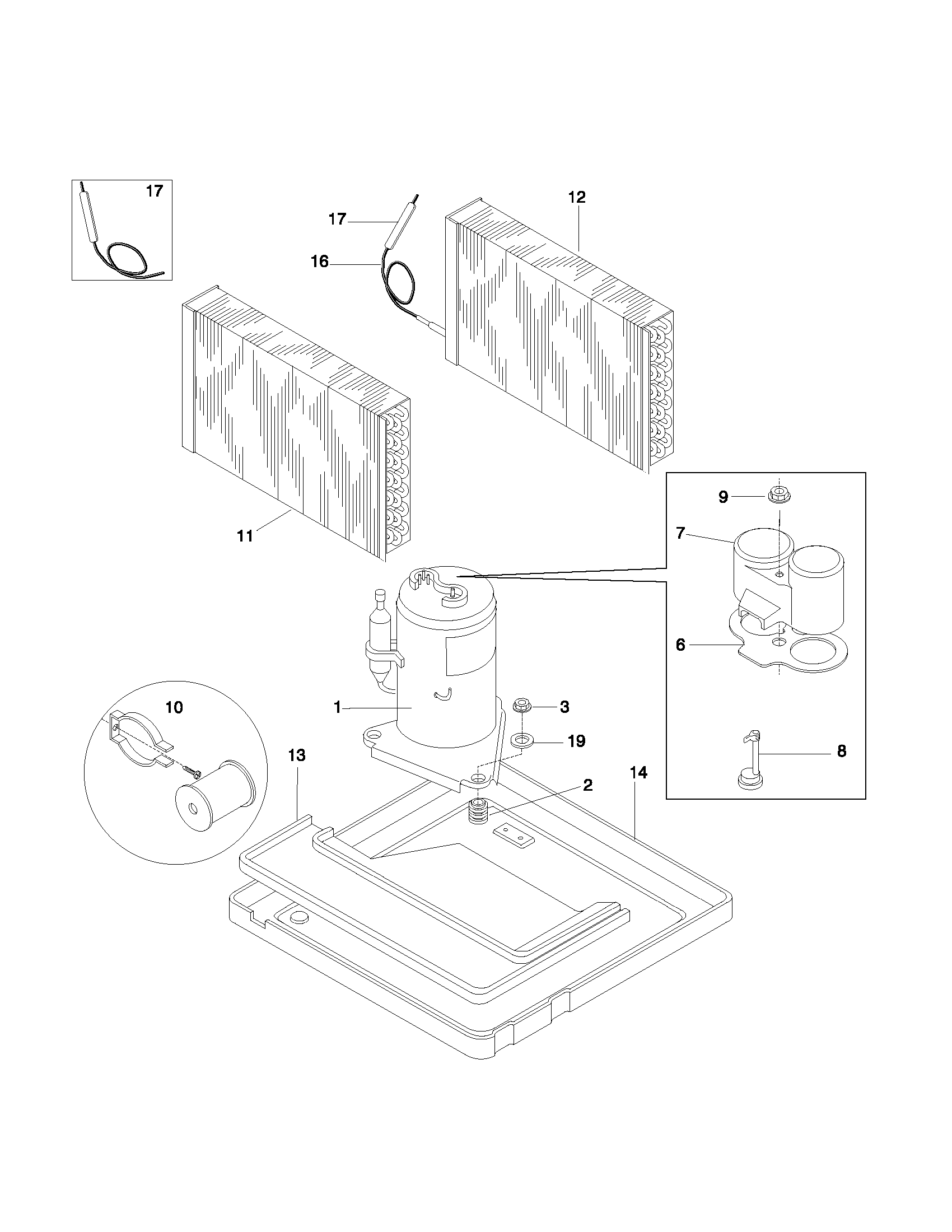

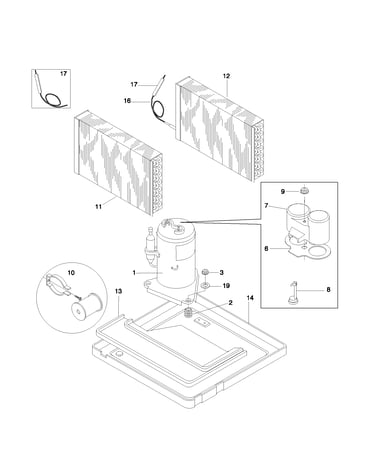

System diagram

Washer-met

Part #309112501

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Tray 5303302849
#13

System diagram

Evaporator tray

Part #5303302849

The manufacturer no longer makes this part, and there's no substitute part

Rh Frame 5304413848
#NI

Window mounting diagram

Rh frame

Part #5304413848

The manufacturer no longer makes this part, and there's no substitute part
