Model # 29191640 Official Craftsman 18" hand reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 29191640 18" hand reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Carr. Bolt CB-5-1
#24

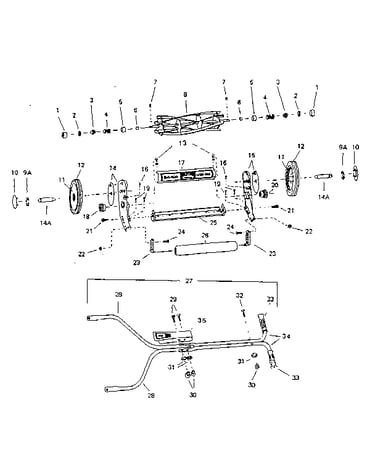

Unit parts diagram

Carr. bolt

Part #CB-5-1

The manufacturer no longer makes this part, and there's no substitute part

Mach Bolt MB-6-75
#21

Unit parts diagram

Mach bolt

Part #MB-6-75

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin CP-2-75
#16

Unit parts diagram

Cotter pin

Part #CP-2-75

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing Assembly X24
#2

Unit parts diagram

Ball bearing assembly

Part #X24

The manufacturer no longer makes this part, and there's no substitute part

L Pinion Gr SS-L
#18

Unit parts diagram

L pinion gr

Part #SS-L

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap X10
#5

Unit parts diagram

Dust cap

Part #X10

The manufacturer no longer makes this part, and there's no substitute part

Cttr Bar 18 P-18
#25

Unit parts diagram

Cttr bar 18

Part #P-18

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 5133-62
#9A

Unit parts diagram

Snap ring

Part #5133-62

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cone X23
#3

Unit parts diagram

Bearing cone

Part #X23

The manufacturer no longer makes this part, and there's no substitute part

Reel Assembly RA-18
#8

Unit parts diagram

Reel assembly

Part #RA-18

The manufacturer no longer makes this part, and there's no substitute part
