Panasonic
Room Air Conditioner

Model # CW-XC83YU Official Panasonic room air conditioner

Here are the diagrams and repair parts for Official Panasonic CW-XC83YU room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

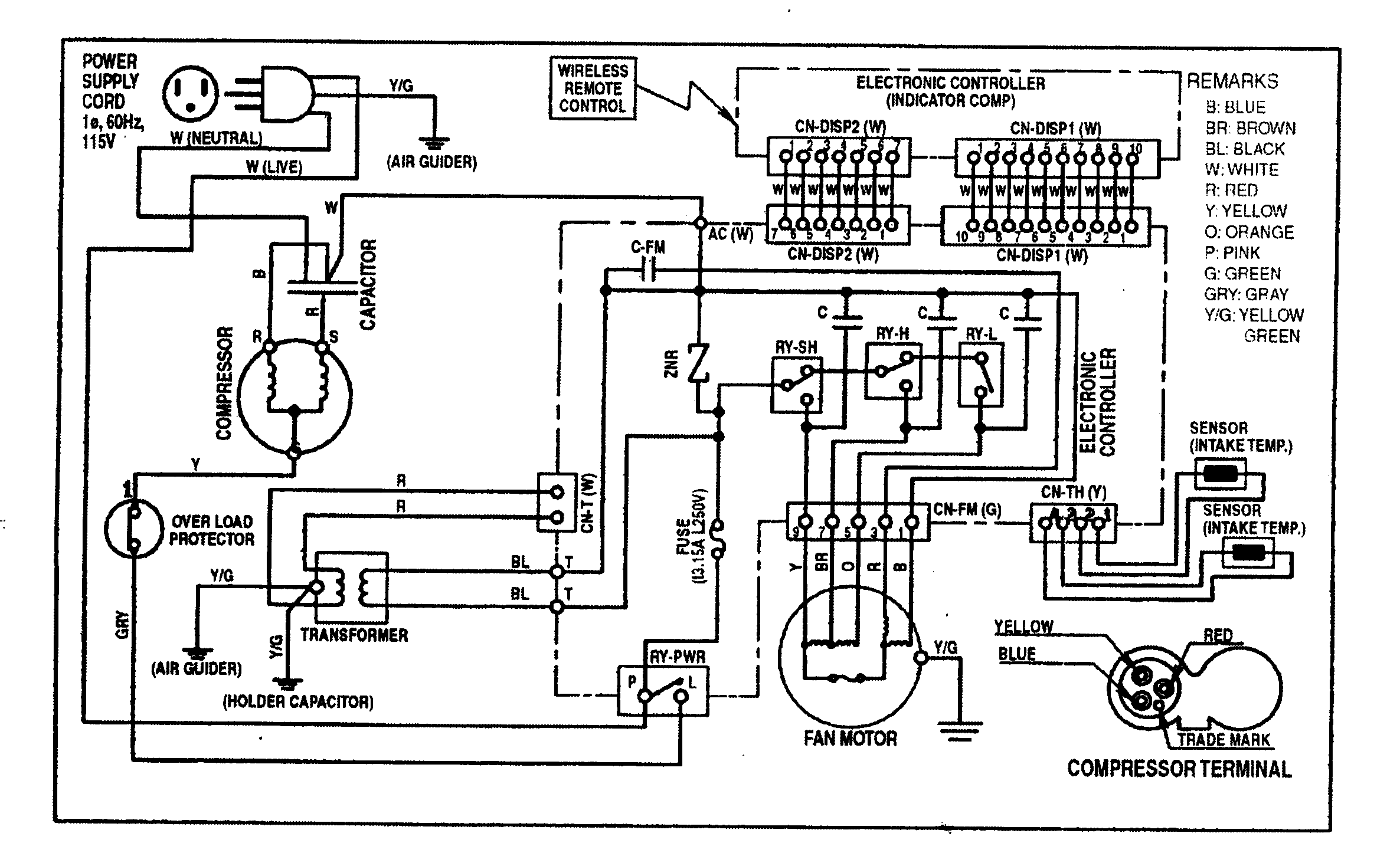

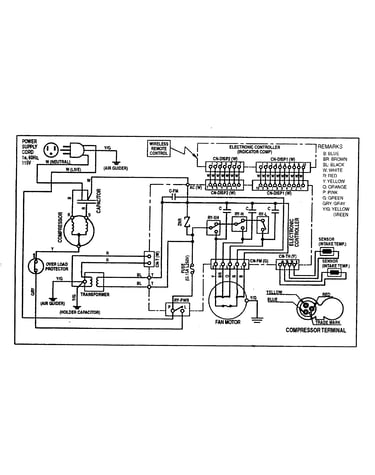

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Panasonic Man,serv MAC0202013C1
#NI

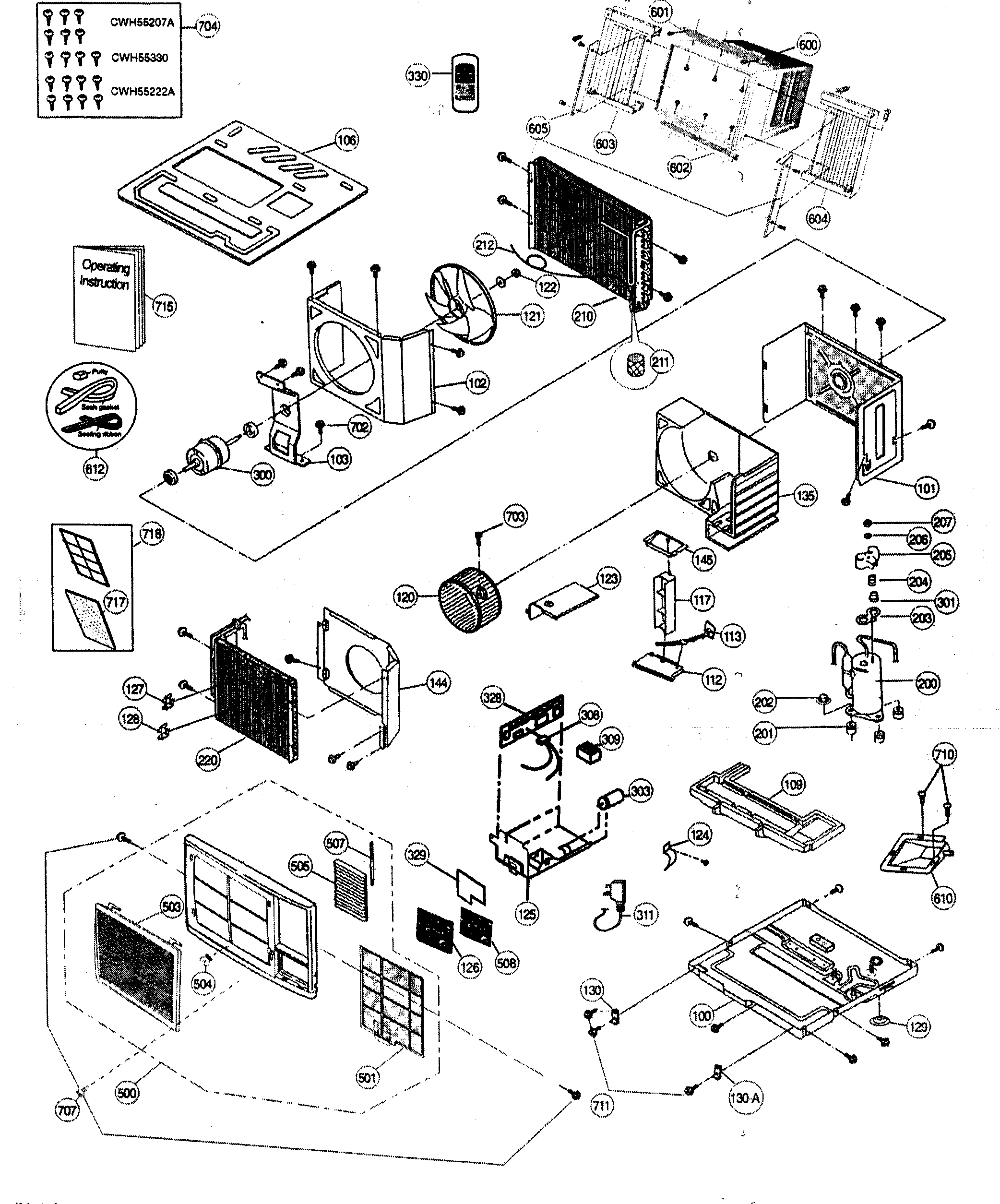

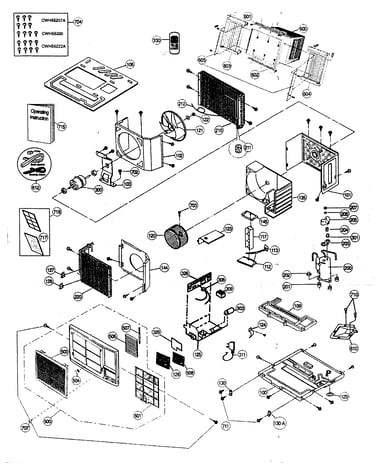

Cabinet parts diagram

Panasonic man,serv

Part #MAC0202013C1

This item is not returnable
$2.16
In Stock
Panasonic Holder CWH32142
#127

Cabinet parts diagram

Panasonic holder

Part #CWH32142

This item is not returnable
$3.49
In Stock
Nut CWH4582065
#202

Cabinet parts diagram

Nut

Part #CWH4582065

The manufacturer no longer makes this part, and there's no substitute part

Aux Materl CWH36C024
#612

Cabinet parts diagram

Aux materl

Part #CWH36C024

The manufacturer no longer makes this part, and there's no substitute part

Bushing CWH50072
#201

Cabinet parts diagram

Bushing

Part #CWH50072

The manufacturer no longer makes this part, and there's no substitute part

Holder CWD90C1004
#123

Cabinet parts diagram

Holder

Part #CWD90C1004

The manufacturer no longer makes this part, and there's no substitute part

Plate CWD64C1016
#106

Cabinet parts diagram

Plate

Part #CWD64C1016

The manufacturer no longer makes this part, and there's no substitute part

Holder CWH32085
#128

Cabinet parts diagram

Holder

Part #CWH32085

The manufacturer no longer makes this part, and there's no substitute part

Holder Cap CWH301008
#124

Cabinet parts diagram

Holder cap

Part #CWH301008

The manufacturer no longer makes this part, and there's no substitute part

Gasket CWH70706034
#203

Cabinet parts diagram

Gasket

Part #CWH70706034

Replaced by #CWB811008

?
Manufacturer substitution
This part replaces CWH70706034. Substitute parts can look different from the original.
This item is not returnable
$4.49
In Stock
