Model # 158321 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 158321 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 319 parts  |
Block Stud 302
#26A

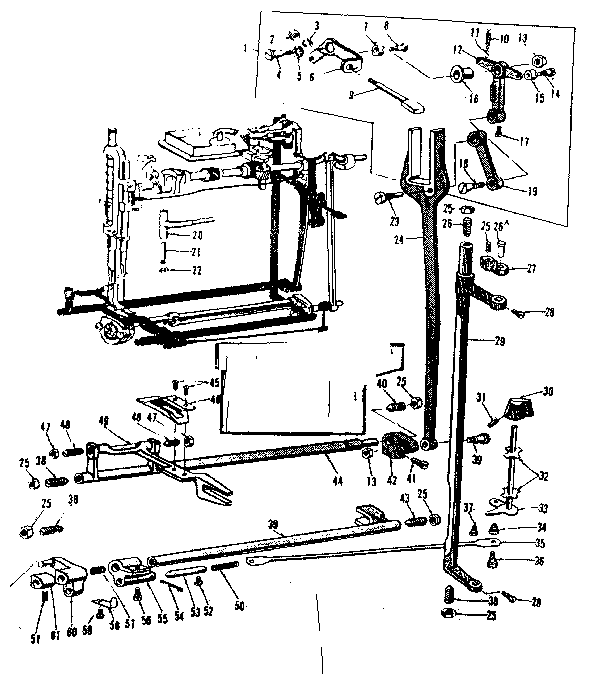

Feed regulator assembly diagram

Block stud

Part #302

The manufacturer no longer makes this part, and there's no substitute part

Limit Rack 4035
#58

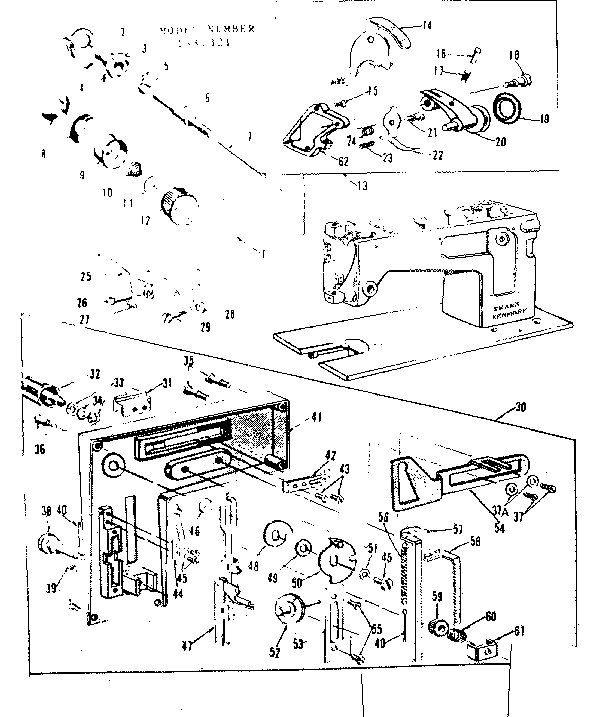

Dial controls diagram

Limit rack

Part #4035

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 674
#38

Presser bar and shuttle assembly diagram

Sewing machine set screw

Part #674

The manufacturer no longer makes this part, and there's no substitute part

Washer 4844
Washer

Part #4844

The manufacturer no longer makes this part, and there's no substitute part

Shaft 113
#33

Feed regulator assembly diagram

Shaft

Part #113

The manufacturer no longer makes this part, and there's no substitute part

Lever 2918
#47

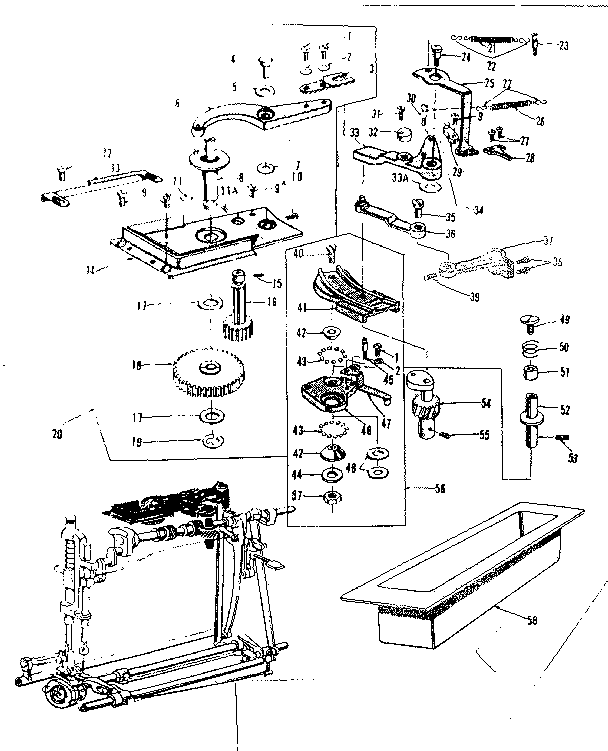

Zigzag guide assembly diagram

Lever

Part #2918

The manufacturer no longer makes this part, and there's no substitute part

Rocker Shaft 4071
#42

Feed regulator assembly diagram

Rocker shaft

Part #4071

The manufacturer no longer makes this part, and there's no substitute part

Spring 4033
#60

Dial controls diagram

Spring

Part #4033

The manufacturer no longer makes this part, and there's no substitute part

Guard Cord 1733
#52

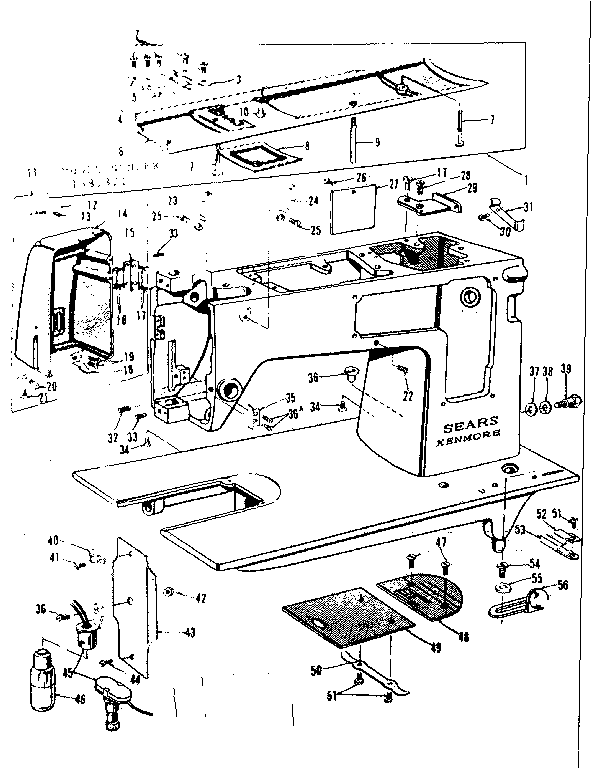

Base assembly diagram

Guard cord

Part #1733

The manufacturer no longer makes this part, and there's no substitute part

Rod 2938
#48

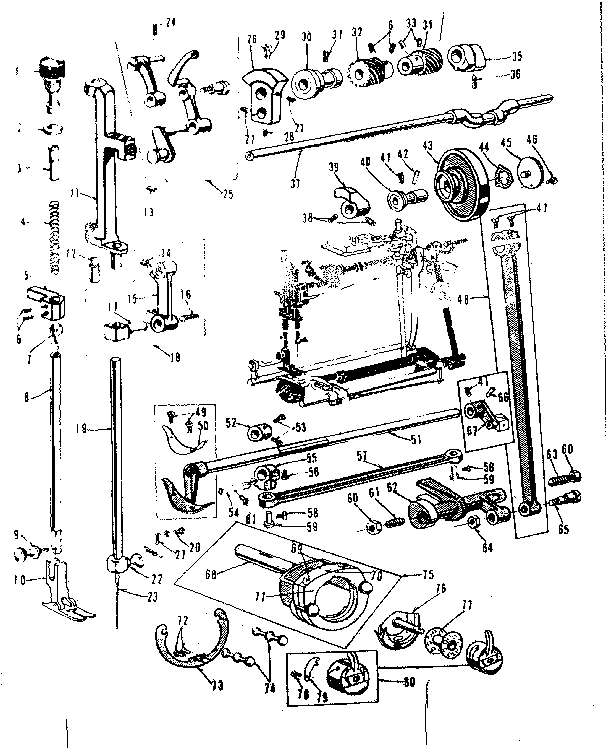

Presser bar and shuttle assembly diagram

Rod

Part #2938

The manufacturer no longer makes this part, and there's no substitute part
