Model # 143794012 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143794012 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

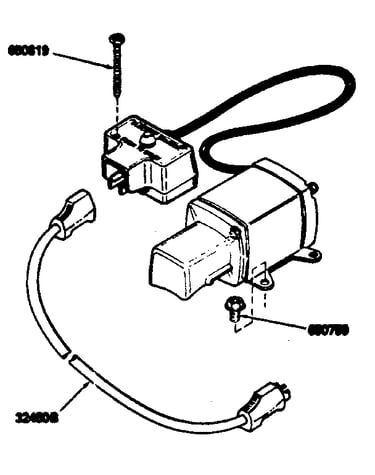

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |

Lawn Mower O-ring 631028
#25

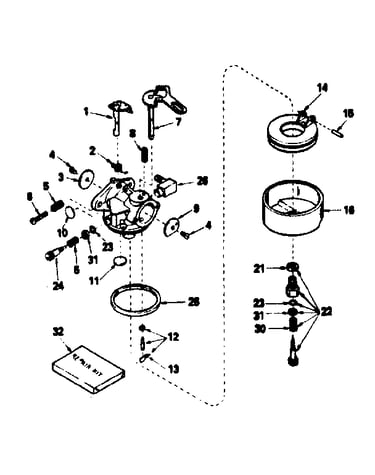

Carburetor no. 632113 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#12

Carburetor no. 632113 diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.12
17% OFF Phone Price : $12.12
In Stock
Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#96

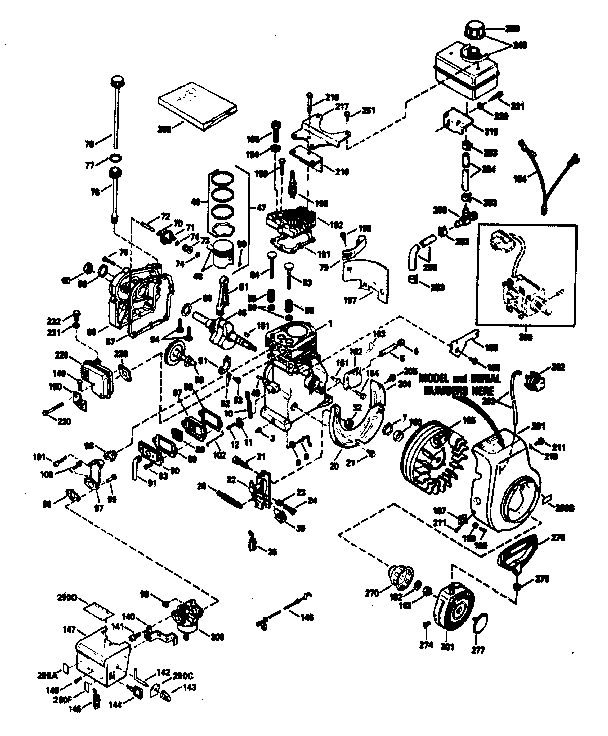

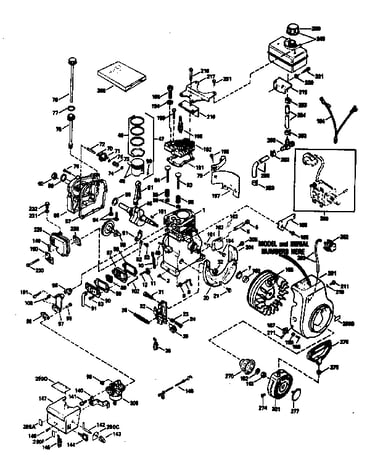

Basic engine diagram

Lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.03
36% OFF MSRP : $4.70
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#254

Basic engine diagram

Lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Ignition Key 35593
#144

Basic engine diagram

Ignition key

Part #35593

Replaced by #35062

?
Manufacturer substitution
This part replaces 35593. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
In Stock
Rope 590451A
#12

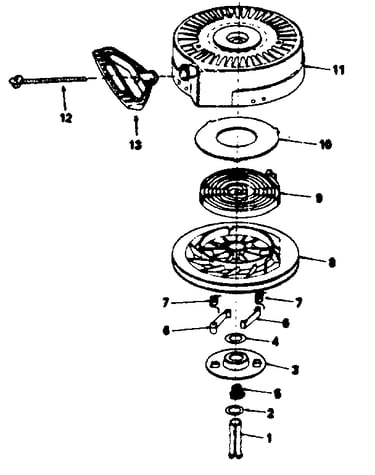

Rewind starter no. 590646 diagram

Rope

Part #590451A

Replaced by #590535

?
Manufacturer substitution
This part replaces 590451A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Carburetor no. 632113 diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 32180, 32180a, 32180b, 500236, Tc-32180c) 32180C
#203

Basic engine diagram

Lawn & garden equipment engine fuel line (replaces 32180, 32180a, 32180b, 500236, tc-32180c)

Part #32180C

BEST SELLER
This item is not returnable
$4.37
45% OFF MSRP : $7.90
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap 35355
#250

Basic engine diagram

Lawn & garden equipment engine fuel tank cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59
9% OFF Phone Price : $10.59
In Stock
Lawn & Garden Equipment Engine Throttle Control Knob 35440
#35

Basic engine diagram

Lawn & garden equipment engine throttle control knob

Part #35440

BEST SELLER
This item is not returnable
$4.14
19% OFF Phone Price : $5.14
In Stock
