Model # 38TPA018 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38TPA018-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

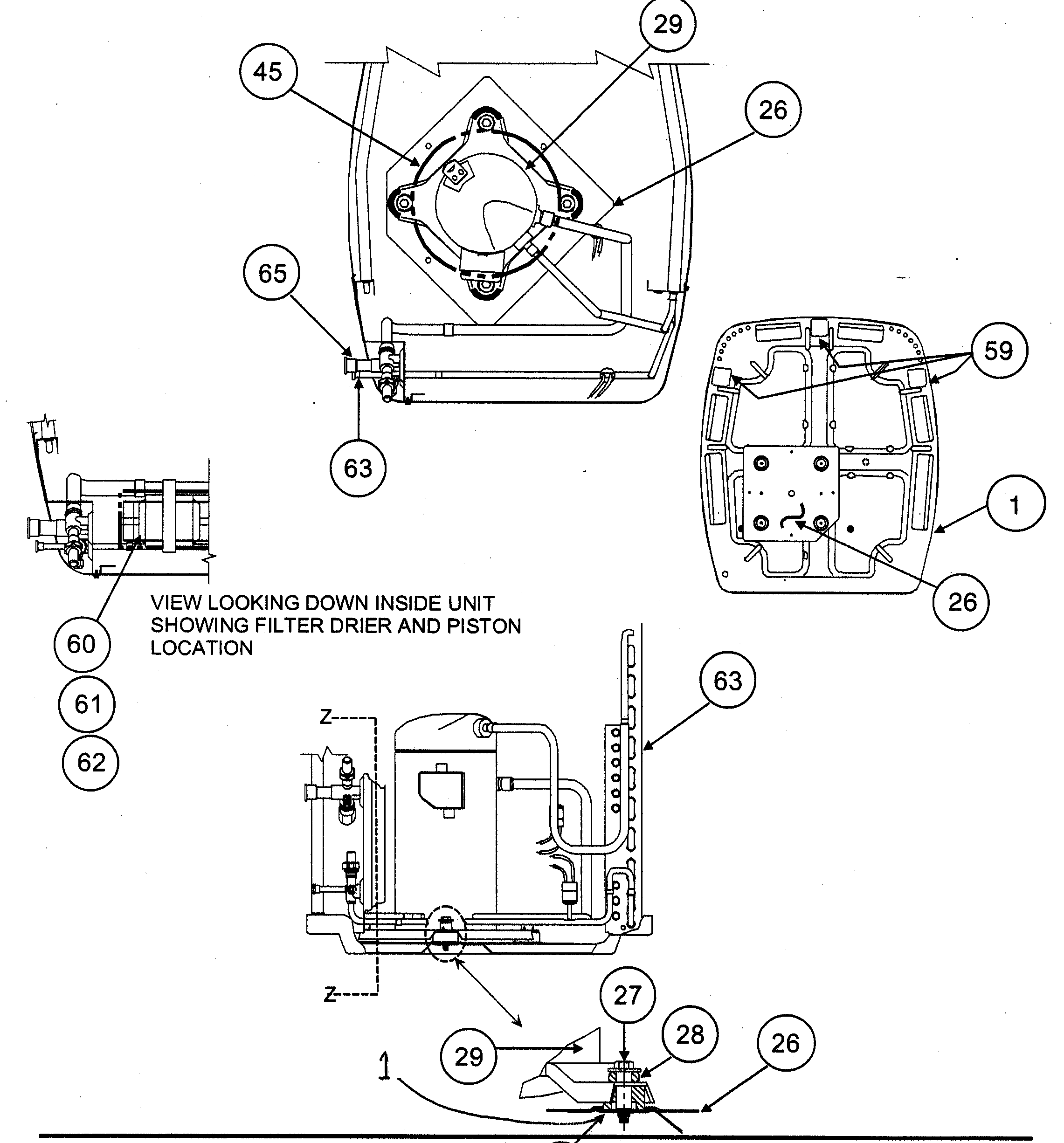

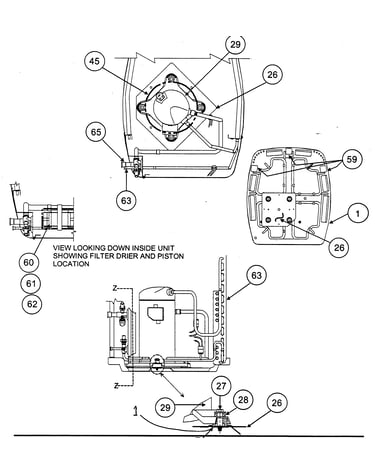

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Contactor HN51KB024
#41

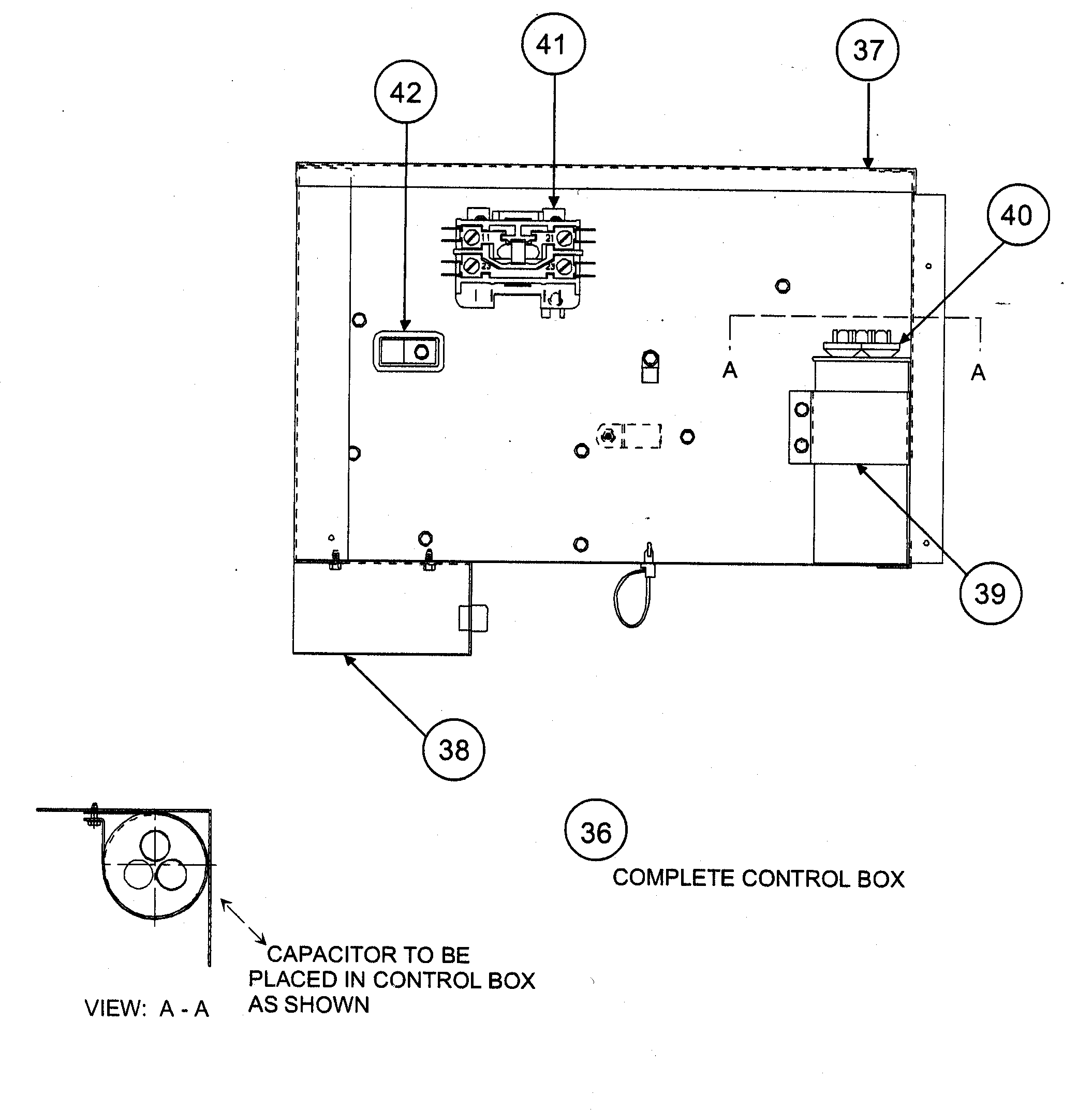

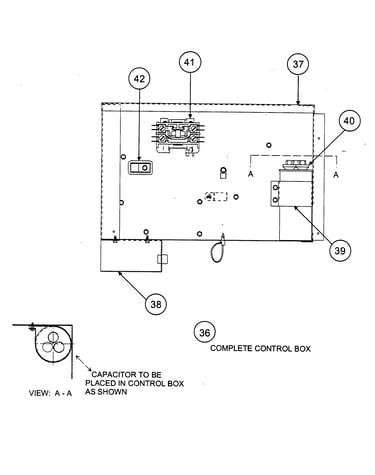

Control box diagram

Contactor

Part #HN51KB024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Capacitor Strap 317739-302
#39

Control box diagram

Central air conditioner capacitor strap

Part #317739-302

$11.74
In Stock
Trim Ring 320244-401
#14

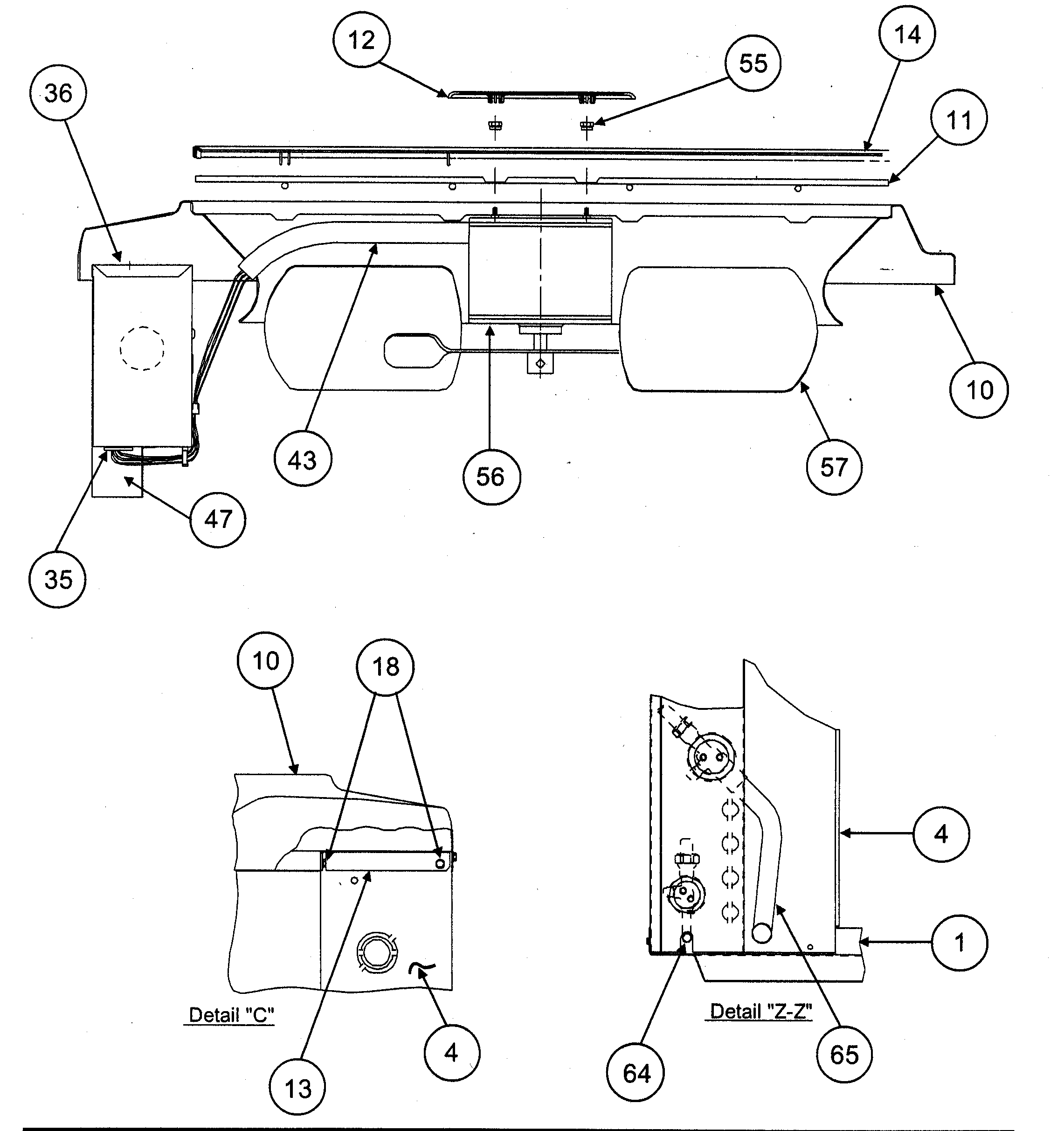

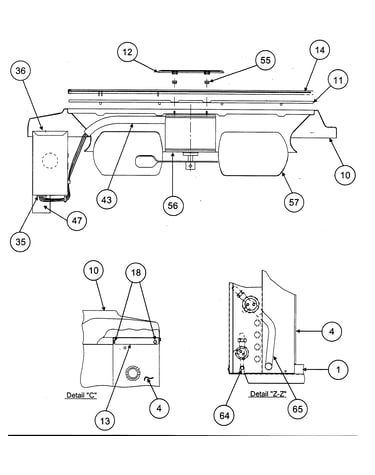

Motor assy diagram

Trim ring

Part #320244-401

$38.07
In Stock
Lug HY90AZ009
#42

Control box diagram

Lug

Part #HY90AZ009

$8.23
In Stock
Drain Pan 312204-702137
Drain pan

Part #312204-702137

$57.33
In Stock
Grille 324590-401
#16

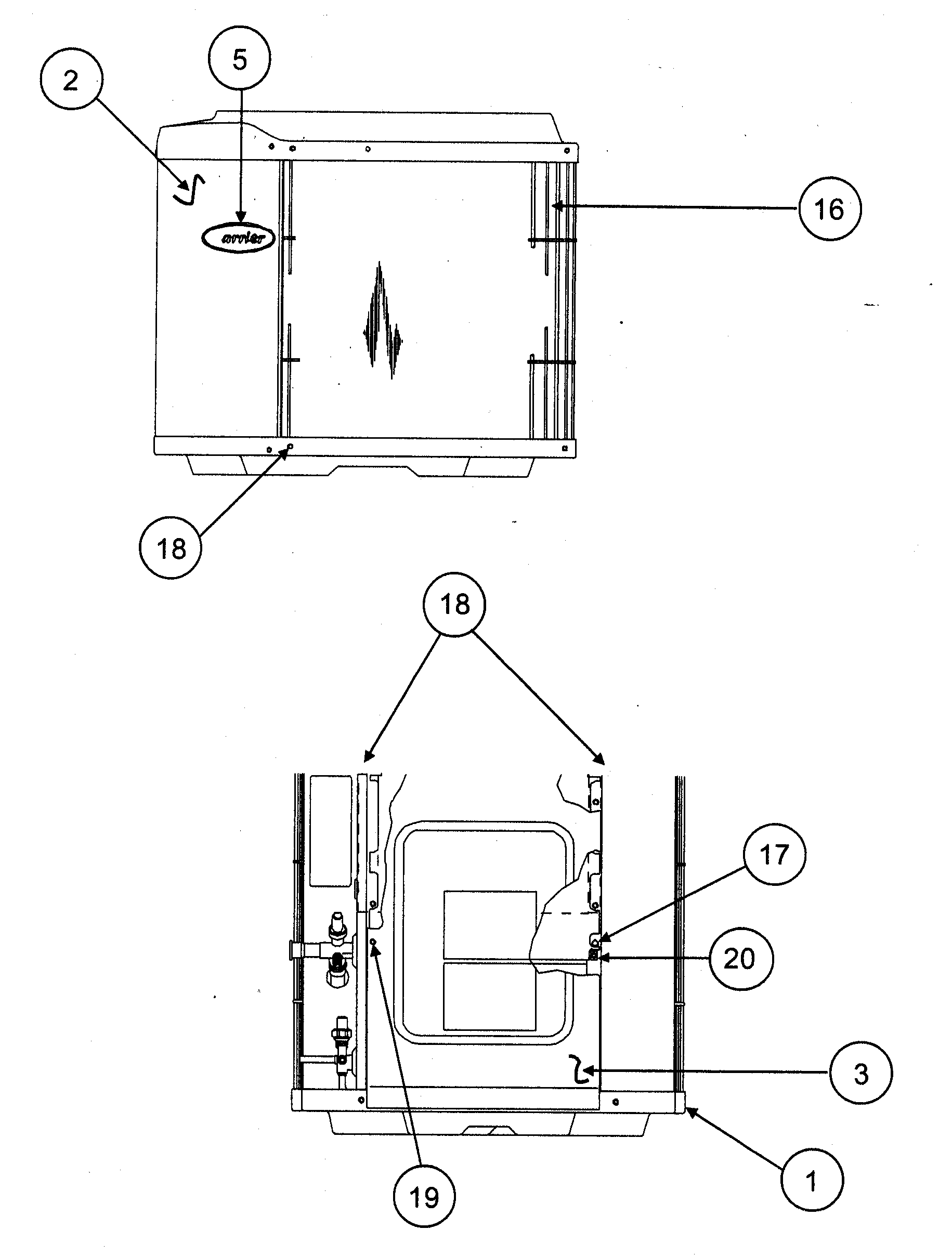

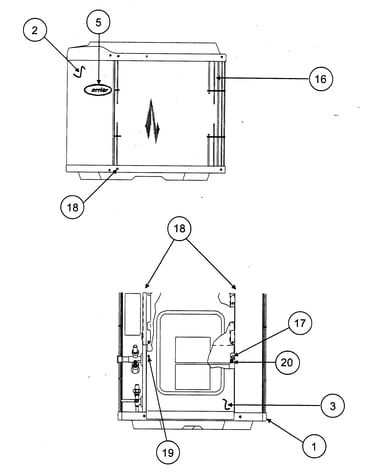

Outside view diagram

Grille

Part #324590-401

$133.02
In Stock
Central Air Conditioner Condenser Fan Motor HC31GE232
#56

Motor assy diagram

Central air conditioner condenser fan motor

Part #HC31GE232

$340.31 |
$10.00 OFF Phone Price : $350.31
In Stock
Paint 313974-752
#NI

Outside view diagram

Paint

Part #313974-752

$58.87
In Stock
Relay P283-9930
#NI

Outside view diagram

Relay

Part #P283-9930

$101.98
In Stock
Paint 313974-755
#NI

Outside view diagram

Paint

Part #313974-755

$59.69
In Stock
