Model # 31510410 Official Craftsman 3/8" electric drill

Here are the diagrams and repair parts for Official Craftsman 31510410 3/8" electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Field 989482-001
#10

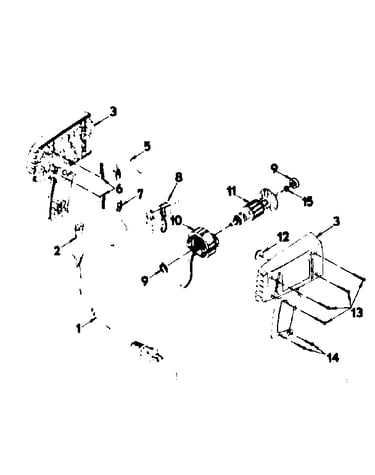

Housing assembly diagram

Field

Part #989482-001

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 623262-000
#11

Gear assembly diagram

Chuck key

Part #623262-000

The manufacturer no longer makes this part, and there's no substitute part

Armature 989480-001
#11

Housing assembly diagram

Armature

Part #989480-001

The manufacturer no longer makes this part, and there's no substitute part

Sl Bearing 607122-002
#20

Gear assembly diagram

Sl bearing

Part #607122-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-015
#13

Housing assembly diagram

Screw

Part #617966-015

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-009
#14

Housing assembly diagram

Screw

Part #617966-009

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 621221-001
#9

Housing assembly diagram

Ball bearing

Part #621221-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 931055-802
#19

Gear assembly diagram

Washer

Part #931055-802

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Bearing 989490-001
#3

Gear assembly diagram

Sleeve bearing

Part #989490-001

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#7

Housing assembly diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
