Wine & Beverage Cooler

Model #ZDOD240PASS GE refrigerator - a series

Here are the diagrams and repair parts for GE ZDOD240PASS refrigerator - a series, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 68 parts

    Wine Cooler Compressor Start Relay

    #31

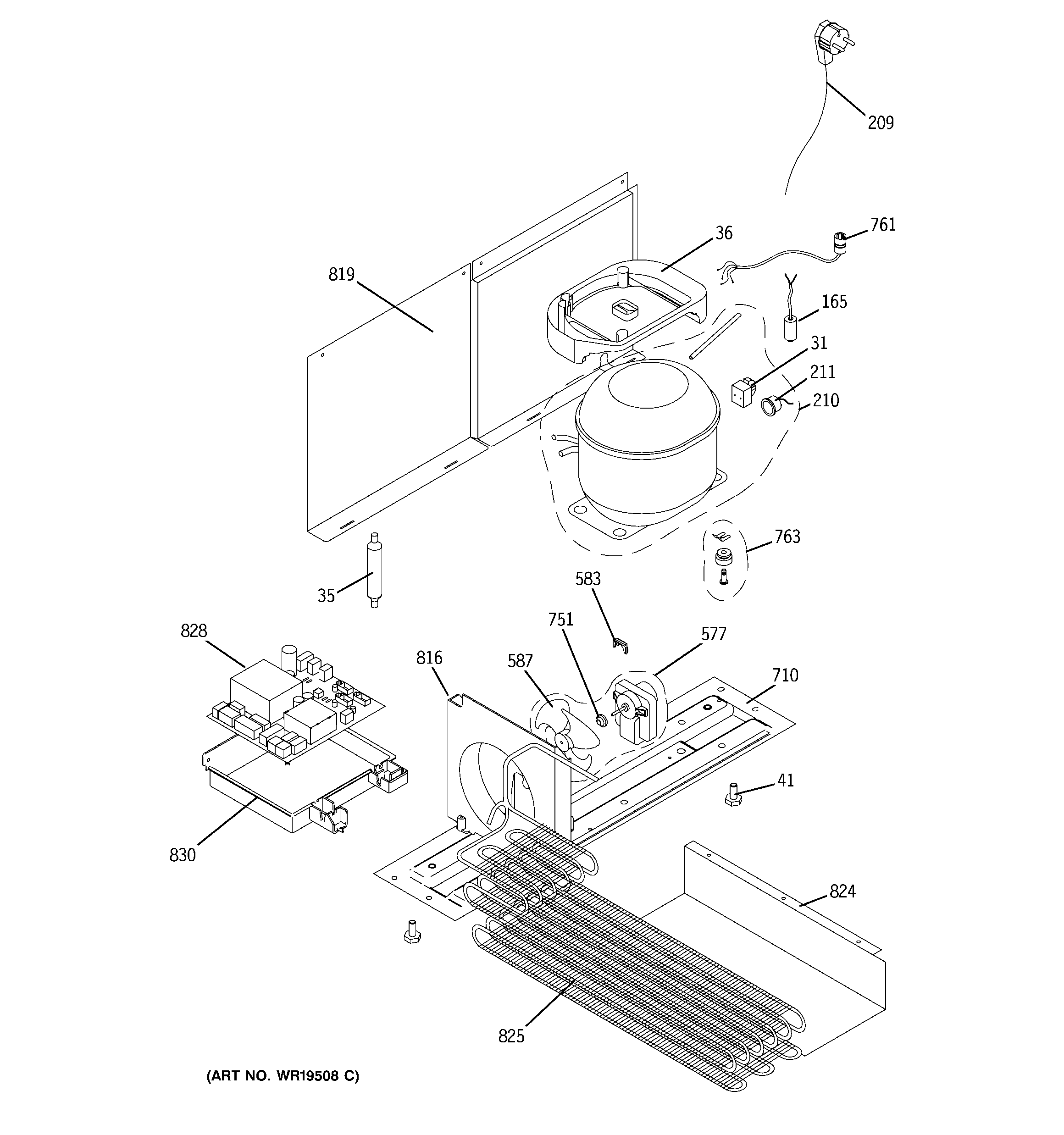

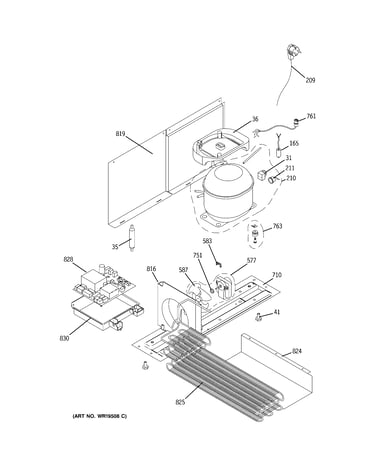

    Unit parts Diagram

    $80.19

    In Stock

    Refrigeration Appliance Evaporator Fan Motor and Blade

    #601

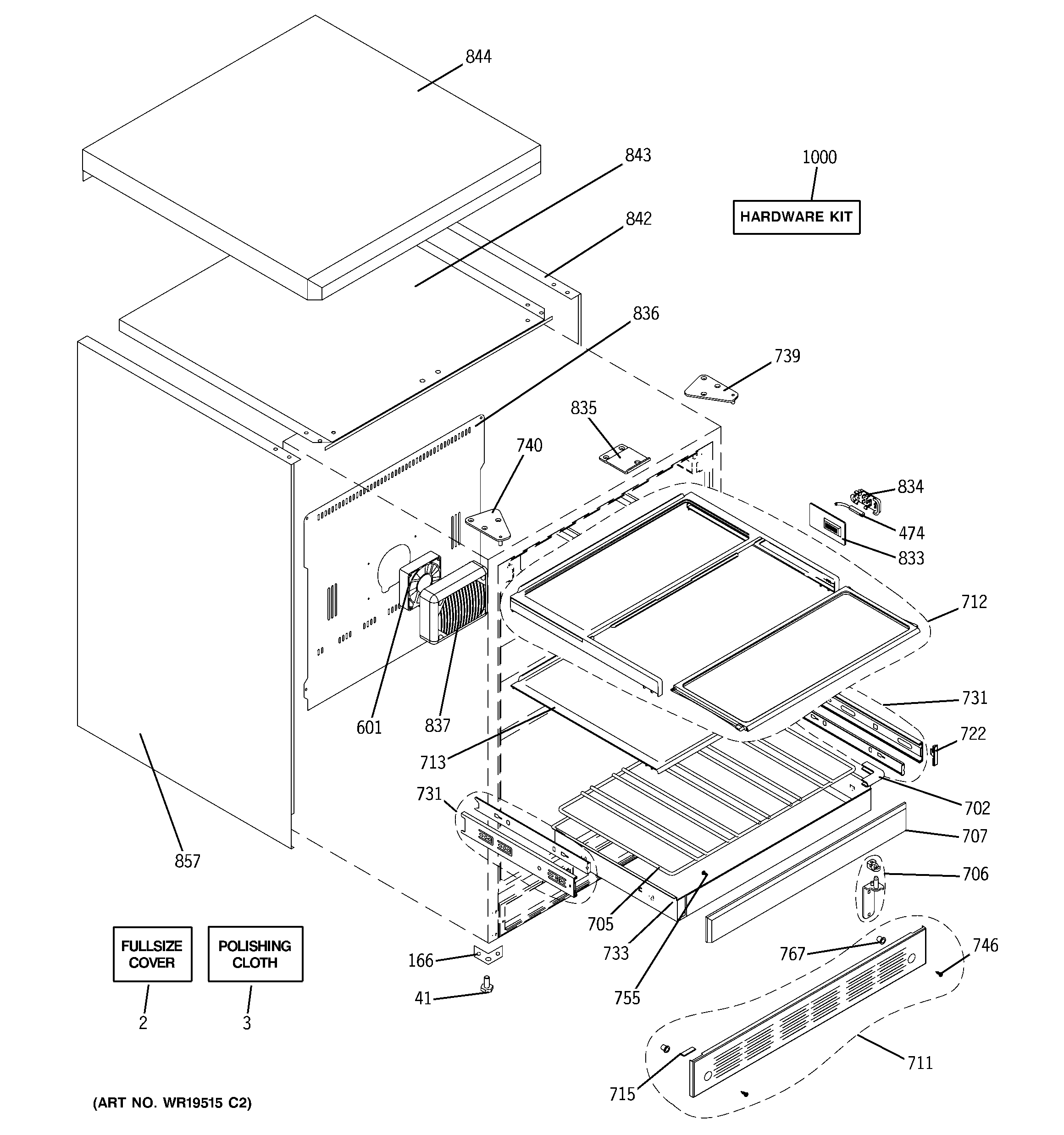

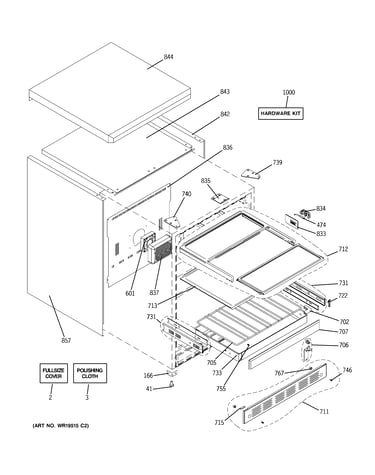

    Cabinet & shelves Diagram

    $139.83

    In Stock

    Wine Cooler Run Capacitor

    #165

    Unit parts Diagram

    Wine cooler run capacitor

    Part #WR62X10033
    $61.66

    In Stock

    Refrigerator Condenser Fan Motor Assembly

    #577

    Unit parts Diagram

    $118.91

    In Stock

    Refrigeration Appliance Compressor Overload Protector

    #211

    Unit parts Diagram

    $80.55

    In Stock

    Lamp Socket

    #324

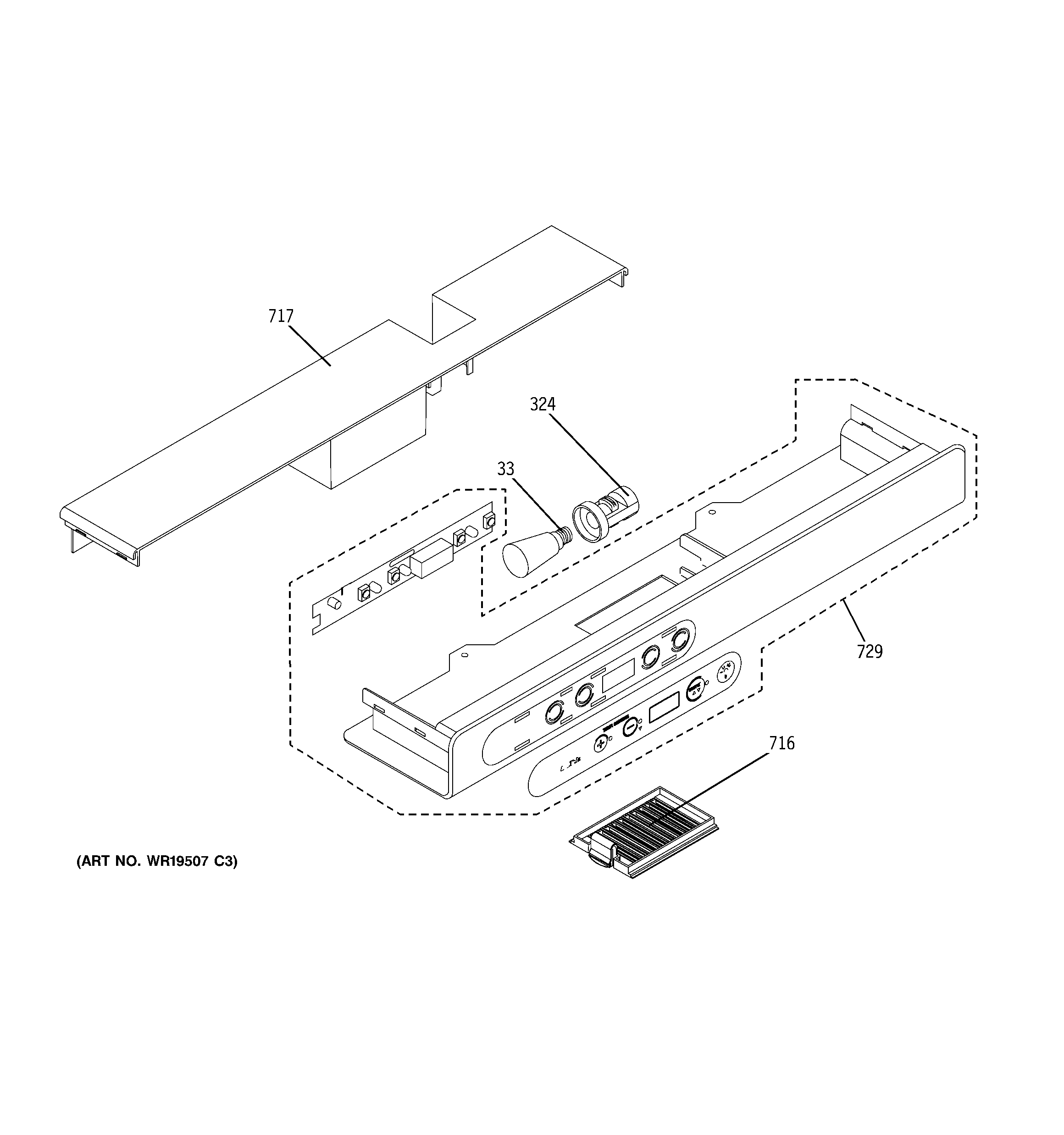

    Climate controls Diagram

    Lamp socket

    Part #WR23X10376
    $26.34

    In Stock

    Side Panel R

    #842

    Cabinet & shelves Diagram

    Side panel r

    Part #WR17X11689
    $330.99

    In Stock

    Cover-outdoo

    #1

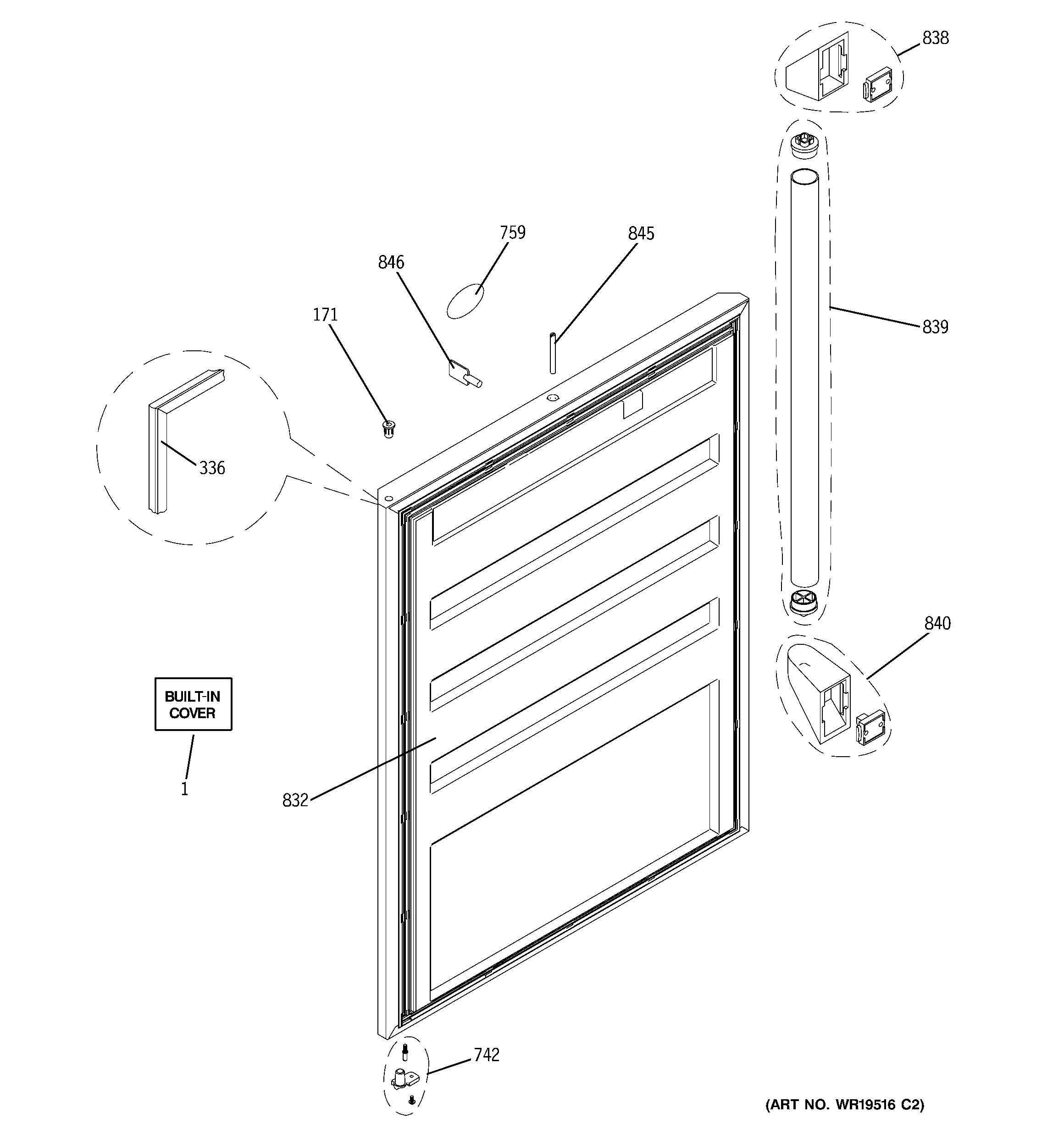

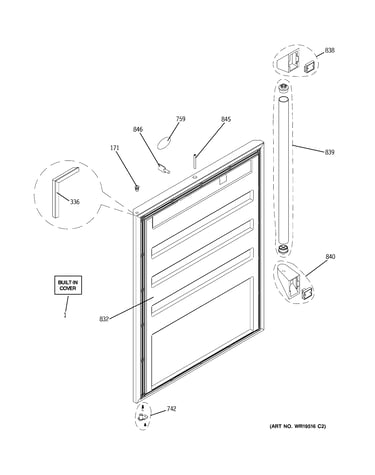

    Door Diagram

    Cover-outdoo

    Part #WX73X10001
    $103.41

    In Stock

    Compressor

    #210

    Unit parts Diagram

    Compressor

    Part #WR87X10112
    $443.16

    In Stock

    Pin

    #845

    Door Diagram

    Pin

    Part #WR01X10453
    $50.03

    In Stock
