Amana
Countertop Microwave

Model # 2008.100 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 2008100 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

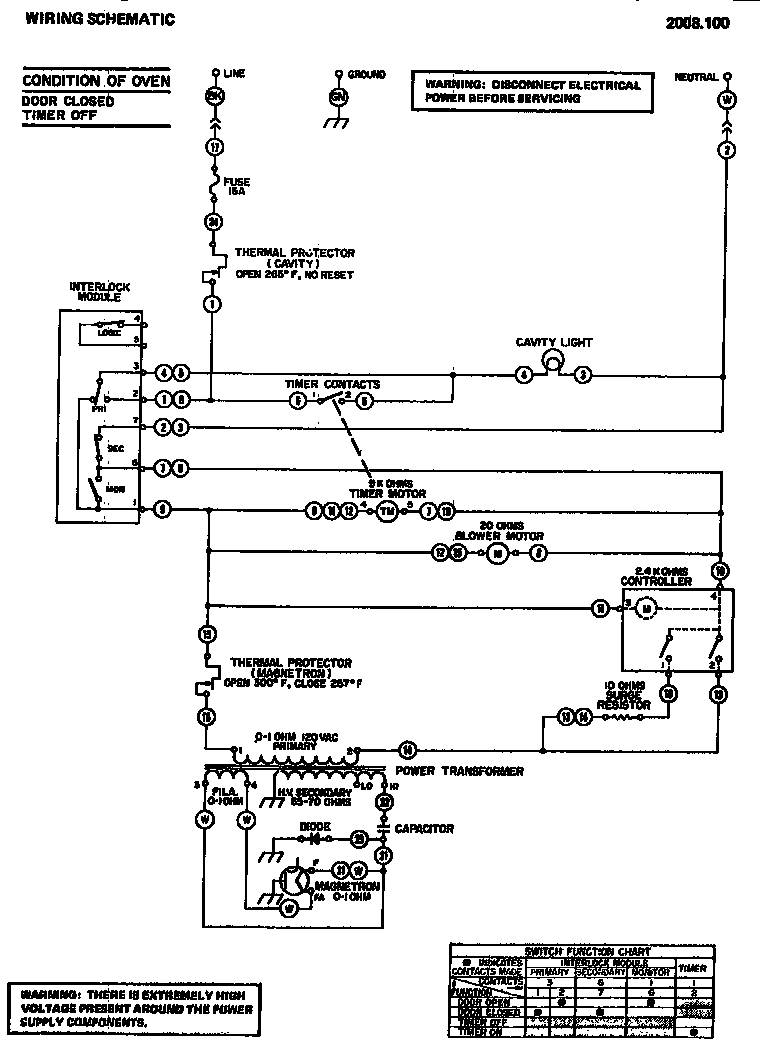

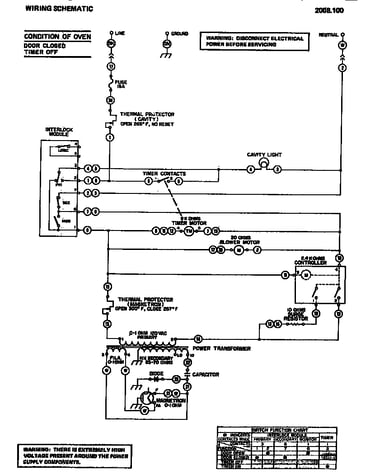

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Control Panel Frame M7D589
#34A

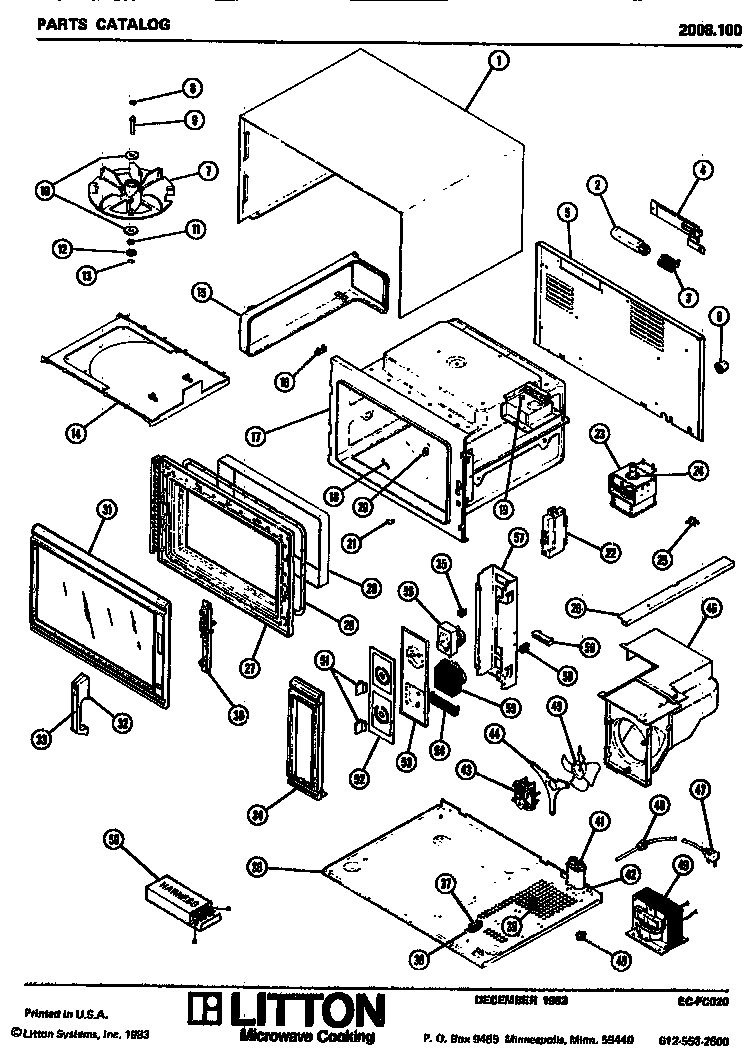

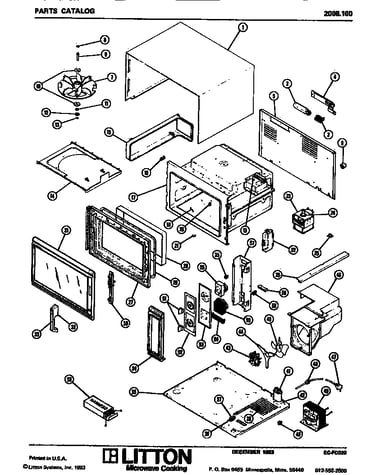

Microwave parts diagram

Control panel frame

Part #M7D589

The manufacturer no longer makes this part, and there's no substitute part

Magnetron Thermal Protector M4D49
#25A

Microwave parts diagram

Magnetron thermal protector

Part #M4D49

The manufacturer no longer makes this part, and there's no substitute part

Screw Holder Mtg. M1D329
#38B

Microwave parts diagram

Screw holder mtg.

Part #M1D329

The manufacturer no longer makes this part, and there's no substitute part

Component Mtg. Plate M7D592
#53

Microwave parts diagram

Component mtg. plate

Part #M7D592

The manufacturer no longer makes this part, and there's no substitute part

Diode M3D71
#39A

Microwave parts diagram

Diode

Part #M3D71

The manufacturer no longer makes this part, and there's no substitute part

Foot M2D179
#40A

Microwave parts diagram

Foot

Part #M2D179

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket M5D356
#3

Microwave parts diagram

Lamp socket

Part #M5D356

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Duct M65D282
#15A

Microwave parts diagram

Exhaust duct

Part #M65D282

The manufacturer no longer makes this part, and there's no substitute part

Bracket Motor Mtg. M20D219
#44A

Microwave parts diagram

Bracket motor mtg.

Part #M20D219

The manufacturer no longer makes this part, and there's no substitute part

Power Cord M26D27
#47

Microwave parts diagram

Power cord

Part #M26D27

The manufacturer no longer makes this part, and there's no substitute part
