Whirlpool GMC305PDB08 electric built-in oven with microwave

Whirlpool GMC305PDB08 electric built-in oven with microwave Parts

Here are the diagrams and repair parts for Whirlpool GMC305PDB08 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

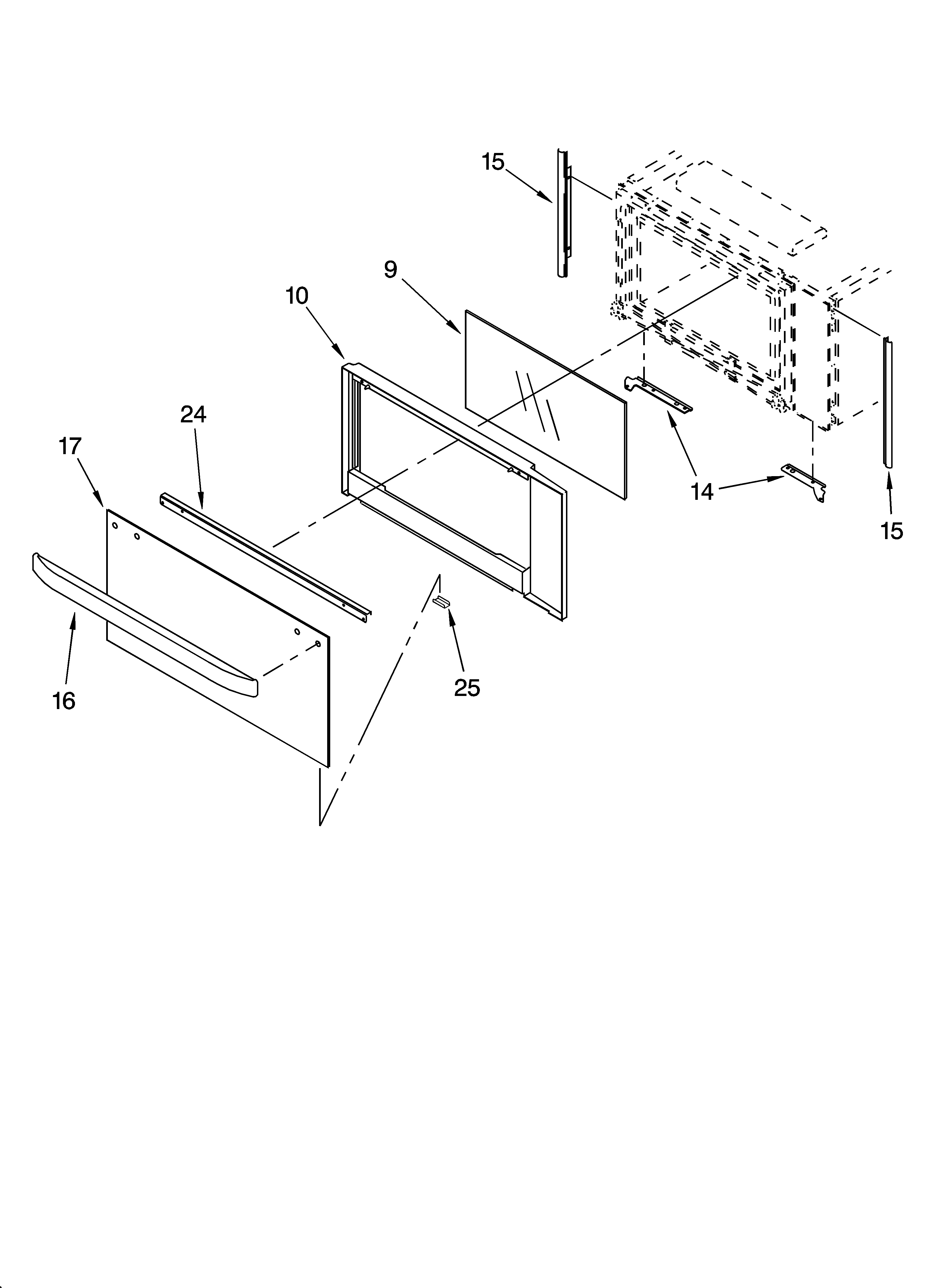

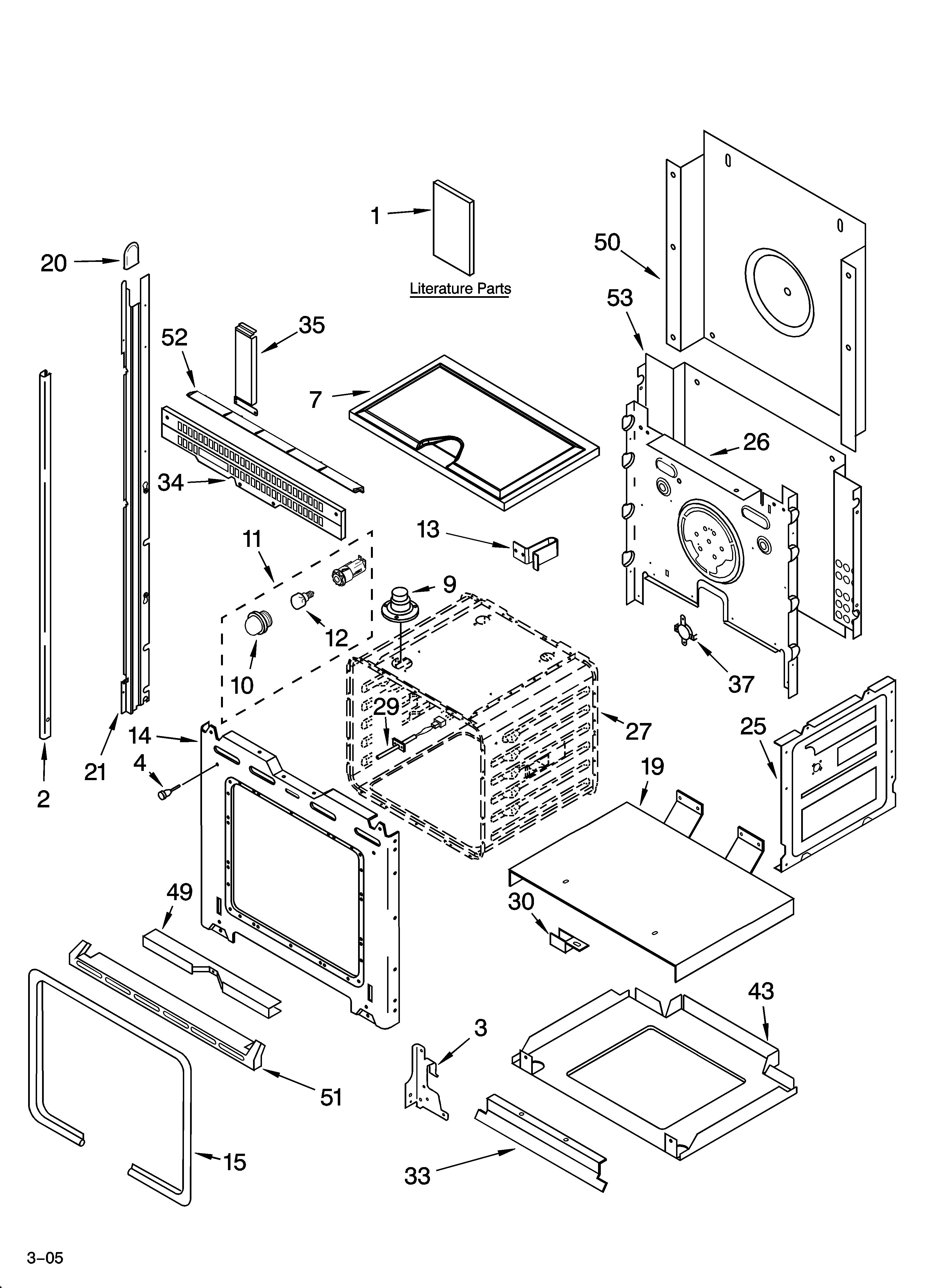

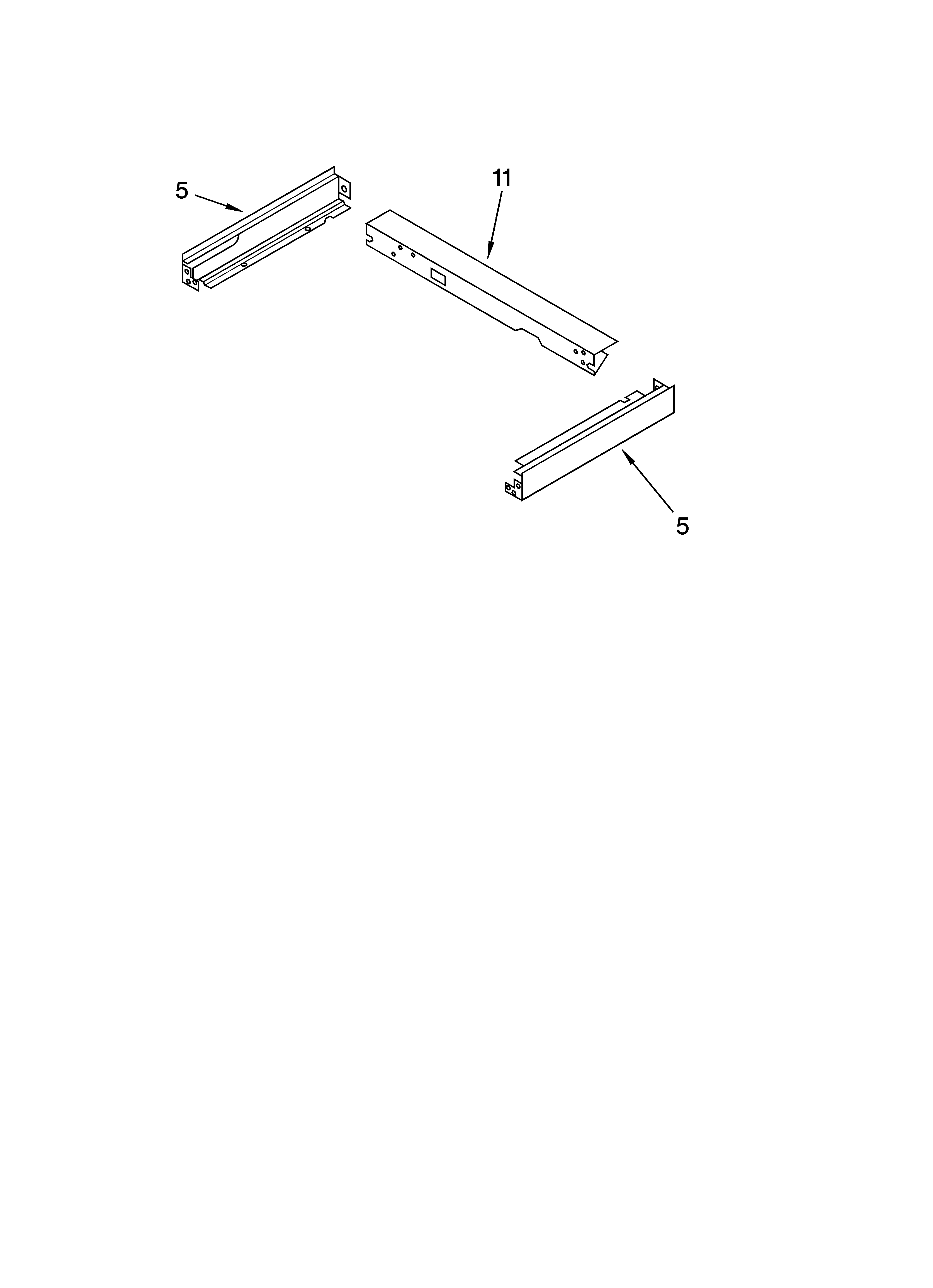

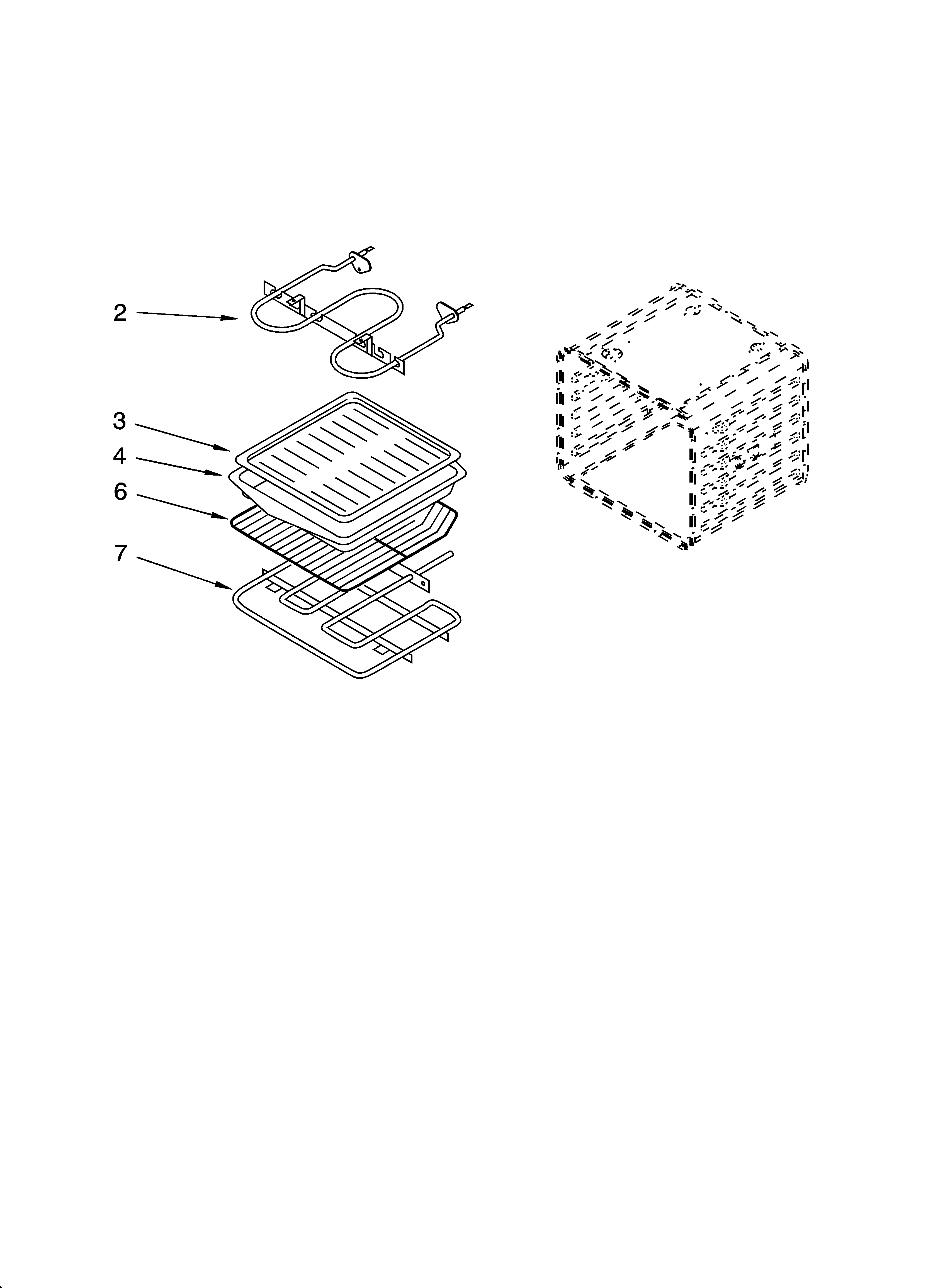

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GMC305PDB08 Electric Built-In Oven with Microwave

  • Appliance Silicone Sealant for Whirlpool GMC305PDB08 - Part WP482338

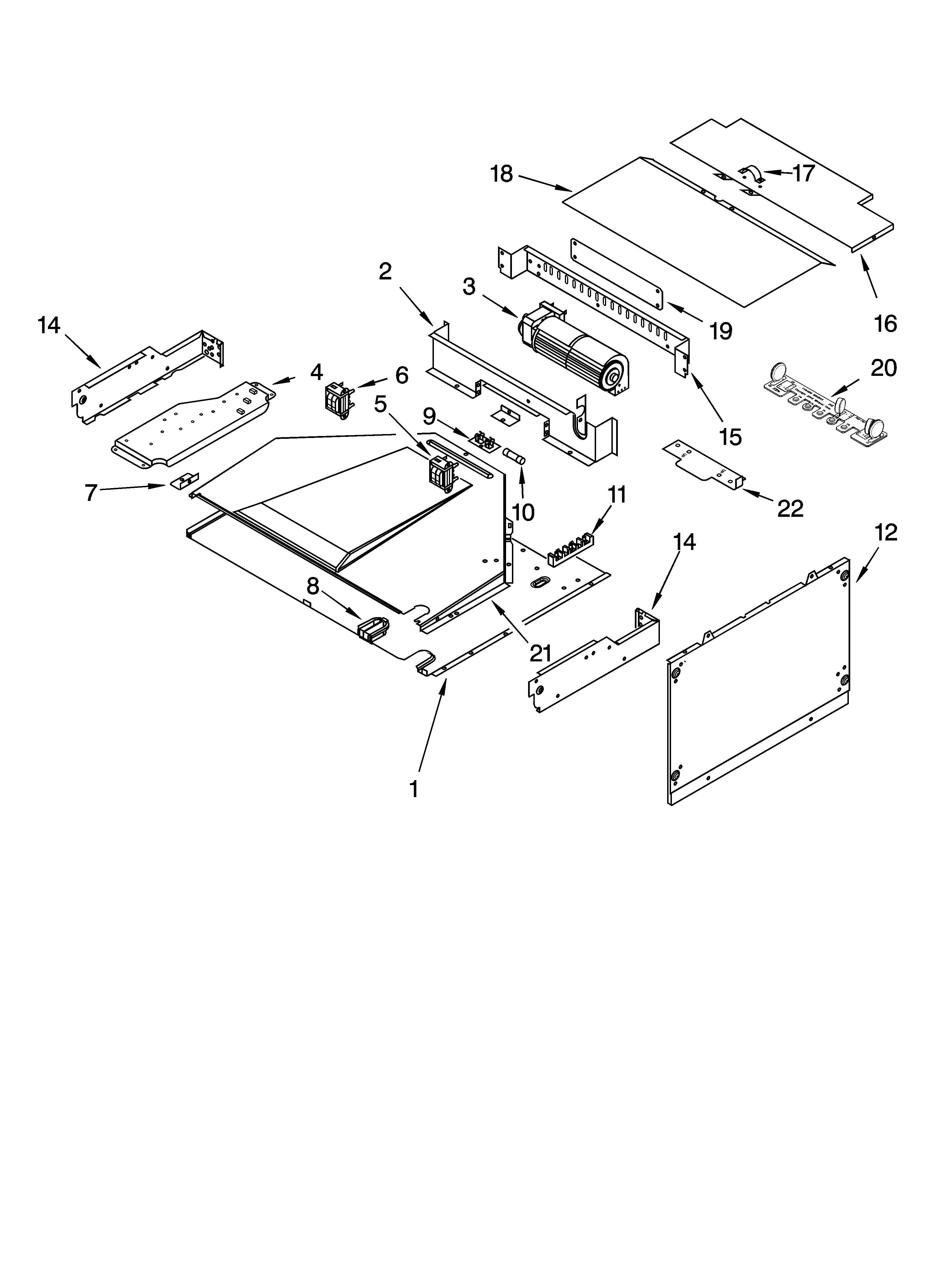

    Top venting parts, optional parts diagram

    Adhesive

    Part #482338

    Replaced by #WP482338

    Info Icon
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $24.46
    27% OFF Was : $33.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Wall Oven Door Inner Glass for Whirlpool GMC305PDB08 - Part WP4449259

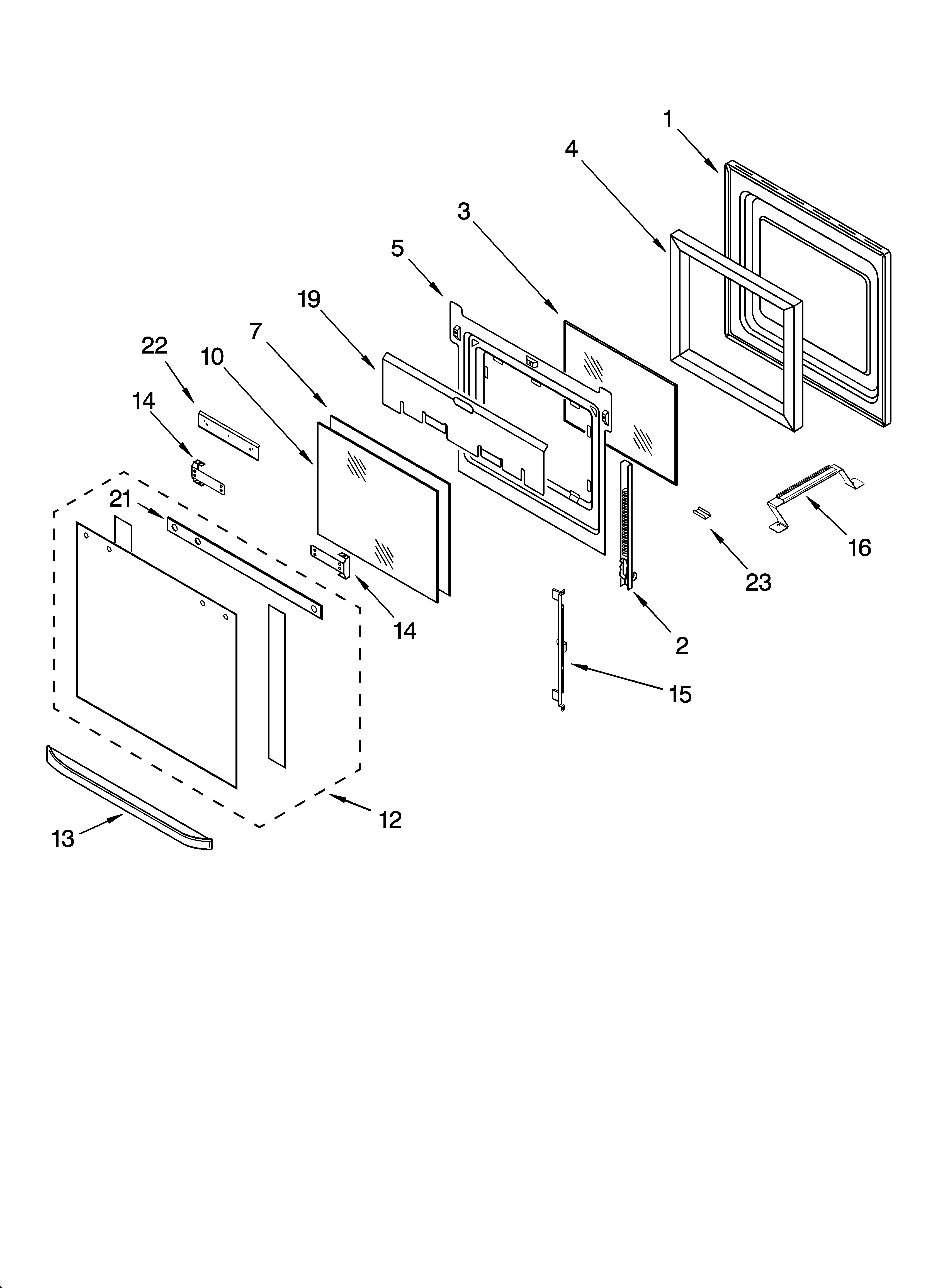

    Oven door parts diagram

    Wall Oven Door Inner Glass

    Part #4449259

    Replaced by #WP4449259

    Info Icon
    Manufacturer substitution
    This part replaces 4449259. Substitute parts can look different from the original.
    In Stock
    $105.60
    10% OFF Phone Price : $117.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Fuse for Whirlpool GMC305PDB08 - Part WP4375321

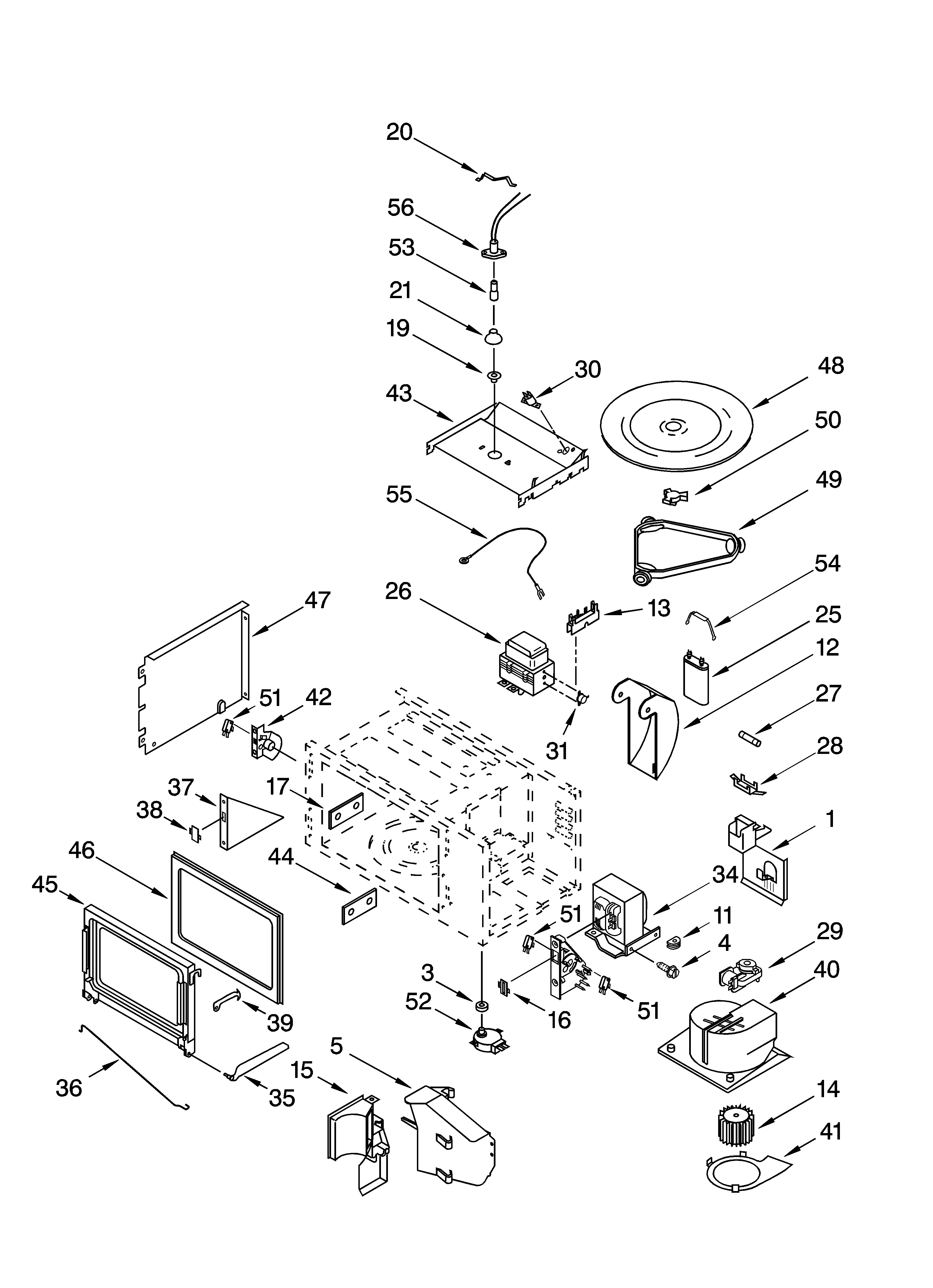

    Cabinet and stirrer parts diagram

    Fuse (black)

    Part #4375321

    Replaced by #WP4375321

    Info Icon
    Manufacturer substitution
    This part replaces 4375321. Substitute parts can look different from the original.
    In Stock
    $17.12
    10% OFF Phone Price : $19.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Torsion Spring for Whirlpool GMC305PDB08 - Part WP4451009

    Cabinet and stirrer parts diagram

    Microwave Door Torsion Spring

    Part #4451009

    Replaced by #WP4451009

    Info Icon
    Manufacturer substitution
    This part replaces 4451009. Substitute parts can look different from the original.
    In Stock
    $72.02
    8% OFF Phone Price : $78.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Range Oven Door Lock Assembly for Whirlpool GMC305PDB08 - Part WPW10195934

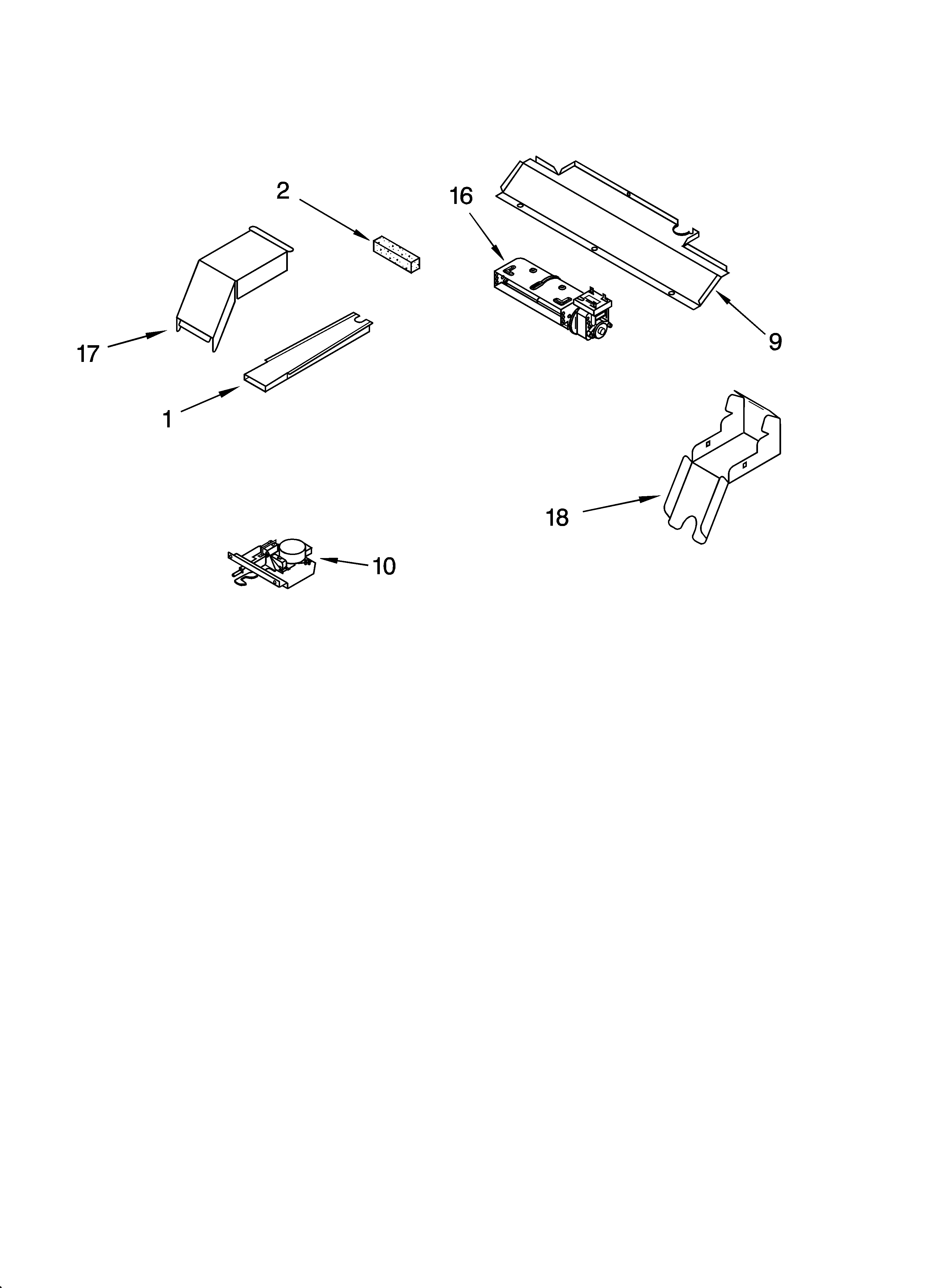

    Latch parts diagram

    Oven Door Latch

    Part #9759481

    Replaced by #WPW10195934

    Info Icon
    Manufacturer substitution
    This part replaces 9759481. Substitute parts can look different from the original.
    In Stock
    $145.04
    8% OFF Phone Price : $157.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Whirlpool GMC305PDB08 - Part WPW10017410

    Top venting parts, optional parts diagram

    Thermal Fuse

    Part #4454976

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces 4454976. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Screw for Whirlpool GMC305PDB08 - Part WP3400832

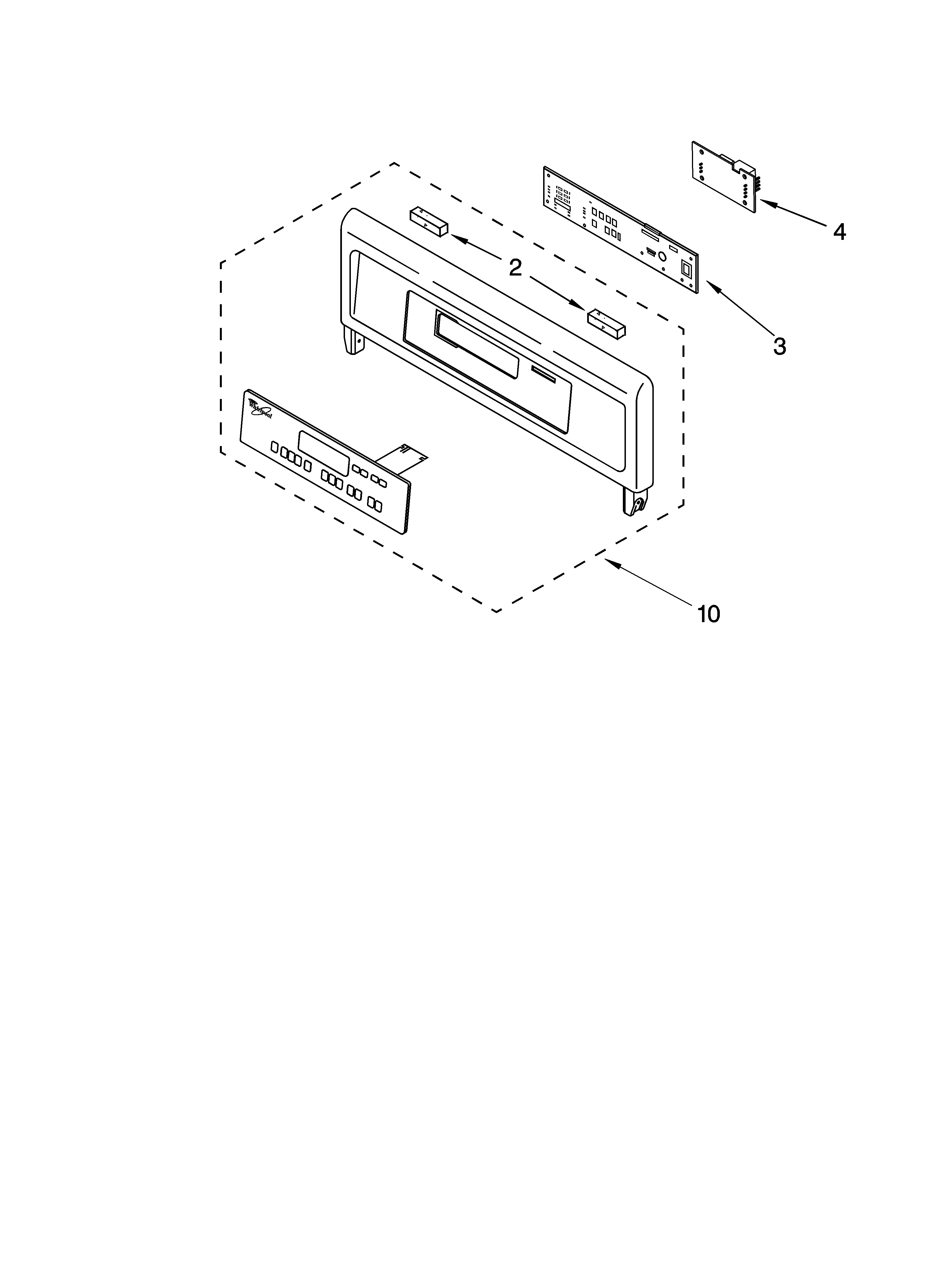

    Control panel parts diagram

    Screw

    Part #8281179

    Replaced by #WP3400832

    Info Icon
    Manufacturer substitution
    This part replaces 8281179. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.14
    16% OFF Phone Price : $6.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Screw for Whirlpool GMC305PDB08 - Part WP3400832

    Screw

    Part #3400832

    Replaced by #WP3400832

    Info Icon
    Manufacturer substitution
    This part replaces 3400832. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.14
    16% OFF Phone Price : $6.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Hinge, Left for Whirlpool GMC305PDB08 - Part WP9760574

    Oven door parts diagram

    Door Hinge

    Part #8300574

    Replaced by #WP9760574

    Info Icon
    Manufacturer substitution
    This part replaces 8300574. Substitute parts can look different from the original.
    In Stock
    $57.09
    10% OFF Phone Price : $63.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Transformer for Whirlpool GMC305PDB08 - Part WP4375286

    Cabinet and stirrer parts diagram

    Microwave High-voltage Transformer

    Part #4375286

    Replaced by #WP4375286

    Info Icon
    Manufacturer substitution
    This part replaces 4375286. Substitute parts can look different from the original.
    In Stock
    $285.86
    $12.00 OFF Phone Price : $297.86Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Touch-up Paint, 6-oz (citrine White) 261900

Appliance Touch-up Paint, 6-oz (citrine White)

Part #261900
In Stock
$34.36
15% OFF Phone Price : $40.36Info Icon
Minus Item
Qty
Plus Item
Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$31.61
Minus Item
Qty
Plus Item
