Model # 17560504X Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17560504X garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

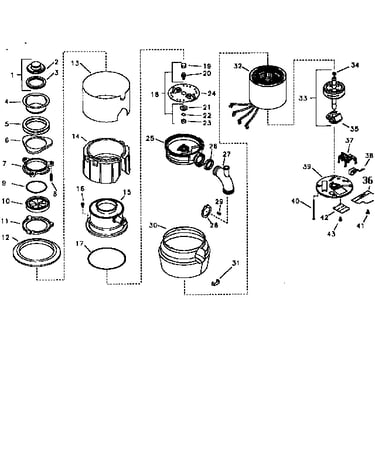

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Garbage Disposal Tailpipe Gasket 1470
#26

Replacement parts diagram

Garbage disposal tailpipe gasket

Part #1470

The manufacturer no longer makes this part, and there's no substitute part

Mounting Gasket 1010-A
#10

Replacement parts diagram

Mounting gasket

Part #1010-A

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Mounting Ring 5298
#11

Replacement parts diagram

Garbage disposal mounting ring

Part #5298

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Support Ring 5166
#9

Replacement parts diagram

Garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part

Plate 71387
#42

Replacement parts diagram

Plate

Part #71387

The manufacturer no longer makes this part, and there's no substitute part

Clip, Trim Shell 2037
#31

Replacement parts diagram

Clip, trim shell

Part #2037

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Shredder Blade 71022
#24

Replacement parts diagram

Garbage disposal shredder blade

Part #71022

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Reverse Switch 70360
#37

Replacement parts diagram

Garbage disposal reverse switch

Part #70360

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Screw 1491
#29

Replacement parts diagram

Garbage disposal screw

Part #1491

The manufacturer no longer makes this part, and there's no substitute part

Gasket 8763
#5

Replacement parts diagram

Gasket

Part #8763

The manufacturer no longer makes this part, and there's no substitute part
