Jenn-Air
Wall Oven/Microwave Combo

Model # JMW2430DS03 Official Jenn-Air microwave/wall oven combo

Here are the diagrams and repair parts for Official Jenn-Air JMW2430DS03 microwave/wall oven combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

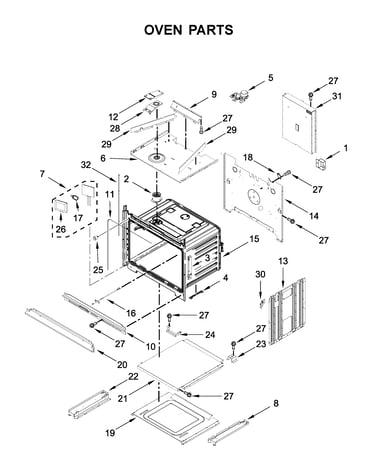

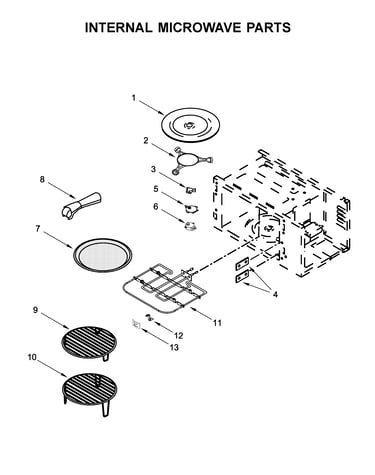

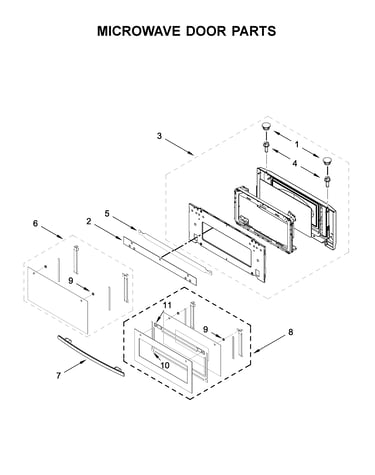

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Microwave Door Switch W10330566
#15

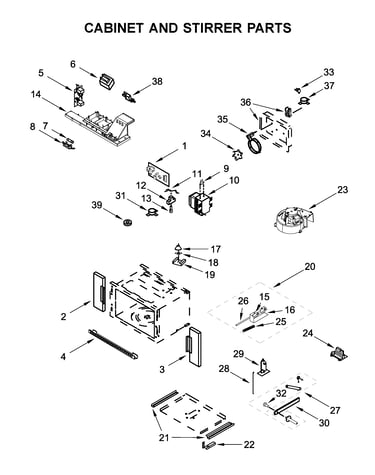

Cabinet and stirrer parts diagram

Microwave door switch

Part #W10330566

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Control (with Power Supply) W11040195
#3

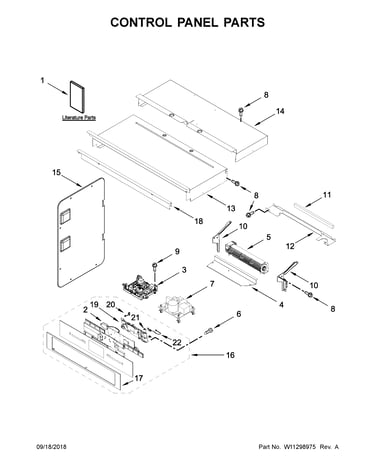

Control panel parts diagram

Control (with power supply)

Part #W11040195

Replaced by #W11179310

?
Manufacturer substitution
This part replaces W11040195. Substitute parts can look different from the original.
BEST SELLER
$322.55 |
$10.00 OFF Phone Price : $332.55
In Stock
Range Bake Element W10546517
#7

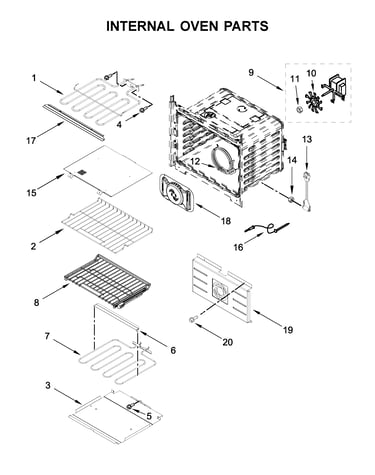

Internal oven parts diagram

Range bake element

Part #W10546517

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W10546517. Substitute parts can look different from the original.
BEST SELLER
$60.68 |
8% OFF Phone Price : $65.68
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Range Oven Meat Probe 9755542
#16

Internal oven parts diagram

Range oven meat probe

Part #9755542

Replaced by #WP9755542

?
Manufacturer substitution
This part replaces 9755542. Substitute parts can look different from the original.
$80.39 |
6% OFF Phone Price : $85.39
In Stock
Electronic Control Board W10260060
#7

Control panel parts diagram

Electronic control board

Part #W10260060

Replaced by #WPW10260060

?
Manufacturer substitution
This part replaces W10260060. Substitute parts can look different from the original.
$282.12 |
10% OFF Was : $313.47
In Stock
8-32 X .860 W10480830
#11

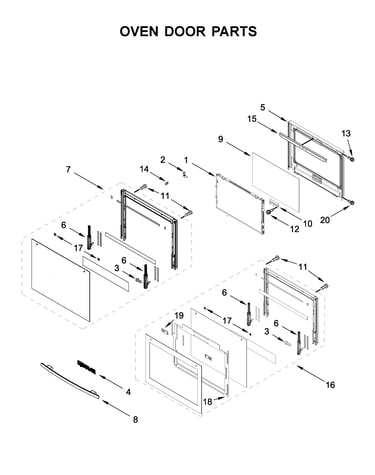

Oven door parts diagram

8-32 x .860

Part #W10480830

Replaced by #W10831019

?
Manufacturer substitution
This part replaces W10480830. Substitute parts can look different from the original.
This item is not returnable
$4.76 |
17% OFF Phone Price : $5.76
In Stock
Range Oven Rack W10554526
#2

Internal oven parts diagram

Range oven rack

Part #W10554526

Replaced by #WPW10554526

?
Manufacturer substitution
This part replaces W10554526. Substitute parts can look different from the original.
$79.59 |
6% OFF Phone Price : $84.59
In Stock
