Model # 14X13T-01002 Official Emerson electronic air cleaner

Here are the diagrams and repair parts for Official Emerson 14X13T-01002 electronic air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 18 parts |

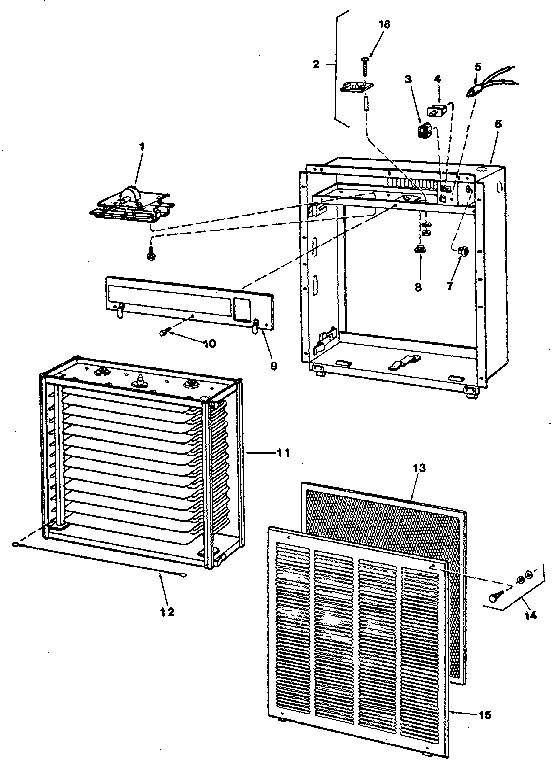

Replacement parts diagram

Switch

Part #F859-0291

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Switch

Part #F876-0187

Replaced by #F876-0199

$49.49

In Stock

Qty

#11

Replacement parts diagram

Cell

Part #F811-0264

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Switch

Part #F876-0201

Replaced by #F876-0202

$38.49

In Stock

Qty

Replacement parts diagram

Power supply

Part #F858-0779

The manufacturer no longer makes this part, and there's no substitute part

#13

Replacement parts diagram

Screen

Part #F825-0228

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Stran relief

Part #F888-0050

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Container

Part #F801-0133

The manufacturer no longer makes this part, and there's no substitute part

#14

Replacement parts diagram

Screw

Part #F870-0018

The manufacturer no longer makes this part, and there's no substitute part

#15

Replacement parts diagram

Grill

Part #F831-0094

The manufacturer no longer makes this part, and there's no substitute part
