Model # WAC052T7A5 Official White-Westinghouse room air conditioner - 5995259834

Here are the diagrams and repair parts for Official White-Westinghouse WAC052T7A5 room air conditioner - 5995259834, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

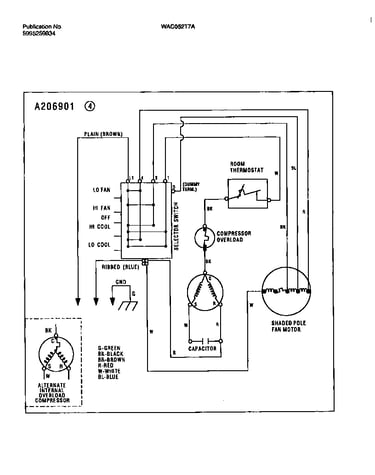

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Cover Capacitor 5303302855
#19

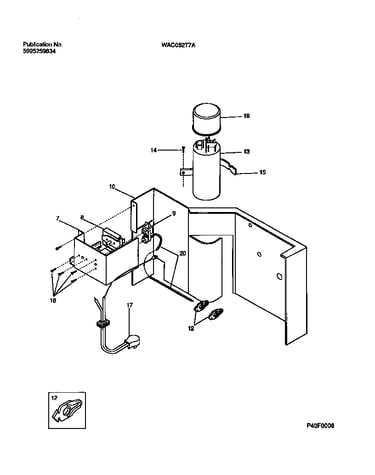

Controls diagram

Cover capacitor

Part #5303302855

In Stock
Bulkhead 309602401
Bulkhead

Part #309602401

In Stock
Wrapper 5303302856
#1

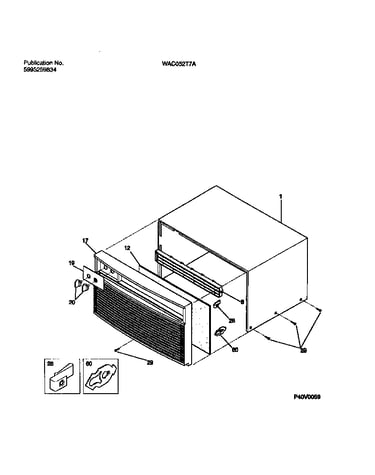

Cabinet front & wrapper diagram

Wrapper

Part #5303302856

In Stock
Dial Plate 5303304367
#19

Cabinet front & wrapper diagram

Dial plate

Part #5303304367

This item is not returnable
In Stock
Room Air Conditioner Filter Dryer 5300265301
#17

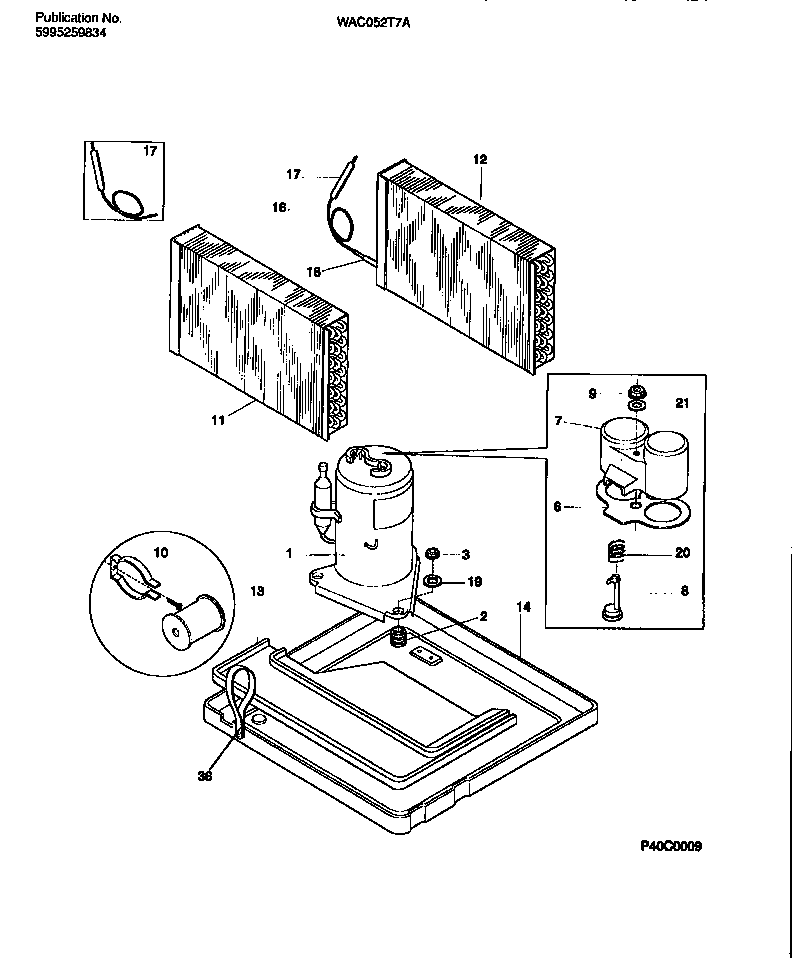

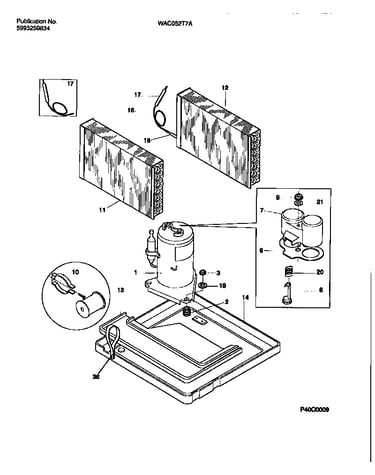

Compressor diagram

Room air conditioner filter dryer

Part #5300265301

In Stock
Screw 3202975
#2

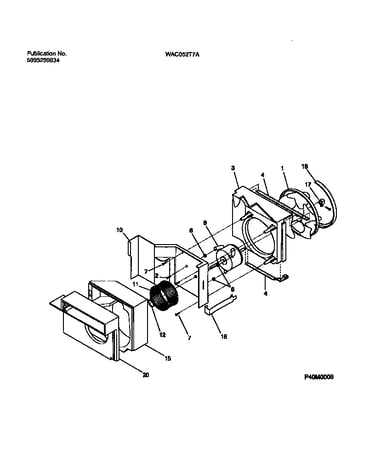

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 5303303691
Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
In Stock
Gasket 3002603
#1

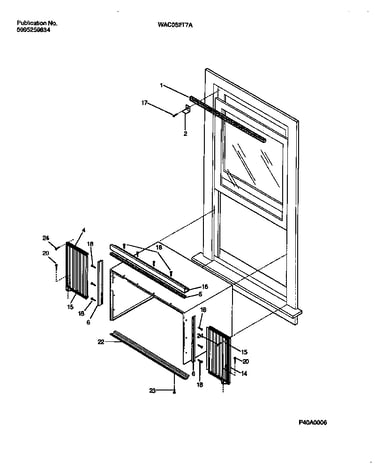

Window mounts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
In Stock
Evaporator Tray 5303302849
#13

Compressor diagram

Evaporator tray

Part #5303302849

The manufacturer no longer makes this part, and there's no substitute part

Control Cover 5303291329
#7

Compressor diagram

Control cover

Part #5303291329

The manufacturer no longer makes this part, and there's no substitute part
