Kenmore
Space Heater

Model # 36012 Official Kenmore radiant fan-forced electric heater

Here are the diagrams and repair parts for Official Kenmore 36012 radiant fan-forced electric heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

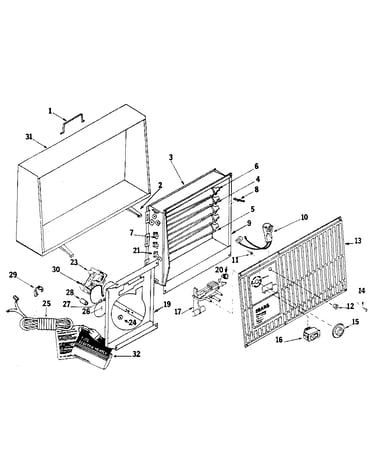

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Fan Motor 93914701
#23

Replacement parts diagram

Fan motor

Part #93914701

The manufacturer no longer makes this part, and there's no substitute part

Element 10705000
#5

Replacement parts diagram

Element

Part #10705000

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade M719201A
#26

Replacement parts diagram

Fan blade

Part #M719201A

The manufacturer no longer makes this part, and there's no substitute part

Switch 1003714000
#16

Replacement parts diagram

Switch

Part #1003714000

The manufacturer no longer makes this part, and there's no substitute part

Fact Tag 1005143000
#32

Replacement parts diagram

Fact tag

Part #1005143000

The manufacturer no longer makes this part, and there's no substitute part

Handle 29681001
#1

Replacement parts diagram

Handle

Part #29681001

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel N/P
Blower wheel

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob 1003971001
#15

Replacement parts diagram

Thermostat knob

Part #1003971001

The manufacturer no longer makes this part, and there's no substitute part

Lens 1004338001
#12

Replacement parts diagram

Lens

Part #1004338001

The manufacturer no longer makes this part, and there's no substitute part

Spacer 26644022
#28

Replacement parts diagram

Spacer

Part #26644022

The manufacturer no longer makes this part, and there's no substitute part
