KitchenAid KEMS378BAL1 27" electric built-in double oven with microwave

KitchenAid KEMS378BAL1 27" electric built-in double oven with microwave Parts

Here are the diagrams and repair parts for KitchenAid KEMS378BAL1 27" electric built-in double oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

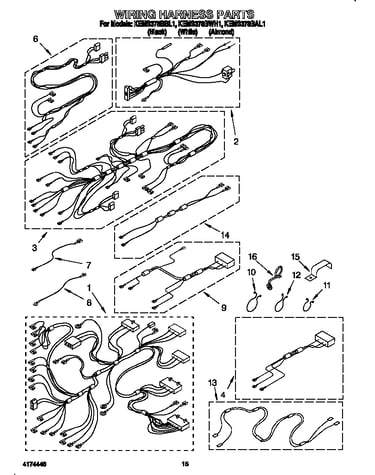

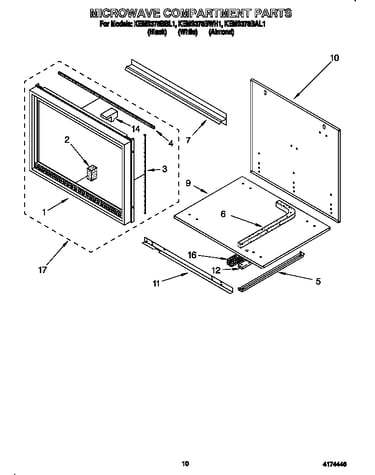

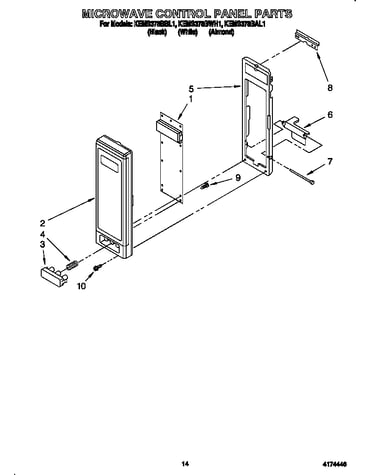

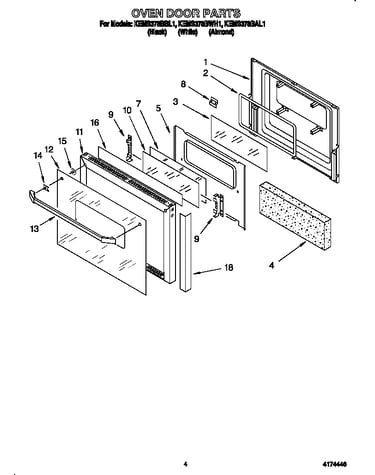

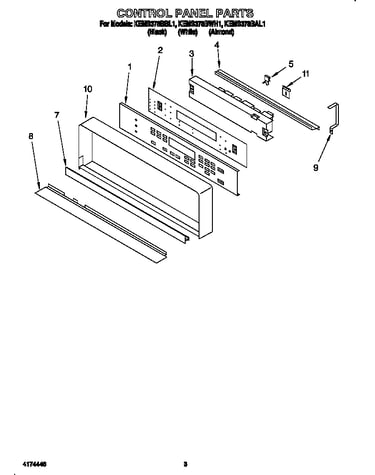

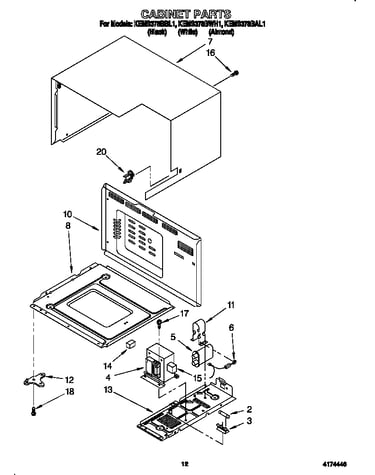

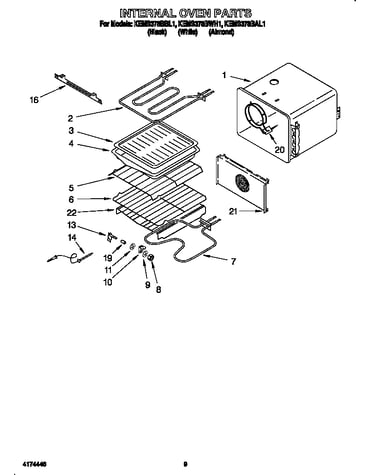

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEMS378BAL1 27" Electric Built-In Double Oven with Microwave

  • Appliance Spray Paint (white) for KitchenAid KEMS378BAL1 - Part 350930

    #NI

    All parts diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Light Bulb for KitchenAid KEMS378BAL1 - Part WPA3073101

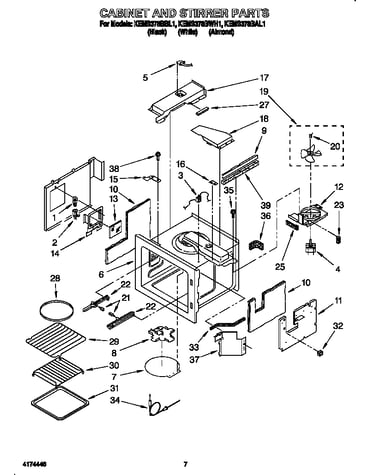

    Cabinet and stirrer diagram

    Light Bulb

    Part #4312826

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces 4312826. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (almond) for KitchenAid KEMS378BAL1 - Part WP72107

    #NI

    All parts diagram

    Touchup Al

    Part #72107

    Replaced by #WP72107

    Info Icon
    Manufacturer substitution
    This part replaces 72107. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.89
    9% OFF Phone Price : $10.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for KitchenAid KEMS378BAL1 - Part WPW10017410

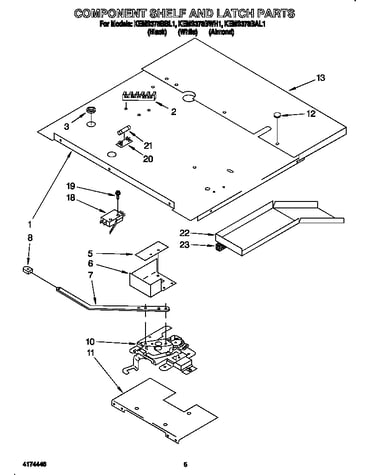

    Component shelf and latch diagram

    Fuse

    Part #309796

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces 309796. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for KitchenAid KEMS378BAL1 - Part 72032

    #NI

    All parts diagram

    Touch-up Paint (black)

    Part #72032

    Replaced by #72032

    Info Icon
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Assembly for KitchenAid KEMS378BAL1 - Part W11594027

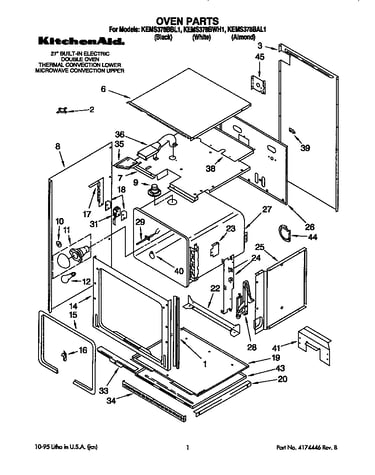

    Oven diagram

    Light Socket

    Part #3150505

    Replaced by #W11594027

    Info Icon
    Manufacturer substitution
    This part replaces 3150505. Substitute parts can look different from the original.
    In Stock
    $73.85
    8% OFF Phone Price : $79.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Primary Interlock Switch for KitchenAid KEMS378BAL1 - Part 4392027

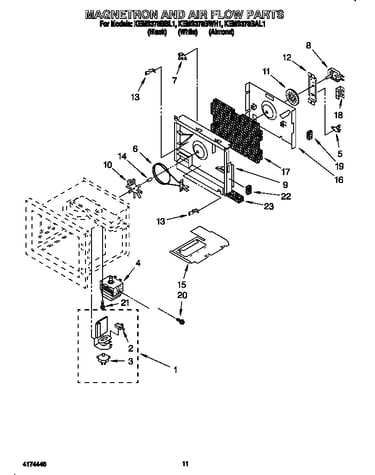

    Magnetron and air flow diagram

    Switch

    Part #4312823

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4312823. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Primary Interlock Switch for KitchenAid KEMS378BAL1 - Part 4392027

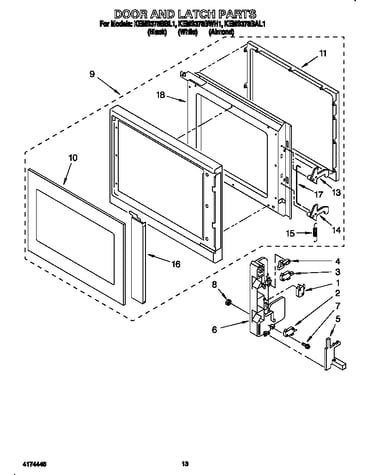

    Door and latch diagram

    Switch

    Part #4313611

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4313611. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Primary Interlock Switch for KitchenAid KEMS378BAL1 - Part 4392027

    Door and latch diagram

    Switch

    Part #4312948

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4312948. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Kirkland Appliance Touch-up Paint, 0.6-oz (golden Harvest) for KitchenAid KEMS378BAL1 - Part 72110

    #NI

    All parts diagram

    Touchup Ng

    Part #72110

    Replaced by #72110

    Info Icon
    Manufacturer substitution
    This part replaces 72110. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.24
    11% OFF Phone Price : $18.24Info Icon
    Minus Item
    Qty
    Plus Item
