Kenmore 58074132400 air conditioner Parts

A 13,500 BTU room air conditioner typically cools about 550 to 700 sq. ft. In real homes, the best coverage depends on heat load (sun exposure, insulation, ceiling height, and humidity), so the same BTU can feel “right” in one room and undersized in another. For operating tips that affect comfort, use the 58074132400 owner's manual.

Quick sizing guide (13,500 BTU)

• Best case (shaded, insulated, average ceilings): ~650 to 700 sq. ft.
• Typical case (mixed sun, average insulation): ~550 to 650 sq. ft.
• Tough conditions (strong sun, high humidity, poor insulation): ~450 to 550 sq. ft.
• Open floor plans: plan toward the lower end because air does not “turn corners” well
• Kitchens or heat-producing spaces: size toward the lower end

Why the same BTU can cool different square footage

The Kenmore 58074132400 manual explains that when the heat or humidity load is above normal, the air conditioner must run longer and more often, and under heavy heat load it may need to run constantly to hold the set temperature.

Common heat-load factors

• Direct afternoon sun through windows
• Poor insulation or air leaks
• High ceilings (more air volume)
• High outdoor humidity
• Many occupants, electronics, or cooking heat

What to do if it is not cooling enough

Before assuming the unit is too small, we recommend these basics:

• Clean the air filter and confirm strong airflow
• Close blinds/curtains on sunny windows
• Set to Cool with a lower temperature setpoint
• Use a higher fan speed for better circulation
• Make sure the front grille and louvers are not blocked

Symptom	Most common cause	What we do first
Runs constantly, room stays warm	Heat load too high or airflow restricted	Clean filter, reduce sun/heat sources
Cools some areas but not others	Poor circulation or open layout	Use fan speed, add a room fan
Short cycles on and off	Thermostat sensing or airflow issue	Check filter and airflow path

Why it matters

Correct BTU-to-room sizing helps the unit maintain temperature without excessive run time, improves comfort in humidity, and reduces wear on the compressor.

Last updated: January 2026

The most common problems we see with the Kenmore 58074132400 room air conditioner are weak or warm airflow, the unit not turning on, noisy operation, and louvers that will not move. Many of these issues trace back to airflow restrictions, power/control problems, or worn vibration and air-direction parts; use the owner's manual for model-specific operating checks.

Common symptoms and what usually causes them

• Not cooling or weak airflow: dirty/blocked air filter, clogged coils, fan not moving air, or incorrect mode/temperature setting
• Won’t power on: tripped breaker, bad cord/outlet, or a control issue such as the electronic control board
• Noisy or vibrating: loose mounting hardware, fan imbalance, or worn compressor isolation parts
• Louvers stuck or not directing air: broken louver, stripped link, or binding from dust buildup
• Short cycling (turns on and off often): restricted airflow, thermistor sensing issues, or control problems

Quick checks we recommend first (no tools)

1. Set the unit to Cool, lowest temperature, and High Fan.
2. Clean or replace the filter; for this model, see the room air conditioner air filter 5230A20041E.

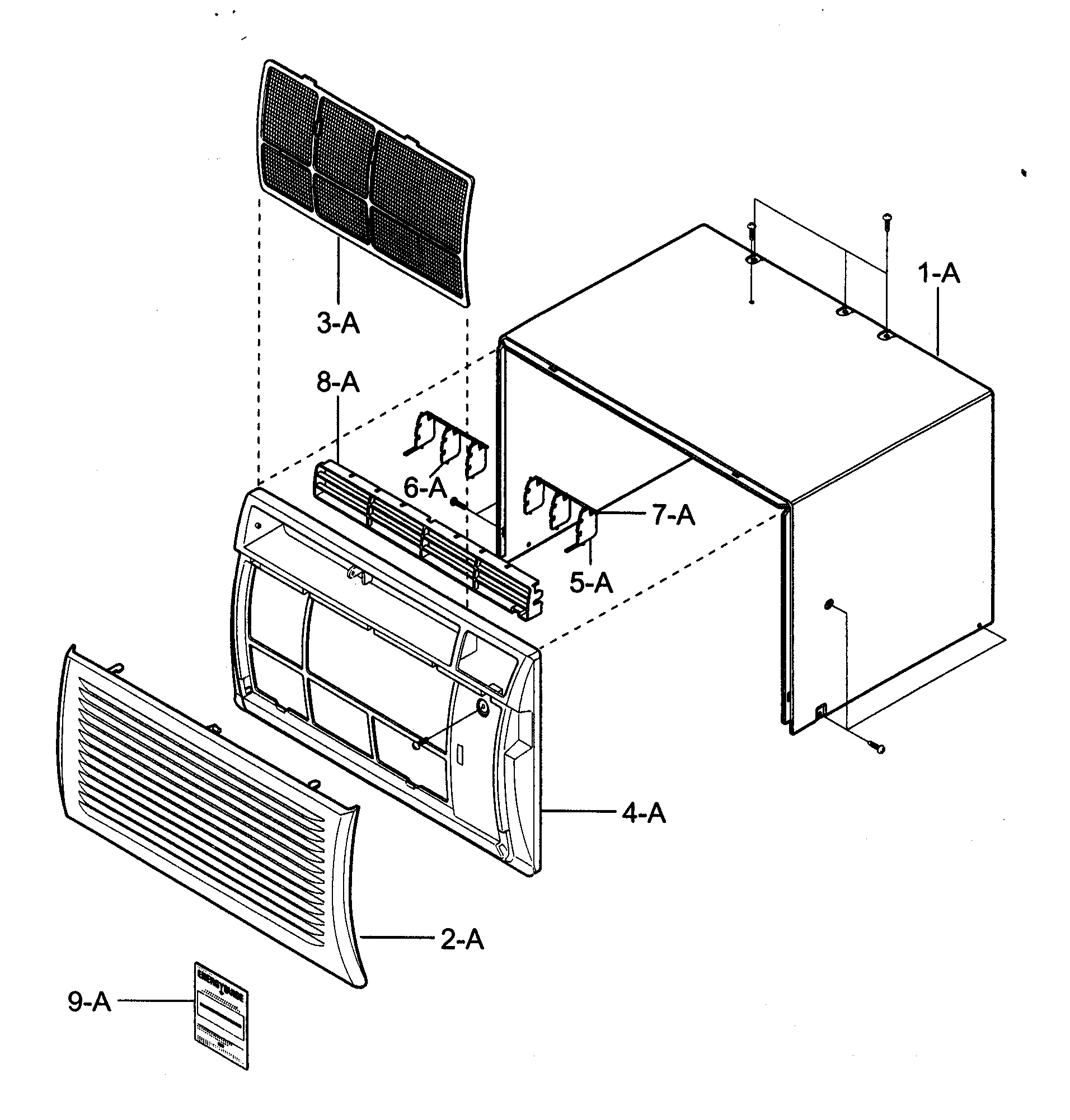

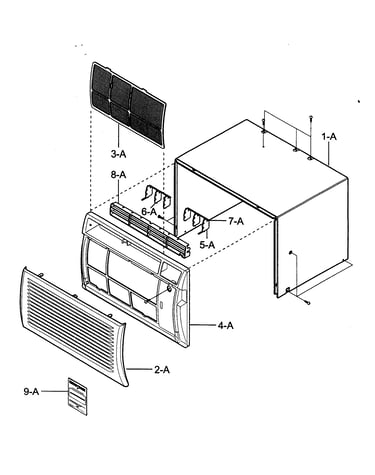

3. Make sure the front grille and rear grille are not blocked by furniture, curtains, or debris.
4. Listen for the indoor fan and outdoor fan; a fan that hums but does not spin points to a mechanical or electrical issue.
5. Inspect the louvers for broken slats or a disconnected linkage; parts like the room air conditioner louver link 4520A20007A commonly affect air direction.

Parts that commonly relate to these issues

Symptom	Likely area	Example part on this model
Weak airflow	Filtration/air path	Room air conditioner air filter (5230A20041E)

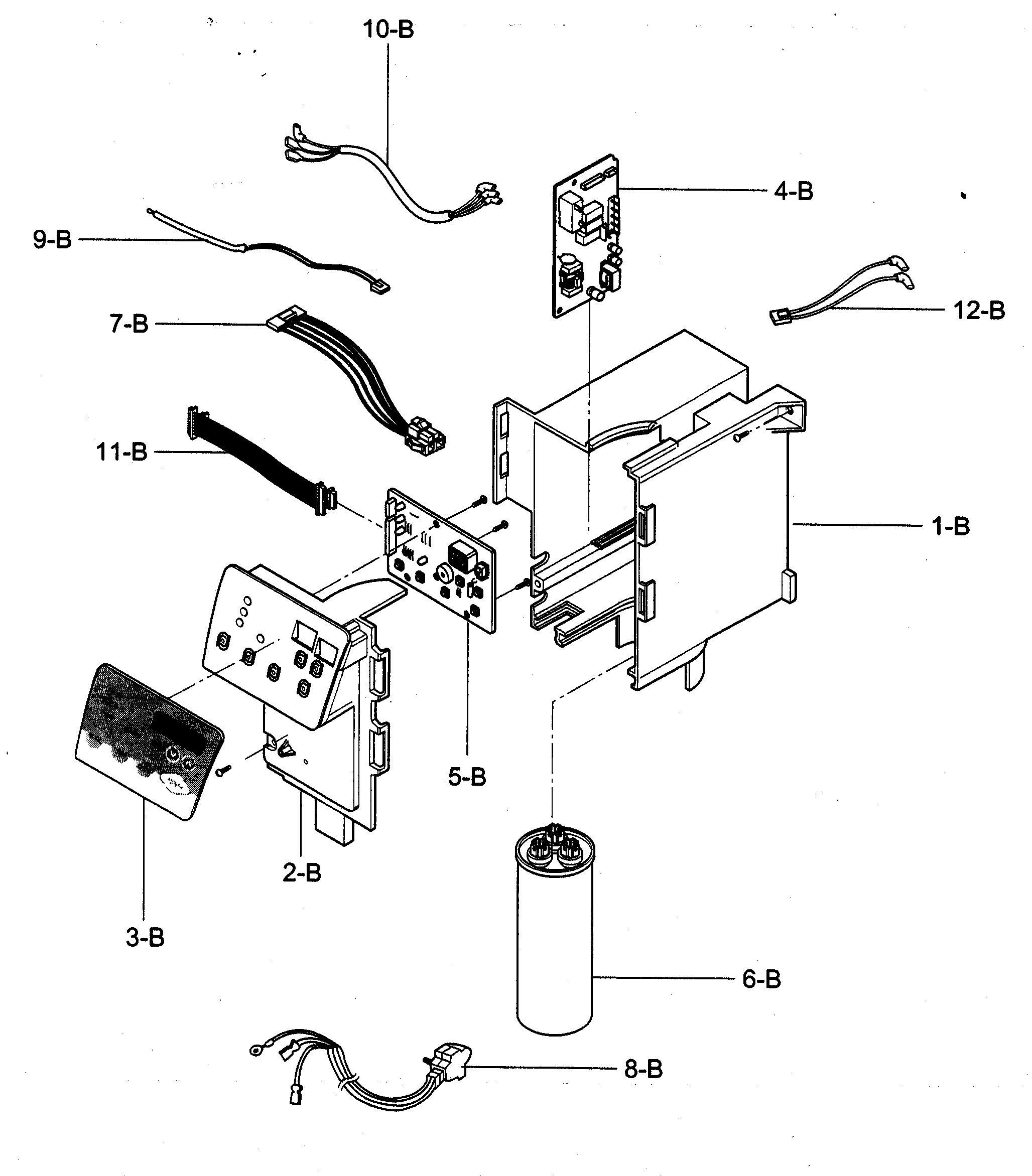

Dead display or no response	Controls	Room air conditioner electronic control board assembly (6871A01001B)

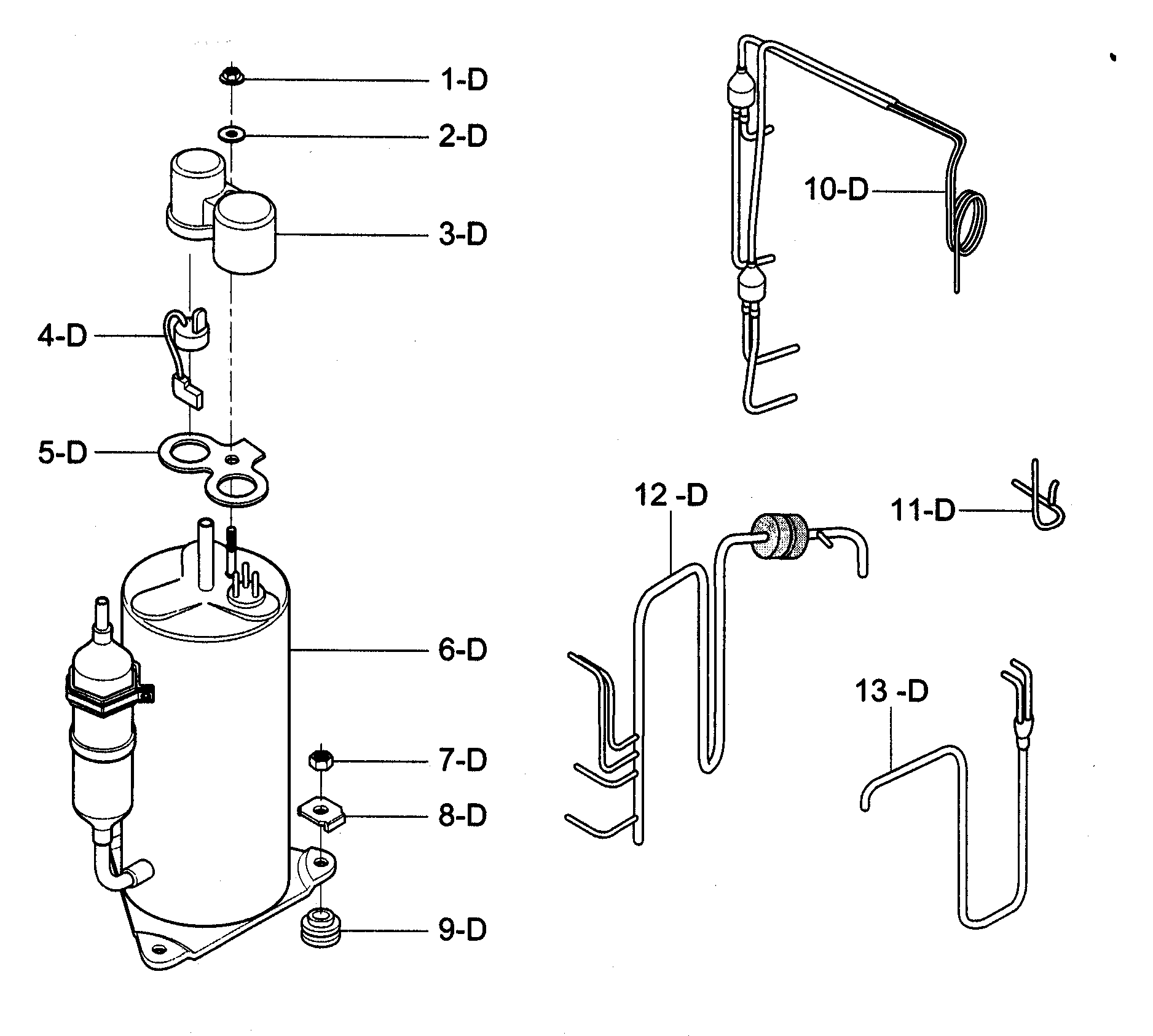

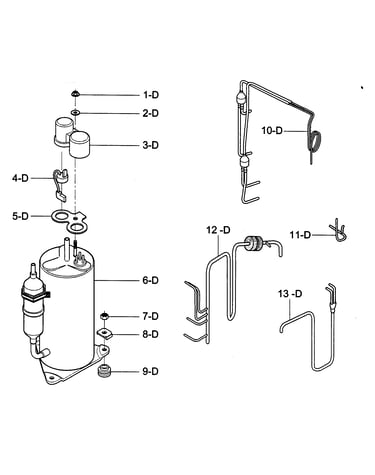

Rattling/vibration	Isolation/mounting	Icp room air conditioner compressor grommet (4H00982E)
Louvers won’t move	Air direction	Room air conditioner louver link (4520A20007A)

Why it matters

Room air conditioners like the Kenmore 58074132400 depend on steady airflow across the coils. A restricted filter or stuck louvers reduces cooling, increases run time, and can make the unit louder and less efficient.

Last updated: March 2026

A Kenmore room air conditioner like model 58074132400 typically lasts 10 years with normal seasonal use and basic maintenance. Keeping airflow clear and the unit clean helps it reach that lifespan and reduces strain on the compressor and electronic controls.

What affects lifespan the most

• Cleaning the filter regularly (restricted airflow overheats the system)
• Keeping the coils and rear grille clear of lint and debris
• Proper drainage and keeping the unit level in the sleeve/window
• Avoiding constant short-cycling (frequent on/off)
• Stable power supply (surges can damage controls)

Maintenance checklist (what we recommend)

Use the schedule in your 58074132400 owner's manual and follow these basics:

• Monthly during heavy use: clean or replace the air filter
• Seasonally: vacuum dust from the front grille and rear intake/exhaust area
• Seasonally: inspect the louvers for binding and make sure airflow direction moves freely
• As needed: tighten loose mounting hardware and check for vibration

Common “end-of-life” symptoms vs. fixable issues

Symptom	Often fixable?	Common next step
Weak airflow but unit runs	Yes	Clean filter; check for blocked grille and louvers
Unit dead or unresponsive	Often	Check power; inspect controls and wiring
Loud vibration/rattling	Often	Check mounting; inspect fan blade and clamps
Poor cooling with normal airflow	Sometimes	Coil cleaning; sealed-system issues are less economical

If airflow parts are damaged, replacing items like the room air conditioner air filter 5230A20041E can restore performance and reduce wear.

Why it matters

A room air conditioner that is starved for airflow or vibrates excessively runs hotter and longer; that accelerates wear on the compressor, capacitor, and control board and shortens overall service life.

Last updated: March 2026
