Model # NUGK100KH09 Official ICP condensing upflow gas furnace

Here are the diagrams and repair parts for Official ICP NUGK100KH09 condensing upflow gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Capacitor 91593
#13

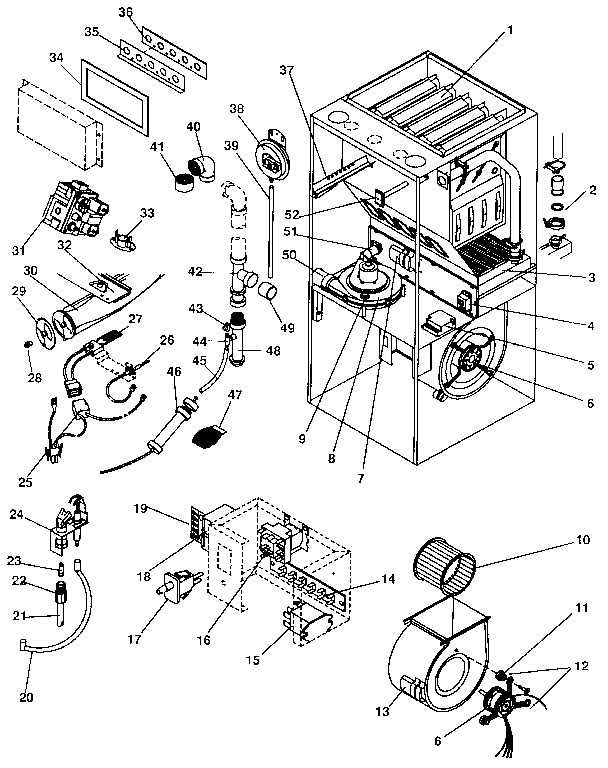

Functional replacement parts diagram

Capacitor

Part #91593

Replaced by #12908

?
Manufacturer substitution
This part replaces 91593. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Module 1005651
#5

Functional replacement parts diagram

Module

Part #1005651

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 602974
#7

Functional replacement parts diagram

Capacitor

Part #602974

Replaced by #12005

?
Manufacturer substitution
This part replaces 602974. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Limit Switch 1005549
#33

Functional replacement parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Control Elec 1005229
#4

Functional replacement parts diagram

Control elec

Part #1005229

Replaced by #7070

?
Manufacturer substitution
This part replaces 1005229. Substitute parts can look different from the original.
$86.18 |
7% OFF Phone Price : $92.18
In Stock
Furnace Fan Control Relay 1000742
#15

Functional replacement parts diagram

Furnace fan control relay

Part #1000742

$35.62 |
14% OFF Phone Price : $41.62
In Stock
Central Air Conditioner Air Handler Blower Wheel 96839
#10

Functional replacement parts diagram

Central air conditioner air handler blower wheel

Part #96839

$148.95 |
7% OFF Phone Price : $160.95
In Stock
Valve 1005597
#31

Functional replacement parts diagram

Valve

Part #1005597

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower 1005150
#8

Functional replacement parts diagram

Furnace blower

Part #1005150

Replaced by #1011350

?
Manufacturer substitution
This part replaces 1005150. Substitute parts can look different from the original.
$636.16 |
$12.00 OFF Phone Price : $648.16
In Stock
Union Tee 613051
#43

Functional replacement parts diagram

Union tee

Part #613051

$26.54
In Stock
