DeWalt DCH253B TYPE 1 cordless rotary hammer Parts

Here are the diagrams and repair parts for DeWalt DCH253B TYPE 1 cordless rotary hammer, as well as links to manuals and error code tables, if available.

DeWalt DCH253B TYPE 1 cordless rotary hammer
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDCH253B TYPE 1 Power Tools

  • Magnt Ring for DeWalt DCH253B TYPE 1 - Part 648124-00

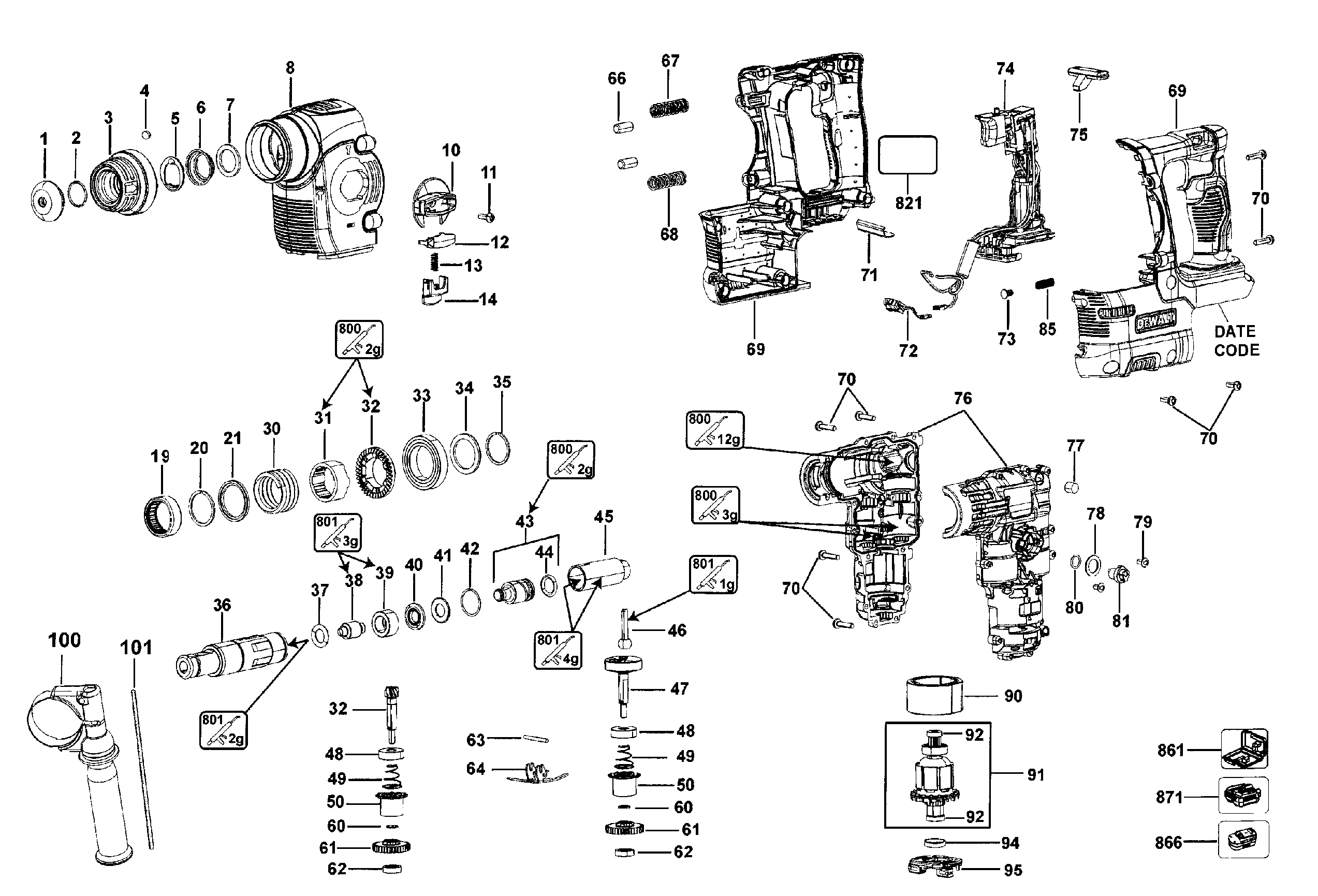

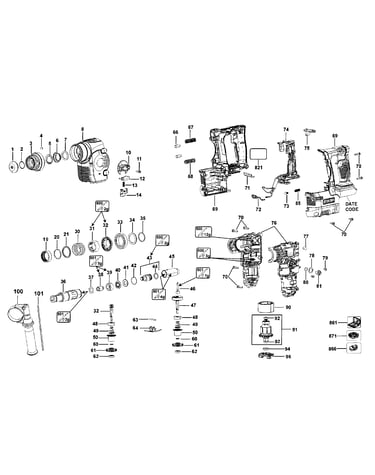

    Drill hammer assy diagram

    Magnt Ring

    Part #648124-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Rod Depth for DeWalt DCH253B TYPE 1 - Part 580787-00

    Drill hammer assy diagram

    Rod Depth

    Part #580787-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for DeWalt DCH253B TYPE 1 - Part 330019-80

    Drill hammer assy diagram

    Screw

    Part #330019-80

    The manufacturer no longer makes this part, and there's no substitute part

  • Pin for DeWalt DCH253B TYPE 1 - Part 575032-00

    Drill hammer assy diagram

    Pin

    Part #575032-00

    The manufacturer no longer makes this part, and there's no substitute part

  • Dewalt Switch for DeWalt DCH253B TYPE 1 - Part N294000

    Drill hammer assy diagram

    Dewalt Switch

    Part #N294000

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for DeWalt DCH253B TYPE 1 - Part N119679

    Drill hammer assy diagram

    Spring

    Part #N119679

    The manufacturer no longer makes this part, and there's no substitute part

  • Bearing for DeWalt DCH253B TYPE 1 - Part N149956

    Drill hammer assy diagram

    Bearing

    Part #N149956

    The manufacturer no longer makes this part, and there's no substitute part

  • Block for DeWalt DCH253B TYPE 1 - Part N122099

    Drill hammer assy diagram

    Block

    Part #N122099

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover for DeWalt DCH253B TYPE 1 - Part N076342

    Drill hammer assy diagram

    Cover

    Part #N076342

    The manufacturer no longer makes this part, and there's no substitute part

  • Crankshaft for DeWalt DCH253B TYPE 1 - Part N288223

    Drill hammer assy diagram

    Crankshaft

    Part #N288223

    The manufacturer no longer makes this part, and there's no substitute part
