Model # 1435.002 Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana 1435002 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Aurge Resistor (10 Ohm) M3D48
#31A

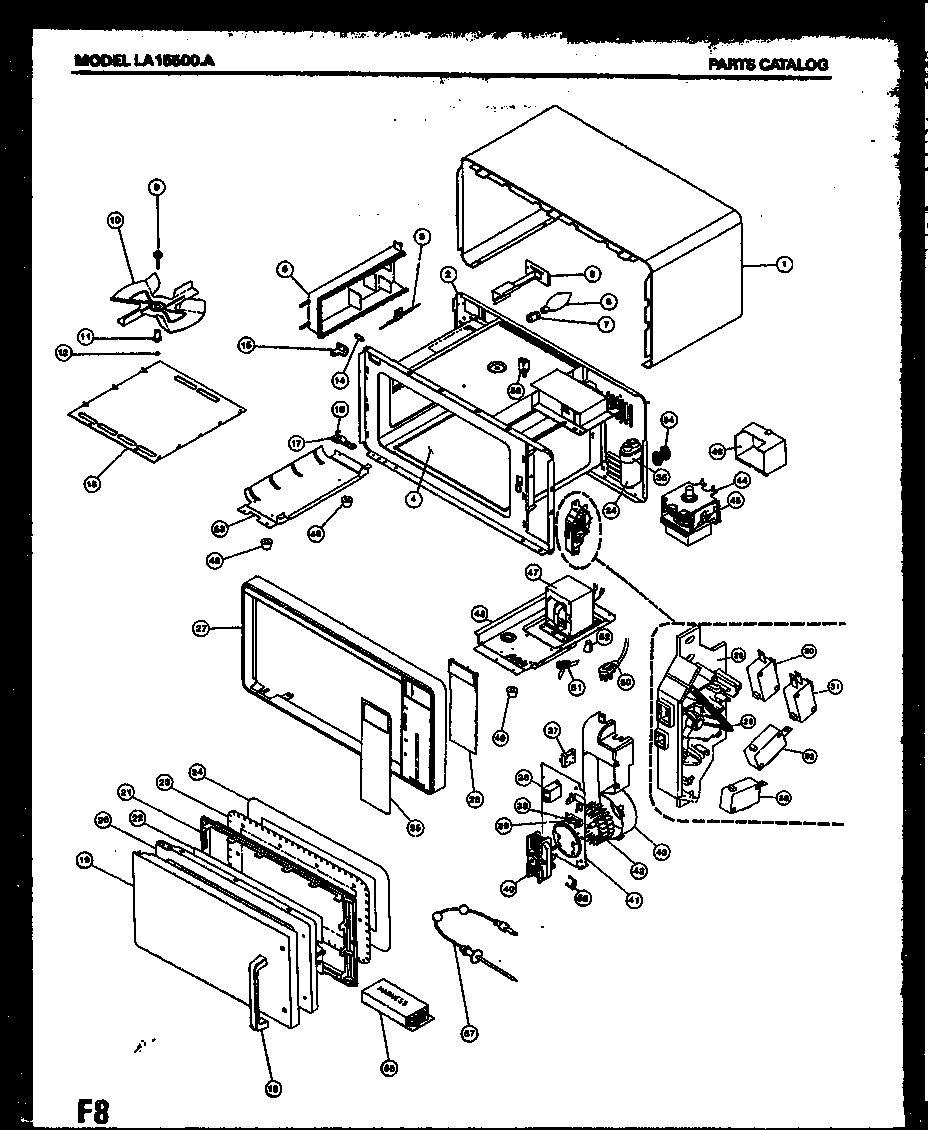

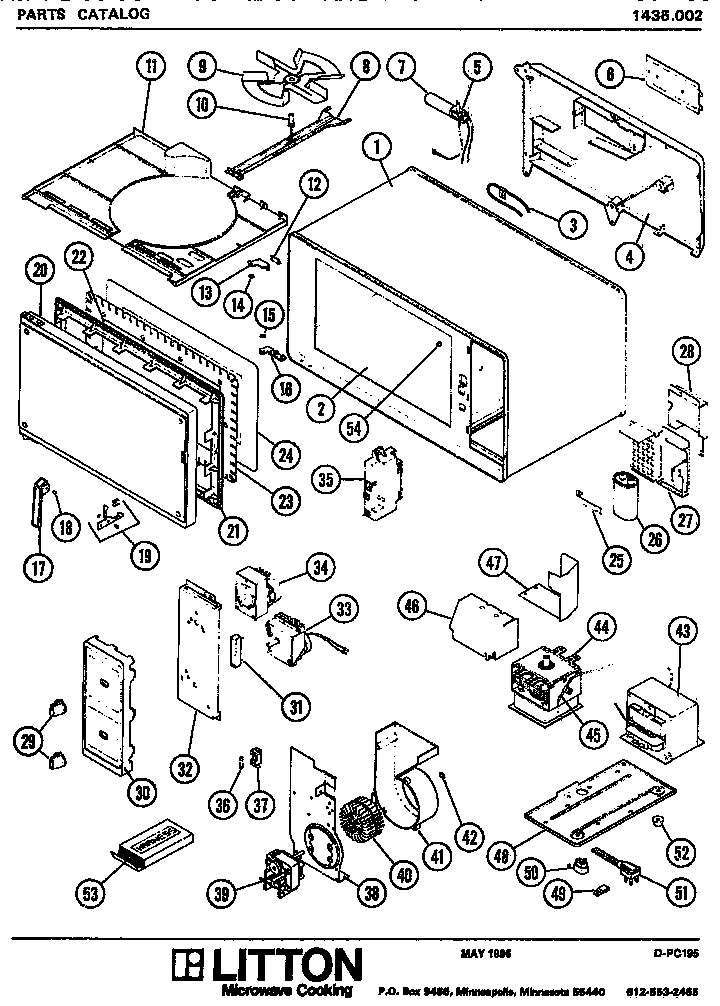

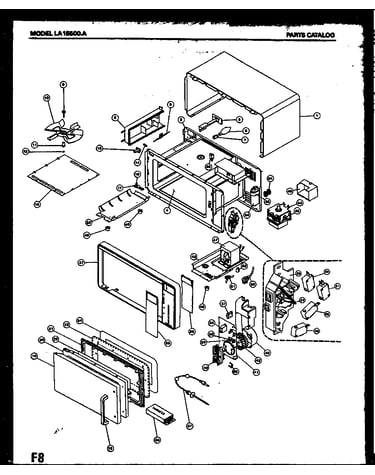

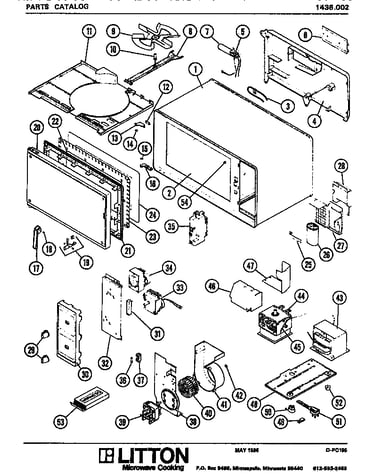

Mw parts(1435.002) diagram

Aurge resistor (10 ohm)

Part #M3D48

The manufacturer no longer makes this part, and there's no substitute part

Replacememt Thermometer M95D11
#54F

Mw parts(1435.002) diagram

Replacememt thermometer

Part #M95D11

The manufacturer no longer makes this part, and there's no substitute part

R.t.c. Sealant - Shelf Mtg. M13D2
#2B

Mw parts(1435.002) diagram

R.t.c. sealant - shelf mtg.

Part #M13D2

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual M94D485
#54D

Mw parts(1435.002) diagram

Use and care manual

Part #M94D485

The manufacturer no longer makes this part, and there's no substitute part

Blower Bracket (includes E-ring) M20D285
#38A

Mw parts(1435.002) diagram

Blower bracket (includes e-ring)

Part #M20D285

The manufacturer no longer makes this part, and there's no substitute part

Lockwasher, Cord Grounding M1D84
#51E

Mw parts(1435.002) diagram

Lockwasher, cord grounding

Part #M1D84

The manufacturer no longer makes this part, and there's no substitute part

Air Duct - Rear M65D336
#47A

Mw parts(1435.002) diagram

Air duct - rear

Part #M65D336

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (include Ref. Nos. 2, 3, 52) M77D144
#1A

Mw parts(1435.002) diagram

Cavity assembly (include ref. nos. 2, 3, 52)

Part #M77D144

The manufacturer no longer makes this part, and there's no substitute part

Component Mounting Plate M7D788
#32A

Mw parts(1435.002) diagram

Component mounting plate

Part #M7D788

The manufacturer no longer makes this part, and there's no substitute part

Wave Washer (upper Hinge Pin) M2D583
#14

Mw parts(1435.002) diagram

Wave washer (upper hinge pin)

Part #M2D583

The manufacturer no longer makes this part, and there's no substitute part
